Baumatic HHG610SS Manuale utente

User Manual for your

HHG610SS

60cm 4 burner gas hob

HHG710SS

70cm 5 burner gas hob

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

GS 09/03/12

Contents

Env ronmental note 3

Important safety nformat on 4 - 6

Spec f cat ons 7 - 10

HHG610SS 7

HHG710SS 8

Electrical details 9

Gas details 9

Gas hob surface layout 10

Us ng the gas hob 11 - 12

efore first use 11

The gas hob 11

Automatic ignition with flame failure safety device 11 - 12

Energy saving tips 12

Clean ng 13 - 14

Cleaning the hob top 13

After each use 13

Cleaning the hob burners 13 - 14

Installat on 14 - 24

Positioning 15 - 16

Unpacking the appliance 16

Installing the appliance 16 - 18

Gas connection 18 - 19

Ventilation requirements 19 - 20

Gas Safety (Installation and Use) Regulations 20 - 21

Gas Adjustment (Conversion to LPG) 21 - 22

Minimum flow adjustment for hob gas taps 22 - 23

Gas tap maintenance 23 - 24

Electrical connection 24

Replacing the mains supply cable 24

My appl ance sn’t work ng correctly 25

Contact deta ls 28

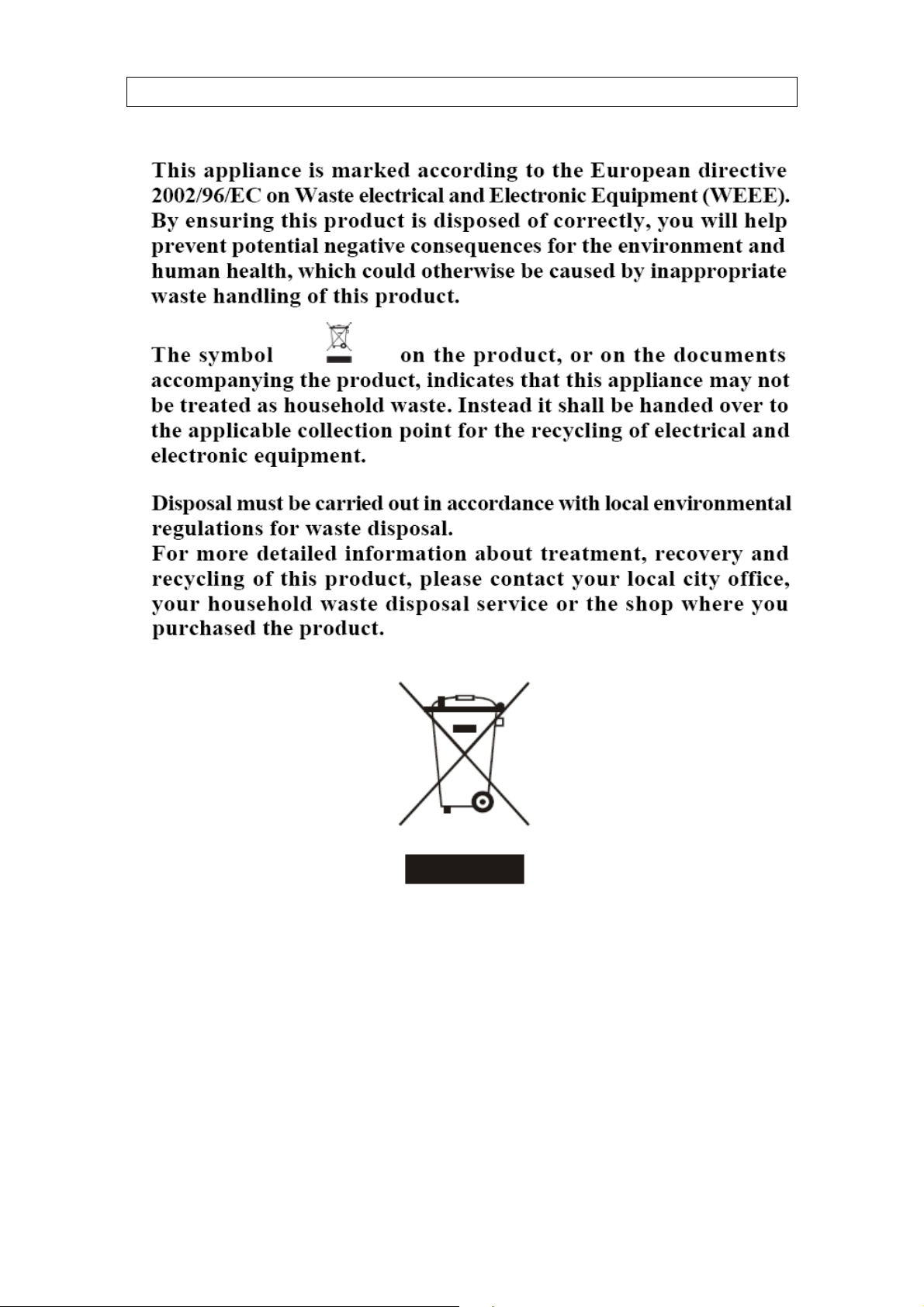

Env ronmental note

oThe packaging materials that the manufacturer uses are

environmentally friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety nformat on

Your safety is of the utmost importance to us. Please

make sure that you read this instruction booklet before

attempting to install or use the appliance. If you are

unsure of any of the information contained in this

booklet, please contact the Customer Care Department.

General Informat on

oThis appliance is designed for domestic household use and for

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, will be the liability of

the owner

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in the manufacturer’s Conditions Of Guarantee. The foregoing

does not affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of the manufacturer

will invalidate any warranty or liability claim.

oYou should not use this appliance to store items on or as a work

surface.

oNo modifications to the appliance are permitted by the

manufacturer.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be kept away

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by service engineers that

are approved by the manufacturer

Ch ld Safety

oWe strongly recommend that babies and young children are

prevented from being near to the appliance and not allowed to

touch the appliance at any time During and after use, all

surfaces will be hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oOlder children should only be allowed to utilise the appliance

when supervised.

General Safety

oThe appliance should only be installed and connected by a

GASSAFE registered installer.

oCare should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

Dur ng use

oAny film or stickers that are present on the hob surface when it

is delivered should be removed before use.

oCare should be used when utilising the appliance, otherwise

there is a risk of burns being caused.

oYou should not allow the electrical connection cables to come

into contact with the hob surface when it is hot or any hot

cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooking with fat and oil the appliance should

not be left unattended.

oMake sure that all of the cooking zones are switched off after

use.

Clean ng

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installat on

This appliance must be correctly installed by a

GASSAFE registered installer, strictly in

accordance with the manufacturer’s instructions

and the relevant British Standards Please see the

specific section of this booklet that refers to

installation

oThe manufacturer declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance

oIf the appliance is being used in a Leisure Accommodation

Vehicle, the requirements of N 721 MUST be followed

oThe manufacturer DOES NOT recommend that this

appliance is installed on any type of marine vessel

Declarat on of conform ty

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-2009/142/CE Concerning gas appliances

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

The manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance with

the standards currently in force. This appliance must be used by a

trained person for domestic purposes only.

Spec f cat ons

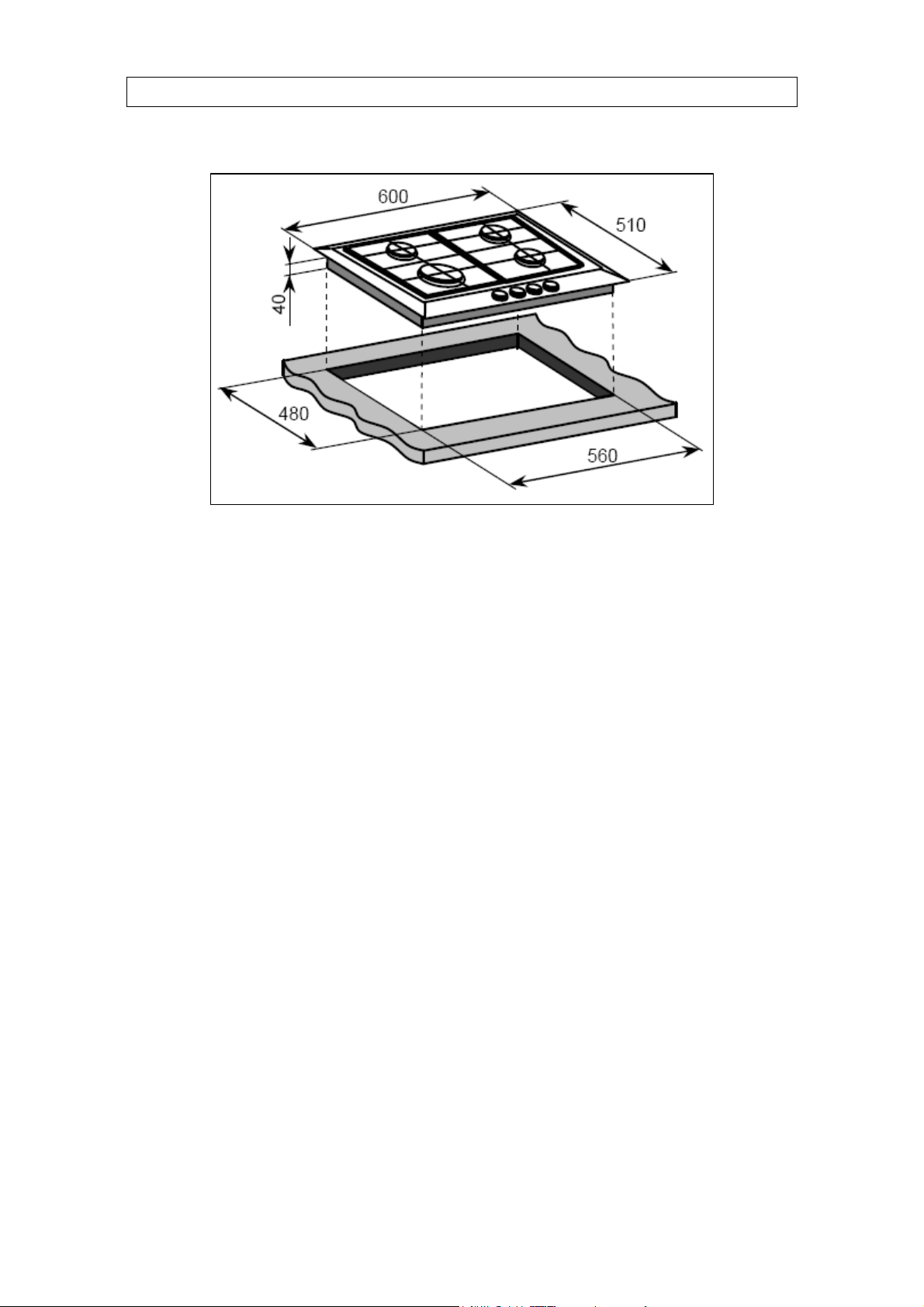

HHG610SS

Product d mens ons:

Depth: 510 mm

Width: 600 mm

Height: 40 mm

Aperture d mens ons:

Depth: 480 mm

Width: 560 mm

Product spec f cat ons:

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oEnamelled pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessor es:

oLPG conversion jets

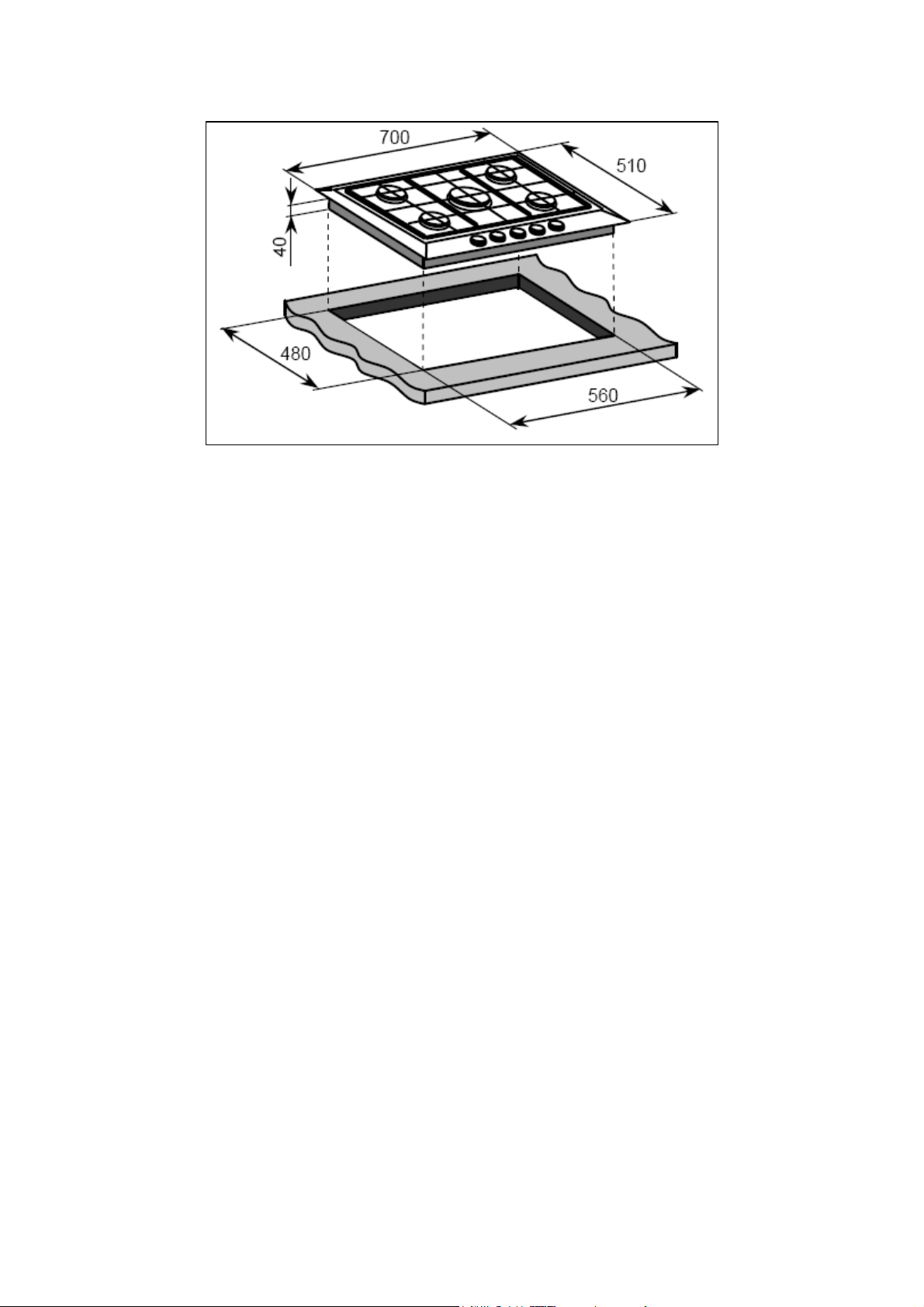

HHG710SS

Product d mens ons:

Depth: 510 mm

Width: 700 mm

Height: 40 mm

Aperture d mens ons:

Depth: 480 mm

Width: 560 mm

Product spec f cat ons:

o1 x 3.80 kW triple crown (wok) burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oEnamelled pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessor es:

oLPG conversion jets

Electr cal deta ls

Rated Voltage: 220 - 240 Vac 50 / 60 Hz

Supply Connection: 3 A (double pole switched fused outlet with

3mm contact gap)

Max Rated Inputs: 0.8 W

Mains Supply Lead: 3 core x 0.75 mm²

Gas deta ls

Connection: Rp ½ (ISO R7)

Type: Natural Gas (20 mbar)

Alternative LPG G30 (28-30/37 mbar)

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

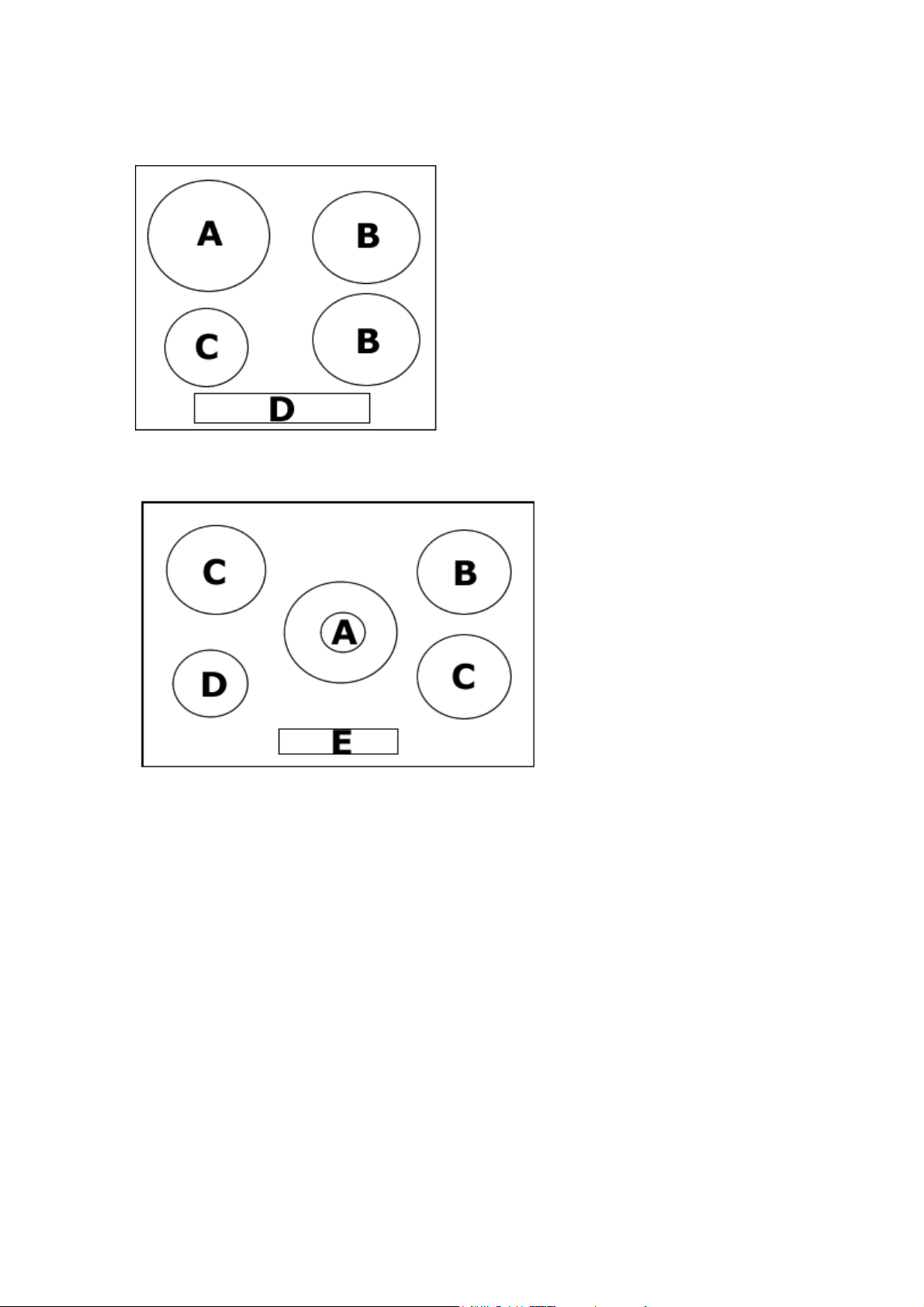

Gas hob surface layout

HHG610SS

A = 3.00 kW rapid burner

B = 1.75 kW semi-rapid burners

C = 1.00 kW auxiliary burner

D = Control panel

HHG710SS

A = 3.80 kW wok burner

B = 3.00 kW rapid

burner

C = 1.75 kW semi-rapid

burners

D = 1.00 kW auxiliary

burner

E = Control panel
