Baumatic BTM23.3M Manuale utente

ing e

BTM23.3M 23 Litre

microwave oven with

grill

User Manual for your Baumatic

BTM23.3M

23 Litre microwave oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 20/02/12

Contents

Environmentalnote 4

Important safety information 5 – 8

Specifications 9 - 12

Product dimensions 9

Product specifications 9

Description of the appliance 10

Controlpanel 11

Theturntable 12

Usingyourmicrowave 12 - 24

Settingtheclock 12

Beforefirstuse 13

Microwave cooking 13 - 14

Grill / grill combi mode 15

Automatic defrost 16-17

Automaticcooking 18-19

Setting multiple cooking phases 19

Settingadelaystart 20

Safetylock 20-21

Microwave cooking guidelines 21 - 22

Materials you can use in a microwave oven 22 - 23

Materials not to be placed in a microwave oven 23

Utensilstable 23

Defrosting guidelines 24

Cleaning and maintenance 25 - 26

The appliance exterior 25

The appliance interior 25

Rotating plate and rotating base 25

General cleaning advice 25-26

Installation 26-29

Fitting the distance limiter 27

Positioning 27

Electrical connection 28 - 29

Troubleshooting 29 – 30

Baumatic consumables 31

Contactdetails 32

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use. It can

NOT be used as a built-in microwave and must be used as a

freestanding appliance.

oYou should only operate the appliance when the turntable and

turntable support are in position.

oYou should only use ovenware that is suitable for being used in a

microwave.

oTo prevent corrosion occurring due to moisture/condensation,

the cavity and the door of the microwave should be wiped dry

after each use of the appliance.

oThe appliance must not be left unattended if you are heating or

cooking food in containers that are made of paper, plastic or

other flammable materials. If left unattended, they could pose a

fire hazard.

oIf you notice smoke coming from the appliance, you should keep

the door of the microwave closed and then disconnect it from

your mains supply. DO NOT use your microwave oven, if you

think it is not operating correctly.

Installation

oIMPORTANT: Only the freestanding installation sanctioned by

Baumatic and outlined in this manual should be followed.

oVentilation gaps MUST be left around the microwave; at least 10

cm to the rear, 5 cm to both sides and 20 cm above the

appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

Service

oYour microwave complies with all relevant safety standards. In

order for it to continue to operate safely, only an engineer that

is approved by the Baumatic Customer Care Department

should work on the appliance.

oIMPORTANT: It is dangerous for a non qualified person to work

on the appliance, in particular if they remove the cover that

provides protection against exposure to microwave energy.

oIf you notice that the door seal, door surfaces, power cord and

plug are damaged. You should stop using the appliance,

disconnect it from the mains supply and contact the Baumatic

Customer Care Department.

oOnly genuine Baumatic spare parts should be fitted to your

appliance. These can be obtained from the Baumatic Spares

Department.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

oDO NOT place anything between the door and the door frame.

oDO NOT store anything that is flammable inside of the

microwave. When it is switched on, the items could catch fire.

oDO NOT switch the appliance on if there is no food or liquid

inside of the microwave. If you run the microwave whilst it is

empty, there is a chance that it will overload.

oThe door seals and the door surfaces should ALWAYS be kept

clean and free from debris.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oIMPORTANT: This appliance should only be operated by adults.

You SHOULD NOT allow young children to use the microwave

without supervision. Older children should only operate the

appliance if they have been thoroughly instructed on how to use

the microwave and the consequences of improper usage.

General Safety

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in.

oDo not use the appliance to dry paper, textiles or animals.

oDo not install the appliance next to curtains or soft furnishings.

oDo not use the appliance to heat unopened bottles or cans etc.

oDo not heat cooking oil or liquid containing alcohol, as there is

the chance of spontaneous combustion.

oDo not boil eggs or similar foods in their shells, otherwise they

may burst. It is possible to poach eggs in your microwave,

providing you prick the yolks first.

oDo not attempt to lift or move cooking appliances by using the

oven door, as this may cause damage to the appliance or result

in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a suitably

qualified person, strictly in accordance with the

manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oCE: Appliance conforming to the European directives

89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions

and “RoHS” directive 2002/95/CE.*

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

*The RoHS directive stands for “the restriction of the use of

certain hazardous substances in electrical and electronic

equipment”. This directive bans the placing on the EU market of

new electrical and electronic equipment containing more than

the agreed levels of lead, cadmium, mercury, hexavalent

chromium, polybrominated biphenyl (PBB) and polybrominated

diphenyl ether (PBDE) flame retardants.

Specifications

Product dimensions*

Height: 278.2 mm

Width: 482.8 mm

Depth: 360 mm

* Please refer to the installation instructions contained in this user

manual, to see the ventilation gaps you will need to leave around the

appliance.

Product specifications

o5 power levels

o13 programs

o8 auto-programs

oElectronic control operation

oLED full programmer with temperature and function display

oClock

oSafety lock

oInterior light

oWeight control auto-programs

oQuartz grill mode

oStainless steel exterior and interior

oViewing window

oCapacity: 23 litres

oMAX microwave power: 800 W

oMAX grill power: 1000W

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the microwave oven door and looking on the right

hand side of the chassis and/or on the rear of the appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

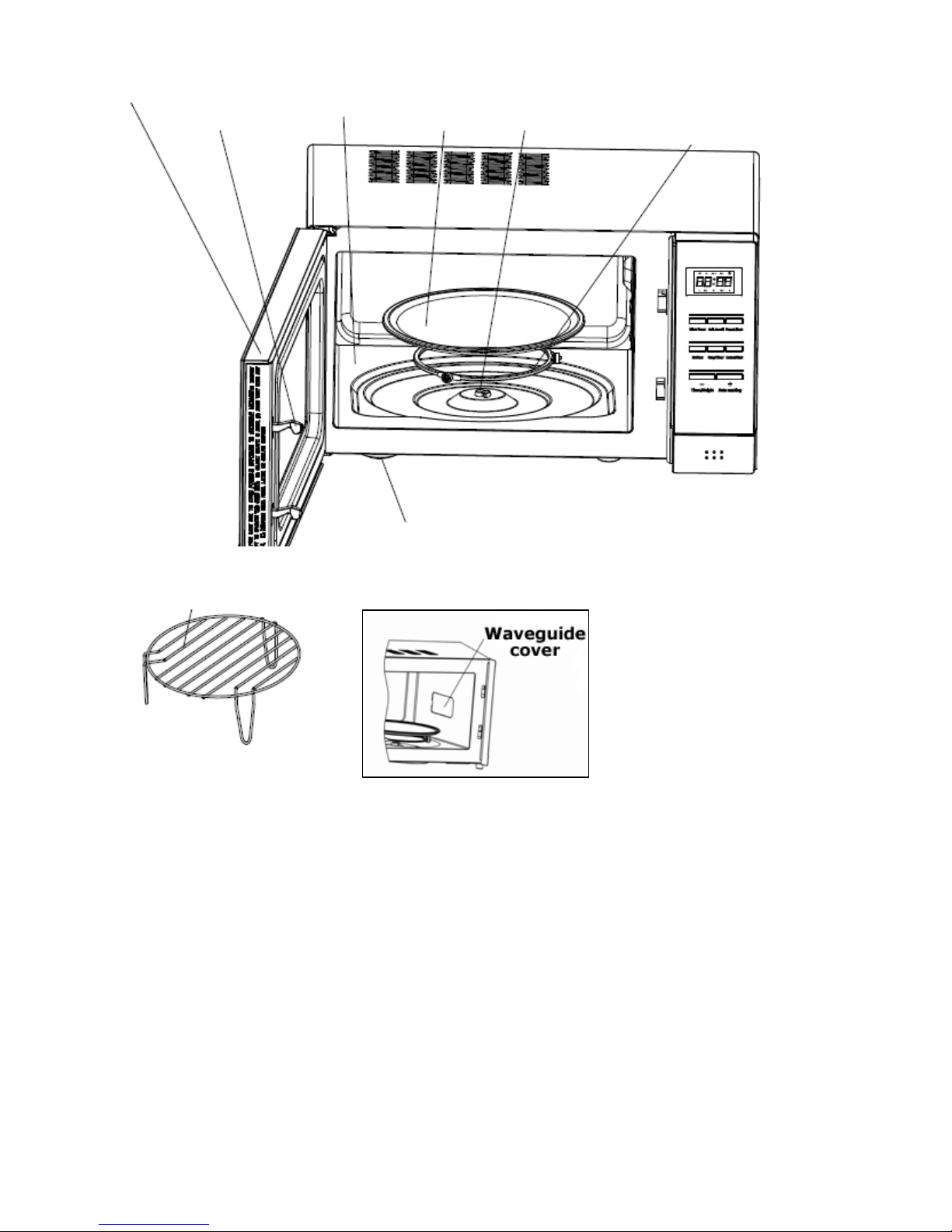

Description of the appliance

1) Oven door

2) Door interlock

3) Oven cavity

4) Glass turntable

5) Rotating axis

6) Rotating ring

7) Oven foot

8) Grill rack

2 3 4
