Baumatic RUSTIC Series Manuale utente

BOR610-BL/

IV/PP Built-in RUSTIC

Multifunction oven.

User Manual for your Baumatic

60 cm 9 Function multifunction oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 01/07/15

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 – 10

Dimensions 8

Accessories 8

Electrical details 9

Coolingfan 9

Controlpanel 10

Before first use 10

Setting and using the oven clock/timer 11 - 12

Setting the time of day 11

Selecting manual operation mode 11

Setting the minute minder function (immediate start) 12

Setting the minute minder function (delay start) 12

Cancelling a timer function 12

Changing the time of day 12

Selecting a cooking function and temperature 13 - 16

Selecting an oven function 13-14

Thermostatcontrolknob 14

Oven operating light 14

Cooking guidelines 25

Warnings 15-16

Shelflevels 16

Cleaning and maintenance 17 - 21

Removableovenroofliner 18

Replacing the oven bulb 18

Removing the oven door for cleaning 19

Removing the inner door glass for cleaning 20

Removing the side racks 21

Installation 22 - 24

Electrical connection 22

Installing the oven into the kitchen cabinet 23

Positioning the appliance 23

Ventilation requirements 24

My appliance isn’t working correctly 25 - 26

Cooking tables 27 - 28

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and can be

built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all materials

used in the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the room it

is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are particularly

prone to heat damage or discolouration at temperatures below the

guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic will

invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or mechanical

defects, subject to certain exclusions that are noted in Baumatic’s

Conditions Of Guarantee. The foregoing does not affect your

statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety legislation.

Baumatic do wish to emphasise that this compliance does not

remove the fact that the appliance surfaces will become hot

during use and retain heat after operation.

oThis appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Child Safety

oBaumatic strongly recommend that babies and young children are

prevented from being near to the appliance and not allowed to

touch the appliance at any time.

oIf it is necessary for younger family members to be in the kitchen,

please ensure that they are kept under close supervision at all

times.

oChildren should be supervised to ensure that they do not play with

the appliance.

General Safety

oDo not place heavy objects on the oven door or lean on the oven

door when it is open, as this can cause damage to the oven door

hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the oven

cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact with

areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to dry

clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance or

result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the mains

before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic declines any responsibility for injury or damage, to

person or property, as a result of improper use or

installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity.

This appliance complies with the following European Directives:

-2006/95/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic disturbances”

-Regulation (EC) N° 1935/2004 regarding “materials in contact with

food”

oThe above directives comply with 93/68/EEC regarding CE marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in accordance

with the standards currently in force. This appliance must be used

by a trained person for domestic purposes only.

Specifications

Product Dimensions

Height: 590 mm

Width: 595 mm

Depth: 550 mm

Aperture dimensions

Height: 580 mm

Width: 560 mm

Depth: 550 mm

Product specifications

o9 oven functions

oEnergy efficiency class: A

oGross oven capacity: 59 litres

oNet oven capacity: 50 litres

oOven light

oCooling fan

oThermostatically controlled grill

oDouble-glazed removable door

oRemovable inner door glass

Standard accessories

oEnamelled baking tray with handle

o2 x Safety shelves

oTrivet

oRemovable side racks

oRemovable roof liner

oDeep baking tray

oPizza stone

Electrical details

Rated Voltage: 220 - 240 Vac, 50 Hz

Supply Connection: 15A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 3.35 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/300°C screw type pygmy

Cooling fan

oA tangential cooling fan is fitted inside of these appliances, to

make the internal temperature of the oven stable and the

external surface temperature lower.

oAfter you have finished cooking and switched off the oven, the

cooling fan will continue to run for a period of time afterwards.

The length of time will depend on how long the oven has been

switched on for and at how high a temperature.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the oven door and looking on the right hand side of

the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

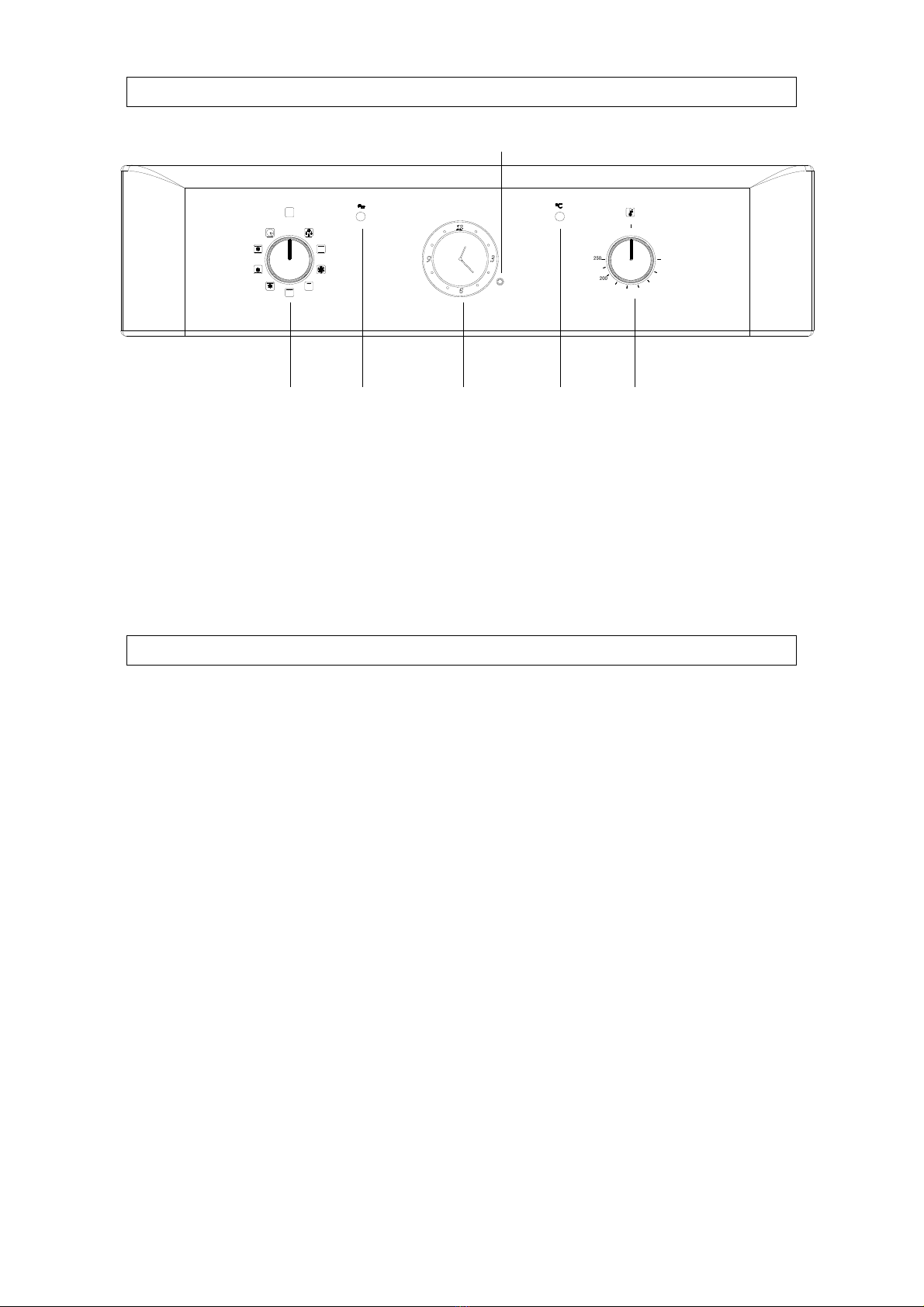

Control Panel

1) Oven function selector knob

2) Power indicator light

3) Oven clock / timer

4) Oven operating light

5) Thermostat control knob

6) Clock control knob

Before first use

oTo remove any residue from the oven that may have been left from

the manufacturing process, you should select the fan oven function

and set the thermostat to its maximum temperature setting.

oIt is perfectly normal for a smell to be produced during this process.

oYou should make sure that any windows in the room are left open

during this process.

oIt is advisable for you not to remain in the room whilst the burning-

off process is taking place.

oYou should leave the oven on maximum setting for 30 – 40 minutes.

oAfter the oven cavity has cooled, it should then be cleaned with

warm soapy water, using either a sponge or soft cloth. No abrasive

cleaners should be used.

oOuter parts of the oven should be cleaned with warm soapy water,

using either a sponge or soft cloth. No abrasive cleaners should be

used.

100

150

12 345
