Baumatic BO910SS Manuale utente

BO910SS

60 cm Built in multifunction

self cleaning pyrolytic

double oven.

User Manual for your Baumatic

BO910SS 60 cm Built in

multifunction self cleaning

pyrolytic double oven

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

GS 23/04/12

Contents

nvironmental note 4

Important safety information 5 – 7

Specifications 8 – 11

Product and aperture dimensions 8

Cooling fans 8

Product specifications

Standard accessories

Electrical details

Control panel 10

Oven programmer/timer 10

Oven programmer / timer display 11

Initial set-up of your oven 11 – 12

Selecting manual operation mode 11

Setting the time of day 11

Before first use 11 – 12

Timer functions 12 - 16

The minute minder function (main oven and lower oven) 12 - 13

The duration function (main oven only) 13 - 14

The end cook function (main oven only) 14

The start and end time function (main oven only) 15

Adjusting the audible signal 16

Selecting a cooking function and temperature 16 – 20

Selecting an oven function 16

Selecting a main oven function 16 - 17

Main oven thermostat control knob 17

Selecting a lower oven function 18

Lower oven thermostat control knob 18

Oven operating lights (main and lower oven) 1

Cooking guidelines 1 - 20

Warnings 20

Cleaning and maintenance 21 – 24

Pyrolytic cleaning (main oven only) 21 – 22

General cleaning instructions 22 - 23

Replacing the oven bulb (main oven) 23

Replacing the oven bulb (lower oven) 23 - 24

Removing the oven door for cleaning 24

Installation 25 – 2

Electrical connection 25

Connecting the mains supply cable 26 - 27

Replacing the mains supply cable 27

Installing the oven into the kitchen cabinet 28

Positioning the appliance 28

Ventilation requirements 2

My appliance isn’t working correctly 30 – 32

Baumatic consumables 33

Contact details 34

nvironmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAF TY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions

oBaumatic Ltd declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/ 5/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic disturbances”

-Regulation (EC) N° 1 35/2004 regarding “materials in contact

with food”

oThe above directives comply with 3/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product Dimensions

Height: 885 mm

Width: 5 6 mm

Depth: 545 mm

Aperture dimensions

880-882 mm

562-565 mm

560 mm (min)

Cooling fans

oTwo tangential cooling fans are fitted inside of this appliance, to

make the internal temperature of the oven stable and the

external surface temperature lower.

Product specifications:

oEnergy efficiency class: A/A

oLED full programmer

o2 x Cooling fans

oThermostatically controlled grills

oElectronically controlled thermostat (main oven only)

oTriple-glazed removable doors

oMoulded side racks (main oven only)

oPyro enamel

oMain oven: multifunction self-cleaning pyrolytic oven

o functions

oGross capacity: 61 litres

oNet capacity: 54 litres

oAutomatic safety door-lock when in pyrolytic mode

oCatalytic exhaust

oLower oven: static oven and grill

o4 functions

oGross capacity: 38 litres

oNet capacity: 32 litres

Standard accessories:

oRemovable side racks (lower oven only)

o3 x Safety shelves

o2 x Enamelled baking trays with handle

o2 x Trivets

oPizza stone

lectrical details:

Rated Voltage: 220 - 240 Vac 50 - 60 Hz

Supply Connection: 30 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 5.20 kW

Mains Supply Lead: 3 x 2.5 mm²

Oven Light Bulb:

Main oven: 25 W 500°C screw type pygmy

Lower oven: 25 W 300°C screw type pygmy

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the bottom oven door and looking on the front

frame of the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

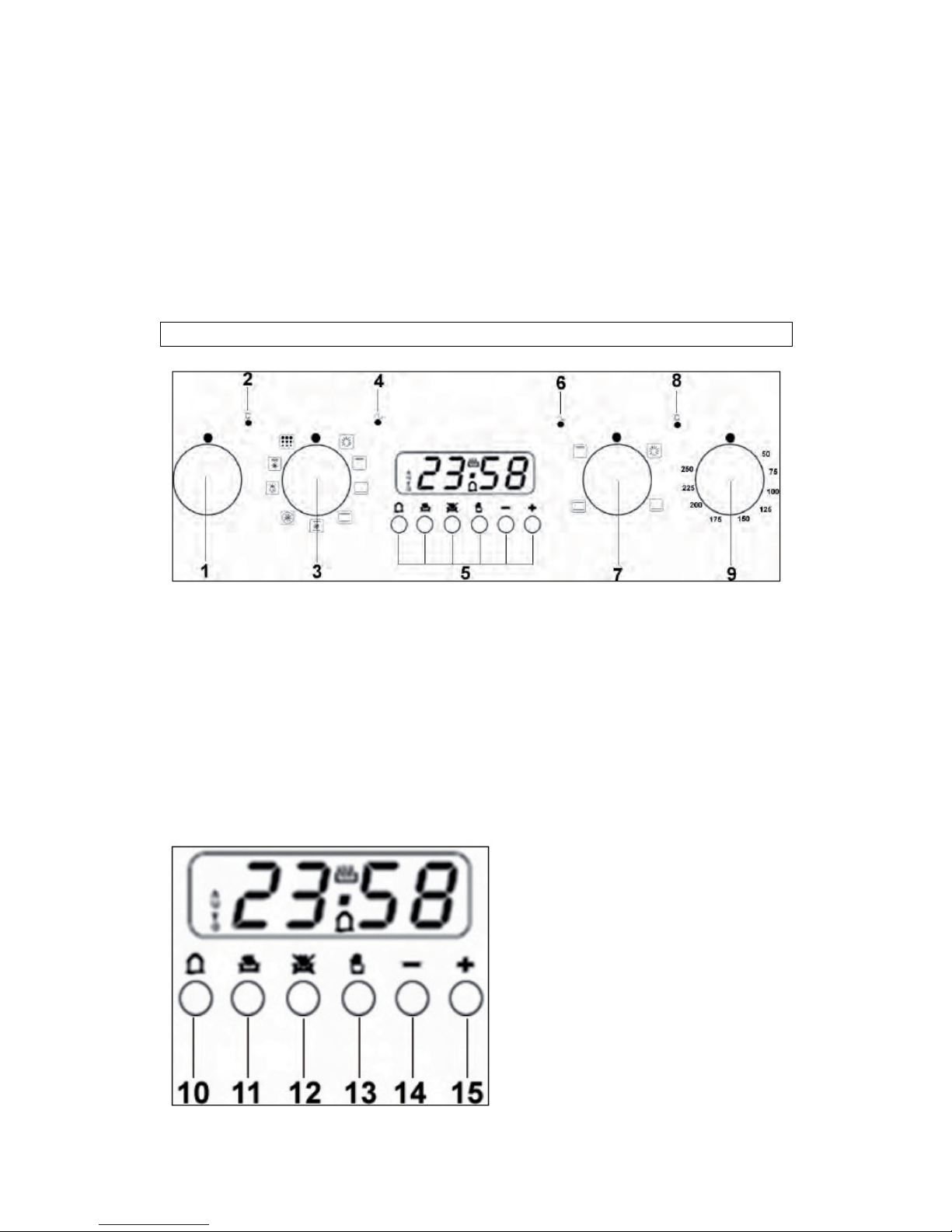

Control Panel

1) Main oven thermostat knob

2) Main oven operating light

3) Main oven function selection knob

4) Main oven power indicator light

5) Oven programmer/timer

6) Lower oven power indicator light

7) Lower oven function selection knob

8) Lower oven operating light

9) Lower oven thermostat knob

Oven programmer / timer

10) Minute minder button

11) Duration button

12) End cook button

13) Manual operation button

14) Minus button

15) Plus button
