BT7.3GL/BT7.3BGL

70 cm Glass

chimney hood

User Manual for your Baumatic

BT7.3GL/BT7.3BGL

Cooker Hood

70 cm Glass chimney hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 07/08/07

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 8 - 9

Cleaning your Baumatic cooker hood 10

The grease filter 10

Maintenance 11

Removing and cleaning the grease filter 11

Changingalightbulb 12

Fitting the carbon filters 13

Installation 14

Electrical connection 14 – 15

Before beginning installation 15 – 16

Installing your cooker hood 16 – 18

Connecting to external ducting 19

Fitting the chimney section 19 – 21

Completing the installation 22

Extraction mode or recirculation mode? 22

Troubleshooting 23 - 24

Contactdetails 25

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product in any way. Do not tamper with or attempt to modify

the appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in extraction mode, ensure that the

ducting is fire retardant and that there are no bends greater

than 90 degrees as this will reduce the efficiency of the hood.

oEnsure the ducting for the extractor mode has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or for it catching on fire, from a

failure to observe the fire safety advice contained in these

instructions.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that the cooker hood removes odours from your

kitchen, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including cleaning and

replacing light bulbs.

oDo not connect the ducting system of this appliance to an

existing ventilation system being used for any other purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filter fitted or if

the filter is excessively greasy!

oNever flambé cook under this cooker hood.

oThe lights on this appliance should only be used during operation

of the cooker hood. They should not be left on permanently and

used as a lighting source.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic Cooker

Hood!

DIMENSIONS:

Width (canopy): 700 mm

Depth (canopy): 500 mm

Height (with chimney) 583 mm – 1083 mm

DIMENSIONS OF CHIMNEY SECTION:

308 mm x 275 mm

Your stainless steel Cooker Hood is fitted with:

oHigh extraction tangential motor

oPush button control

o3 Speeds

oMetallic grease filter

o2 Halogen lights

oExtraction capacity: 500 m³/hr

oNoise level min/max: 54 – 64 dB

oOptional Extra: 1 x S1 pair of carbon filters

for air recirculation mode

(available from the Baumatic

SparesDepartment).

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED

BEFORE THE COOKER HOOD IS USED FOR THE FIRST

TIME.

oYou should use a good quality stainless steel cleaner on ALL of

the stainless steel areas of your cooker hood, before it is used

for the first time.

oThis will help to leave a silicone water-resistant film to protect

the stainless steel surfaces.

To use your cooker hood

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

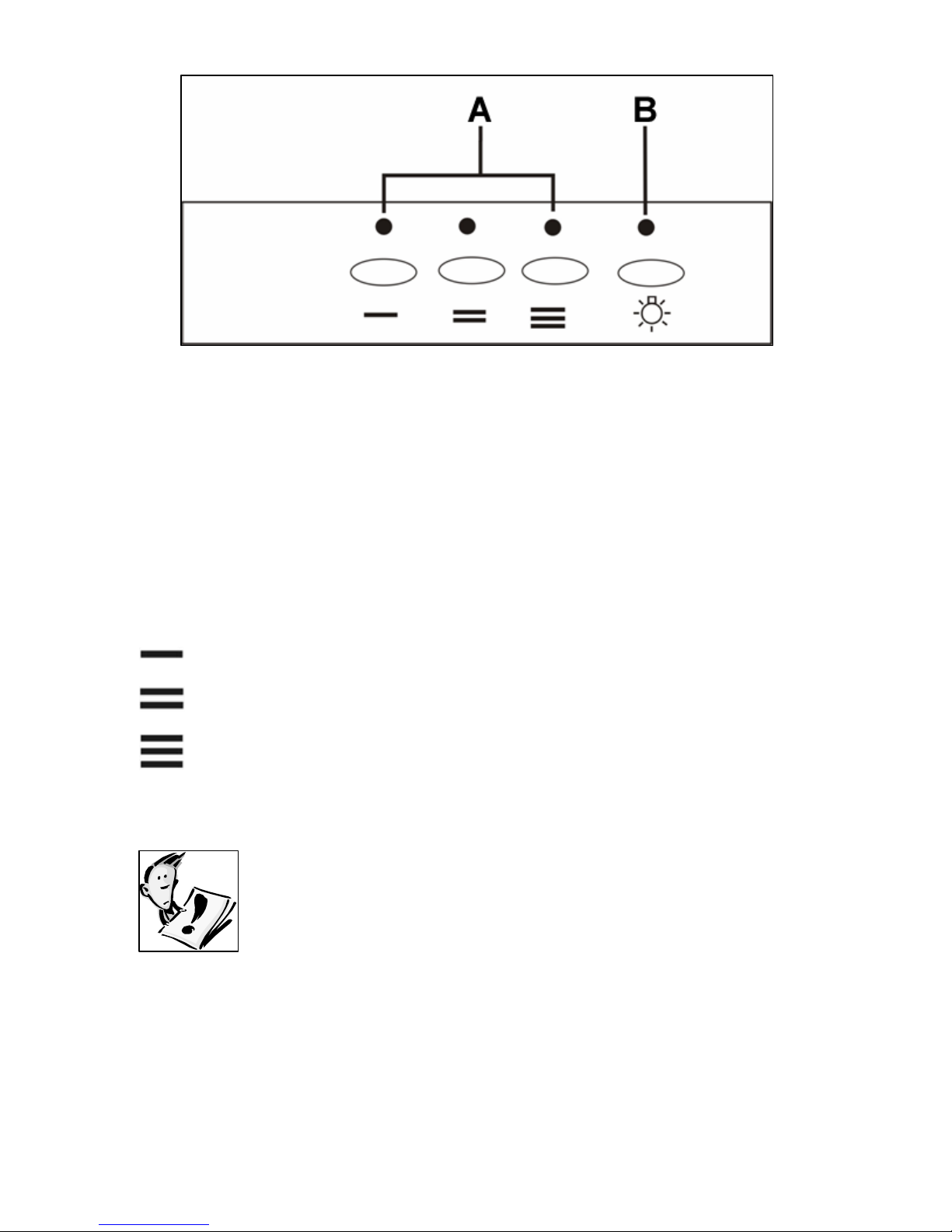

oFind the control panel, which is located at the front right of the

canopy.

oThere are several buttons on the control panel, which perform

separate functions.

oA = Speed selection buttons

= Low speed

= Medium speed

= High speed

oB = Light on/off button

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK,

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

YOU SHOULD ALSO RUN YOUR HOOD FOR TEN

MINUTES AFTER YOU HAVE FINISHED COOKING.

Cleaning your Baumatic cooker hood

IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE

THAT YOU HAVE SWITCHED YOUR COOKER HOOD

OFF AT THE OMNI-POLAR SWITCH, SET AT THE

WALL FROM THE CABLE.

Cleaning

oClean the external parts of your cooker hood with mild liquid

detergent and a new damp cloth.

oNever use abrasive powder, corrosive solvents or brushes.

oNever insert pointed objects into the motor’s protective grid.

oOnly clean the control panel and grease filter grill with mild liquid

detergents and a new damp cloth.

oIf you are using the appliance in recirculation mode, then be

sure to replace the carbon filters at the recommended interval

(see section on “Fitting the carbon filter”). A build up of grease

could cause a fire hazard.

oNever attempt to clean the area above the grease filter.

oIMPORTANT: You should regularly use a good quality

stainless steel cleaner to maintain the shine and finish on

the stainless steel areas of your cooker hood.

oThis will help to leave a silicone water-resistant film to protect

the stainless steel surfaces and keep them in good condition for

the life of the product.

The grease filter

oYour cooker hood includes a grease filter which helps to absorb

grease particles to protect your kitchen & furniture from greasy

residues.

oThe metallic filter may become flammable if it becomes

saturated with this greasy residue.

oTo prevent this fire hazard, the filter should be cleaned regularly.

Depending on use, this should be done every 10-15 days or at

least once a month, using hot water and normal washing-up

detergent.

oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.
