Baumatic BTI9170GL Manuale utente

BTI9170GL 90 cm Glass

island cooker hood

User Manual for your Baumatic

BTI9170GL

Cooker Hood

90 cm Glass island cooker hood in

stainless steel

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 02/03/09

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9 - 10

Beforefirstuse 9

To use your cooker hood 9 – 10

Settingthetimeofday 10

Thetimer 10

Cleaning your Baumatic cooker hood 11

The grease filters 11

Maintenance 12 - 15

Removing and cleaning the grease filters 12

Changingalightbulb 13

Fitting the carbon filter 14 - 15

Installation 16 - 23

Electrical connection 16 - 17

Before beginning installation 17 – 18

Positioning 18-19

Installing your cooker hood 19 - 23

Supplied installation components 20

Connecting to external ducting 20

Fitting the chimney 20 – 22

Completing the installation 23

Extraction mode or recirculation mode? 23

Externalducting 23

Troubleshooting 24 - 25

Contactdetails 26

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

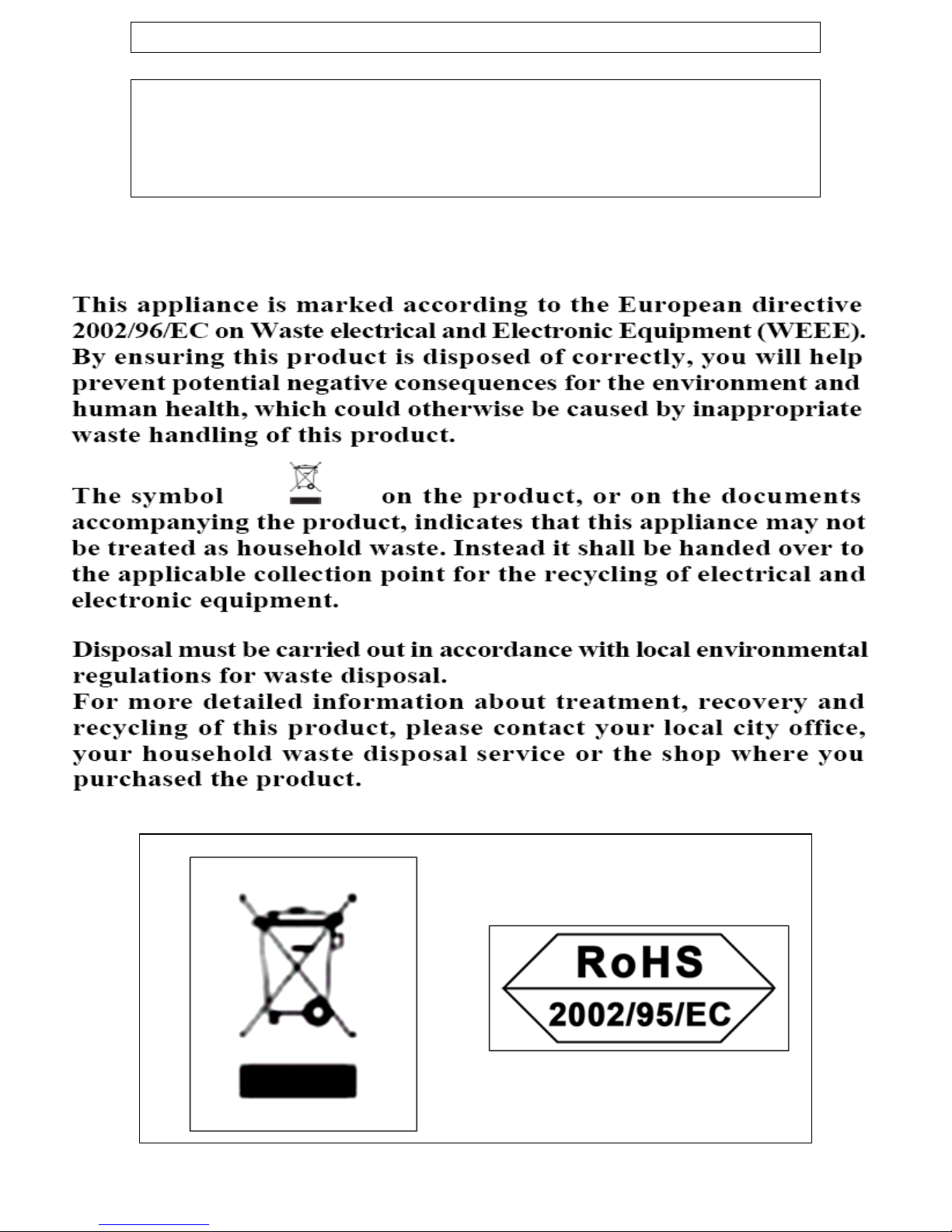

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that it removes odours from your room, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe lights on this appliance should only be used

during operation of the cooker hood. They should not be left on

permanently and used as a lighting source.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic cooker hood!

PRODUCT DIMENSIONS

Height: 665 mm * – 1165 mm

Width: 900 mm

Depth: 600 mm

DIMENSIONS OF CHIMNEY SECTION

270 mm x 285 mm

oHigh extraction tangential motor

oLCD display

oTouch control operation

o3 Speeds

o2 Metallic grease filters

o4 Halogen lights

oExtraction capacity: 1000 m³/hr

oOptional extra: 1 x SQ2 Carbon filter required for

recirculation mode

* IMPORTANT: Please see the positioning

instructions on pages 18 - 19 to obtain precise

information on the height requirements for this

product. 8

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED

BEFORE THE COOKER HOOD IS USED FOR THE FIRST

TIME.

oYou should use a good quality stainless steel cleaner and polish

on ALL of the stainless steel areas of your cooker hood, before it

is used for the first time.

oThis will help to leave a silicone water-resistant film to protect

the stainless steel surfaces.

To use your cooker hood

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oFind the control panel, which is located in the middle of the

canopy.

oThere are several buttons on the control panel, which perform

separate functions.

oPress the Add/ON button to switch the cooker hood on. The hood

will start to run at its lowest speed.

oThe cooker hood has three operating speeds; low, medium and

high. Use the Add/ON button to increase the speed and use the

Dec/OFF button to decrease the speed that it is operating at.

oThe operating speed that you have selected will appear on the

LCD display.

oIf you press the Dec/OFF button when the hood is operating at

its lowest speed, then the hood will switch off.

oPress the light button to switch the bulbs on and off. You can

IMPORTANT: IDEALLY YOU SHOULD SWITCH ON

etting the time of day

oPress and hold the timer button, until the first two digits of the

oRelease the timer button, then use the Add/ON button and

oPress the timer button again and the second two digits of the

oUse the Add/ON button and Dec/OFF button to set the minute

oOnce the time of day is shown correctly on the display, press the

he timer

oYou can use the cooker hood’s timer, to set the cooker hood to

oYou can get the cooker hood to countdown for the following

No. of pushes of the timer Length of time (in minutes)

switch the lights on, even if the hood is not operating.

YOUR HOOD TEN MINUTES BEFORE YOU START TO

COOK, OR AT THE VERY LEAST WHEN YOU BEGIN

COOKING. YOU SHOULD ALSO RUN YOUR HOOD FO

TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

display start to flash.

Dec/OFF button to set the hour time.

display will start to flash.

time.

timer button for the third time to confirm it.

run for a particular period of time and then switch off.

periods of time:-

button the cooker hood will operate

for

1 5 minutes

2 15 minutes

3 30 minutes

4 Timer function cancelled

oOnce you have set a countdown period, the cooker hood will

oWhen the countdown time has been reached, 00:00 will appear

and the cooker hood will stop running.

start to countdown. The time remaining until the cooker hood

shuts off will show on the display.
