Baumatic Pythagora PI3SS Manuale utente

PI3SS

Island cooker hood

User Manual for your Baumatic

PI3SS Pythagora 90 cm island cooker

hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 20/06/07

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9

Thecontrolpanel 9

Thetimerbutton 10

Grease filter maintenance alarm 10

Cleaning your Baumatic cooker hood 11

The grease filters 11

Maintenance 12

Removing and cleaning the grease filters 12

Changingafluorescentbulb 13

Fitting the carbon filter 14

Installation 15

Electrical connection 15 - 16

Before beginning installation 16 - 17

Extraction mode or recirculation mode? 17

Installing your cooker hood 18 – 22

Completing the installation 22

Installing the appliance at minimum height 23

Connecting to external ducting 24

Troubleshooting 25

Baumatic Ltd. conditions of guarantee 26

Contactdetails 27

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

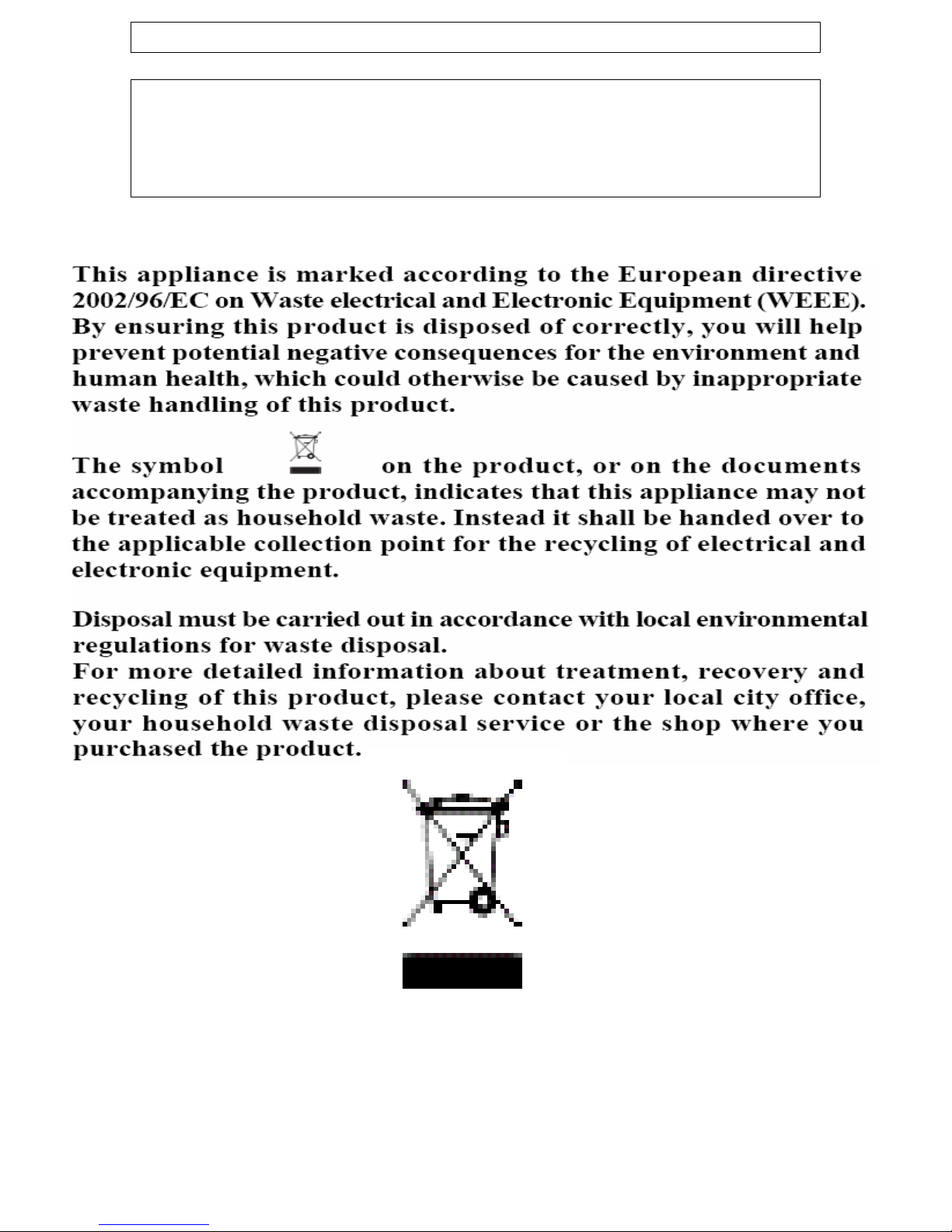

CONFORMITY TO W.E.E.E. DIRECTIVE

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product in any way. Do not tamper with it or attempt to modify

the appliance.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700 mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in extraction mode, ensure that the

ducting is fire retardant and that there are no bends sharper

than 90 degrees as this will reduce the efficiency of the hood.

oEnsure that the ducting used in extraction mode has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the cooker hood or your property from a

failure to observe the fire safety advice contained in this

instruction booklet.

oRemember that when in extraction mode, your cooker hood is

removing air from the room it is installed in. Ensure that proper

ventilation measures are being observed. Note that it

removes odours from the room, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including cleaning and

replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install the appliance above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oNever flambé cook under this cooker hood.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. a naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

oNever attempt to use it without the grease filters fitted or if the

filters are excessively greasy!

oThe lights on this appliance should only be used during operation

of the cooker hood. They should not be left on permanently and

used as a lighting source.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic Cooker

Hood!

PRODUCT DIMENSIONS:

PI3SS

Height (mm) 640 - 1212

Width (mm) 898

Depth (mm) 656

Chimney dimensions (mm)

318 (width) x 256 (depth)

Your cooker hood is fitted with:

oHigh extraction tangential motor

oTouch control operation

o4 Speeds

o3 Stainless steel grease filters

o2 fluorescent lights

Extraction capacity: 800 m³/hr

Optional Extra: 1 x SCS14 carbon filter for air

recirculation mode

Using your Baumatic cooker hood

The control panel

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oFind the control panel, which is located at the front of the cooker

hood.

oThere are several buttons on the control panel, which perform

separate functions.

(Timer button)

(Increase speed)

(On/off button)

(Decrease speed)

(Light ON/OFF button)

(LCD display)

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK,

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

YOU SHOULD ALSO RUN YOUR HOOD FOR TEN

MINUTES AFTER YOU HAVE FINISHED COOKING.

Controlling your cooker hood

oUse the ON/OFF button to switch the cooker hood on.

oUse the plus and minus buttons to regulate the speed that the

motor is running at.

oThe speed level that you have selected will appear on the LCD

display.

oTo switch the cooker hood off, press the ON/OFF button again.

The timer button

oIf you press the timer button whilst the cooker hood is in

operation, then it will countdown for 15 minutes.

oDuring the countdown the light around the timer button will

flash.

oWhen the countdown has finished the cooker hood will switch

off.

oIf you press the timer button again during the countdown, the

light around the timer button will go out and the cooker hood will

return to normal operation.

Grease filter maintenance reminder

oAfter approximately 30 hours of operation, the timer button will

glow red. This means that the grease filters need to be cleaned.

oYou should follow the grease filter cleaning operation that is

outlined on pages 11-12 of this instruction booklet.

oWhen the grease filters have been put back in position, turn on

the hood and then hold down the timer button until the red light

goes out.

oTurn the hood off and then back on again, to check that the

alarm has been reset.

oIMPORTANT: The grease filters should be cleaned at the time

intervals suggested on page 11. You should not wait until the

maintenance alarm activates before cleaning the grease filters.

IMPORTANT: TO MAINTAIN THE CORRECT

FUNCTIONING OF THE CONTROL PANEL, WE

RECOMMEND THAT YOU REGULARLY CLEAN THIS

AREA.
