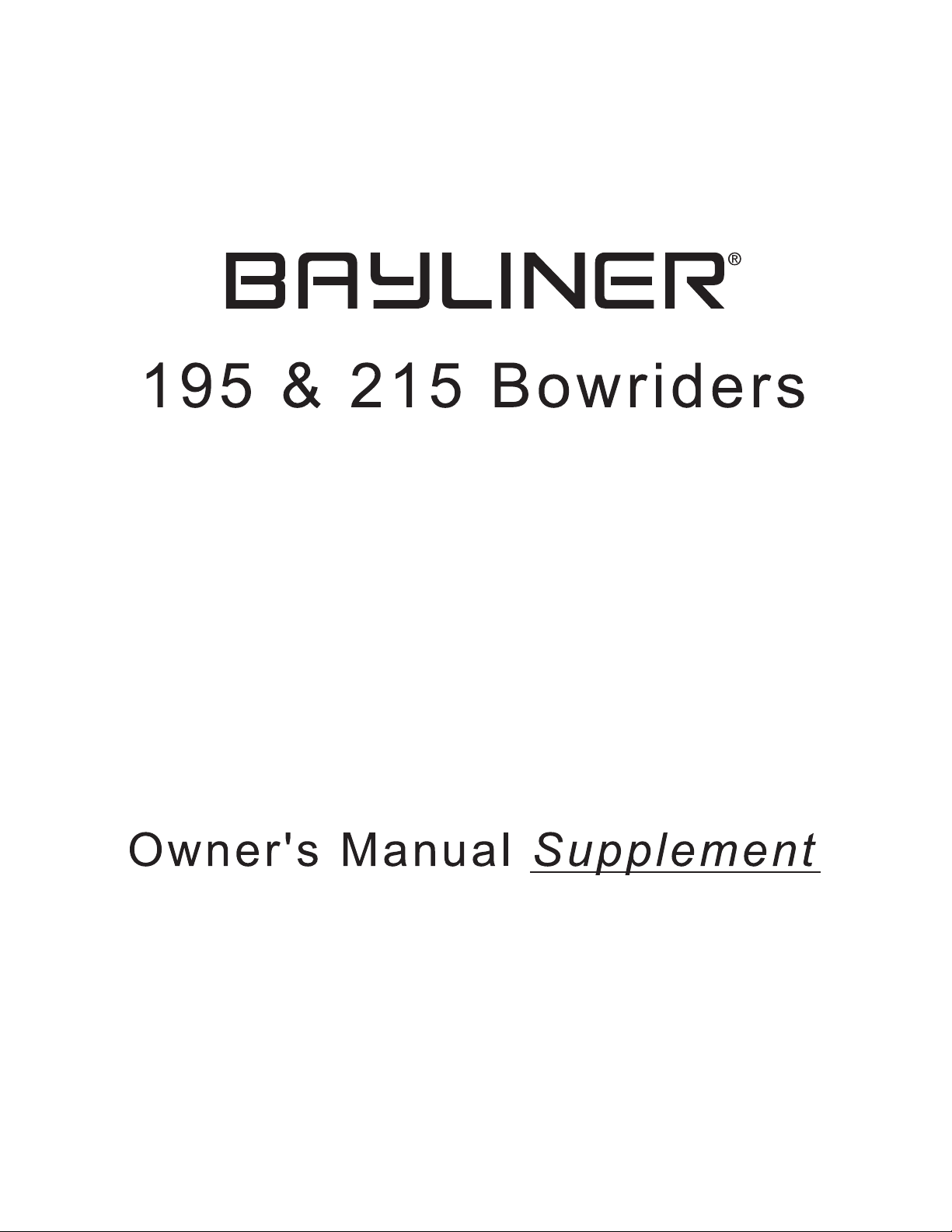

Bayliner 195 Guida alla configurazione

Date of Purchase: _________________________________________________

Engine Serial Number: _____________________________________________

Hull Identification Number:__________________________________________

Hull Identification Number

The Hull Identification Number (HIN) is located just

below the deck gunnel at the starboard aft corner of the

boat.

Record the HIN (and the engine serial number) in the

space provided above.

Include the HIN with any correspondence or orders.

No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,

recording or otherwise, without prior written permission of Bayliner.

Printed in the United States of America.

General Notes

The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this

document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.

Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time

without notice or obligation. Illustrations and/or photos may show optional equipment.

All Bayliner products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.

Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the

upper atmosphere.

Proprietary Rights

This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-

erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any

information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to

be returned upon request to Bayliner.

CONTENTS

Chapter 1: Welcome Aboard! 1

195 Dimensions & Tank Capacities 1

215 Dimensions & Tank Capacities 1

Dealer Service 1

Warranty Information 2

Boating Experience 2

Engine & Accessory Guidelines & Literature 3

Propeller 3

Load Limit for Swim Platform

Extension (If Equipped) 3

Qualified Maintenance 4

Special Care for Moored Boats 4

Safety Standards 5

Carbon Monoxide (CO) 6

CO Facts 6

Factors that Increase the Effects of CO Poisoning 6

Where & How CO Can Accumulate 7

How to Protect Yourself & Others From CO 8

CO Checklists 8

More Information 9

Engine Compartment Fires 9

Chapter 2: Locations 10

Exterior Views 10

195 Hull Views 10

215 Hull Views 11

195 Deck Views 12

215 Deck Views 13

195 Helm 14

215 Helm 15

Component Locations 16

Chapter 3: Propulsion & Related Systems 22

Engine 22

Bilge Blower System 22

Fuel System 23

Fuel Fill & Vent 24

Fuel Filters 24

Anti-siphon Valve 24

Chapter 4: Controls & Gauges 25

Steering 25

Shift/Throttle Control 25

Power Trim & Tilt 25

Gauges 26

Cleaning the Gauges 26

Gauge Fogging 26

Radio Transmission Interference 26

Fuel Gauge 26

Depth Finder (If Equipped) 26

Chapter 5: Plumbing 27

Bilge Pump 27

Bilge Pump & Autofloat Switch -

Testing & Maintenance 27

Drain Systems 28

Deck Drains 28

Chapter 6: Deck Equipment 29

Cleats & Bow/Stern Eyes 29

Ski-Tow Ring 29

Ski-Tow Tower (If Equipped) 30

Attaching the Ski-tow Rope 30

Folding the Ski-tow Tower (If Equipped) 31

Canvas & Vinyl Tops & Enclosures 32

Canvas Care 32

Clear Vinyl Care 33

Chapter 7: Entertainment Systems 35

Audio Equipment 35

Chapter 8: Convertible Seats,

Beds, & Tables 36

Sleeper Seats (If Equipped) 36

Operating Positions 36

Lounge Positions 36

Jump Seat to Sunlounge Conversion (If Equipped) 37

Chapter 9: Lights 38

Care & Maintenance 38

Interior & Exterior Lights 38

Navigation Lights 38

Chapter 10: Electrical System 39

12-Volt DC System 40

Battery 40

Battery Switch 40

Fuses 41

12-Volt DC Accessory Outlet(s) 41

Alternator 41

Electrical Routings 42

12-Volt DC Hull Harness 42

195 12-Volt DC Deck Harness 43

215 12-Volt DC Deck Harness 43

Battery Cable Routings 44

Important Records 45

Float Plan 46

Hazard Boxes & Symbols

The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan-

gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol-

low all safety instructions.

This box alerts you to immediate hazards which WILL cause severe personal injury or death if

the warning is ignored.

DANGER!

This box alerts you to hazards or unsafe practices which COULD result in severe personal

injury or death if the warning is ignored.

WARNING!

This box alerts you to hazards or unsafe practices which COULD result in minor personal

injury or cause product or property damage if the warning is ignored.

CAUTION

This box calls attention to installation, operation or maintenance information, which is impor-

tant to proper operation but is not hazard related.

NOTICE

CO POISONING

HAZARD!

EXPLOSION

HAZARD!

NO OPEN

FLAME!

HOT

HAZARD!

ROTATING

PROPELLER HAZARD!

FALLING

HAZARD!

ELECTRICAL

HAZARD!

FIRE

HAZARD!

RUN BILGE BLOWERS

FOR 4 MINUTES!

195 & 215 Bowriders •Owner’s Manual Supplement

Chapter 1: Welcome Aboard!

This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Sport

Boat Owner’s Manual.

The Sport Boat Owner’s Manual contains general information about safe operating practices, general boating reg-

ulations, and general maintenance techniques.

Before using your boat, study this Owner’s Manual Supplement, the Sport Boat Owner’s Manual, and all engine

and accessory literature. When similar instructions are found in more than one manual, always refer to the specific

manufacturer’s manual first (such as the engine manual) for the most complete and accurate information.

Keep this Owner’s Manual Supplement and the Sport Boat Owner’s Manual on your boat in a secure, yet readily

available place.

Dimensions & Tank Capacities

195

215

Dealer Service

Your dealer is your key to service.

Ask your dealer to explain all systems before taking delivery of your boat.

Contact your dealer if you have any problems with your new boat.

If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

Buy replacement parts from any authorized Bayliner dealer.

You can access on-line parts catalogs, links to vendor websites, and other helpful features by logging on

to www.baylinercustomercare.com.

Overall

Length

Rigged

Bridge

Clearance Beam Draft

(Hull)

Draft

(Maximum)

Fuel

Tank

19' 0" 21' 0" 7' 1" 7' 11" 1' 10" 3' 3" 35 Gallons

Overall

Length

Rigged

Bridge

Clearance Beam Draft

(Hull)

Draft

(Maximum)

Fuel

Tank

20' 5" 21' 2" 7' 1" 8' 2" 1' 8" 3' 1" 37 Gallons

Chapter 1: Welcome Aboard! 195 & 215 Bowriders •Owner’s Manual Supplement

Warranty Information

Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.

A copy of the Limited Warranty was included in your owner’s packet.

If you did not get a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957

for a copy.

Boating Experience

If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and

safety, get handling and operating experience before assuming command of your boat.

Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For

more course information, including dates and locations of upcoming classes, contact the organizations directly:

U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: www.usps.org

In Canada, for the CPS courses call 1-888-CPS-BOAT.

U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: www.cgaux.org

Outside the United States, your selling dealer, national sailing federation, or local boat club can advise you of local

sea schools or competent instructors.

CONTROL HAZARD!

An experienced operator MUST be in control of your boat at ALL times. Do NOT operate your

boat while under the influence of alcohol or drugs.

WARNING!

195 & 215 Bowriders •Owner’s Manual Supplement Chapter 1: Welcome Aboard!

Engine & Accessory Guidelines & Literature

Your boat’s engine and accessories were selected to provide optimum performance and service.

Installing a different engine or adding accessories may affect your boat’s running trim.

If you choose to install a different engine or add accessories that may affect your boat’s running trim, have a

trained marine technician perform a safety inspection and handling test before using your boat again.

The engine and accessories on your boat have their own manuals. Read these manuals before using the engine and

accessories.

Unless noted otherwise, all engine and accessory literature referred to in this supplement is included in your owner’s

packet.

While the topics listed below may be included in this supplement and in the Sport Boat Owner’s Manual, always

refer to the engine manual first for specific information on these important subjects:

Propeller

Keep the propeller in good repair and at the correct pitch for your particular situation.

A slightly bent or nicked propeller will adversely affect the performance of your boat.

Load Limit for Swim Platform Extension (If Equipped)

The swim platform extension is designed to be lightweight for proper boat balance. The load limit for the swim

platform extension is 30 pounds per square foot, evenly distributed.

BEFORE starting or working on your engine, read the engine manual.

BEFORE using the accessories on your boat, read the accessory manuals.

BEFORE storing your boat, refer to your engine and accessory manuals for storage/winter-

ization instructions.

Certain modifications to your boat WILL result in cancellation of your warranty protection.

ALWAYS check with your dealer BEFORE making any modifications to your boat.

NOTICE

Engine Break-in Procedure

Engine Starting and Stopping

Gear Shifting

Fuel and Oil Recommendations

Engine Maintenance

Engine Storage/Winterization

ENGINE DAMAGE HAZARD!

The factory standard propeller may not be the best for your particular boat and load condi-

tions. Refer to the engine manual for engine RPM ratings. The engine should reach, but not

exceed its full rated RPM when full-throttle is applied.

Immediately contact your local BRAND NAME dealer if:

The engine cannot reach its full rated RPM when full-throttle is applied, or;

The engine exceeds its full rated RPM when full-throttle is applied.

CAUTION

Chapter 1: Welcome Aboard! 195 & 215 Bowriders •Owner’s Manual Supplement

Qualified Maintenance

Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your juris-

diction and could expose yourself and others to the danger of bodily injury or accidental death.

Follow the maintenance instructions in:

Special Care for Moored Boats

Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.

This will detract from your boat’s beauty, greatly affect its performance, and may damage the gel coat.

Periodically haul your boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap

and water.

To maintain the safety of your boat, allow ONLY trained personnel to work on, or change, in

any way, the:

Steering system

Propulsion system

Engine control system

Fuel system

Environmental control system

Electrical system

Navigation system

WARNING!

This Owner’s Manual Supplement

The Sport Boat Owner’s Manual

The engine owner’s manual, and;

All accessory literature.

Applying an epoxy barrier coating to the hull bottom will help prevent gel coat blistering

while your boat is moored.

Cover the barrier coating with several coats of anti-fouling paint.

Many states have environmental standards regulating the chemical content of bottom

paints. Your local dealer can recommend bottom paints approved for use in your state.

NOTICE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Bayliner Barca

Bayliner

Bayliner 1995 3587 Manuale utente

Bayliner

Bayliner 275 Manuale utente

Bayliner

Bayliner Ciera 2455 Sunbridge Manuale utente

Bayliner

Bayliner DX2000 Manuale utente

Bayliner

Bayliner Ciera 2655 Sunbridge Manuale utente

Bayliner

Bayliner VR5 Manuale utente

Bayliner

Bayliner 212 Runabout Guida alla configurazione

Bayliner

Bayliner Que Sara 1997 Manuale utente

Bayliner

Bayliner Ciera Manuale utente

Bayliner

Bayliner 3388 Manuale utente

Bayliner

Bayliner 2252 Clasic Cruiser Manuale utente

Bayliner

Bayliner 1950 1952 1954 2150 2152 Guida alla configurazione

Bayliner

Bayliner 285 Cruiser Manuale utente

Bayliner

Bayliner 255 Cruiser Manuale utente

Bayliner

Bayliner 190 Bowrider Guida alla configurazione

Bayliner

Bayliner Ciera 2858 Command Bridge Manuale utente

Bayliner

Bayliner 288 Classic Manuale utente

Bayliner

Bayliner Discovery 266 Guida alla configurazione

Bayliner

Bayliner 212 Runabout Manuale utente

Bayliner

Bayliner Trophy 1703FS Guida alla configurazione

Bayliner

Bayliner 185 Manuale utente

Bayliner

Bayliner 1995 Ciera Manuale utente

Bayliner

Bayliner 245 Cruiser Guida alla configurazione

Bayliner

Bayliner 4788 Manuale utente

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
