Bazooka EL5A Manuale di istruzioni per l'installazione

SeeModelSize

ForLength

Figure9

Figure10

MOUNTING THE BAZOOKA

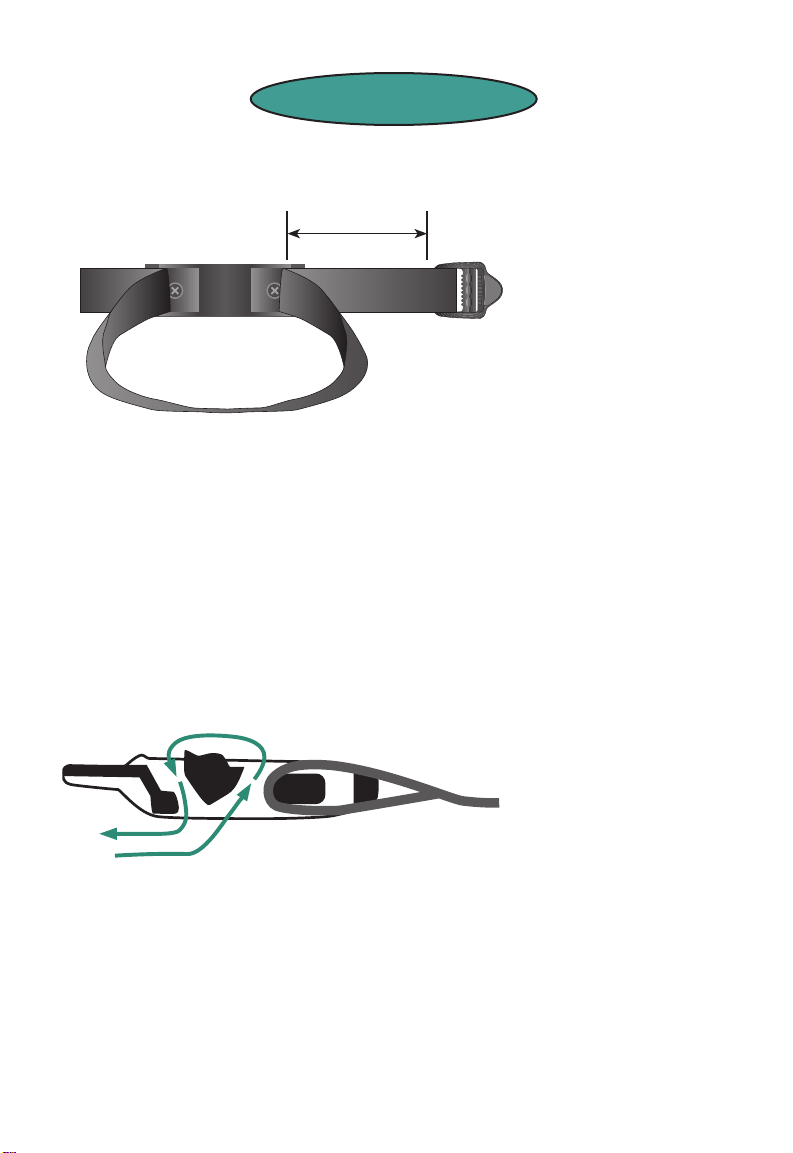

7. Adjust buckle end of

strap so that it extends

out of the mounting

base (see figure 9) the

proper length for the

model size of Bazooka

you are installing

(Refer to the chart for

proper length)

8. Remove any slack in

the strap by feeding it

out of the mounting

base on the loose end

of the strap opposite

the buckle.

9. Place Bazooka on

the mounting bases

and fasten the buckles

as illustrated in figure

10. The strap should

loop through the buck-

le and be tightened

securely by holding the

strap in place with one

hand and pulling the

loose end away from

the buckle, but against

the cabinet.

TechnicalNote

Due to the jarring and shifting that can occur in a vehicle, the mounting

straps may stretch or loosen. We recommend that you check the straps

regularly to assure that your Bazooka is mounted securely in place.

Model Length

EL5A 12”

EL6A 17”

EL8A 22”

3. Place each mount-

ing base under the

Bazooka so that the

apex at the bottom of

the tube sits inside

the mounting base as

in figure7.

4. Move the bases so

that they are spaced

approximately 3”

from each end of the

enclosure as illustrat-

ed in figure 8.

5. Remove the Bazooka

without moving the

mounting bases and set

it aside.

6. Screw each mount-

ing base securely in

place with screws pro-

vided as illustrated in

figure 6.

MOUNTING THE BAZOOKA

Figure7

Figure8

3,,

SeeModelSize

ForLength

Figure9

Figure10

MOUNTING THE BAZOOKA

7. Adjust buckle end of

strap so that it extends

out of the mounting

base (see figure 9) the

proper length for the

model size of Bazooka

you are installing

(Refer to the chart for

proper length)

8. Remove any slack in

the strap by feeding it

out of the mounting

base on the loose end

of the strap opposite

the buckle.

9. Place Bazooka on

the mounting bases

and fasten the buckles

as illustrated in figure

10. The strap should

loop through the buck-

le and be tightened

securely by holding the

strap in place with one

hand and pulling the

loose end away from

the buckle, but against

the cabinet.

TechnicalNote

Due to the jarring and shifting that can occur in a vehicle, the mounting

straps may stretch or loosen. We recommend that you check the straps

regularly to assure that your Bazooka is mounted securely in place.

Model Length

EL5A 12”

EL6A 17”

EL8A 22”

3. Place each mount-

ing base under the

Bazooka so that the

apex at the bottom of

the tube sits inside

the mounting base as

in figure7.

4. Move the bases so

that they are spaced

approximately 3”

from each end of the

enclosure as illustrat-

ed in figure 8.

5. Remove the Bazooka

without moving the

mounting bases and set

it aside.

6. Screw each mount-

ing base securely in

place with screws pro-

vided as illustrated in

figure 6.

MOUNTING THE BAZOOKA

Figure7

Figure8

3,,
