Bazooka ELW1014P Manuale utente

ENGLISH

Dear customer,

Congratulations on your purchase of a Bazooka ELW high-performance

subwoofer. At Bazooka we are fanatics about accurate music reproduction.

Your selection of our products for your sound system indicates that quality

sound is also important to you too. At SAS, we take great pride in

manufacturing revolutionary audio products, and through the years of

engineering expertise, hand craftsmanship and critical testing procedures,

we have created the ELW high-performance series of subwoofers. We hope

that you will take as much pride in owning and using one of these high-quality

audio products as we do designing and manufacturing them.

When properly installed and operated, your Bazooka ELW subwoofer will give

you years of clean uninterrupted sound reproduction. Therefore, we urge you

to take a few minutes to carefully read through this manual. It will explain

how to properly build an enclosure to optimize performance and longevity of

the subwoofer.

Sound can be deceiving. Over time your hearing comfort level adapts to

higher volumes of sound. What may have sounded normal can actually be too

loud and harmful to your hearing. Guard against this by setting your

equipment at a safe level before your hearing adapts.

To establish a “safe level”,

Start with your volume control at a low setting.

Slowly increase the volume control until you can hear comfortably,

clearly and without distortion.

Once you have established a comfortable “sound level”, make a note

of this position and do not go above this setting

Taking a minute to do this will help prevent your hearing from being damaged

and allow you to enjoy listening to music throughout your lifetime.

2ELW SUBWOOFERS

ENGLISH

CALCULATING ENCLOSURE VOLUME

It is difficult to give exact box dimensions that are universal for all cars and

trucks. It is for this reason that you must be able to calculate the space in

which you have available in order to achieve the proper air volume required.

It is recommended to build your enclosure from 3/4” thick MDF (medium

density fiberboard). Make sure the enclosure is sealed air tight.

Calculating External Volume

1.) To calculate box volume, measure the outside Width x Height x Depth of the

enclosure.

Example 12” x 14” x 9” = 1512”.

2.) Next you must convert cubic inches into cubic feet. To do this, you must

divide the cubic inch total by 1728”.

Example 1512 1728 = .875 Cubic feet.

Calculating Internal Volume

1.) To calculate the internal (net) volume of the above box you must first

multiply the thickness of the wood you are using by Two (2).

Example 3/4” x 2 = 1.5”.

2.) Next subtract 1.5 from each of the outside measurements of the box.

Width Height Depth

12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5

3.) Multiply the new totals (H x W x D)

Example: 10.5 x 12.5 x 7.5 = 984.375

4.) Next you must convert cubic inches into cubic feet. To do this, you must

divide the cubic inch total by 1728”

Example 984.375 1728 = .5696 Cubic feet.

ENGLISH

ELW1214P

Free Air Resonance. (FS) 34

Total Q of driver @ FS including all resistance. (Qts) .47

Q of driver @ FS including non electrical resistance only. (Qms) 6.67

Q of driver @ FS including electrical resistance only. (Qes) .51

The driver's compliance expressed as an equivalent (Vas) 2.16

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .31

The DC resistance of the driver's voice coil (ohms). (Re) 3.4

RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/450

Max Power handling (Standard/ With Liquid Cooling) (W) 400/600

The driver's voice coil inductance (millihenries). (Le) 1.9

The drivers sensitivity (dB @ 1W 1M). (Sens) 92

PRODUCT SPECIFICATIONS

ELW1014P

Free Air Resonance. (FS) 34

Total Q of driver @ FS including all resistance. (Qts) .46

Q of driver @ FS including non electrical resistance only. (Qms) 5.84

Q of driver @ FS including electrical resistance only. (Qes) .50

The driver's compliance expressed as an equivalent (Vas) 1.39

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .29

The DC resistance of the driver's voice coil (ohms). (Re) 3.4

RMS Power Handling (Standard/ With Liquid Cooling) (W) 200/300

Max Power handling (Standard/ With Liquid Cooling) (W) 350/525

The driver's voice coil inductance (millihenries). (Le) 1.4

The drivers sensitivity (dB @ 1W 1M). (Sens) 91

ELW SUBWOOFERS

ENGLISH

PRODUCT SPECIFICATIONS

ELW1514P

Free Air Resonance. (FS) 32

Total Q of driver @ FS including all resistance. (Qts) .74

Q of driver @ FS including non electrical resistance only. (Qms) 7.99

Q of driver @ FS including electrical resistance only. (Qes) .82

The driver's compliance expressed as an equivalent (Vas) 4.0

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .47

The DC resistance of the driver's voice coil (ohms). (Re) 3.4

RMS Power Handling (Standard/ With Liquid Cooling) (W) 400/600

Max Power handling (Standard/ With Liquid Cooling) (W) 600/900

The driver's voice coil inductance (millihenries). (Le) 1.9

The drivers sensitivity (dB @ 1W 1M). (Sens) 92

ENGLISH

Ported Enclosure

Box Volume *1.6 Cu Ft.

Port Frequency (Fb) 40Hz

Port Diameter 3 Inches

Port Length 5.8 Inches

* Box is given as internal air volume including port and driver displacement.

ELW1014P RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 0.56 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 34F3 = 34

Ported EnclosurePorted Enclosure

Sealed EnclosureSealed Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

ELW1014P Amplitude Response (dB/Hz)ELW1014P Amplitude Response (dB/Hz)

F3 = 63F3 = 63

ELW SUBWOOFERS

ENGLISH

Ported Enclosure

Box Volume *2.0 Cu Ft.

Port Frequency (Fb) 40Hz

Port Diameter 4 Inches

Port Length 8.25 Inches

* Box is given as internal air volume including port and driver displacement.

ELW1214P RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 1.0 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

ELW1214P Amplitude Response (dB/Hz)ELW1214P Amplitude Response (dB/Hz) Sealed EnclosureSealed Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 60F3 = 60

ELW1214P Amplitude Response (dB/Hz)ELW1214P Amplitude Response (dB/Hz) Ported EnclosurePorted Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 35F3 = 35

ENGLISH

Ported Enclosure

Box Volume *3.0 Cu Ft.

Port Frequency (Fb) 40Hz

Port Quantity 2

Port Diameter 4 Inches

Port Length 12.2 Inches

* Box is given as internal air volume including port and driver displacement.

ELW1514P RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 1.7 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 36F3 = 36

Ported EnclosurePorted Enclosure

Sealed EnclosureSealed Enclosure

ELW1514P Amplitude Response (dB/Hz)ELW1514P Amplitude Response (dB/Hz)

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 45F3 = 45

ELW SUBWOOFERS

ENGLISH

The innovative design of the ELW component Woofers allows you to

liquid cool the voice coil motor assembly for maximum power handling

capability. With the addition of the CHIL PLUG and the CHIL KIT from your

local dealer, or directly from SAS, you can easily add liquid cooling to

your ELW Series Component Woofer.

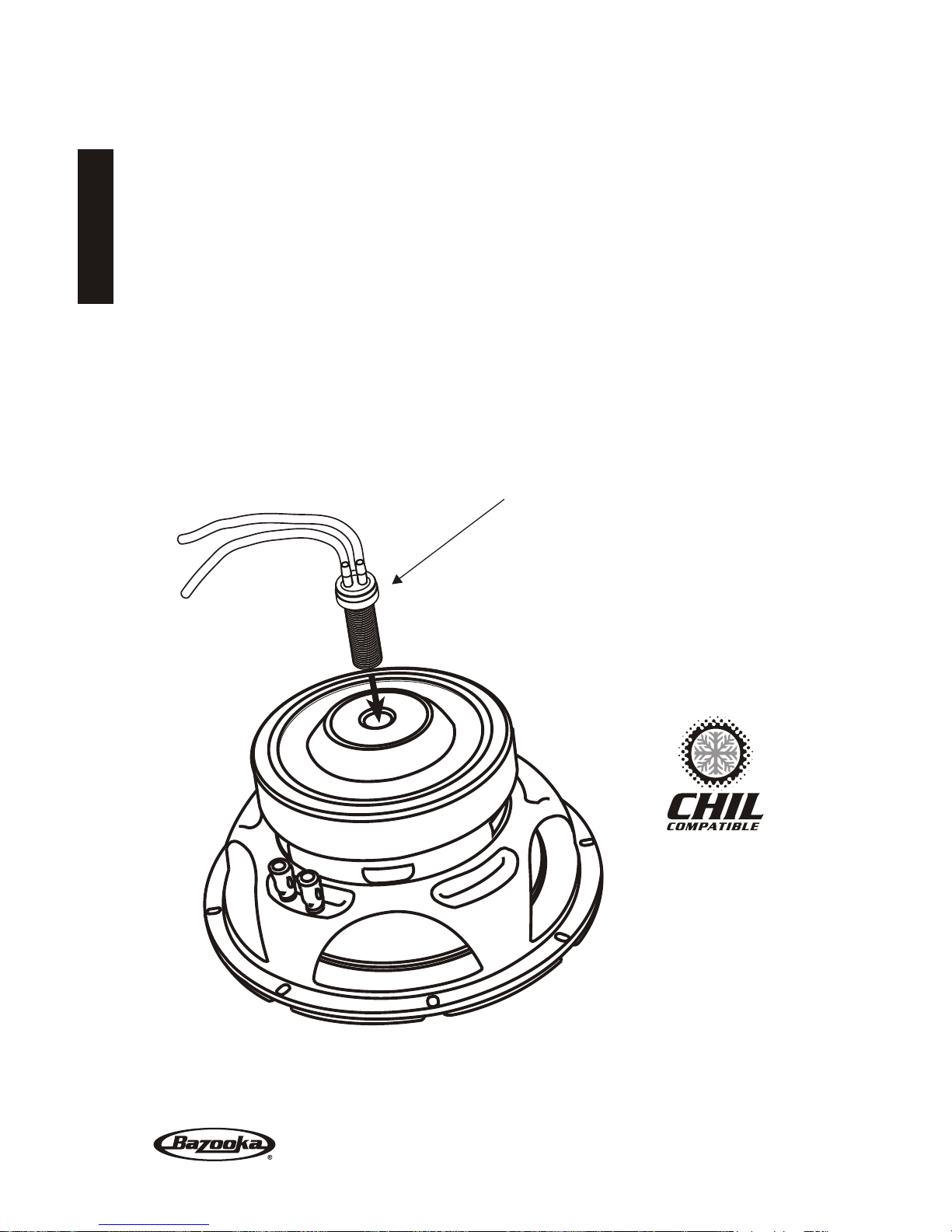

CHIL Plug

Utilizing the optional CHIL plug

can increase the ELW

woofers power handling up

to 50%.

LIQUID COOLING

ENGLISH
