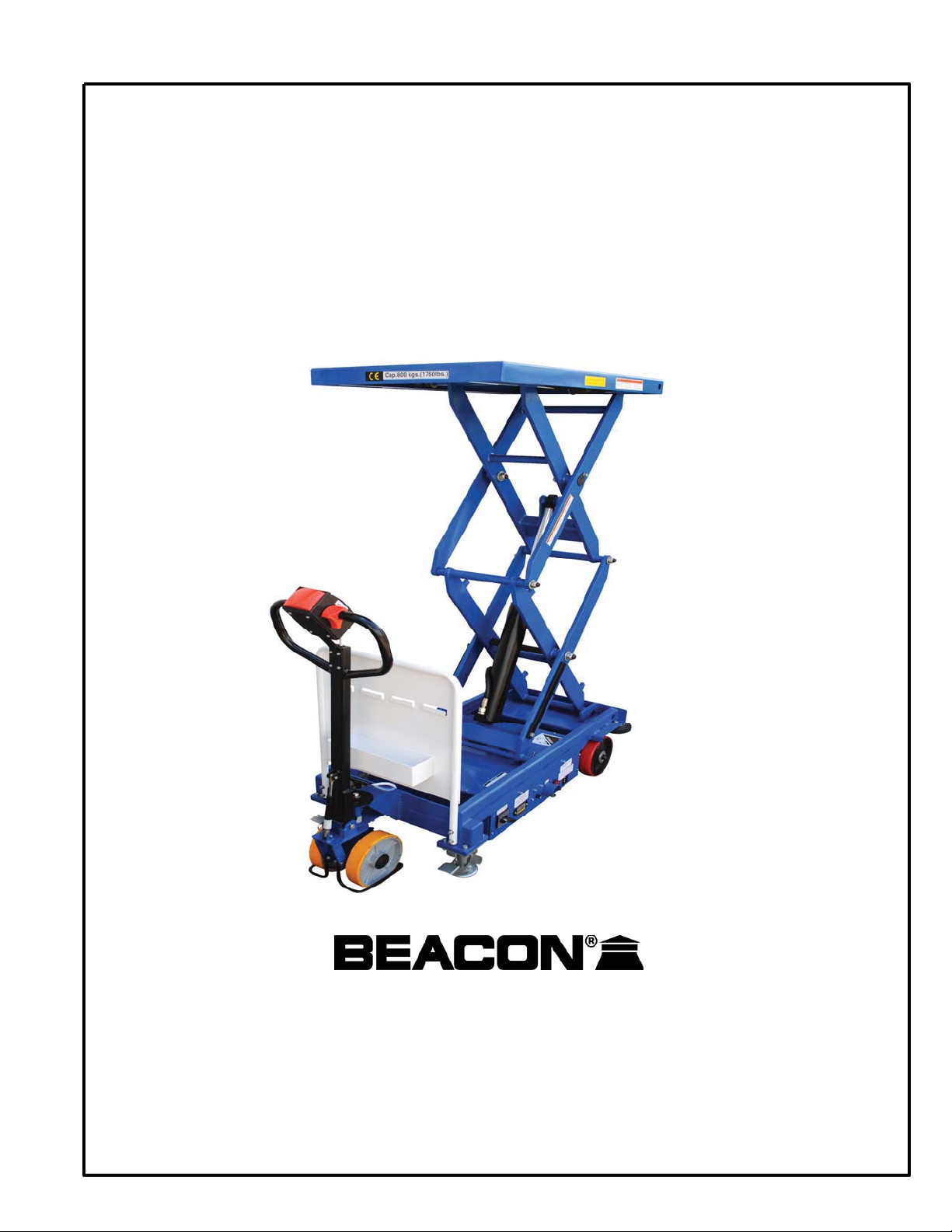

Beacon BCART-1500D-DC-CTD Manuale utente

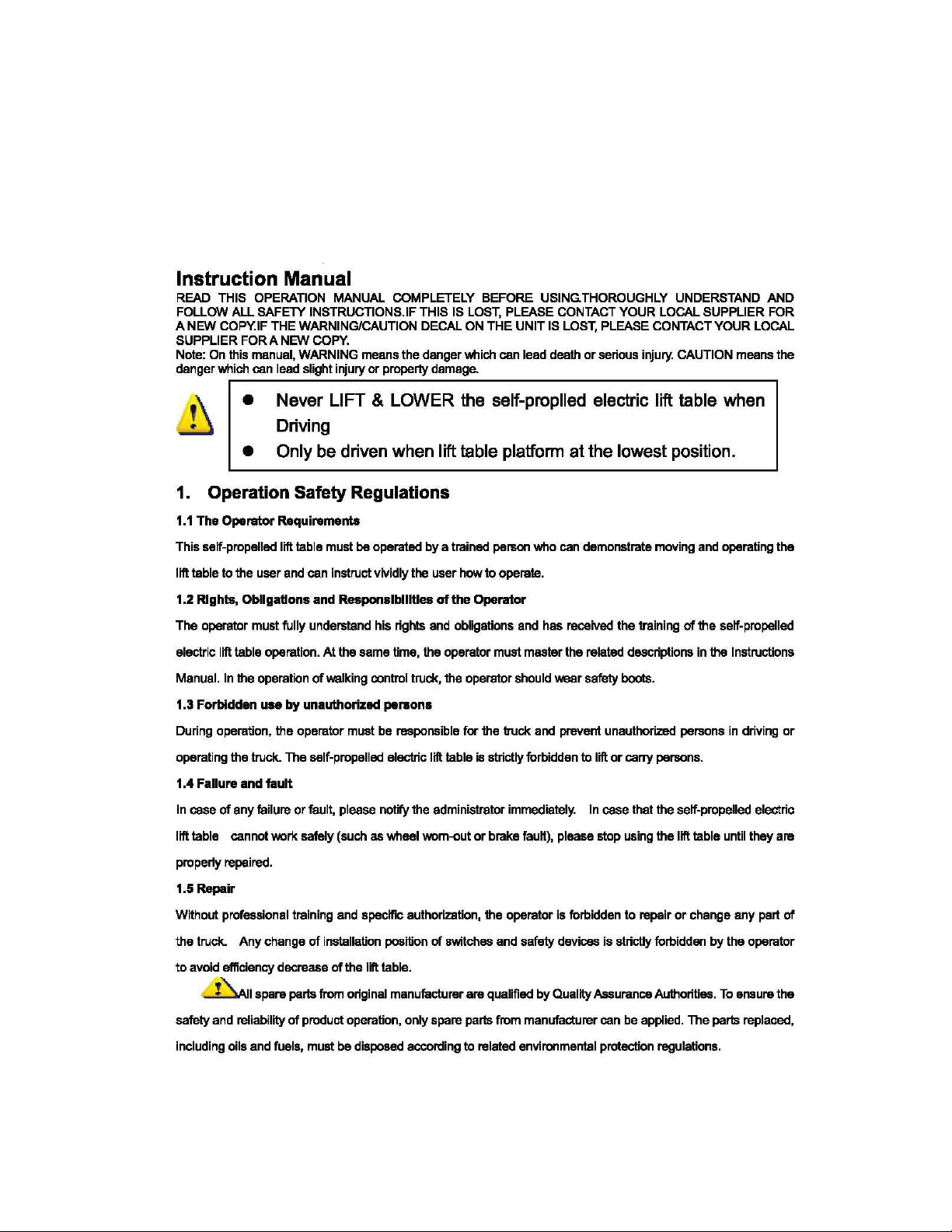

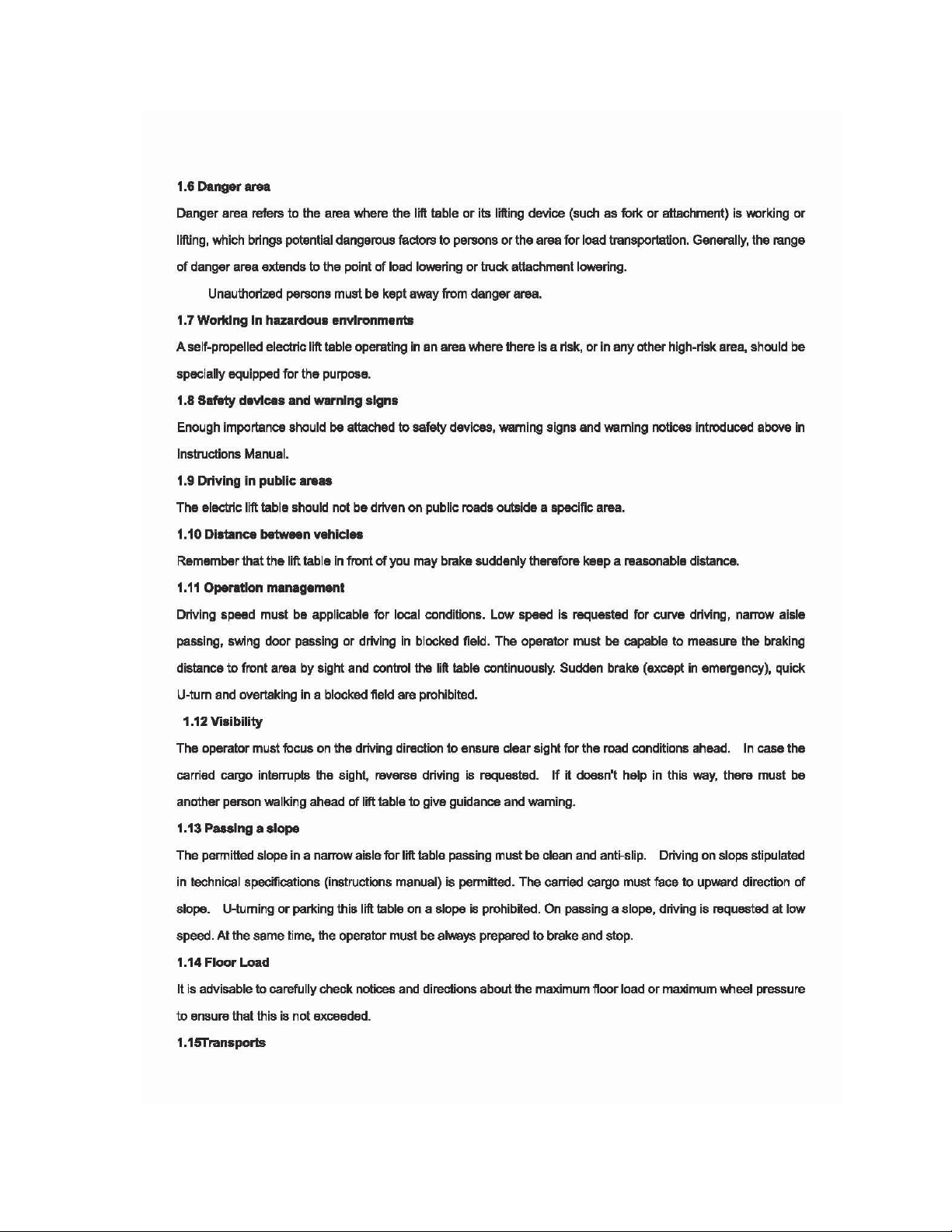

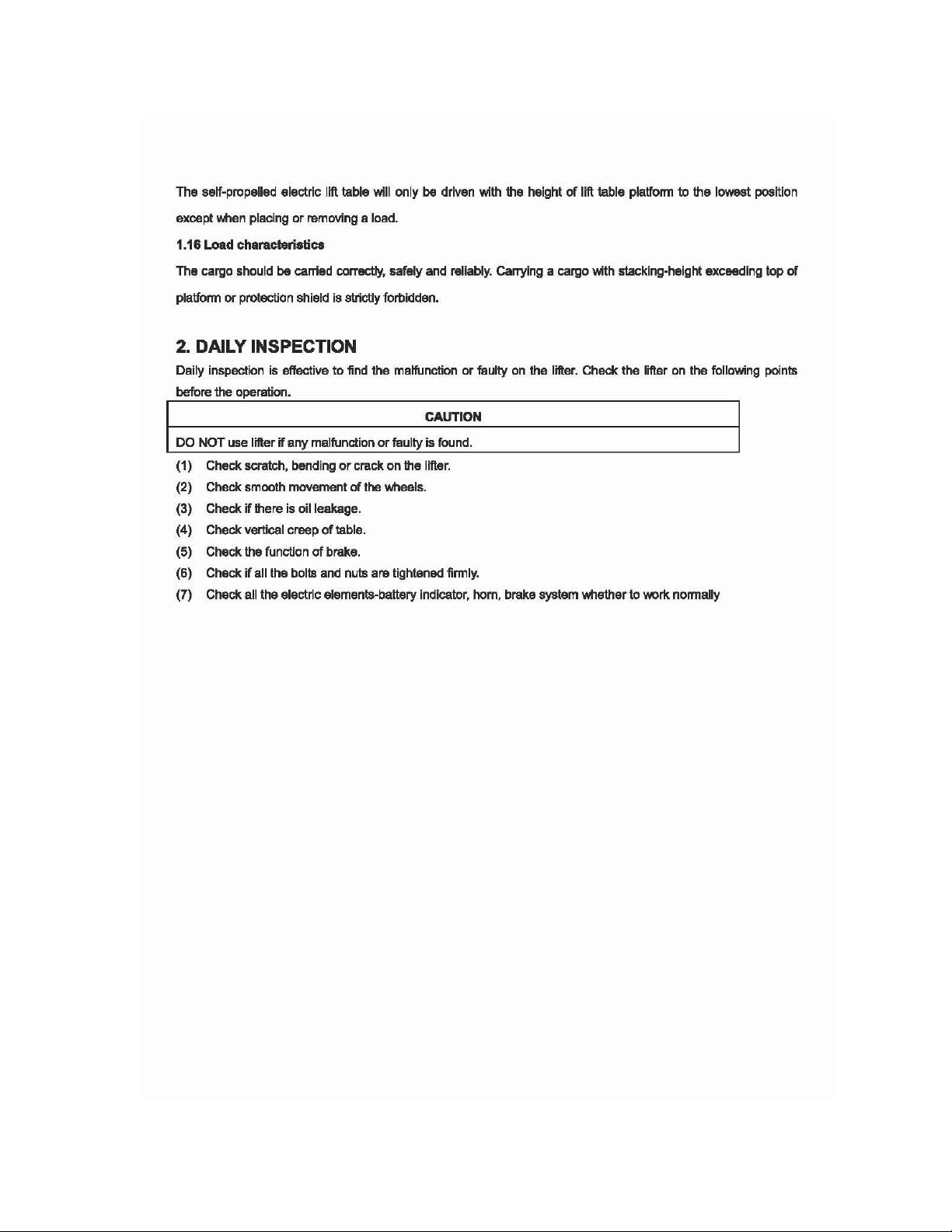

Instruction Manual
Powered Drive and Powered Lift Hydraulic Scissor Carts
0RGHOBCART-100D-DC-CTD
BEACON INDUSTRIES, INC.
12300 Old Tesson Rd.
St. Louis, MO 63128-2247 USA
OFFICE: 314-487-7600 FAX: 314-487-0100
Model: BCART-1500D-DC-CTD
Powered Drive and Powered Lift H
y
draulic Scissor Carts

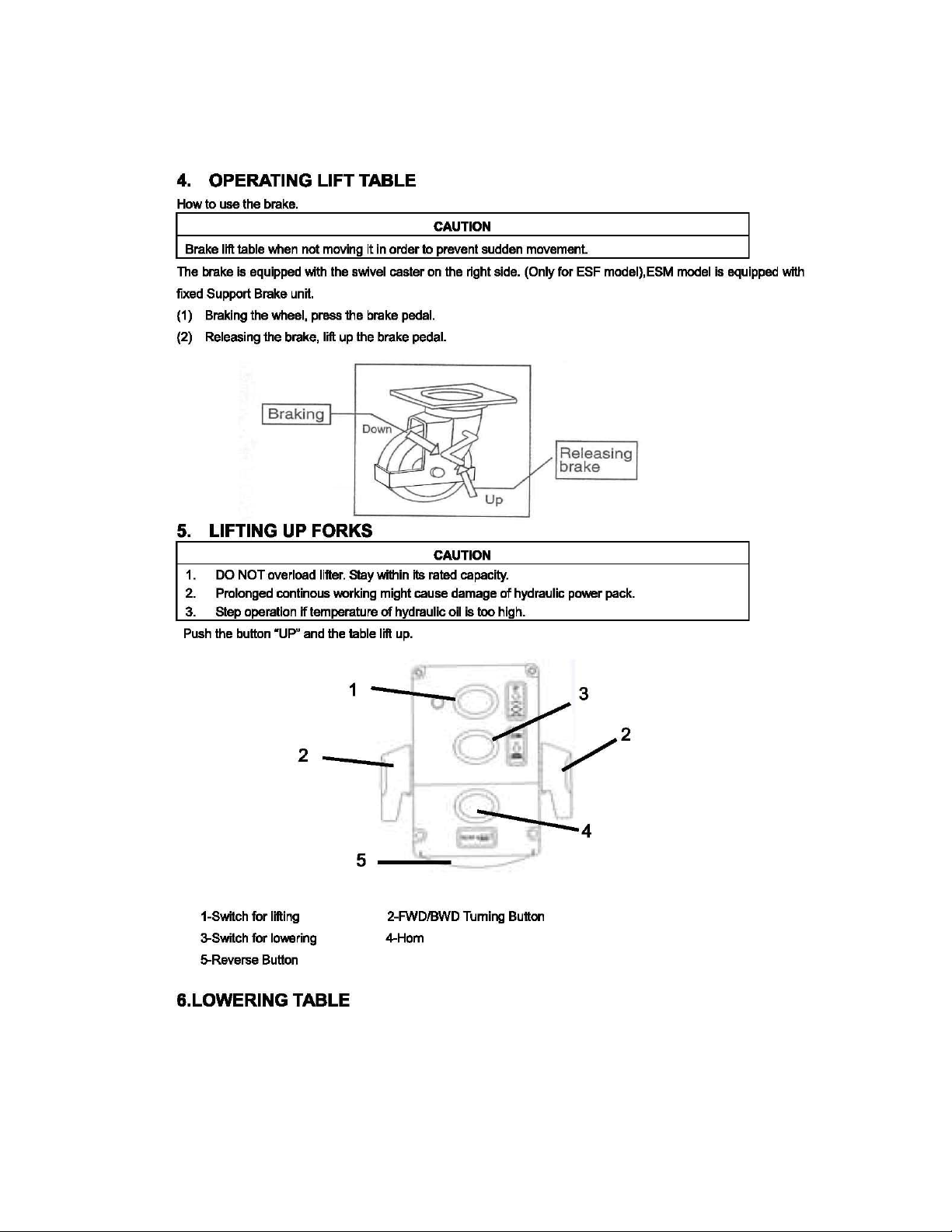

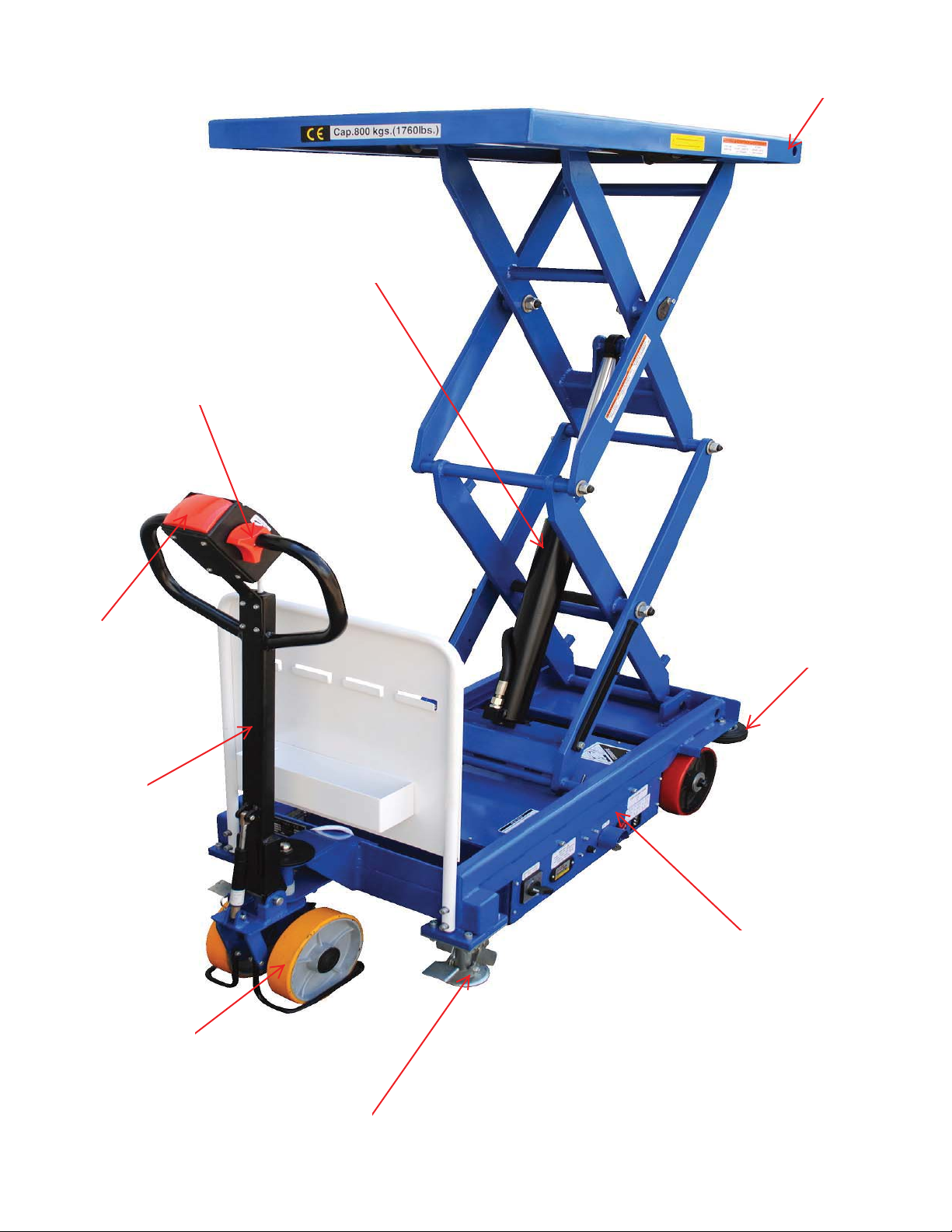

Emergency Reverse Switch
FWD/REV. control throttle
Handle ba
r
Steering wheel
Brake
Batteries, charger & control system
A
nti-collision wheel
Hydraulic Cylinder
Platform

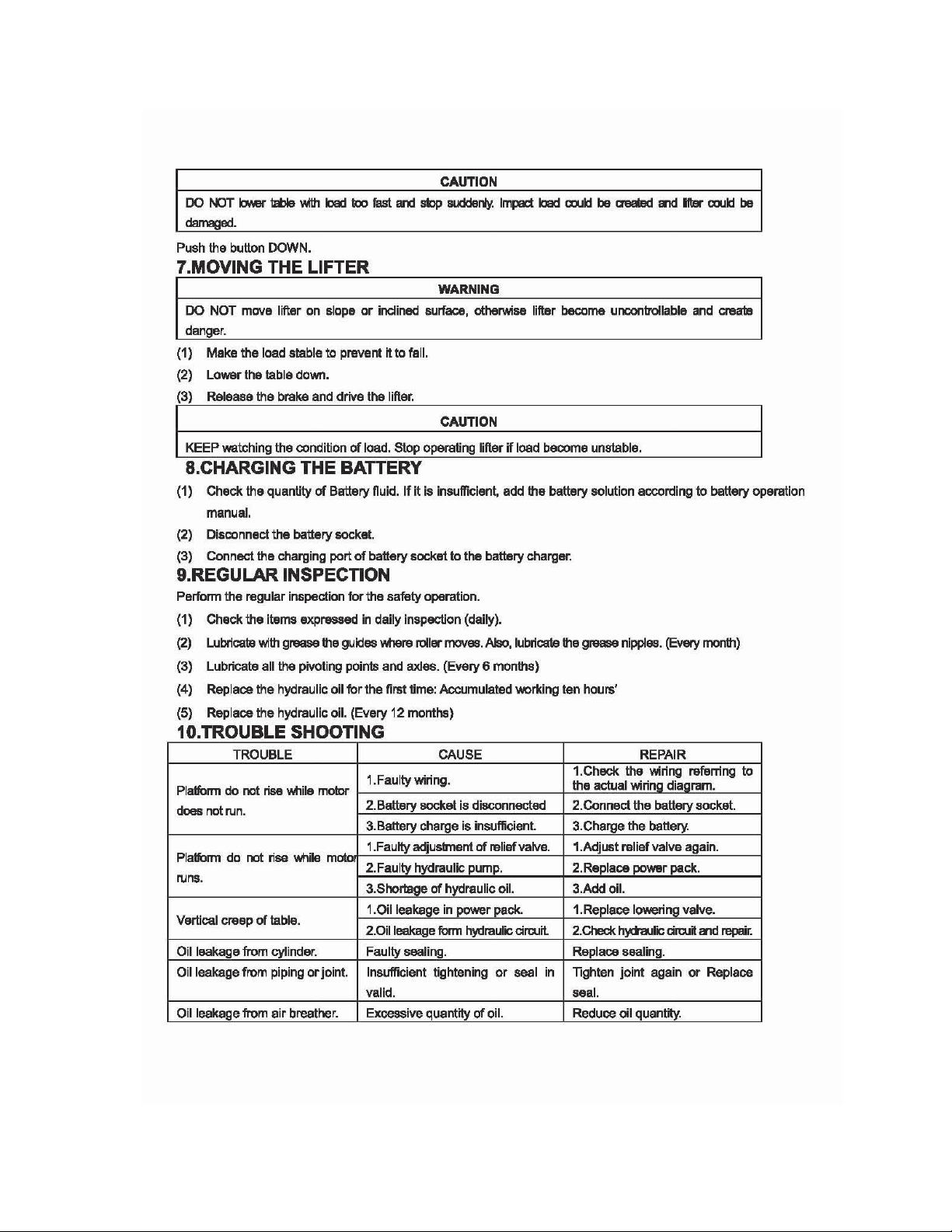

3. PARTS
11. SPECIFICATIONS
Model BCART-1000-DC-CTD BCART-1000D-DC-CTD BCART-1500-DC-CTD BCART-1500D-DC-CTD
Capacity 1,000 lbs 1,500 lbs
Platform Size (LxW) 40 x 24”
Platform Height (Max/Min)
1,000 lbs
40 x 24”
WR òWR”
40 x 24”
WR
1,500 lbs
40 x 24”
20½WR
Lifting Cycle 40
Time (Lifting/Lowering)
Unloaded
5
/ secs
40
/35.53 secs
45
/2 secs 16.65/35.87 secs.
Time (Lifting/Lowering)
Loaded
/ secs 23./ secs /1 secs 23.60/19.22 secs.
Steering Wheel (dia) 7Ǭ”7Ǭ”7Ǭ”7Ǭ”
Drive wheel (dia.) 7Ǭ”7Ǭ”7Ǭ”7Ǭ”
Overall Size (LxWxH) 55ǩ x 26Ǫ x 46”
Net Weight lbs lbs lbs lbs
BCART-1500-DC-CTD

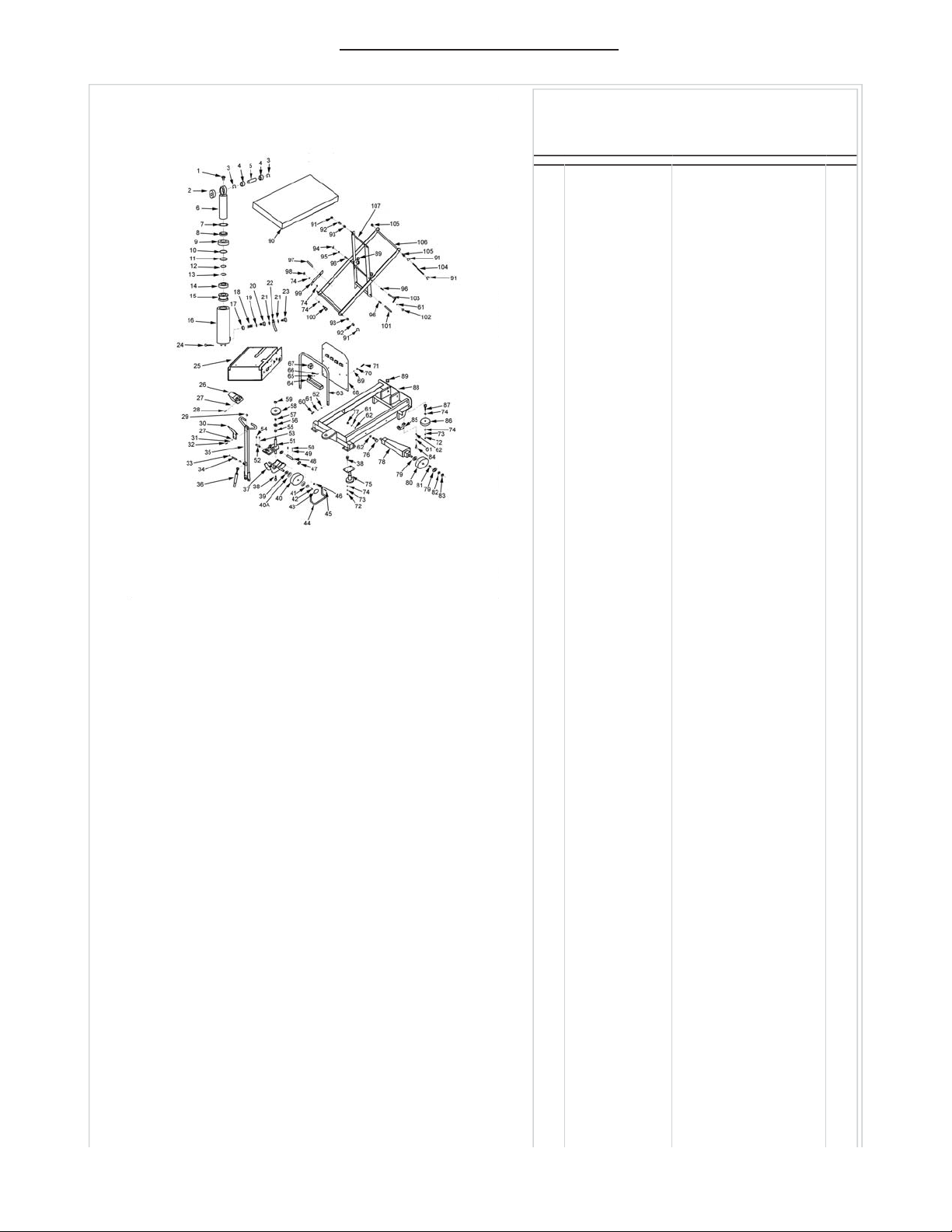

NO. PART NUMBER DESCRIPTION QTY.
CYL C-1500-DC-CTD-CYL ASSEMBLY, CYLINDER 1
HDLS C-1500-DC-CTD-HDLS SWICH, LIMIT 1
SWA C-1500-DC-CTD-SWA WHEEL, STEER, ASSEMBLY 1
DM C-1500-DC-CTD-DM MOTOR, DRIVE 1
1 C-1500-DC-CTD-1 ZERK, GREASE 1
2 C-1500-DC-CTD-2 BEARING2
3 C-1500-DC-CTD-3 PIN, CYLINDER 1
4 C-1500-DC-CTD-4 WASHER, LOCK - M8 1
5 C-1500-DC-CTD-5 BOLT, SOCKET HEAD 1
6 C-1500-DC-CTD-6 PISTON, CYLINDER 1
7 C-1500-DC-CTD-7 RING, RETAINING 1
8 C-1500-DC-CTD-8 WIPER 1
9 C-1500-DC-CTD-9 NUT, GLAND 1
10 C-1500-DC-CTD-10 RING, SPIRAL 1
11 C-1500-DC-CTD-11 RING, GUIDE 1
12 C-1500-DC-CTD-12 RING, RETAINING 1
13 C-1500-DC-CTD-13 SEAL1
14 C-1500-DC-CTD-14 PISTON, GUIDE 1
15 C-1500-DC-CTD-15 HOUSING, CYLINDER 1
16 C-1500-DC-CTD-16 HOSE, OIL 1
17 C-1500-DC-CTD-17 O-RING 1
18 C-1500-DC-CTD-18 CONNECTOR, THREADED 1
19 C-1500-DC-CTD-19 WASHER, RUBBER COATED 1
20 C-1500-DC-CTD-20 PIN, COTTER 1
27 40354 WASHER, FLAT - M5 6
28 C-1500-DC-CTD-28 SCREW, PHILLIPS HEAD MACHINE 2
29 C-1500-DC-CTD-29 PLUG, RUBBER 4
* 30 C-1500-DC-CTD-30 PLATE, HANDLE MOUNTING 1
31 C-1500-DC-CTD-31 WASHER, LOCK - M5 4
32 C-1500-DC-CTD-32 SCREW, PHILLIPS HEAD MACHINE 4
33 C-1500-DC-CTD-33 RING, RETAINING 2
34 C-1500-DC-CTD-34 PIN 1
35 C-1500-DC-CTD-35 HANDLE 1
36 C-1500-DC-CTD-36 SHOCK, GAS 1
* 37 C-1500-DC-CTD-37 WELDMENT, HANDLE 1
38 C-1500-DC-CTD-38 BOLT, HEX HEAD 1
39 C-1500-DC-CTD-39 WASHER 2
40 C-1500-DC-CTD-40 WHEEL, STEER 2
40A 6204-2RS BEARING, BALL 4
41 C-1500-DC-CTD-41 WASHER, FLAT - M8 2
42 C-1500-DC-CTD-42 BOLT, HEX HEAD 2
43 C-1500-DC-CTD-43 CAP, END 2
44 C-1500-DC-CTD-44 GUARD, WHEEL 4
45 C-1500-DC-CTD-45 BOLT, SOCKET HEAD 2
46 C-1500-DC-CTD-46 NUT, NYLON LOCK - M6 2
47 C-1500-DC-CTD-47 WASHER 2
48 C-1500-DC-CTD-48 PIN 1
49 C-1500-DC-CTD-49 PIN, COTTER 2
50 C-1500-DC-CTD-50 PIN, SPRING - M4 X 30 2
* 51 C-1500-DC-CTD-51 WELDMENT, SWIVEL 1
52 C-1500-DC-CTD-52 PIN 1
53 C-1500-DC-CTD-53 PIN, COTTER 2
54 C-1500-DC-CTD-54 SPRING PIN 2
55 C-1500-DC-CTD-55 BUSHING 1
56 C-1500-DC-CTD-56 BEARING 1
57 C-1500-DC-CTD-57 BUSHING 1
58 C-1500-DC-CTD-58 PLATE, TOP 1
59 C-1500-DC-CTD-59 NUT, NYLON LOCK - M16 1
60 C-1500-DC-CTD-60 SCREW, PHILLIPS HEAD MACHINE 2
61 C-1500-DC-CTD-61 WASHER, LOCK - M8 8
62 C-1500-DC-CTD-62 WASHER, FLAT - M8 8
63 C-1500-DC-CTD-63 FRAME, MOUNTING 1
64 C-1500-DC-CTD-64 BOX, STORAGE 1
65 C-1500-DC-CTD-65 NUT, HEX 2
3$576'5$:,1*3$576/,67
66 C-1500-DC-CTD-66 SCREW, PHILLIPS HEAD MACHINE 2
67 C-1500-DC-CTD-67 BOX, PLASTIC 4
68 C-1500-DC-CTD-68 PLATE, MOUNTING 1
69 C-1500-DC-CTD-69 WASHER, FLAT 6
70 C-1500-DC-CTD-70 WASHER, LOCK 6
71 C-1500-DC-CTD-71 SCREW, PHILLIPS HEAD MACHINE 6
72 C-1500-DC-CTD-72 NUT, HEX - M10 4
73 C-1500-DC-CTD-73 WASHER, LOCK - M10 4
74 C-1500-DC-CTD-74 WASHER, FLAT - M10 12
75 C-1500-DC-CTD-75 BRAKE, FOOT 1
76 C-1500-DC-CTD-76 BOLT, SOCKET HEAD 1
77 C-1500-DC-CTD-77 NUT, HEX - M8 1
78 C-1500-DC-CTD-78 ASSEMBLY, DRIVE WHEEL 1
79 C-1500-DC-CTD-79 SPACER 4
80 C-1500-DC-CTD-80 WHEEL, DRIVE 2
81 C-1500-DC-CTD-81 WAY, KEY 2
82 C-1500-DC-CTD-82 WASHER, FLAT - M14 2
83 C-1500-DC-CTD-83 NUT, NYLON LOCK 2
84 C-1500-DC-CTD-84 BOLT, SOCKET HEAD 4
85 C-1500-DC-CTD-85 BRACKET, MOUNTING 2
86 C-1500-DC-CTD-86 WHEEL, BUMPER 2
87 C-1500-DC-CTD-87 BOLT, HEX HEAD 4
88 C-1500-DC-CTD-88 FRAME 1
89 C-1500-D-DC-CTD-89 PAD, RUBBER 2
90 C-1500-DC-CTD-90 DECK 1
91 C-1500-DC-CTD-91 RING, RETAINING 6
92 C-1500-DC-CTD-92 ROLLER, FRAME 4
93 C-1500-DC-CTD-93 BUSHING 4
94 C-1500-DC-CTD-94 NUT, NYLON LOCK 1
95 C-1500-DC-CTD-95 WASHER, FLAT 1
96 C-1500-DC-CTD-96 BUSHING 2
97 C-1500-DC-CTD-97 PIN, SPRING - M8 X 30 2
98 C-1500-DC-CTD-98 NUT, NYLON LOCK 2
99 C-1500-DC-CTD-99 STOP, MAINTANANCE 2
100 C-1500-DC-CTD-100 BOLT, HEX HEAD 2
101 C-1500-DC-CTD-101 PIN 1
102 C-1500-DC-CTD-102 BOLT, SOCKET HEAD 1
103 C-1500-DC-CTD-103 PIN 1
104 C-1500-DC-CTD-104 PIN 1
105 C-1500-DC-CTD-105 BUSHING 2
106 C-1500-DC-CTD-106 SCISSORS - EXTERNAL 1
107 C-1500-DC-CTD-107 SCISSORS - INTERNAL 1
108 C-1500-DC-CTD-108 BUSHING 1
* Item is not available for sale. However, it may be available as part of a kit or assembly.
