Quick Start Guide
BEC 430M
4G/LTE Mobile Hotspot
BEC 430M 4G/LTE Mobile Hotspot
2
Hello,
Thank you for purchasing BEC 430M, the portable 4G LTE
Mobile Hotspot. This device offers high-speed and great
performance of 4G LTE, automatic 3G failover, with Wi-Fi
hotspot for mobile Internet connectivity wherever you go.
Using the BEC 430M, you may send/receive text messages,
have up to 8 Wi-Fi enabled clients to enjoy instant mobile
Internet access and download / upload / share files, music
and photos, and more all at the same time.
This Quick Start Guide helps you to set up your BEC 430M and
how to use its key features. To begin, insert your SIM card and
make sure the battery is fully charged before using for the first
time prior to powering on your 4G/LTE Mobile Hotspot.
PLEASE READ THIS DOCUMENT CAREFULLY BEFORE
USING YOUR BEC 430M
BEC 430M 4G/LTE Mobile Hotspot
3

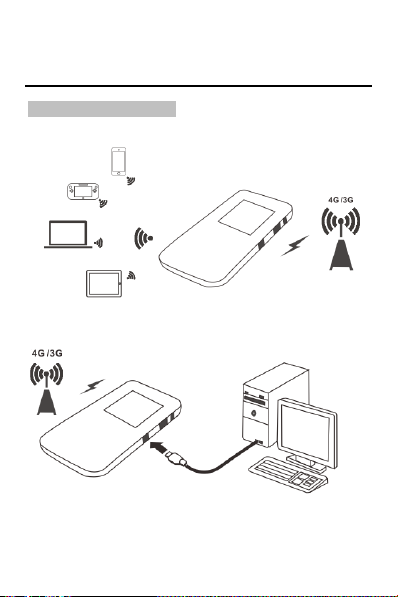

Application Scenarios
I. Wi-Fi Hotspot: 4G internet sharing via Wi-Fi mode
II. USB Modem: Connect with a PC / Notebook
BEC 430M 4G/LTE Mobile Hotspot
4
What’s in the Box
BEC 430M Device x 1
USB Cable x 1
Power adapter x 1
This Quick Start Guide
Hardware Overview
1
Mid-frame Housing
6
Power Button
2
SD Card Slot
7
WPS Button
3
Battery Cover
8
microUSB Port
4
LCD Screen
9
Reset Button
5
Faceplate
10
Battery / SIM Compartment
BEC 430M 4G/LTE Mobile Hotspot
5
Get Started
I. SIM & Battery - Insert / Remove
Step 1 Gently pull and remove the battery cover off the device
Step 2 Remove the battery
Step 3 Insert the SIM card in a correct direction into
the slot completely, follow the indication next to the
card slot.
Step 4 Insert a memory SD card if needed
Step 5 Put the battery back and make sure the gold contact
aligned then gently press it down to secure the battery.
Step 6 Replace the battery cover and press firmly along the
edge to ensure all side tabs click into place.
BEC 430M 4G/LTE Mobile Hotspot
6
II. Battery –Charging
Fully charge the battery before attempting to power on the BEC
430M for the first time.
If your 430M have not been used for a period of time or the
battery is fully depleted, the 430M may not get powered on
immediately after the charger is plugged in.
WARNING Use only the provided power supply and battery with your BEC
430M as they are approved and designedfor the device. Use of an
incompatible battery or power supply from an unknown manufacturer may
increase the risk of device malfunctions, failure, overheat, explode resulting
property damage, body injure, etc. Such use voids all warranties, whether
expressed or implied, on the product.
III. Turn on your BEC 430M
To start, press and hold the power button until LED / LCD
screen start flashing.
IV. Connect to the Internet
Wireless LAN Connection
Set up and connect your
notebook, smart phone or tablet
with the 430M wirelessly.
Remove the battery cover to
find your unique SSID and Wi-Fi key in WPA/WPA2-PSK mode.
BEC 430M 4G/LTE Mobile Hotspot
7
Access to the Web Management of 430M
Make sure your Wi-Fi device is connected and received an IP
address from the BEC 430M.
Default Management IP: 192.168.0.1 / 255.255.255.0
Open a web browser and type http://192.168.0.1 in the URL
address bar and enter.
The login prompt will appear and input the default password
(admin) to access to the Home Page.
The Home page displays current WAN & LAN network status,
total number of connected Wi-Fi clients, statistic and 4G LTE
signal strength.
\
BEC 430M 4G/LTE Mobile Hotspot
8
Quick Settings to Set up Your BEC 430M
Step 1: Go to Quick Settings
The Setup Wizard for quick network configuration to the Internet.
Step 2: 4G/LTE WAN Connection Setup
Select Auto if your 430M is already being preconfigured.
Before configuring your 430M, make sure you have
inserted your SIM card.
BEC 430M 4G/LTE Mobile Hotspot
9
Otherwise, select Manual to create a new enter a new Internet
profile by entering
details such as Profile
Name, APN, username
/ password, and other
information provided by
your service provider.
Click Next.
Step 3: Wi-Fi Hotspot –Change SSID
Verify or update your Wi-Fi network name (SSID) to a unique
and different name.
Click Next.
BEC 430M 4G/LTE Mobile Hotspot
10

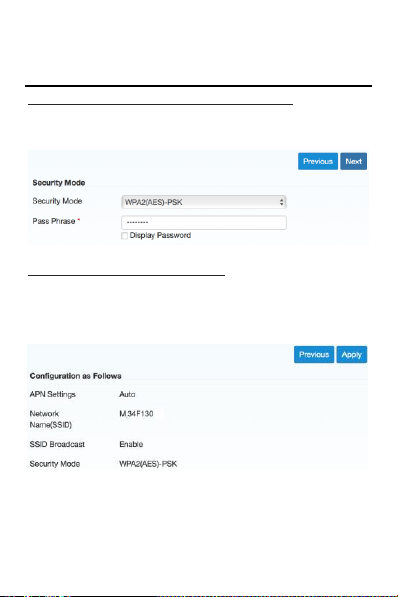

Step 4: Wi-Fi Hotspot –Change Security Mode
Verify or update the security mode (default in WPA/WPA2-
PSK) and/or Pre-shared Key. Click Next.
Step 5: Confirm and Save Settings
Verify all settings and click Apply to save and complete the
Setup Wizard. You should now be able to access to the
Internet.
