87 West Main Street
Sodus, NY 14551
(315) 483-6923 TEL
(315) 483-6656 FAX
LAST UPDATED: 07 MAY 2015
BECMATIC MODELS 550/600/602/652
OWNER’S MANUAL – BECMATIC SPRING FEEDERS
Spring No.
Revision
MODEL
ID #
SERIAL #
FEED RATE
DATE
2
INDEX
Warranty …………………………………………………………………………….Page 3
Return Information ………………………………………………………………….Page 3
Setup ………………………………………………………………………………...Page 4
Installation of Feed Tube(s) …………………………………………………………Page 4
Mounting …………………………………………………………………………….Page 5
Operation …………………………………………………………………………...Page 10
Optional Equipment ………………………………………………………………...Page 11
Troubleshooting ………………………………………………………………….…Page 13
Preventative Maintenance…………………………………………………………...Page 14
Parts List ……………………………………………………………………………Page 16
Set-up Example ……………………………………………………………………..Page 17
3
WARRANTY
STANDARD WARRANTY
The seller warrants equipment of its manufacture against defects in workmanship and material
for a period of 12 months from date of shipment from the factory.
This unit has been tooled specifically for your application. Air velocity and volume are preset at
the factory and the case has been sealed to maintain proper airflow. Disassembly or
modifications to this unit may impair operation and/or void warranty.
RETURN INFORMATION
*Call Factory for return authorization.
*Carefully pack unit to avoid damage in shipment. Insure for full value of the unit.
*Include detailed description of problem, name and phone number of the contact person, a
quantity of springs for test operations, and shipping instructions.
4
SETUP & INSTALLATION
SETUP
All models of Becmatic Spring Feeders require a 115 volt grounded electrical outlet and 80 p.s.i.
of clean air. The unit may be plugged into any standard 115 volt outlet, or may be wired directly
to any controller with 115 volt output. In installations where the air supply exceeds 80 p.s.i., a
regulator should be provided.
The feeder should be mounted above the spring escapement to allow gravity feed of the springs
through the feed tube. Feed tube length should be kept as short as possible to eliminate
excess backpressure, (36” maximum).
INSTALLATION OF FEED TUBE(S)
The feed tube is inserted into the outlet nozzle on the front of the feeder. The lock collar should
be adjusted to provide a secure grasp on the feed tube. Over tightening the lock collar will result
in damage to the nozzle and may impair the travel of the springs. Feed tube length should be
enough to allow a transition without kinks or sharp bends that will impede flow.
*230 volt models are not supplied with a plug.
*See mounting instructions.
5

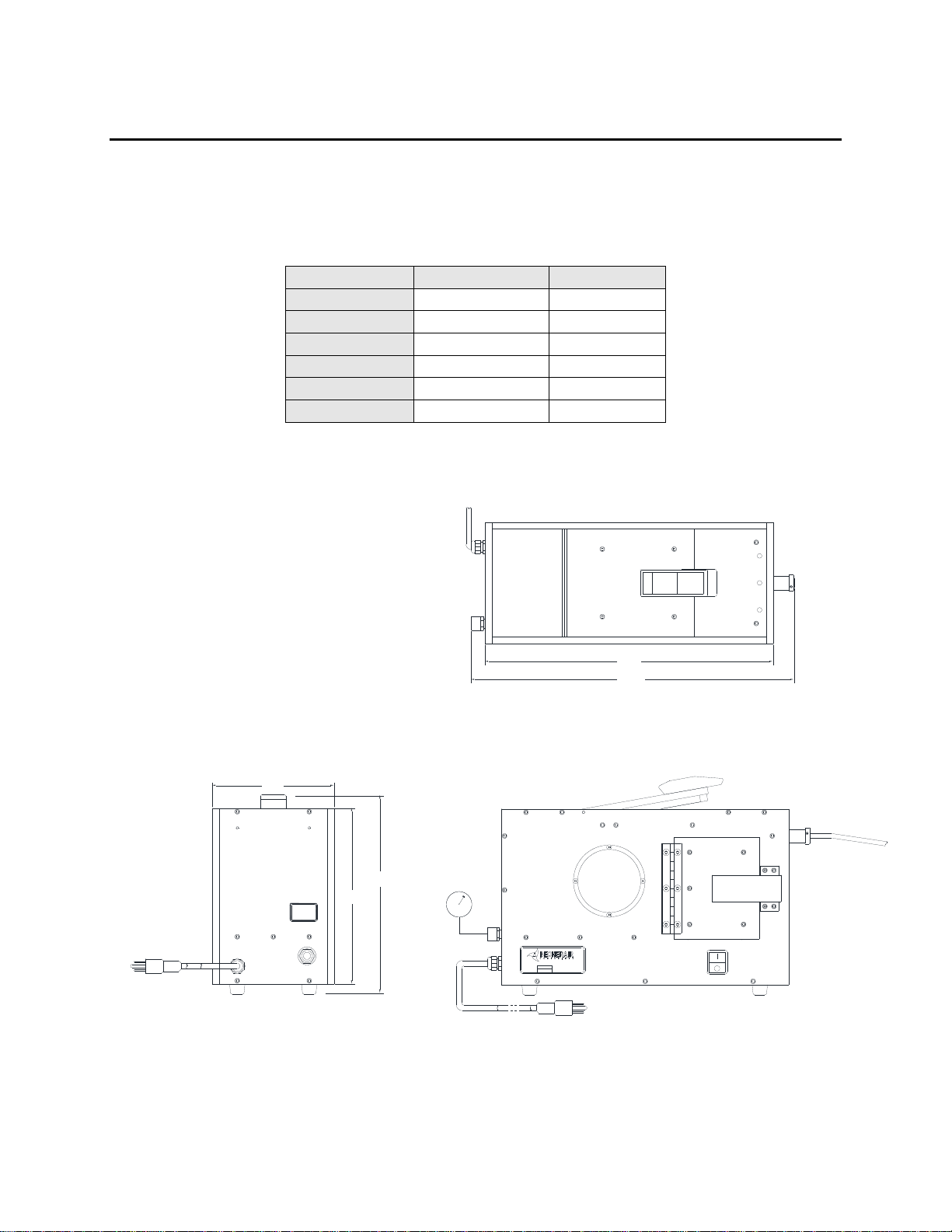

MOUNTING & SPECIFICATIONS
MODEL 550
US Std. Inches
Metric (mm)
Spring O.D.
.040 - .125
1.0 –3.2 mm
Spring Length
.625
16 mm
Capacity (Vol)
.5 qt.
.5 ltr.
Electrical
115 VAC, 1.5A
230VAC, 1A
Air
80 p.s.i.
5.6 kg/cc2
Air Supply
.250 min.
6 mm min.
CLEAN AIR
110V. AC
80-P.S.I.
80 LBS P.S.I.
CLEAN AIR
115VAC 60HZ
GROUNDED
POWER
SUPPLY
(230VAC
OPTIONAL)
ESCAPEMENTS
SPRING
TO
DIVISION OF C-ASSOCIATES, LLC.
MODEL NO.
SERIAL NO.
WWW.BECHERAIR.COM
SODUS, NY 315-483-6923
6

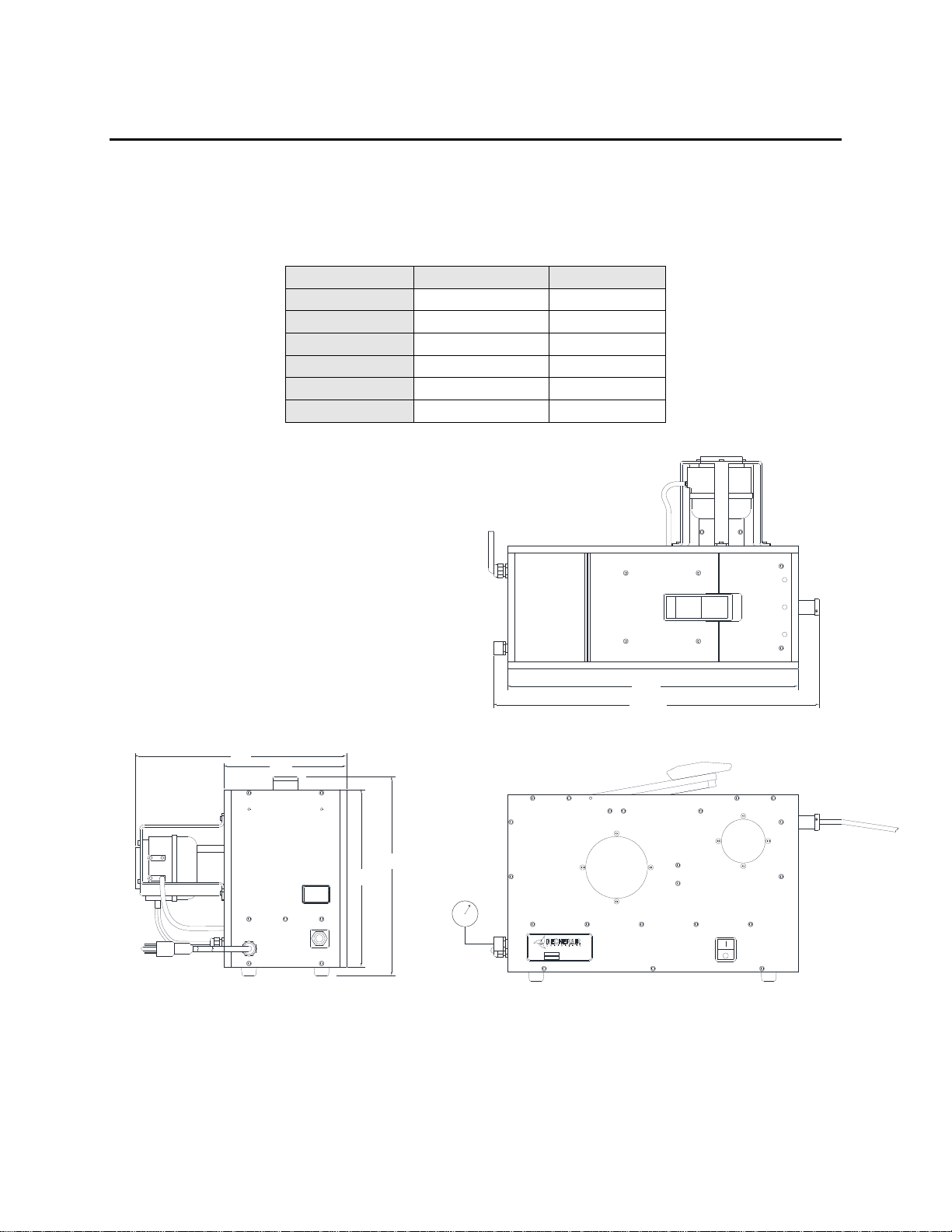

MOUNTING & SPECIFICATIONS
MODEL 600
US Std. Inches
Metric (mm)
Spring O.D.
.125 - .312
3.2 –8 mm
Spring Length
1.250
31.8 mm
Capacity (Vol)
1.5 qt.
1.4 ltr.
Electrical
115 VAC, 1.5A
230VAC, 1A
Air
80 p.s.i.
5.6 kg/cc2
Air Supply
.375 min.
10 mm min.
CLEAN AIR
110V. AC
80-P.S.I.
6.75
16.00
9.75
18.00
OPTIONAL)
115VAC 60HZ
GROUNDED
POWER
SUPPLY
(230VAC
CLEAN AIR
80 LBS P.S.I.
ESCAPEMENTS
SPRING
TO
DIVISION OF C-ASSOCIATES, LLC.
MODEL NO.
SERIAL NO.
WWW.BECHERAIR.COM
SODUS, NY 315-483-6923
~11.00
7

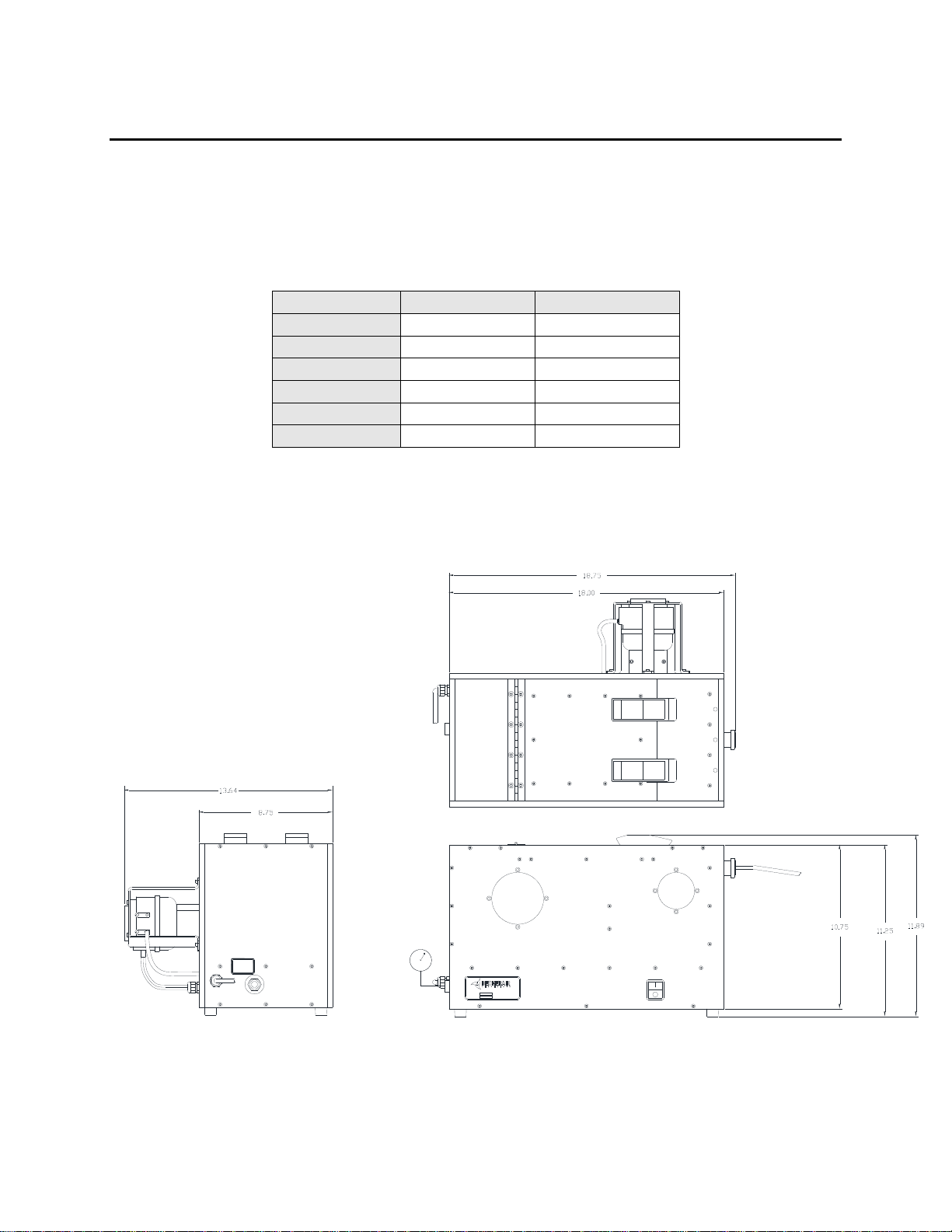

MOUNTING & SPECIFICATIONS
MODEL 602
US Std. Inches
Metric (mm)
Spring O.D.
.125 - .312
3.2 –8 mm
Spring Length
1.250
31.8 mm
Capacity (Vol)
1.5 qt.
1.4 ltr.
Electrical
115 VAC, 1.5A
230VAC, 1A
Air
80 p.s.i.
5.6 kg/cc2
Air Supply
.375 min.
10 mm min.
CLEAN AIR
110V. AC
80-P.S.I.
6.75
16.00
9.75
~11.00
~18.00
MODEL 602 ONLY
80 LBS P.S.I.
CLEAN AIR
115VAC 60HZ
GROUNDED
POWER
SUPPLY
(230VAC
OPTIONAL)
ESCAPEMENTS
TO
SPRING
11.64
DIVISION OF C-ASSOCIATES, LLC.
MODEL NO.
SERIAL NO.
WWW.BECHERAIR.COM
SODUS, NY 315-483-6923
8
MOUNTING & SPECIFICATIONS

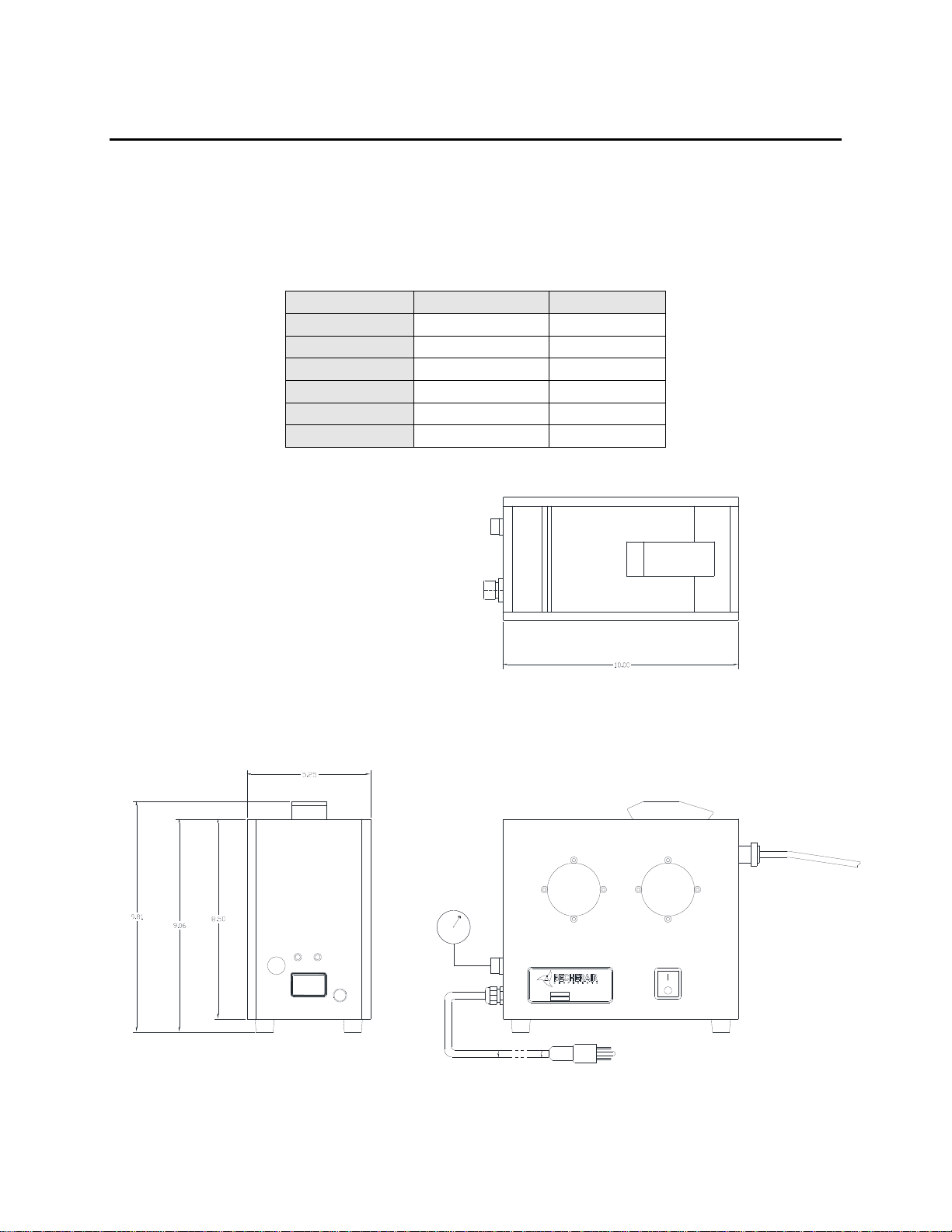

MODEL 652
US Std. Inches
Metric (mm)
Spring O.D.
.250 - .625
6.35 –15.88 mm
Spring Length
1.500
38.1 mm
Capacity (Vol)
3 qt.
2.8 ltr.
Electrical
115 VAC, 1.5A
230VAC, 1A
Air
80 p.s.i.
5.6 kg/cc2
Air Supply
.375 min.
10 mm min.
110V. AC
CLEAN AIR
90-P.S.I.
ESCAPEMENTS
TO
SPRING
(230VAC
OPTIONAL)
115VAC 60HZ
SUPPLY
POWER
GROUNDED
90 LBS P.S.I.
CLEAN AIR
DIVISION OF C-ASSOCIATES, LLC.
MODEL NO.
SERIAL NO.
WWW.BECHERAIR.COM
SODUS, NY 315-483-6923
9
MOUNTING & SPECIFICATIONS

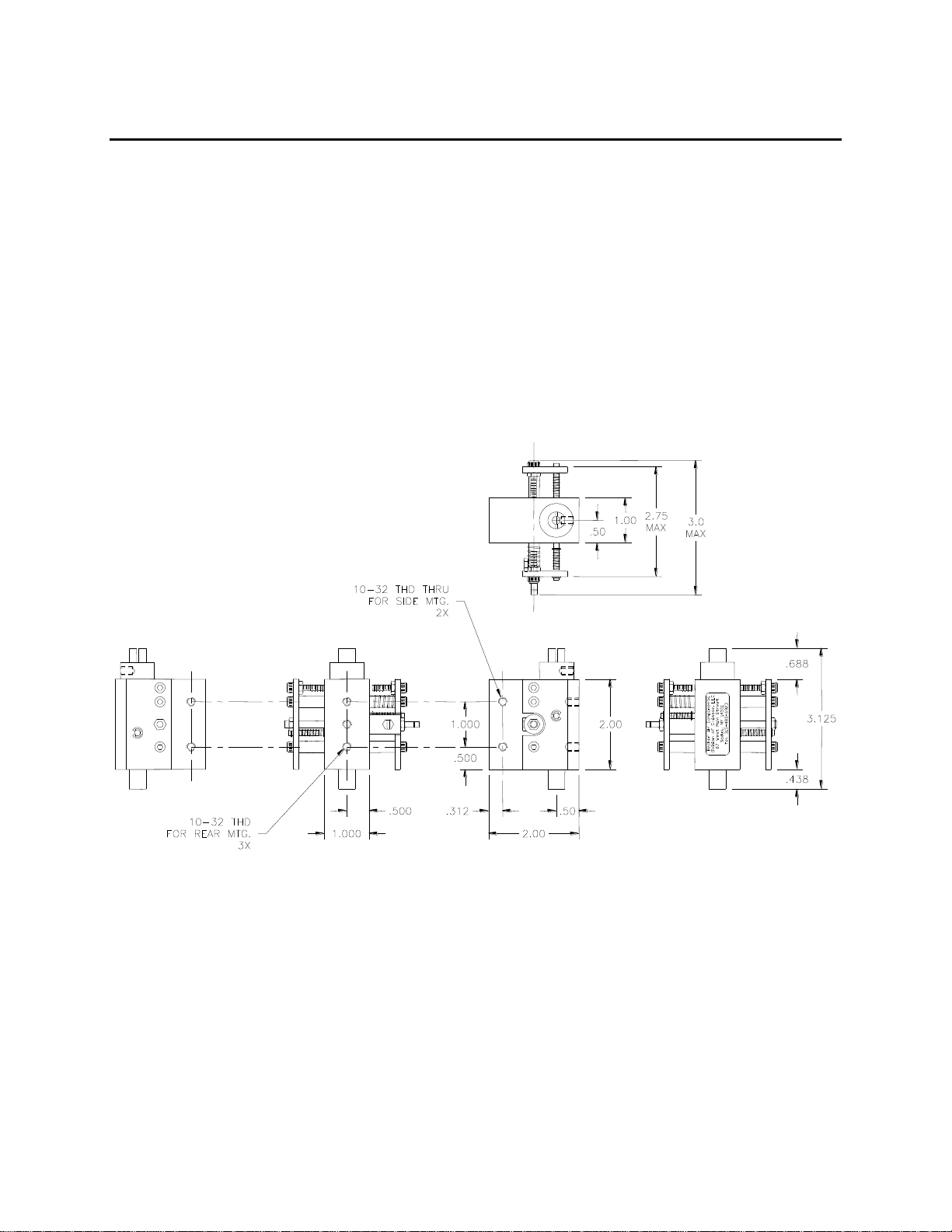

AUTOMATIC ESCAPEMENT
10
OPERATION

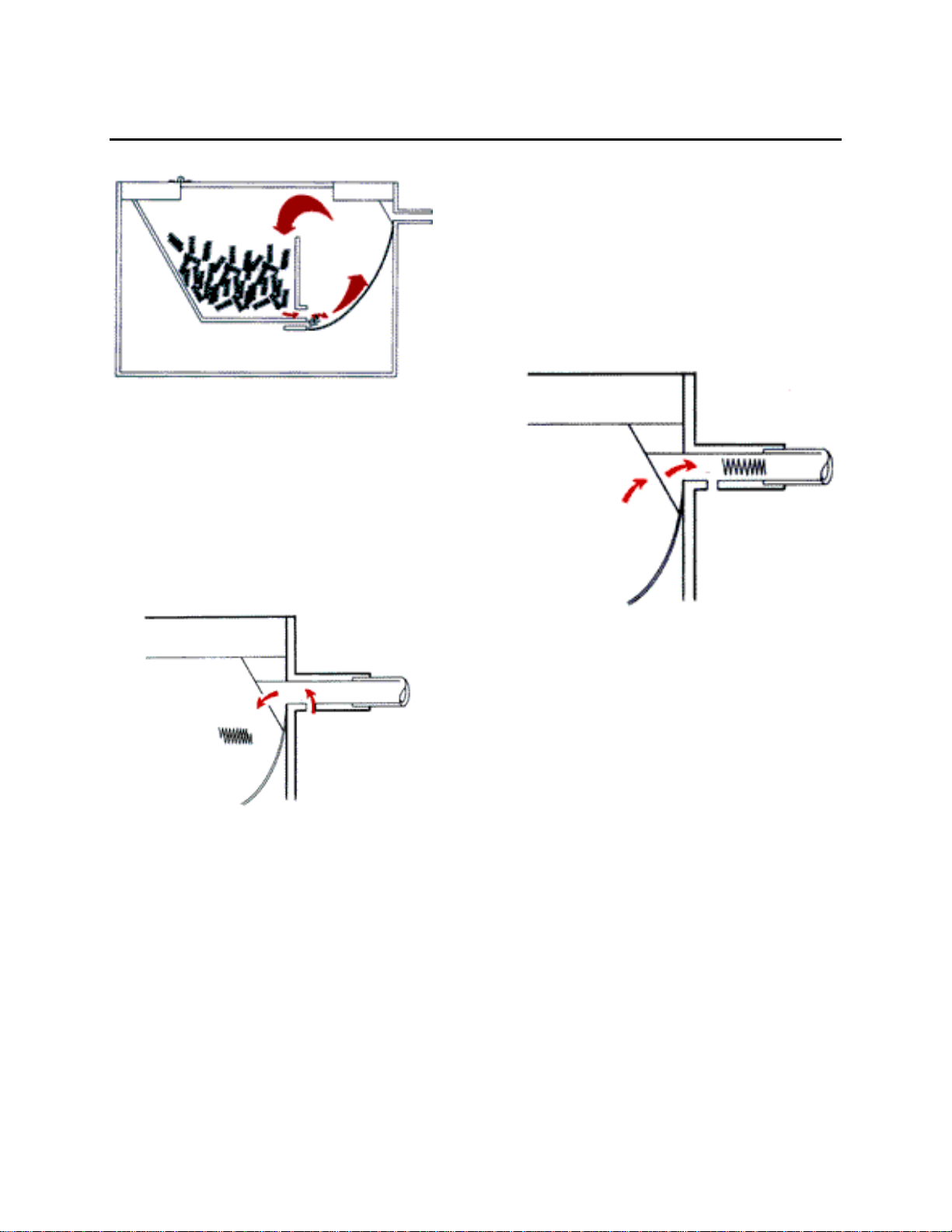

The Becmatic Spring Feeder/ Detangler
takes a quantity of springs from the rear
chamber and feeds them forward to the
spinning chamber where they are
separated, (See Fig.1.) and fed to the
Figure 1
outlet nozzle, (Fig. 2). A cycle timer
provides an air jet to clear the nozzle of
tangled springs (Fig.3). The springs are
then fed down the feed tube to the spring
escapement.
Figure 2
Load springs into the rear chamber of the
spring feeder/detangler. It is
recommended that the quantity be kept to
no more than is necessary to prevent
excessive spinning of springs, which may
result in hooked or damaged parts.
Figure 3
* Severely tangled or hooked springs should be removed from the reservoir prior to adding
new parts.
* Springs should be stored in closed containers to avoid contamination and damage.
* Springs should be clean, dry and free of lubricants or any foreign contamination.
* Foreign debris and damaged parts may cause jamming or impair feed rates.
* Power to the machine should be shut off when the feeder is not in use.
