Behringer Virtualizer Pro DSP2024P Manuale utente

VIRTUALIZER

PRO DSP2024P

Version 1.0 December 2001

Technical Specifications

www.behringer.com

ENGLISH

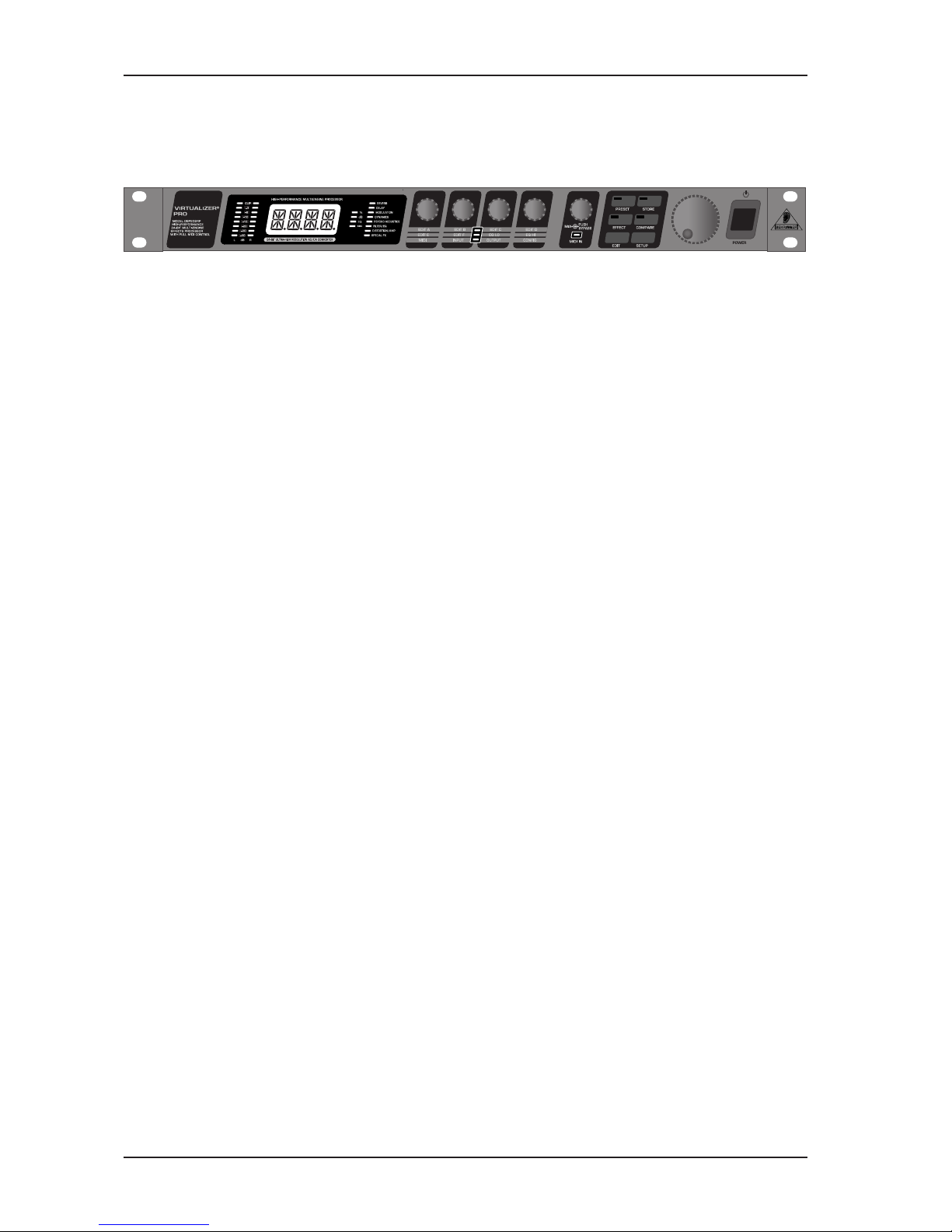

VIRTUALIZER PRO DSP2024P

DSP2024P

VIRTUALIZER

PRO

High-Performance 24-Bit M lti-Engine Effects Processor

s1 breathtaking new algorithms, most in true stereo

sWave-adaptive VIRTUAL ROOM reverb algorithms for ultra-natural reverb and delay

sAwesome modulation, dynamic, psychoacoustic and EQ algorithms

sInnovative amp simulation, distortion and special effects

s11 effect combinations with selectable serial/parallel configuration

sUp to adjustable parameters plus HI and LO EQ per effect

sHigh-resolution 24-bit A/D and D/A converters with 64/128-times oversampling

sTrue stereo processing for realistic channel separation in stereo image

s24-bit internal signal processing, professional 46 kHz sample rate

s100 factory presets plus 100 user memory locations

sExtensive MIDI implementation

sPrecise 8-segment LED level meters

sInternal power supply for professional applications

sServo-balanced XLR and 1/4" TRS inputs and outputs

sManufactured under ISO9000 certified management system

VIRTUALIZER PRO DSP2024P

SPECIFICATIONS

ANALOG INPUTS

Connectors XLR and 1/4" TRS

Type RF filtered, servo-balanced input stage

Impedance 80 kW balanced

Nominal Operating Level -10 dBV or +4 dBu (selectable)

Max. Input Level +15 dBu at +4 dBu nominal level, +1 dBV at -10 dBV nominal level

ANALOG OUTPUTS

Connectors XLR and 1/4" TRS

Type Electronically servo-balanced output stage

Impedance 80 W balanced

Max. Output Level +15 dBu at +4 dBu nominal level, +1 dBV at -10 dBV nominal level

SYSTEM SPECIFICATIONS

Bandwidth 20 Hz to 20 kHz, +/- 3 dB

SNR 91 dB, unweighted, 20 Hz to 20 kHz

THD 0.018 % typ. @ +4 dBu, 1 kHz, 0 dBu input, gain 1

Crosstalk < - 6 dB

MIDI INTERFACE

Type 5-pin DIN-socket IN / OUT / THRU

DIGITAL PROCESSING

Converters 24-bit Sigma-Delta, 64/128-times oversampling

Sampling Rate 46.8 5 kHz

DISPLAY

Type 4-digit 14 segment alpha-numeric LED-Display

POWER SUPPLY

Mains Voltages USA/Canada 120 V ~, 60 Hz

U.K./Australia 240 V ~, 50 Hz

Europe 230 V ~, 50 Hz

General Export Model 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz

Fuse 100 - 120 V ~: T 200 mA H

200 - 240 V ~: T 100 mA H

Power Consumption 15 Watts max.

Mains Connection Standard IEC receptacle

PHYSICAL

Dimensions (H x W x D) 1 3/4" (44 mm) x 19" (482,6 mm) x 8" (204,4 mm)

Net Weight approx. 2 kg

Shipping Weight approx. 3 kg

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time

to time to e isting products without prior notice. Specifications and appearance may differ from those listed or illustrated.

VIRTUALIZER PRO DSP2024P

The information contained in this manual is subject to change without notice. No part of this manual may be reproduced or

transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for any

purpose, without the express written permission of BEH INGE Spezielle Studiotechnik GmbH.

BEH INGE , VI TUALIZE , ULT AMIZE and DENOISE are registered trademarks. ALL IGHTS ESE VED.

BEH INGE Spezielle Studiotechnik GmbH, Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide II, Germany

Tel. +49 (0) 21 54 / 92 06-0, Fax +49 (0) 21 54 / 92 06-30
