Behringer POWERLIGHT PL2000 Manuale utente

POWERLIGHT PL2000

Version 1.0 January 2005

Users Manual

ENGLISH

POWERLIGHT PL2000

DEUTSCH

WELCOME TO BEHRINGER!

Thank you for the confidence you have shown in us by purchasing the

PO ERLIGHT PL2000. It is an extremely dependable, premium-featured rack light in

the 19" format. The PO ERLIGHT offers you many mains connectors and the

highest possible safety for maximum flexibility on the stage or at the studio.

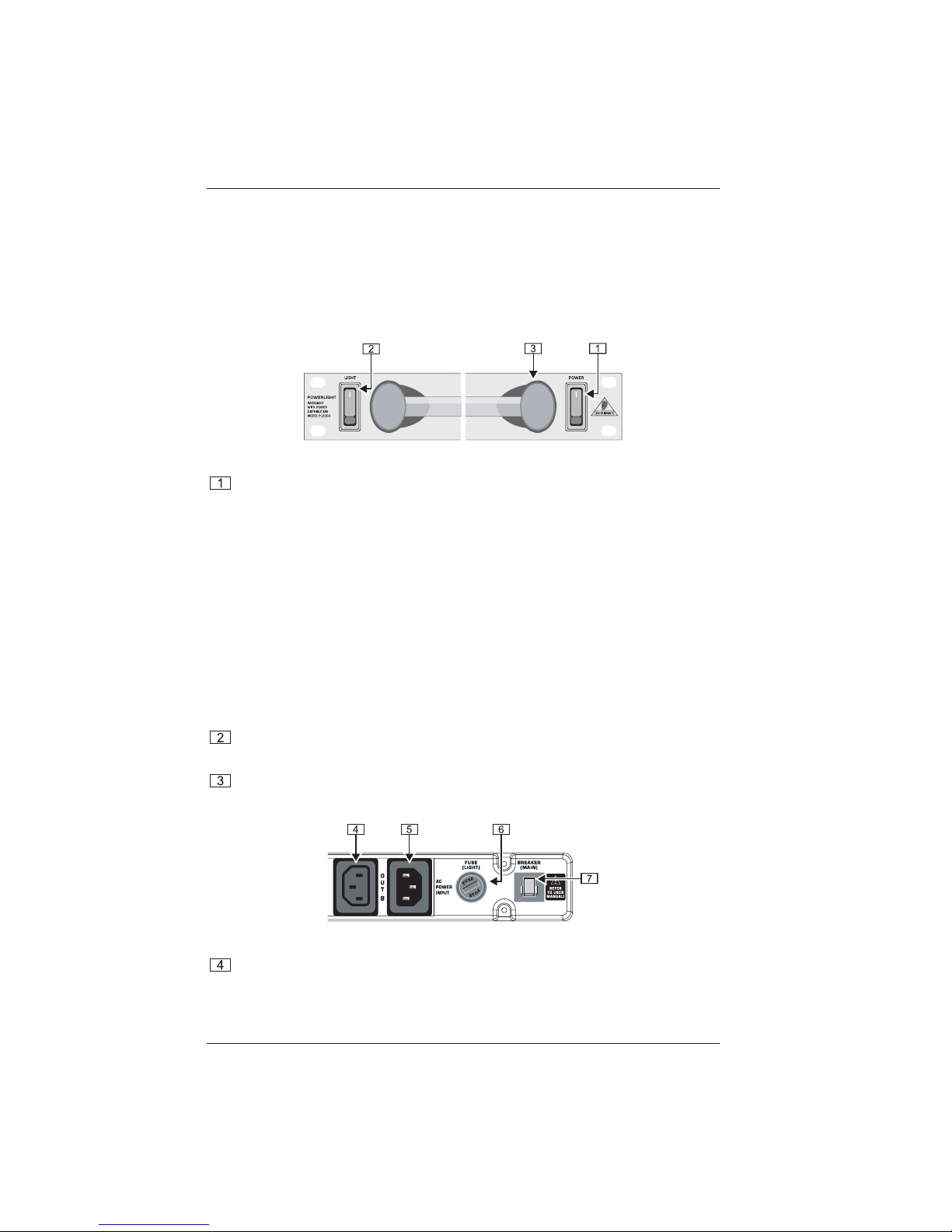

CONTROL ELEMENTS

Front-side control elements

Use the POWER switch to power up the PO ERLIGHT PL2000. The PO ER

switch should always be in its Off position whenever you connect the unit

to the mains.

+Merely pressing the POWER switch does not disconnect the unit

fully from the mains. To fully disconnect the unit from the mains,

unplug the power cord from the power outlet. During the installation,

make sure that oth the power cord and the power outlet function

properly. When not using the unit for prolonged periods of time,

please unplug the units power cord from the power outlet.

+Please make sure that the unit is grounded at all times. For your

own protection, you should never tamper with the grounding of the

ca le or the unit itself. The unit must e connected to the mains

with an intact ground wire at all times.

The LIGHT switch activates the rack lighting. The light can also be turned on

independent of the PO ER switch.

The rack light can be rotated and can be individually adjusted to best suit your

lighting needs.

Control elements in the back

There are 8 mains connectors in the back of the PL2000 for providing power

to additional equipment in your rack. The total power load of the equipment

connected to the PL2000 may not exceed 8 A.

CONTROL ELEMENTS

POWERLIGHT PL2000

The mains connection is made with a standard IEC receptacle. A matching

power cord is included.

Your rack lights fuse holder is located here. Blown fuses should only be

replaced with fuses of the same type and rating.

This is your PL2000s automatic circuit breaker. If the total load of the equipment

you have connected to the PL2000 exceeds 8 A, the circuit breaker engages

and completely turns the PL2000 off. If this happens, remove one or more of

the units you have connected in order to lower the overall load below 8 A.

After approx. 2 minutes the automatic circuit breaker is reset and your PL2000

can be turned on again. If the circuit breaker engages again, disconnect

additional equipment.

Important information on the top side

Important information about the polarity of the connectors and the maximum

allowed load is located on the top side of your PO ERLIGHT PL2000.

ERIAL NUMBER.

INSTALLATION IN A RACK

The PL2000 requires one height unit (1 HE) for installation in a 19-inch rack.

Please assure that there are additional 10 cm (4 inches) of free space in the back

for connecting cables.

Be sure that there is enough air space around the unit for cooling and, to avoid

overheating, please do not place the EUROPO ER on top of power amplifiers or

other heat-emitting equipment.

For installation in a rack, use M6 machine screws and nuts.

WARRANTY

Ideally, please register your new BEHRINGER equipment directly after the

purchase under www.behringer.com (or www.behringer.de ) and carefully read

the warranty terms and conditions.

BEHRINGER offers a one-year* warranty on material and workmanship, starting

with the date of purchase. You can read the complete terms and conditions of this

warranty at our webpage www.behringer.com (or www.behringer.de).

Should your BEHRINGER product malfunction, we want to have it repaired as

quickly as possible. Please directly contact the BEHRINGER dealer from whom you

have purchased your equipment. If your BEHRINGER dealer is not located near

you, you may also directly contact one of our subsidiaries. A list with contact

addresses of the BEHRINGER subsidiaries is located in the original packaging of

your equipment (Global Contact Information/European Contact Information).

ARRANTY

POWERLIGHT PL2000

Technical specifications and appearance subject to change without notice. The information contained herein is correct

at the time of printing. The names of companies, institutions or publications pictured or mentioned and their respective

logos are registered trademarks of their respective owners. Their use neither constitutes a claim of the trademarks by

BEHR NGER® nor affiliation of the trademark owners with BEHR NGER®. BEHR NGER® accepts no liability for any loss

which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement

contained herein. Colours and specification may vary slightly from product. Products are sold through our authorised

dealers only. Distributors and dealers are not agents of BEHR NGER® and have absolutely no authority to bind

BEHR NGER® by any express or implied undertaking or representation. No part of this manual may be reproduced or

transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for

any purpose, without the express written permission of BEHR NGER Spezielle Studiotechnik GmbH. BEHR NGER® is

a registered trademark.

Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide , Germany.

Tel. +49 2154 9206 0, Fax +49 2154 9206 4903

If no contact information is listed for your country, please contact the distributor

nearest you. Contact addresses can be found in the support area of our website,

www.behringer.com.

Registering your equipment with us after the purchase makes processing possible

warranty claims substantially easier.

Thank you for your cooperation!

*Conditions other than these may apply to customers from the European Union.

EU customers can acquire additional information by contacting BEHRINGER Support

Germany.

SPECIFICATIONS

Connections 8 IEC connectors

Overall load per channel max. 8 A

Overall load for all channels max. 8 A

Fuses

Lighting F 32 mA L 250 V

Main fuse 8 A 250 V (automatic circuit breaker)

Rack light 3.5 atts

Voltage Europe/U.K./Australia 230 V~, 50 Hz

China 220 V~, 50 Hz

USA/Canada 120 V~, 60 Hz

Japan 100 V~, 50 - 60 Hz

Mains connection Standard IEC receptacle

Dimensions (H x x D) approx. 44 mm x 482.6 mm x 126.4 mm

eight (net) approx. 0.75 kg

BEHR NGER continuously strives to assure the highest quality standards possible. Required modifications may be

implemented without prior notice. Technical data and the appearance of the unit may deviate from the above values and/or

illustrations.

SPECIFICATIONS
