TDIF INTERFACE TDF1616

Installation manual

Dear Customer!

Welcome to the team of TDF1616 users and thank you very much for expressing your confidence

inBEHRINGERproductsbypurchasingthisinterface.Althoughitisreallyeasytoinstallandoperate

theTDF1616,wewould liketo giveyouaconciseintroduction tothefeaturesofthis TDIF-compatible

interface for our digital mixing console BEHRINGER DDX3216. The TDF1616 has two TDIF-

compliantD-Subinputs and outputs (each with 8inputs/8outputs), which can be connected toany

TDIF-compatible multi-track machine using a 25-pin D-Sub cable. The upper connector carries

channels 9 through 16, the lower one channels 1 through 8.

Your BEHRINGER TDF1616 was carefully packed in the factory and the packaging is designed to

protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the

packaging and its contents for any signs of physical damage, which may have occurred during

transit.

+If the unit is damaged, please do not return it to BEHRINGER, but notify your dealer

andtheshipping company immediately,otherwiseclaims for damageor replacement

may not be granted. Shipping claims must be made by the consignee.

+Static electricity can severely damage electronic components. Before you touch

any electronic component, please be sure to discharge any static electricity by

touching the metal frame of your DDX3216. Hold the interface on its edges or the

two little handles, but never touch the components themselves!

sSwitch off the mixing console.

sTo install the interface slacken the screws holding the cover over one of the two expansion

slots on your digital mixing console BEHRINGER DDX3216. Keep the cover for later re-use!

sHold the interface on its two handles of the connecting panel, and insert it completely into the

expansion slot. Then, fasten the interface with the screws that held the expansion slot cover

before.

sSwitch on the mixing console. Now, the TDF1616 is ready for operation.

+Routingissues are describedin theuser’s manual accompanyingyour digitalmixing

console BEHRINGER DDX3216.

Version 1.0 April 2001

www.behringer.com

ENGLISH

+In jumper position 2, any external TDIF-compatible equipment must be synchronized

via the external word clock connection.

WARRANTY

+For our current warranty terms, please refer to our website at

http://www.behringer.com, or send us a request via e-mail at [email protected],

fax at +49 2154 920 665, or telephone at +49 2154 920 666.

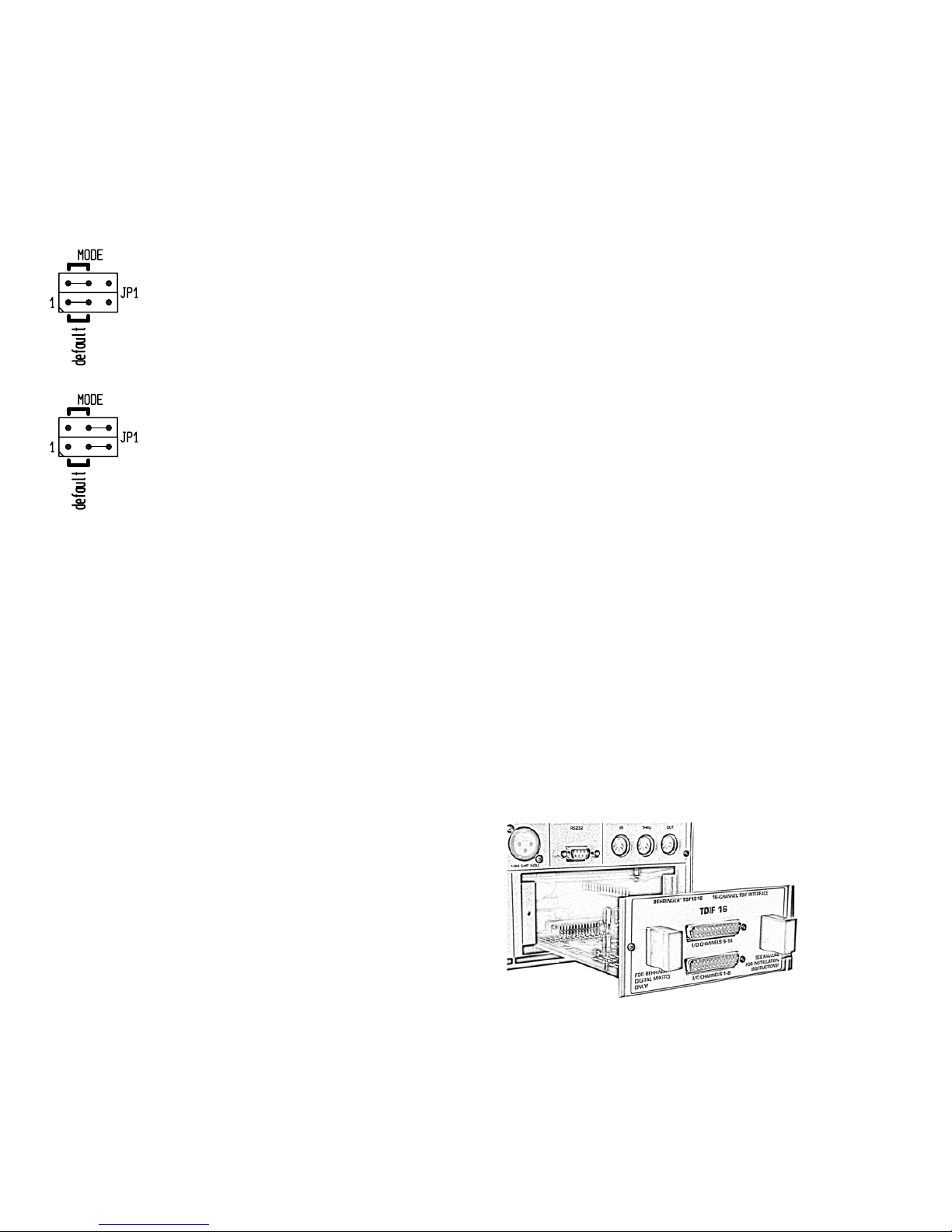

1. If the left pair of contacts are bridged via two jumpers (factory default), any

equipment connected to the TDIF interface receives the word clock signal

generatedby theDDX3216.Werecommend thissettingformost TDIF-compatible

units. Please select external word clock synchronization on the external unit

connected to the TDIF interface.

2.If the right pair of contacts are bridged, any equipment connected to the TDIF

interface receives its own word clock signal, i.e. the word clock signal generated

bytheexternalequipment isloopedthrough theTDIFinterface backtothe external

unit.This allows the use of TDIF-compatible units that cannot besynchronizedvia

external word clock signals transmitted through the TDIF interface. Position 2

should be used with first-generation TASCAM®DA88®recorders or if you should

experience synchronization problems with position 1.

Specifications:

Digital Input/Output

Type 25 Pol D-Sub

Standard TDIF-compatible

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made

from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

Installingthe TDF1616

Jumper settings:

TheDDX3216 TDIF interface features a 2 x3plug-incontactstripthat can be bridged via two jumpers,

allowing word clock synchronization to be adapted to any external equipment acting as a word clock

slaveto the DDX3216. The contactstrips are located approximately inthe middle of the circuit board.
