Beko MN13790PX Manuale utente

MN13790PX

Multi-Door

keep them handy.

1.This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.Children should be supervised to ensure that they do not play with the appliance.

2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualiﬁed persons in order to avoid a hazard.

3.This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,

clear of obstruction.

5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

6.WARNING: Do not damage the refrigerant circuit.

7.WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

8.Do not store explosive substances such as aerosol cans with a ﬂammable propellant in this

appliance.

9.This appliance is intended to be used in household and similar applications.

P11

P14

P15

P16

10.This product contains a light source of energy efﬁciency class F for light source ERP,

test with(without) light cover.

Thank you for buying the refrigerator. We hereby express our thanks.

Welcome to use the refrigerator. We will do our best to provide you with quality service.

P11

Guidance for storing fresh food P12

Guidance for using the freezer P13

If powered off, the refrigerator should not be powered on again until at

least 5 minutes for fear of damaging the compressor.

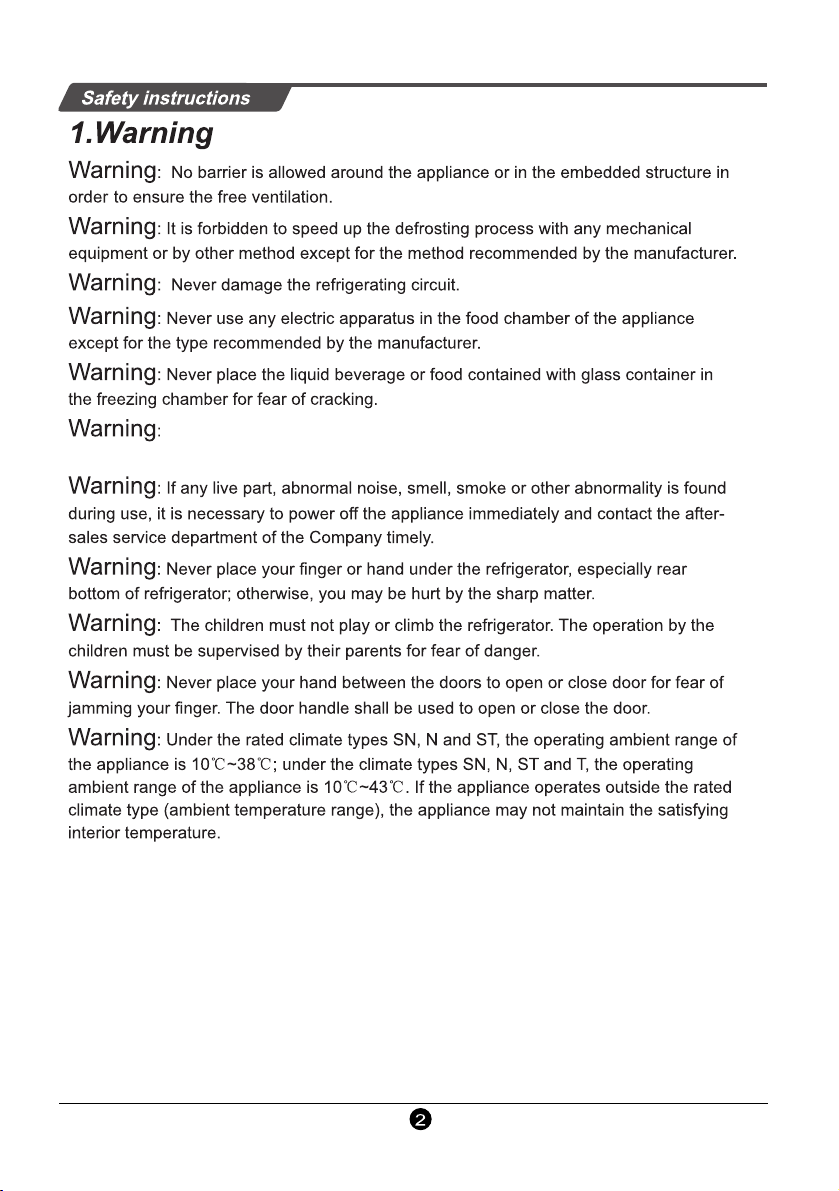

Safety instructions

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances

Opening the door for long periods can cause a signiﬁcant increase of the temperature in the

compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Clean water tanks if they have not been used for 48 h; ﬂush the water system connected to a

water supply if water has not been drawn for 5 days.

Store raw meat and ﬁsh in suitable containers in the refrigerator, so that it is not in contact

with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or

making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch oﬀ, defrost, clean, dry,

and leave the door open to prevent mould developing within the appliance.

Warning: When positioning the appliance, ensure the supply cord is not trapped or

damaged.

Warning Risk of ﬁre / ﬂammable materials:

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the

rear of the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply

mentioned on the nameplate, and the standard independent 3-hole socket shall be used

(above 10A, and reliably grounded). One socket must not be shared by more than one

appliance; otherwise, ﬁre may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the

power connector from the socket to disconnect the power supply. The power wire or

connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy

load, and the power wire shall not be bent extremely. The damage or peeling of power

wire may result in ﬁre or electric shock. If the power wire is broken or cut, please contact

the after-sales service department immediately.

Cautions: No ﬂammable or explosive matter or corrosive acid or alkaline matter is

allowed in the refrigerator.

Safety instructions

Cautions: The refrigerator must not be used outdoors.

Cautions: It is forbidden to place the container with ﬂuid on the refrigerator because

the breakage or turnover of the container may aﬀect the electrical insulation of

refrigerator and result in electric shock or ﬁre.

Cautions: The refrigerator must not be disassembled or modiﬁed without

permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any ﬂammable gas , it is necessary

to close the leaking valve ﬁrst and then open the window for ventilation, and forbidden to

unplug the refrigerator connector immediately for fear of ﬁre or explosion due to electric

spark.

Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I –

might not operate consistently (possibility of defrosting of contents or temperature

becoming too warm in the frozen food compartment) when sited for an extended period

of time below the cold end of the range of temperatures for which the refrigerating

appliance is designed;

Cautions: The need to not exceed the storage time(s) recommended by the food

manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of

the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen

food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual

defrosting, maintenance or cleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an

extended non-running of the refrigerating appliance (interruption of power supply or

failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched o ﬀ

and taken out of service temporarily or for an extended period (e.g. emptied, cleaned

and dried, and the door(s) or lid(s) propped ajar).

The pictures are for reference only. Please refer to the object

Refrigerator room door

Freezer room door

Bottle holder

Freezer room door

Freezer drawer

Freezer upper drawer

Fruit and

vegetable box

family than commercial purposes.

Your product may differ from the illustrations and text of other products also

covered by this User Manual

Handling and placement

During handling, the door

side of the refrigerator shall

not contact with the

handling tools

Removing the foam base is

beneﬁcial for bottom heat

dissipation and can avoid

ﬁre.

The refrigerator shall be

placed in an environment

which is dry, has good

ventilation, far from direct

sunshine and heat source.

The refrigerator shall be

placed on the ﬂat and ﬁrm

surface. If the ground is not

ﬂat, adjust the adjusting leg

to keep it level.

Never place the refrigerator

into a too cold environment

that may get frozen.

Certain space shall be left

around the refrigerator,

shown in the ﬁgure.

>30cm

>10cm >10cm

Caution:

When handling the refrigerator, at least two persons are required – one lifts the top of rear

part, the other one handles the bottom (if one part is clamped, it is quite heavy and may

cause accident).

--When moving the refrigerator, the lower runner may damage and scratch the ﬂoor. If you

need to move the refrigerator for a long distance, the internal accessories shall be ﬁxed

using adhesive tape. Otherwise, the accessories may get damaged due to crashing each

other.

--Please place the refrigerator in the position with small vibration or little exposed to

vibration. For users in the area where earthquake often occurs, please ﬁx the refrigerator

against the wall or pole. Otherwise, the falling of refrigerator will cause accident.

--Sufﬁcient clearance shall be left around. If the clearance is too small or goods on the top

or close to the side, or on the sides, the heat dissipation of refrigerator will be affected, and

thus to cause unnecessary electric energy waste as well as burn out of the wall

and other goods; the contact between the back and wall will cause vibration and noise;

--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevelling of the

refrigerator will cause vibration and noise.

The appliance should be located in the coolest area of the room, away from heat producing appliances or

heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the

compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down

on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with

cold air circulation, making the appliance less efﬁcient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed

at one time, and close the door as soon as possible.

Preparations prior to use

1. Remove all packing assemblies such as case ﬁxing tape etc., especially the foam base.

2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can

be added in warm water).

3. After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power

plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

1. Remove ﬁxing tape 2. Connect to power 3. Store food after

connecting to power

for 2-3 hours

Wipe with

warm and

wet cloth

In hot summer, 24 hours are

needed to fully freeze the food.

Check the refrigerating condition

on the second day.

Do not open the

doors frequently

to save electricity.

The plastics odour will disappear

automatically after freezing for a while.

MN13790PX

677 703 >L1+300 >W1+500
