USB

BusPort™ Mobile

MODEL F5U022

User Manual

P73280

Table of Contents

Overview

Belkin BusPort™Mobile Features. . . . . . . . . . . . . . . . 4

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . 4

Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Checking CardBus Host Controller on a PC . . . . . . . . . . 5

Installation for notebook PCs using Windows®98

(First Edition) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation for notebook PCs using Windows®98

(Second Edition) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using Your BusPort™Mobile on a notebook PC

Initializing USB Devices. . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting on a notebook PC. . . . . . . . . . . . . . . 15

Installation using Macintosh®PowerBook®. . . . . . . . . . 16

Troubleshooting on a Mac®. . . . . . . . . . . . . . . . . . . . . 17

Compatibility List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

The Belkin USB BusPort™Mobile is the perfect solution for

notebook PC or Macintosh®PowerBook®users without USB ports.

Installation is fast and easy – just slide it in your CardBus PC Card

Type II slot. The BusPort™Mobile is completely Plug-and-Play, and

is compatible with Windows®98 and Macintosh®OS 8.6 or higher.

You can instantly connect USB printers, modems, keyboards, mice,

joysticks, and hundreds of other USB devices.

The BusPort™Mobile provides two additional USB ports. When

used with USB hubs such as the Belkin BusStation™or 4 Port Hub,

you can daisy-chain up to 127 USB devices to your notebook or

PowerBook®. And because it is a Belkin product, you are assured

that it is fully compliant with current USB specifications, meets the

standard of USB OHCI specifications and comes with an

unbeatable Lifetime Warranty.

Overview

Features

• Adds USB capabilities to your notebook PC or Macintosh®

PowerBook® quickly and easily

• Instantly connect ANY USB device such as USB printers,

modems, speakers, digital cameras, hubs, and more

• Supports 32-bit CardBus PC Card Type II slot

• Compatible with Windows® 98 or Mac®OS 8.6 or higher

• Fully compliant with current USB OHCI specifications

• Provides 2 USB ports

• Lifetime warranty

SYSTEM REQUIREMENTS

• Notebook PC or Macintosh®PowerBook®with CardBus PC

Card Type II slot

• Windows®98 or Mac® OS 8.6 or higher

• Not for use with PowerBook®G3 1999

PACKAGE CONTENTS

• Belkin USB BusPort™ Mobile

• User Guide

Checking CardBus

Host Controller on a PC

Before you can connect the BusPort™Mobile, you need to confirm

if your notebook supports CardBus PCMCIA. To confirm whether

your CardBus host controller has been installed in your notebook

and works properly use the following procedures:

1. Click on Start, select Settings, then click on Control Panel. Next

click on the PC Card (PCMCIA) icon from Control Panel.

2. If the PC Card Properties show at least one empty socket, this

means PC Card support is installed properly on your notebook

PC. You can proceed to install the USB BusPort™Mobile.

Installation for Notebook

PCs using Windows®98

1. Insert the BusPort™Mobile on your notebook’s PCMCIA slot.

2. Connect the 7-inch dongle, included in this package, to the

BusPort™Mobile PCMCIA Card.

3. Windows® automatically detects new hardware. To install the

software device drivers for the BusPort™Mobile, please use the

following instructions:

Step 1

The first dialog box like the one below informs that Windows®98

has detected a new hardware, “PCI Universal Serial Bus,” and that

Windows®is installing the appropriate software.

3. If for some reason your notebook does not have PC Card

PCMCIA support, then refer to your notebook PC manual on

how to install the proper drivers or contact your notebook

computer manufacturer.

Checking CardBus

Host Controller on a PC (cont.)

Step 2

The following screen will prompt you that the wizard searches

for new drivers for the OPTi 82C861 PCI to USB Open Host

Controller. Click ‘Next>’.

Step 3

The next screen displays two options. Select ‘Search for the best

driver for your device’. Click ‘Next >’.

Installation for Notebook

PCs using Windows®98 (cont.)

Installation for Notebook

PCs using Windows®98 (cont.)

Step 4

Windows®will now prompt you for the location of the driver. Insert

the Windows® 98 CD on your CD-ROM drive. From the selection

window, select “Specify a Location” then type E:\WIN98 (On this

example E is the drive letter for CD-ROM, it may be different on

your PC). Click “Next>” to continue.

Step 5

Next, Windows®will inform you that it has found an updated driver

for this device. Under the heading “What do you want to install?”

select “The updated driver (Recommended)” then click “Next>.”

Installation for Notebook

PCs using Windows®98 (cont.)

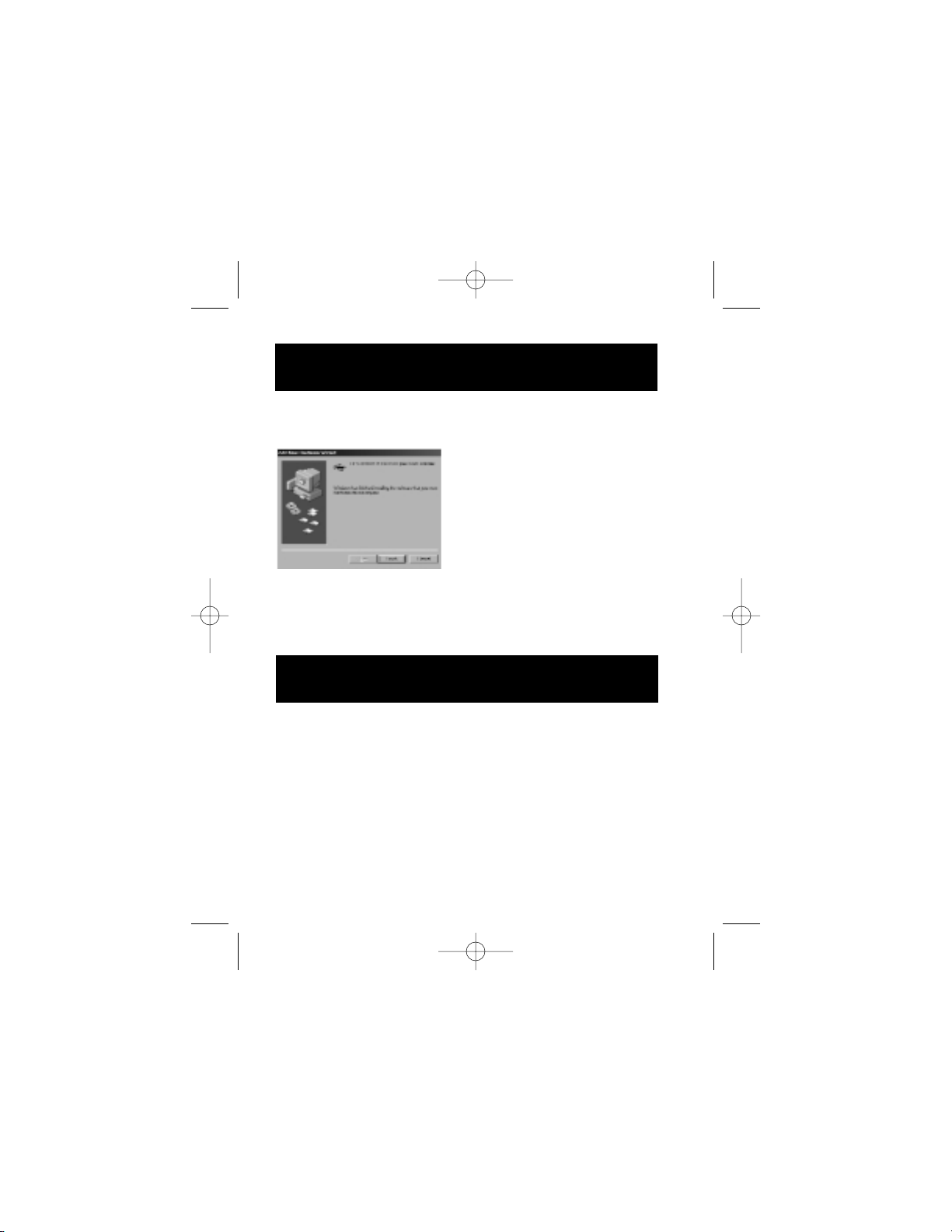

Step 6

The next screen prompt informs that Windows®is ready to install

the drivers for the BusPort™Mobile. Click “Next” to install

the drivers.

Step 7

The following prompt informs that Windows®is copying the driver

files from the CD-ROM.

Step 8

Lastly, Windows®displays the final dialog box. Click “Finish.”

Windows will finish installing the OPTi 82C861 to USB Open Host

Controller and the USB Root Hub. There will be no more prompts.

Congratulations you now have 2 USB ports!

Installation for Notebook

PCs using Windows®98 (cont.)

Installation for Notebook PCs using

Windows®98 Second Edition

1. Insert the BusPort™Mobile in your notebook’s PCMCIA slot.

2. Connect the 7-inch dongle, included in this package to the

BusPort™Mobile PCMCIA Card.

3. Windows®automatically detects that you have installed new

hardware. To install the software device drivers for the

BusPort™Mobile, please use the following instructions:
