P73476 F5U208
USB VideoBus II™
User Guide
F5U208 user's manual 12/12/00 11:21 AM Page 1
Capture video and sound on your computer via the USB port!
Thank you for purchasing the Belkin Components
VideoBus II™ Adapter. With the VideoBus II, you can connect
your TV, VCR, or camcorder to your computer and capture
images, or even make full-motion movies! The VideoBus II
will accept any NTSC composite, PAL video input, or SECAM
video input and low level audio signal and convert it into a
PC-compatible digital video image and audio format. The
Belkin Components VideoBus II is the ideal device to bring
video and still images into your computer from various
standard video sources via the USB port. The VideoBus II
enables unparalleled throughput of up to 30 frames per
second for CIF size color images by using Belkin’s advanced
compression technology. This gives you superior live video
performance while using minimal USB and CPU resources,
leaving them available for other applications. Live audio and
video captured using the VideoBus II, originating from a
video camera, camcorder, VCR, or TV tuner, fully complies
with Video for Windows®standards and is compatible with
most video and imaging applications for Microsoft Win98®,
Win98®SE, Win2000®, and Millennium Edition (Me). Video
clips can be incorporated into programs such as Microsoft
PowerPoint. You can also stay in touch using software
packages such as Microsoft NetMeeting to hold video
conferencing sessions with your relatives, friends, customers,
or co-workers across the continent or across the ocean. The
VideoBus II also gives you the ability to create video e-mail
messages. Best yet, you can be a creative webmaster and
incorporate still images or video clips of family events and
business meetings that you captured on your camcorder onto
your website. Installation is a true Plug-and-Play experience.
Plug the VideoBus II cable into your PC and attach your
Introduction
1
F5U208 user's manual 12/12/00 11:21 AM Page 2
Features
3
Introduction (continued)
2
camcorder or any other video source to the VideoBus II yellow
RCA input jack and left and right audio jacks. Now you are ready
to begin capturing live video or creating amazing images!
• Make your own movies using Windows®Movie Maker,
or most any video imaging application.
• Includes award-winning video and photo-editing
software from MGI®.
• Capture audio and video in the fastest and most
convenient way.
• Connect your camcorder, VCR, digital camera, or any
standard video device directly to your PC and save the
playback in still-image format or full-motion video.
• E-mail pictures or video clips to friends, relatives, and
business associates.
• Set up your own live web cam with included
TeVeo™ software.
• Video conference around the world using your
camcorder.
• Easy-to-use Plug-and-Play operation.
• Easy-to-install USB device doesn’t require opening
your computer.
F5U208 user's manual 12/12/00 11:21 AM Page 2
System Requirements
5
Specifications
4
• Full-motion video–30 fps at CIF resolution video capture
via USB.
• Motion video up to 15 fps at VGA resolution (progressive
video source) video capture via USB.
• VGA (640 X 80) resolution still-image capture.
• Audio input up to Stereo 16KHz/ 16-bit audio capture
via USB.
• Software-controlled digital PAN and ZOOM.
• Any Standard NTSC/PAL/SECAM video source is supported.
• Any Standard low-level (RCA) audio source is supported.
• Easy plug-and-play operation.
• Fully compatible with Microsoft DirectShow®.
• Compatible with popular video applications for Windows®.
• Compatible with TWAIN applications for still image
capture.
• Compatible with Microsoft Windows®98, 98 SE, 2000, and
Windows®Me.
Minimum Recommended System
• 350 MHz Pentium II (or equivalent)
• 1 Free USB Port
• 64 MB of RAM
• 45 MB of free hard drive space for program
• 3 GB of free hard drive space for video editing (Ultra
DMA, SCSI-2 sub-system recommended)
• Video card with 4 MB of video RAM, minimum 800 x
600 resolution at 16-bit hi-color (65,000 colors); Direct
Draw Drivers recommended
• 16-bit stereo sound card and speakers for audio playback
• CD-ROM or DVD-ROM drive
Operating System Requirements
• Windows®98
• Windows®98 SE
• Windows®2000
• Windows®Me
F5U208 user's manual 12/12/00 11:21 AM Page 4
Software Installation
7
Getting Started
6
Please read this manual thoroughly before starting the
installation of the VideoBus II.
The recommended sequence for setting up the VideoBus II and
the software is as follows:
1. Install the MGI software packages.
2. Install the VideoBus II hardware.
3. Connect the VideoBus II to your camcorder, VCR, etc.
4. Begin using the VideoBus II.
Make sure to close all Windows programs before installing
the video and editing software. DO NOT PLUG IN THE
VideoBus II AT THIS POINT.
Open your CD-ROM drive and place the VideoBus II CD on
the tray. Close the tray by pressing the eject button. The
following screen will appear automatically. If you want to quit
the installation, click on EXIT.
If this screen does not appear, click the “Start” button found
on the bottom left corner of your screen. Scroll up and click on
"Run". In the "Run" window, type "d:\autorun.exe" and then
click "OK", where "d:" is the drive letter of your CD-ROM drive.
1. Once the first screen appears, select the software that
you wish to install.
F5U208 user's manual 12/12/00 11:21 AM Page 6
Hardware Installation
9
Windows
Me
Software Installation (continued)
8
IMPORTANT: Browse through this manual and find the section
that covers the hardware installation for the operating system
that you are using, and follow the installation instructions for
your operating system.
F5U208 VideoBus II Hardware Installation
Instructions for Windows®Me
1. Plug the USB VideoBus II into a free USB port on the
computer or a hub.
2. A message box will appear telling you that the system is
updating the hardware information database.

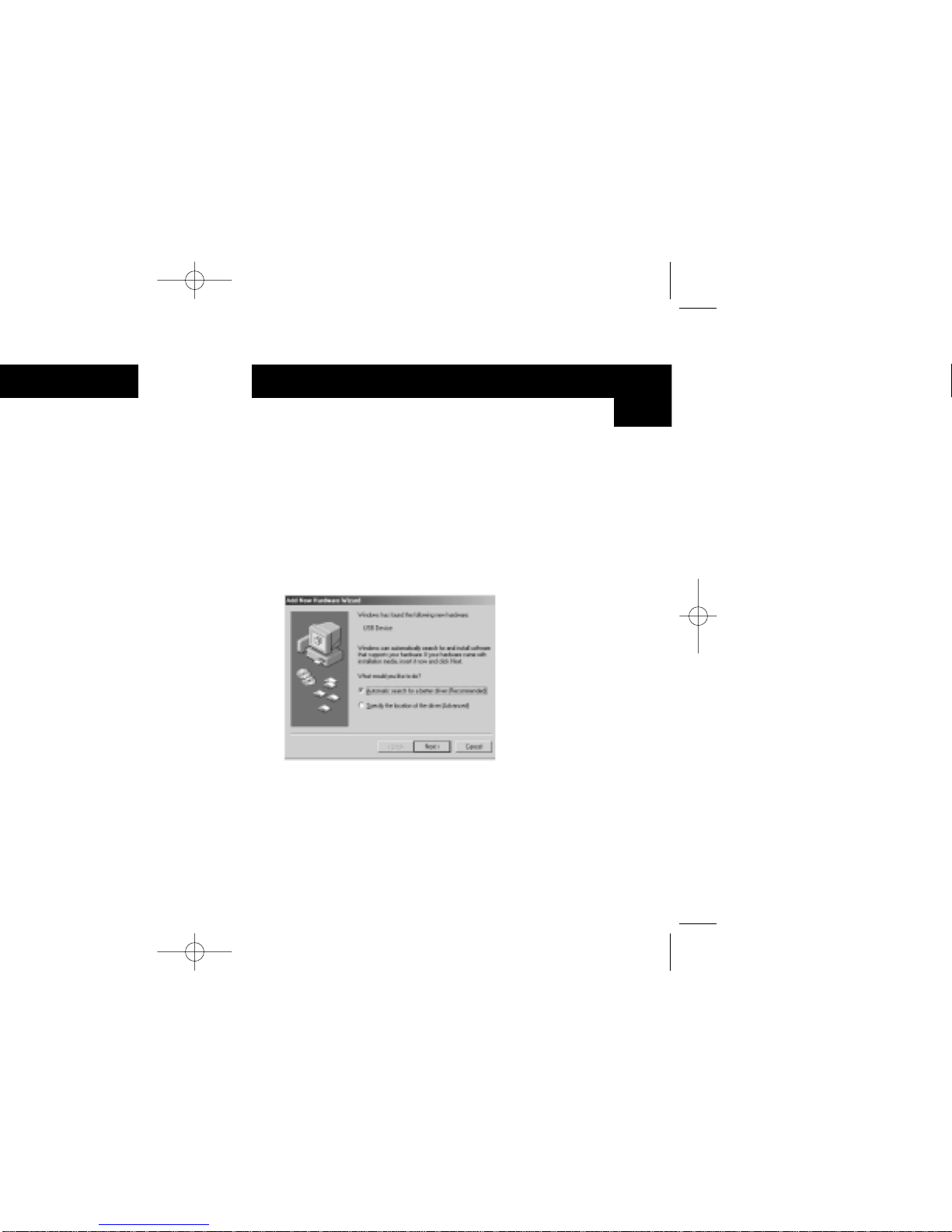

3. The Add New Hardware Wizard will then appear, prompting
the user that Windows has found new hardware, which is a
"USB Device". Leave the line "Automatic search for a better
driver selected (Recommended)" selected. Click “Next”.
The Manual for VideoWave III SE is located on the CD-ROM in
the following directory: d:\mgi\vw\docs where “d:” is the drive
letter of your CD-ROM drive.
The manuals are saved as PDF files. If you do not have Adobe
Acrobat Reader installed on your computer, you must install the
viewer. Click the “Start” button found on the bottom left corner
of your screen. Scroll up and click on "Run". In the "Run"
window, type "d:\mgi\vw\docs\pdf_view" and then click "OK",
where "d:" is the drive letter of your CD-ROM drive. Double-
click on the folder that contains the language that you prefer.
Next, double-click on the self-extracting file in the folder. This
will set up Acrobat Reader for you.
F5U208 user's manual 12/12/00 11:21 AM Page 8
Hardware Installation (continued)
11
Windows
Me
Hardware Installation (continued)
10

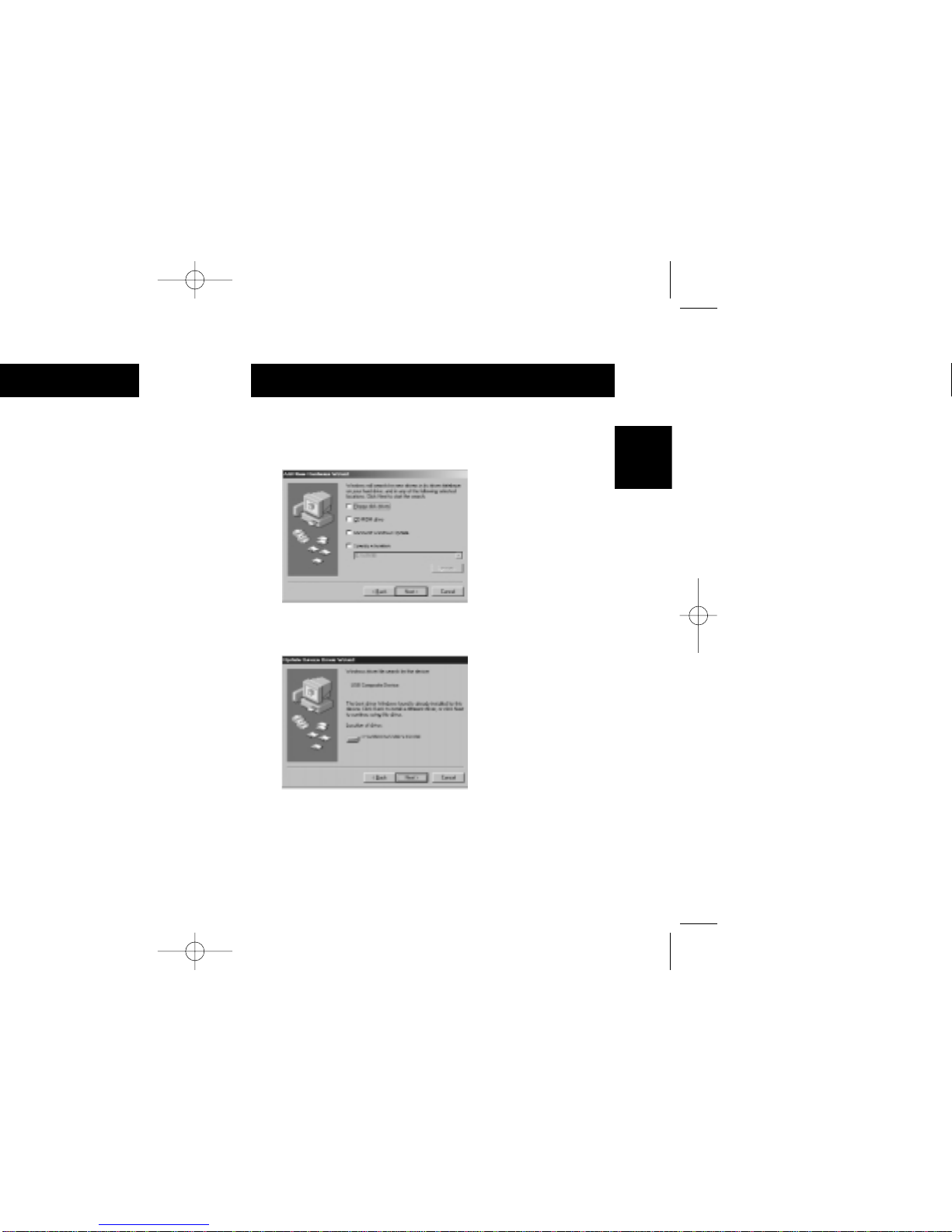

4. Windows will automatically search for the driver on the
floppy disk.
5. After Windows has found the video driver, you will get a
prompt that Windows has finished installing the new
hardware device: "Belkin USB Video Cable". Click “Finish”.
6. Steps 3 and 4 will be repeated to install the video driver.
7. After Windows has found the audio driver, you will be
prompted that Windows has finished installing the new
hardware device: "Belkin USB Video Cable, Audio".
Click “Finish”.
8. The installation is now complete. To capture video and
audio, follow the tutorial on your video editing program
(e.g., Windows Movie Maker or MGI VideoWave III).
F5U208 user's manual 12/12/00 11:21 AM Page 10
13
Windows
98
Hardware Installation (continued)Hardware Installation (continued)
12
F5U208 VideoBus II Hardware Installation
Instructions for Windows®98
1. Connect the Belkin USB VideoBus II into an available USB
port on the computer.
2. Windows will detect a "USB Composite Device". Click
“Next”.
3. On the next screen that appears, select "Search for the
best driver for your device (Recommended)" and click “Next”.
4. The following screen that appears will ask you where
to search for the drivers. Leave all boxes unchecked
and click “Next”.
5. Windows will find the built-in drivers for "USB Composite
Device". Click “Next”.
F5U208 user's manual 12/12/00 11:21 AM Page 12
Hardware Installation (continued)
15
Windows
98
Hardware Installation (continued)
14
6. After Windows copies the necessary files, installation of
the "USB Composite Device" is complete. Click “Finish”.
7. Next, Windows will detect the Belkin VideoBus II Audio
Capture as "Unknown Device". Click “Next”.
8. Select "Search for the best driver for your device
(Recommended)" and click “Next”.
9. Insert the Belkin VideoBus II Driver CD into the CD-ROM
drive. Check the "CD-ROM drive" and click “Next”.
F5U208 user's manual 12/12/00 11:21 AM Page 14
Hardware Installation (continued)
17
Windows
98
Hardware Installation (continued)
16
10. Windows will find the drivers for the "Belkin USB
VideoBus II, Audio". Click “Next”.
11. Windows will copy the necessary files. At this time,
Windows may ask for the Windows 98 SE CD. If asked,
insert the Windows 98 SE CD into the CD-ROM drive and
follow the directions on the screen.
12. After the files are copied, the installation of the VideoBus II
Audio Capture drivers is finished. Click “Finish”.
13. Next, Windows will detect the Belkin VideoBus II Audio
Capture as "Composite USB Device". Click “Next”.
14. Select "Search for the best driver for your device
(Recommended)" and click “Next”.
F5U208 user's manual 12/12/00 11:21 AM Page 16
