Belkin F1DN102B Manuale utente

Secure DVI-I KVM Switch with Audio

User Manual

F1DN102B – Secure 2-Port DVI-I KVM with Audio

F1DN102C – Secure 2-Port DVI-I KVM with Audio Plus

F1DN104B – Secure 4-Port DVI-I KVM with Audio

F1DN104C – Secure 4-Port DVI-I KVM with Audio Plus

8820-00762 Rev. A00

Secure DVI-I KVM Switch with Audio

TABLE OF CONTENTS

SECTIONSTable of Contents 12345678SECTIONS 12345678Table of Contents

Operating the KVM Switch ............................... 14

Common Access Card (CAC) Configuration and Installation . . 15

Frequently Asked Questions ............................. 16

Troubleshooting ........................................ 17

Information............................................. 19

Introduction ............................................. 1

Package Contents ..................................... 1

Overview................................................ 2

Security Features ...................................... 2

Other Features ........................................ 4

Equipment Requirements ............................... 5

System Requirements .................................. 6

Unit Display Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Specifications......................................... 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Pre-Configuration .................................... 11

Connection and Installation............................. 11

Color Code Chip Installation ............................ 13

Secure DVI-I KVM Switch with Audio

INTRODUCTION

SECTIONSTable of Contents 12345678SECTIONSTable of Contents 12345678

Thank you for purchasing this Belkin Secure DVI-I KVM Switch (the

Switch). This KVM Switch is designed for use in secure defense and

intelligence installations. The Switch offers safe centralized control,

which prevents unintended data transfer between computers running

at different security levels. The Switch provides the highest security

safeguards and features that meet today’s IA (Information Assurance)

computing requirements.

This User Manual provides all the details you’ll need to install and

operate your new Switch, in addition to expert troubleshooting

advice—in the unlikely event of a problem.

Package Contents

• Belkin Secure DVI-I KVM Switch

• 12V 1.5A DC Power Supply and Power Cord

• 10 Interchangeable Port Color Chips (multiple colors)

• 12 Port-Naming Labels

• 6 Ft. USB Cable (F1DN102C, F1DN104C models only)

• User Manual

Important: This Switch is equipped with active anti-tamper

triggers. Any attempt to open the enclosure will activate the

anti-tamper triggers and render the unit inoperable. If the

unit’s enclosure appears disrupted or if all the port LEDs flash

continuously, please call Belkin Technical Support at

(800) 282-2355.

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

Security Features

The Belkin Secure DVI-I KVM Switch is the most advanced and

secure commercially available KVM Switch available today. Below is a

summary of all the security features incorporated into the Switch.

Dedicated Processors

The Switch features a dedicated processor per computer port. This

keeps each computer running on different security levels physically

separated and secure at all times, and prevents any unintended data

leakage between computers.

No Memory Buffer

The Switch does not have a memory buffer and does not have the

ability to store data. This prevents any keystrokes or other data

input from being unintentionally transferred as you switch between

computers, ensuring the integrity of your data.

Non-Reprogrammable Firmware

The Switch features custom firmware that is not reprogrammable,

preventing the ability to tamper with the KVM logic.

Unidirectional Data Paths

Optical diodes used in USB data paths provide high isolation and

prevent data leakage.

Solid-Aluminum, Uni-Body Enclosure

The one-piece aluminum enclosure reduces the entry points into

the Switch’s electronics and minimizes radiated signals that can be

snooped or intercepted.

Active Anti-Tamper Triggers

Active chassis anti-tamper triggers prevent KVM electronics from

being accessed and tampered with.

Tamper-Evident Tape

A holographic security tamper-evident label is placed on the

enclosure to provide a visual indication if the Switch has been opened

or compromised.

Tamper-Proof Hardware

All integrated circuits are soldered directly to the printed circuit board

to prevent tampering with the components.

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

Protected Display Information

Protected DDC/EDID emulation prevents software weaknesses that

can cause data leakage while maintaining compatibility with the

console display.

USB Device Detection

Storage and other unsafe USB devices are rejected when connected

to the Switch. Only mouse and keyboard data are passed through.

Secure Packaging

“Tear away” packaging ensures secure delivery of the Switch as it is

routed to the end user.

NIAP Listing

The Switch is listed by the National Information Assurance Partnership

(NIAP). It is NIAP Common Criteria validated to EAL 2+ (Evaluation

Assurance Level 2).

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

Other Features

The Belkin Secure DVI-I KVM Switch was designed with the user in

mind for today’s IT environment. Below is a summary of some features

incorporated into the Switch.

USB Support

The Switch is compatible with USB technology and supports plug-

and-play connectivity with USB computers, keyboards, and mice.

DVI-I Support

The Switch supports both digital and analog video signals. Analog

signals are passed through.

Dual-Link DVI Support

The Switch supports video resolutions of up to 2560x1600. This

includes support for digital displays 24 inches and larger.

Audio Switching

Allows you to share speakers between computers.

Port Coloring

The included color chips can be inserted into each port-selector

button. Colors can be associated with an established network to

facilitate port identification and reduce user switching error.

Port Naming

The included network-name labels can be placed in the area

underneath the port-selector button to facilitate port identification and

reduce user switching error.

LED Indicators

Each port button number illuminates to indicate that the console

currently controls the corresponding computer. As a port selector is

pushed, the LED number will light up.

Integrated Mounting Rails

Integrated mounting system for easy under-desk or side-wall

mounting.

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

Equipment Requirements

Cables

Belkin highly recommends you use Belkin DVI/USB KVM Cable Kits

for your Switch to help ensure superior performance. These cables

offer the highest quality possible to ensure optimal data and video

transmission. One Cable Kit is required per connected computer.

Belkin DVI-D/USB KVM Cable Kits with audio:

F1D9012b06 – 6 ft. (1.8m)

F1D9012b10 – 10 ft. (3m)

F1D9012b15 – 15 ft. (4.6m)

Belkin DVI-A to HD15/USB KVM Cable Kits with audio (support

analog video only):

F1D9015b06 – 6 ft. (1.8m)

F1D9015b10 – 10 ft. (3m)

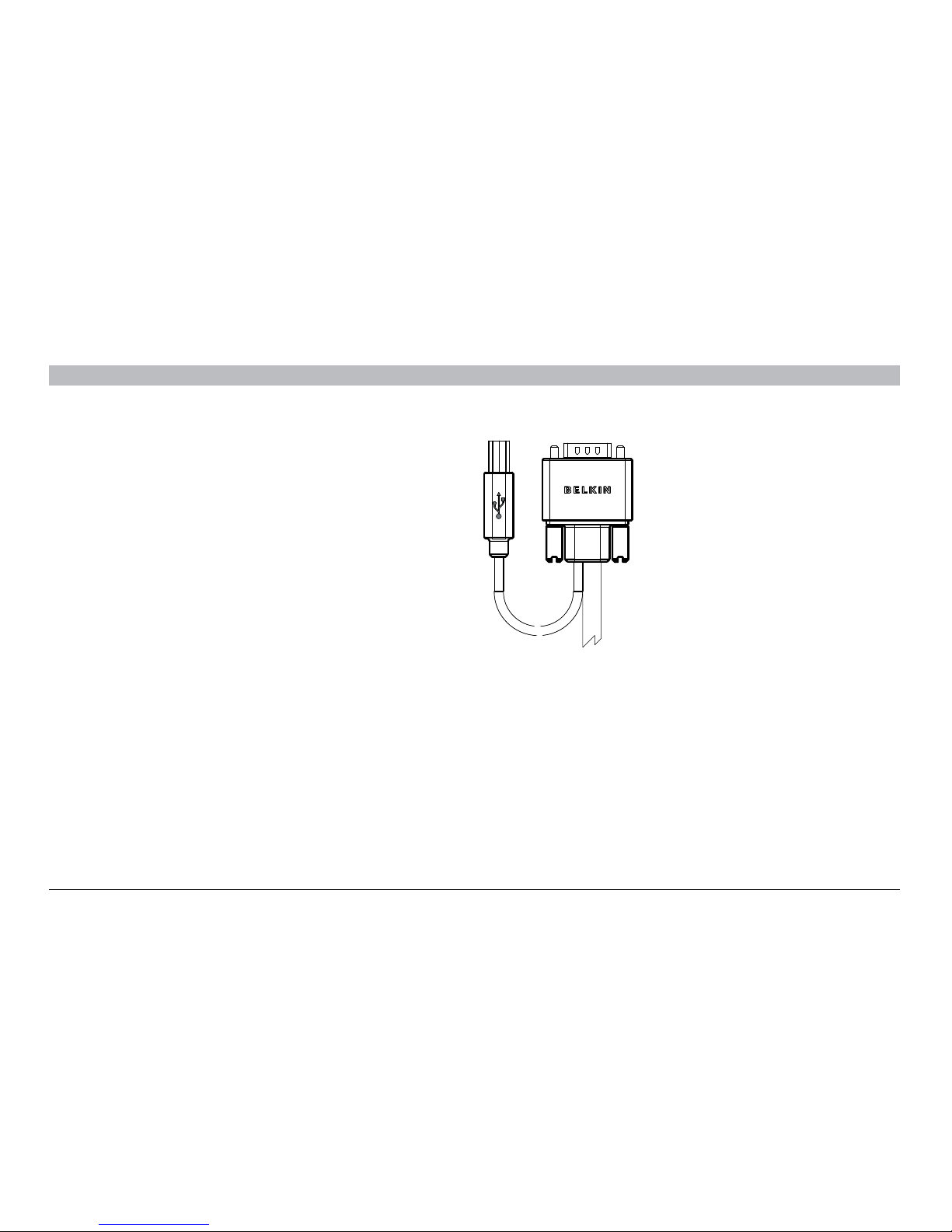

Belkin CAC USB A/B Cable (F1DN102C, F1DN104C models only)

F1D9013b06 – 6 ft. (1.8m)

F1D9013b10 – 10 ft. (3m)

F1D9013b15 – 15 ft. (4.6m)

Note: Due to USB and DVI signal limitations, the cable length cannot

exceed 15 feet (4.6m).

Insert color chip Remove color chip

with a standard paperclip

Console

12V, 1.5A

Audio

Display

PS2 K PS2 MMouse Keyboard

CAC

K/M CACAudio

Video

K/M CACAudio

Video

K/M CAC

Audio

Video

K/M CACAudio

Video

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

System Requirements

Operating-System (OS) Platforms

The Switch is compatible with computers running on, but not limited

to, the following OS platforms:

• Windows®2000

• Windows XP (Home/Professional)

• Windows 2003 Server

• Windows 7

• Windows Vista®

• Red Hat® Linux®

• Other Linux distributions

• Mac OS® X v10.3 and higher

Keyboards

• USB-compatible (non-composite)

• (or) PS/2-compatible

Mice

• USB-compatible (non-composite)

• (or) PS/2-compatible

Monitors

• Digital displays with DVI-D support, single-link and dual-link

• Analog displays with VGA support

Common Access Card (CAC) Readers

(F1DN102C, F1DN104C models only)

• USB-compatible CAC or smart-card readers

Insert color chip Remove color chip

with a standard paperclip

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

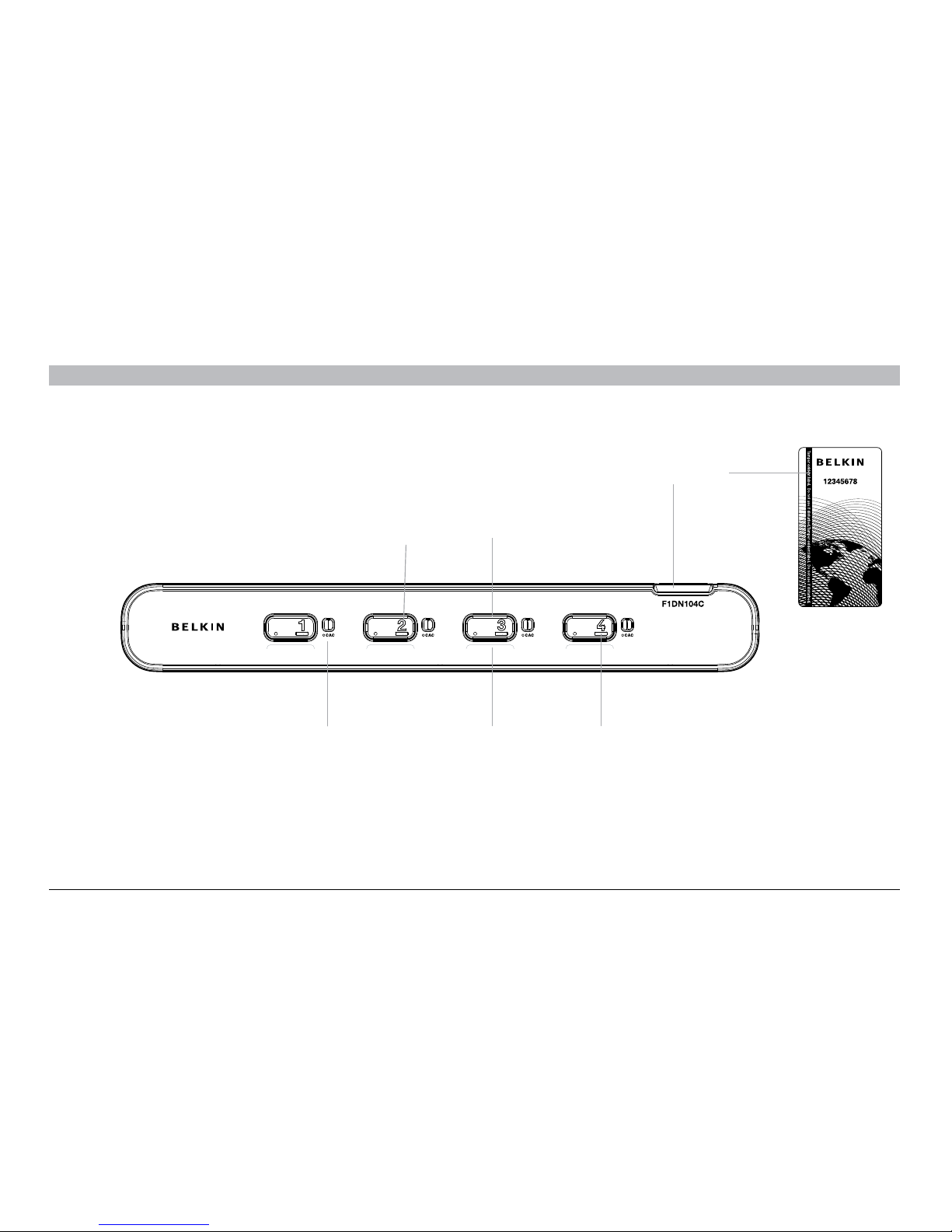

Unit Display Diagram, Front View

IMPORTANT

NOTICE:

If for any reason

the tamper-evident

seal is missing,

appears disrupted,

or looks different

than the example

shown here, please

call Belkin Technical

Support at (800)

282-2355.

Tamper-Evident Seal

Name Label Guide

Port Selector

CAC Enable Switch (F1DN102C,

F1DN104C models only)

Color Chip

LED Indicator

Insert color chip Remove color chip

with a standard paperclip

Secure DVI-I KVM Switch with Audio

OVERVIEW

SECTIONSTable of Contents 123456782

Unit Display Diagram, Back View

Console Monitor Port

DC Power Jack

Mounting

Track

Mounting

Track

Video Diagnostic LED

Console USB

Mouse Port

Computer CAC USB Port

(F1DN102C, F1DN104C

models only)

Computer DVI, USB,

Audio, and CAC Ports

Console USB CAC Reader Port

(F1DN102C, F1DN104C

models only)

Console Audio

Input Jack

Console USB

Keyboard Port

PS/2 Console Ports

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Belkin Interruttore

Belkin

Belkin F1DG102U - Flip USB With Audio KVM Manuale utente

Belkin

Belkin F5U261 Manuale utente

Belkin

Belkin OmniView F1DB102P2ea Manuale utente

Belkin

Belkin F5U416 - Clip-On Hub Manuale utente

Belkin

Belkin OmniView F1DP104Aea Manuale utente

Belkin

Belkin OmniView Dual-User PRO3 Manuale utente

Belkin

Belkin F1DS102U - OmniView SOHO Series 2 Port KVM... Manuale utente

Belkin

Belkin Secure KVM - NIAP PP4.0 Manuale di servizio

Belkin

Belkin OmniView F1DJ102P-B Manuale utente

Belkin

Belkin OMNIVIEW F1DN102D Manuale utente

Belkin

Belkin OmniView MATRIX F1D208-OSD Manuale utente

Belkin

Belkin F1DG102U - Flip USB With Audio KVM Manuale utente

Belkin

Belkin OmniView F1DK102P Manuale utente

Belkin

Belkin F5U221 Manuale utente

Belkin

Belkin F1DH104L Manuale utente

Belkin

Belkin F1DN108C Manuale utente

Belkin

Belkin Network USB Hub Manuale utente

Belkin

Belkin F1DG102Wuk Manuale utente

Belkin

Belkin F1DN108KVM-UN-4 Manuale utente

Belkin

Belkin OmniView F1D104 Manuale utente

Belkin

Belkin OmniView F1DH102U Guida rapida

Belkin

Belkin P73783AEN Manuale utente

Belkin

Belkin Omniview F1D201 Manuale utente

Belkin

Belkin P73957EH Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
