Belkin F5D5141-5 Manuale utente

Belkin Ltd.

7 Bowen Crescent, West Gosford

NSW 2250, Australia

+61 (0) 2 4372 8600

+61 (0) 2 4372 8603 fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, The Netherlands

+31 (0) 20 654 7300

+31 (0) 20 654 7349 fax

Belkin Tech Support

US: 877-736-5771

310-898-1100 ext. 2263

Europe: 00 800 223 55 460

Australia: 1800 235 546

New Zealand: 0800 235 546

Singapore: 800 616 1790

Belkin Corporation

501 West Walnut Street

Los Angeles, CA 90220-5221, USA

310-898-1100

310-898-1111 fax

Belkin Ltd.

Express Business Park, Shipton Way

Rushden, NN10 6GL, United Kingdom

+44 (0) 1933 35 2000

+44 (0) 1933 31 2000 fax

respective manufacturers listed.

P75180

5-Port Gigabit Switch

8-Port Gigabit Switch

User Manual

F5D5141-5

F5D5141-8

Share large files at faster network speeds,

with maximum efficiency









































5-Port Gigabit Switch

8-Port Gigabit Switch

1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Getting to Know your Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Connecting Networking Devices to your Switch. . . . . . . . . . . . . . . . 4

4 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 Placement of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table of Contents

Introduction

section

Congratulations on your purchase of this high-quality Belkin 5- or

8-Port Gigabit Switch. Backward-compatible with 10/100 networks,

each Switch easily integrates into a new or existing network for

instant high performance. It delivers dedicated 100Mbps links to

each directly attached LAN segment or PC, enabling your servers

and workstations to transfer large AV and graphic files efficiently

throughout your network. They provide your servers and workstations

the capacity to transfer large video, audio, and graphic files

throughout your network—at gigabit speeds.

Engineered for compact convenience, each Switch features a durable

metal chassis that can be placed on the desktop or mounted on a

wall. All ports auto-negotiate between a 10-, 100-, or 1000Mbps

network and adjust for straight-through or crossover cables, so you

don’t have to worry about cable type.

Compatible with existing 10/100 networks and major operating

systems, your 5- or 8-Port Gigabit Switch from Belkin delivers error-

free transfers at maximum networks speeds.

Features

- High-speed, dedicated 10/100/1000 Ethernet ports

• 5 ports (Belkin 5-Port Gigabit Switch F5D5141-5)

• 8 ports (Belkin 8-Port Gigabit Switch F5D5141-8)

- Standards

• IEEE 802.3 z/ab 1000Base-T

• IEEE 802.3u 100Base-Tx

• IEEE 802.3 10Base-T

- 1U chassis, place on your desk or mount on a wall

- Auto MDI/MDIX ports

- Auto-negotiation between 10-, 100-, and 1000Mbps on all ports

- Auto-negotiation for full and half duplex on all ports

- Collision detection on all ports

- IEEE 802.3x PAUSE frames flow control in full-duplex operation

- Back-pressure flow control in half-duplex operation

- Support for up to 8,000 MAC address entries

- A Belkin Limited Lifetime Warranty and free, 24-hour

technical support

Package Contents

• Belkin 5- or 8-Port Gigabit Switch

• Power Adapter

• Self-Adhesive Rubber Pads for Desktop

• User Manual

Introduction

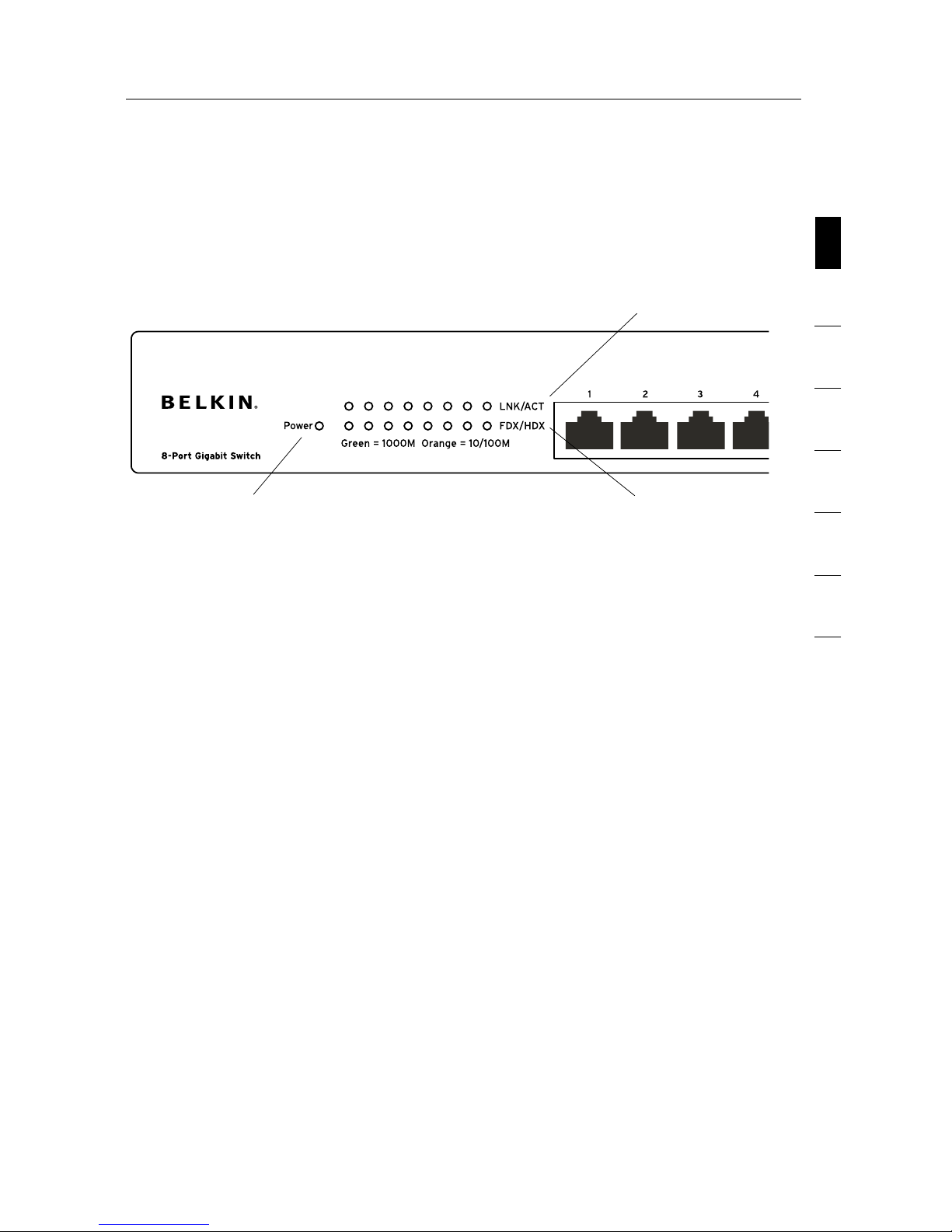

Front-Panel LEDs

Belkin 5- or 8-Port Gigabit Switches feature two rows of LEDs that

provide information about connection speed and activity, plus a

separate Power LED.

       

(a) Power (POWER) LED

• Green – Switch is operating normally

• Off – There is no power to the Switch

(b) Speed, Link, and Activity (Link/Act) LED

• Solid Green – A valid link has been established

• Blinking Green – Data is being transmitted and received

• Off – No link is established

• Solid Green – A valid 1000Mbps link is established

on the port

• Off – A valid 10/100Mbps link is established on the port

(b)

(c)

(a)

Introduction Getting to Know your Switch

section

Introduction

Connecting Networking Devices to your Switch

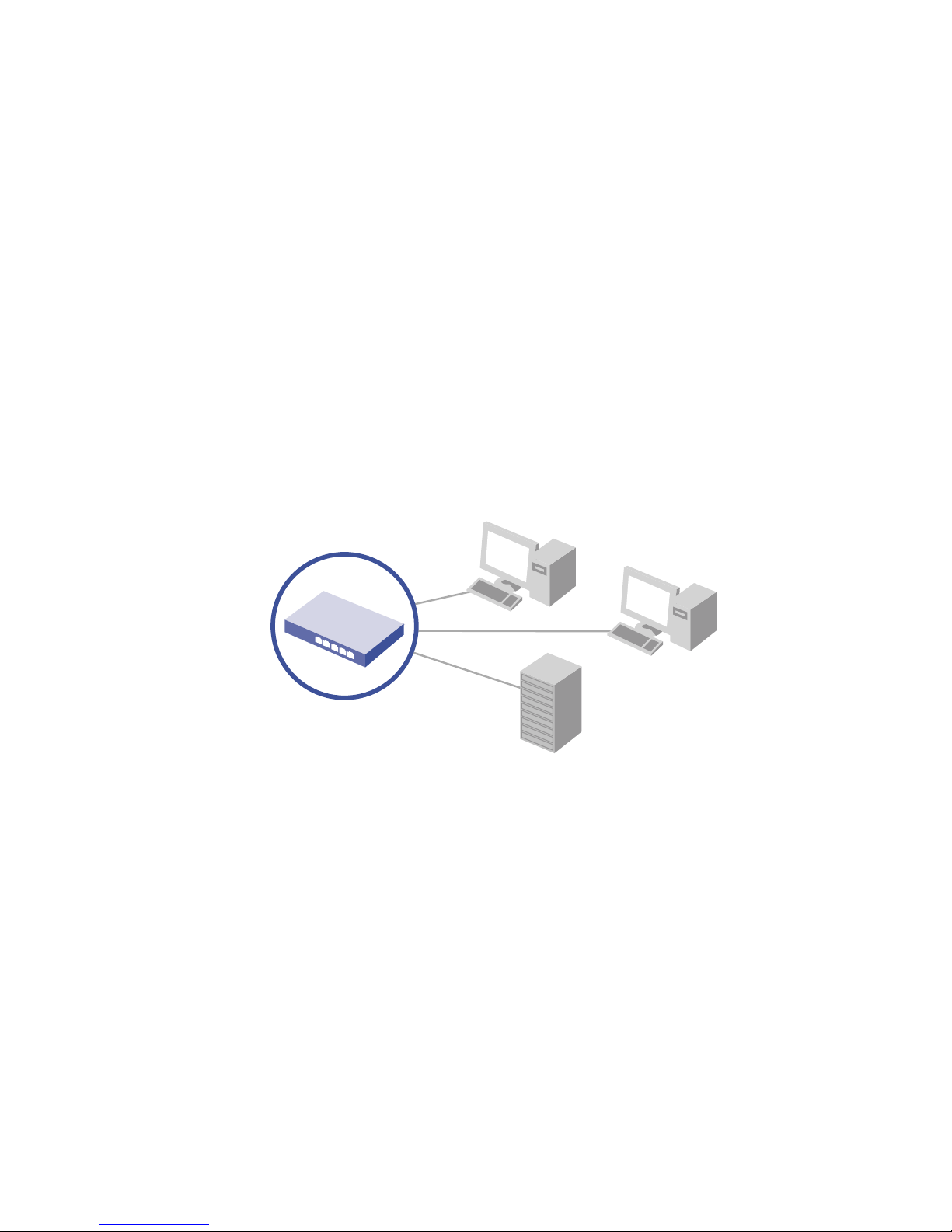

Connecting your Switch to your Computers

1. Power down all your equipment.

2. Connect a Category 5e or 6 Ethernet cable between each

computer’s network interface card (NIC) and one of the

numbered ports on the front of the Switch.

3. All switch ports can automatically negotiate speeds at full- and

half-duplex modes to allow users to attach 10Base-T,

100Base-Tx, and 1000Base-T network devices.

4. Connect the power adapter cord into the power adapter socket

in the rear of the Switch; now plug the adapter into a power

source (wall jack or power strip).

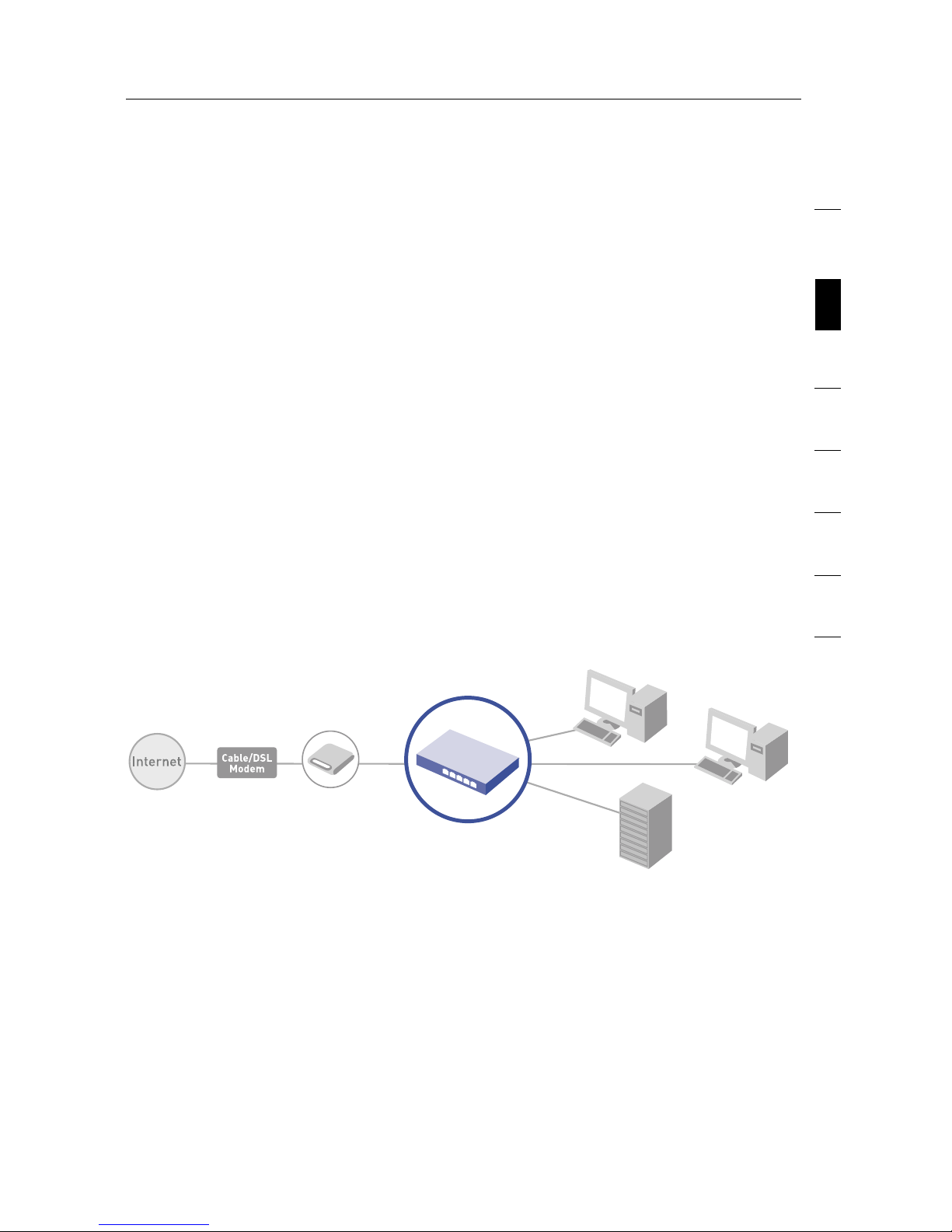

Connecting your Switch to your Broadband Router

1. Make sure your broadband router is correctly configured to

connect to your ISP and you are able to surf the Internet.

Note: If have questions regarding the configuration of your

broadband router setup, consult your broadband router vendor.

2. Connect a Category 5e or 6 Ethernet cable between one of the

numbered ports on the rear of the broadband router and one of

the numbered ports on the rear of the Switch.

3. Connect the power adapter cord into the power adapter socket

in the rear of the Switch; now plug the adapter into a power

source (wall jack or power strip).

4. Power down all your computers.

5. Connect a Category 5e or 6 Ethernet cable between each

computer’s NIC and one of the numbered ports on the rear

of the Switch.

6. Power up all your computers connected to your Belkin Switch.

Connecting Networking Devices to your Switch

section

Connecting your Switch to another Switch

1. Connect a Category 5e or 6 cable between one of the numbered

ports on the front of the Switch and one of the numbered ports

on the other Switch to which you are cascading or connecting.

2. All switch ports can automatically negotiate speeds at full- and

half-duplex modes to allow users to attach 10Base-T,

100Base-Tx, and 1000Base-T network switches or hubs.

3. All ports support auto MDI and MDIX functionality. When

cascading or connecting switches or hubs, the user can use a

straight-through or crossover cable.

Important: When connecting two switches together, use a single

cable. If multiple cables are used, loops may occur resulting in

unwanted collisions. This will result in poor network performance.

Cabling Distances

• 328 ft. (100m)

Recommended Cabling Standard

• Category 5e or 6 for gigabit connections (1000Mbps)

• Category 5 for Ethernet (10Mbps) and Fast Ethernet

connections (100Mbps)

Connecting Networking Devices to your Switch

This Switch segments your network, significantly increasing both

bandwidth and throughput. Each port on the Switch can be attached

to any Ethernet, Fast Ethernet, or Gigabit Ethernet device, such as

another switch or a server’s network adapter. All Switch ports operate

at 10/00Mbps full and half duplex, or 1000Mbps full duplex, providing

up to 2Gbps of bandwidth to the attached device.

Bridging Functions –

This Switch provides fully transparent bridging functions. It

automatically learns node addresses that are subsequently used to

filter and forward all traffic based on the destination address. When

traffic passes between devices attached to the same shared collision

domain, those packets are filtered from the Switch. But when traffic

must be passed between unique segments (i.e., different ports on the

Switch), the high-speed switching fabric forwards the packets at

near-zero latency.

Switching Functions –

Store-and-forward switching is used to forward traffic to other ports.

This scheme ensures data integrity and provides a clean data stream.

Sample Application –

This Switch is designed to operate as a small workgroup switch. It

can provide 10-, 100-, or 1000Mbps connections to workstations, or

1000Mbps full-duplex links to high-speed servers. It can also provide

a high-bandwidth uplink to the network backbone.

Applications

section
