The OmniCube™

User Manual

P72462 F1D094

The OmniCube™

User Manual

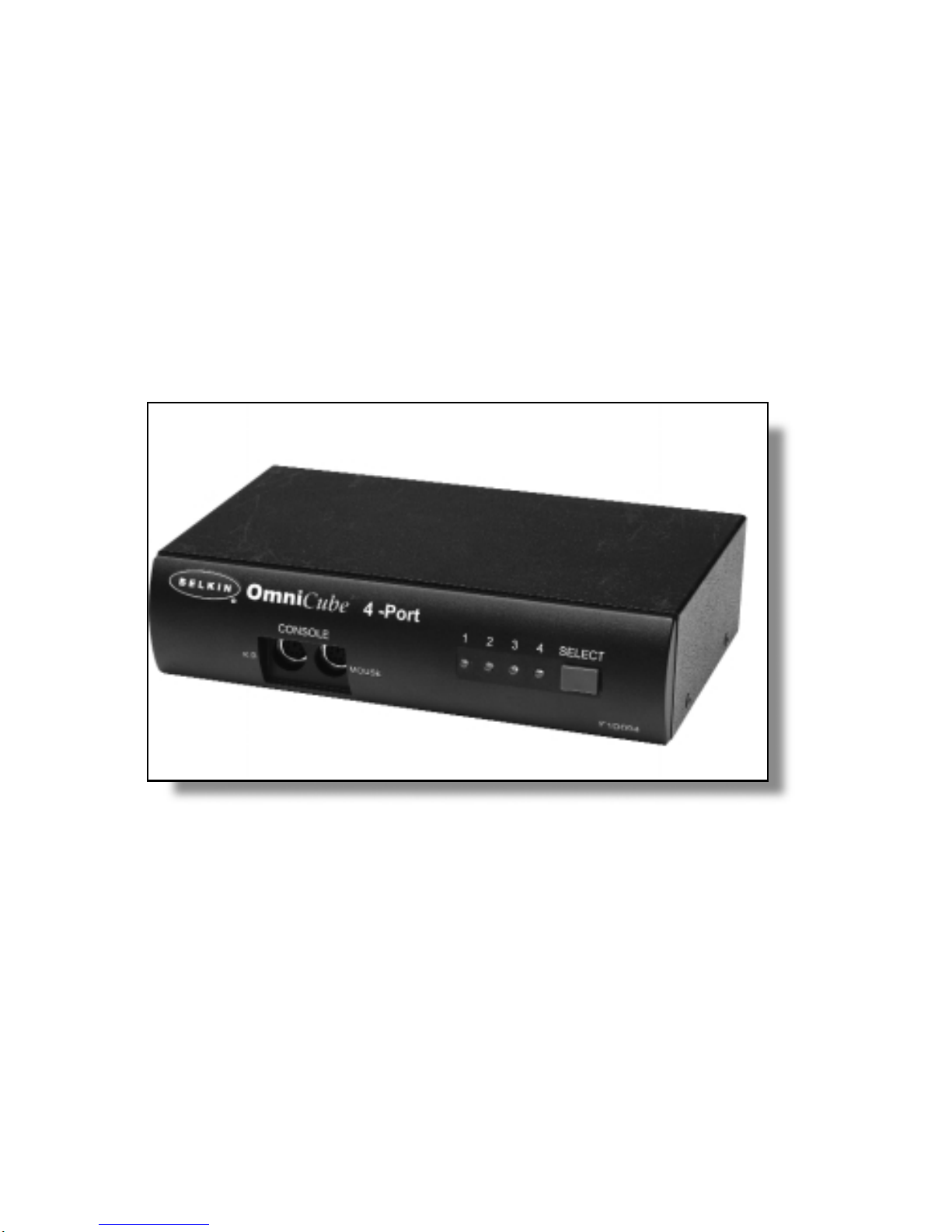

Thank you for purchasing the Belkin Components OmniCube™KVM

(Keyboard Video Mouse) switch. Controlling four PCs from one keyboard,

mouse and monitor has never been easier or more affordable!

The OmniCube™is small in size, but big in performance. Compatible with any

PS/2 style computer, it is loaded with features comparable with more

expensive KVM switches. It has complete keyboard and mouse emulation for

error-free

boot-ups, plus Microsoft®Intellimouse®support. The OmniCube™is also

designed to handle the most demanding resolutions up to 1600 x 1200,

without any noticeable degradation in image quality. Switching can be done

through the convenient front-panel pushbutton, or by keyboard hot-key

commands. And if you wish to control a Macintosh®computer, simply add the

Introduction

•Allows a user to control four PS/2 style computers from one keyboard,

mouse and monitor

•Keyboard and mouse emulation for error-free boot-ups

•Microsoft®Intellimouse®support

•Up to 1600 x 1200 resolution support

•Supports both AT and PS/2 style keyboards (AT requires AT-PS/2

adapter)

•Support VGA, SVGA and Multisync monitors

•Uses standard cables

•Pushbutton on keyboard hot-key command switching

•Auto-scan mode for even more convenience

•Audible feedback when switching

•Recalls CAPS LOCK, NUM LOCK and SCROLL LOCK keys' status for

each computer automatically

•Front-panel status LEDs

•Works with OmniView™PS/2 MAC Adapter™

•No software required

•One year product warranty

Package Contents:

OmniCube™4-Port F1D094

9VDC, 600mA power supply F1D065-PWR

This manual P72462

Registration card P72009

Features

Technical Specifications

Console Connectors:

Keyboard: Mini-DIN 6 female

Mouse: Mini-DIN 6 female

Monitor: HDDB15 female

Computer Port Connectors:

Keyboard: Mini-DIN 6 female

Mouse: Mini-DIN 6 female

Monitor: HDDB15 male

Dimensions:

Width: 7 1/4" (184mm)

Height: 1 3/4" (45mm)

Depth: 4 5/8" (118mm)

Weight: 1.6 lbs (727g)

Operating Temp: 32 to 104 deg. F (0~40 deg. C)

Storage Temp: -4 to 140 deg. F (-20~60 deg. C)

Humidity: 0~80% RH, non-condensing

1 2 3 4 Select

F1D094

Console

OmniCube™4-Port

VGA

MONITOR

RESET

PC4

DC 9V 500mA

VGA

PC3

VGA

PC2

VGA

PC1

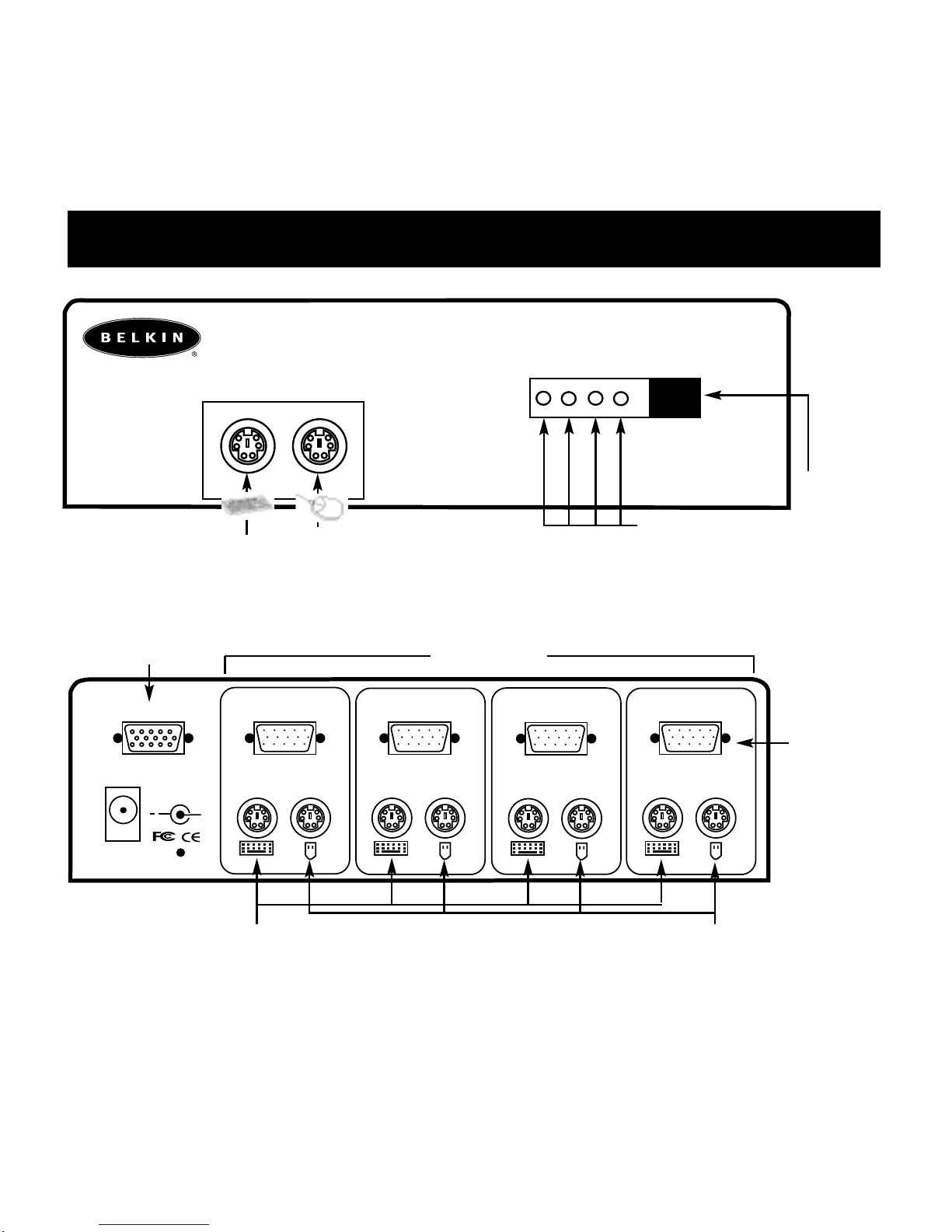

Product Detail

PS/2 Keyboard

Connector

HDDB15 Female

Connector to Monitor

PS/2 Mouse

Connector

Port Status LEDs

Port

Select

Button

HDDB15 Male

Connectors

to Computer

VGA Ports

PS/2 Connectors to

Computer Keyboard ports PS/2 Connectors to

Computer PS/2 Mouse ports

Front View

Rear

View

PC Connectors

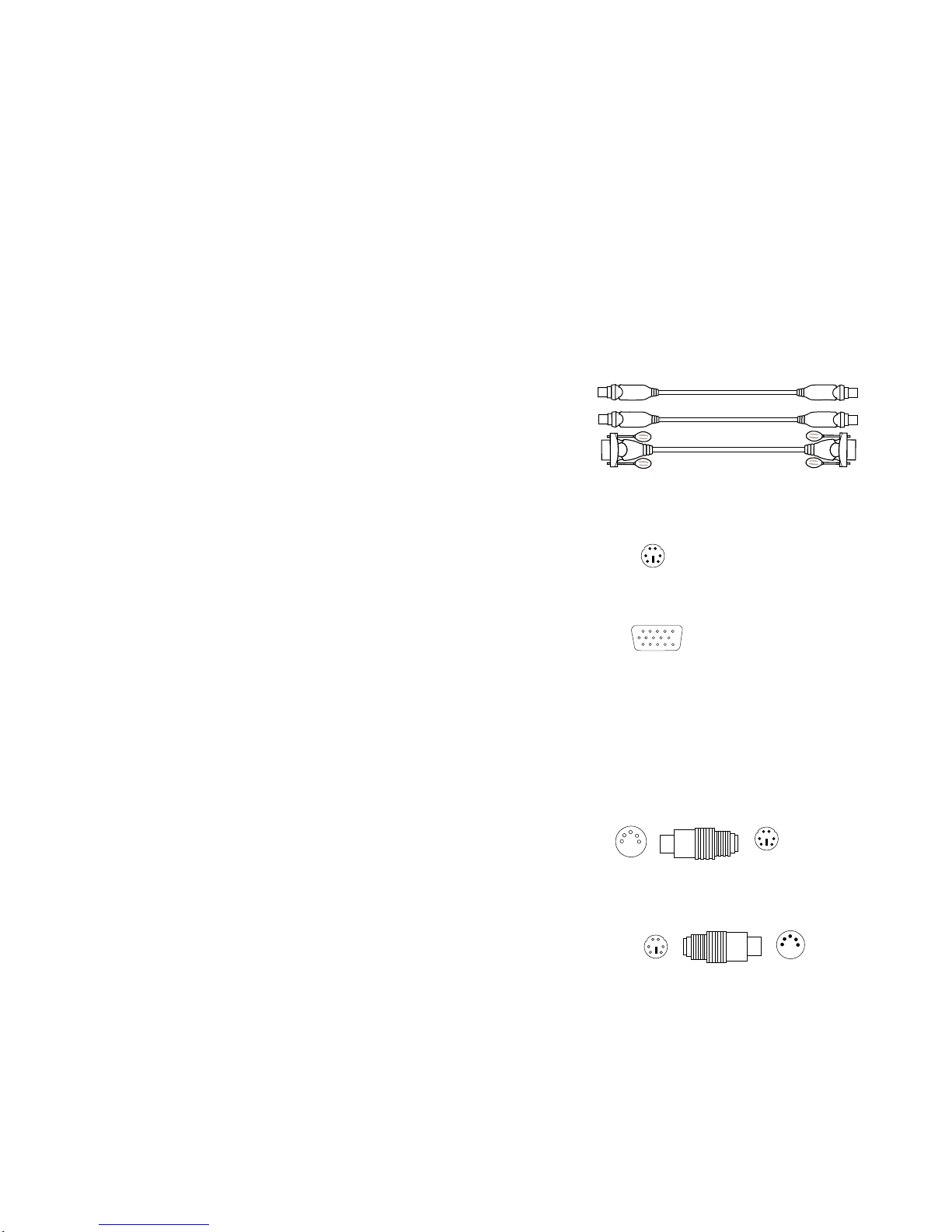

Make sure you have the right cables!

The OmniCube™requires two sets of cables to connect to the four computers

you will be controlling. Below are the Belkin part numbers and their

descriptions. We recommend purchasing PS/2 Cable Kits, as it contains all the

cables you need to connect one computer to the OmniCube™.

Includes:

• Two F2N036-06

• One F2N025-06-T

(see below for descriptions of each)

Individual Cables:

• PS/2 cable for keyboard and mouse ports

Mini-DIN6 male/male

Part #F2N036-XX

• Standard VGA cable for monitor port

HDDB15 male/female with thumbscrews

Part #F2N025-XX-T

Other Cables and Adapters:

• High-resolution/high-refresh rate VGA cable for monitor port

HDDB15 male/female with thumbscrews

Part #A3H981-XX

• AT to PS/2 keyboard adapter - for use with an AT-style keyboard

at the console of the OmniCube™

DIN5 female/ Mini-DIN6 male

Part #F2N017

• PS/2 to AT keyboard adapter - for use with a computer having

an AT-style key board port

Mini-DIN6 female/ DIN5 male

Part #F2N018

NOTE: The "XX" in the part number represents the length in feet.

Mini-DIN6

HDDB15

DIN5 Female Mini DIN6 Male

Mini DIN6 Female DIN5 Male

VGA

MONITOR

PC4

VGA

PC3

VGA

PC2

VGA

PC1

WARNING: Follow these directions closely and in the proper order.

Failure to do so may result in mouse and/or keyboard errors.

Before attempting to connecting anything to the OmniCube™or the

computers, make sure everything is powered off. Plugging and unplugging

cables may cause irreversible damage to your computers and the OmniCube™.

Belkin Components will not be held responsible for damage caused.

Hardware Installation

Back of OmniCube™

1. Find a convenient place to put

your OmniCube™. Its small size

makes it ideal for the desktop.

Take note of the length of your

cable kits so that your computers,

OmniCube™, keyboard, mouse and

monitor are distanced properly.

2. Connect the monitor to the

OmniCube™. Using the attached

cable which is included with your

monitor, connect it to the HDDB15

female port on the back of the

OmniCube™labeled "MONITOR".

OmniCube

™

4-Port

CONSOLE

F1D094

1 2 3 4 SELECT

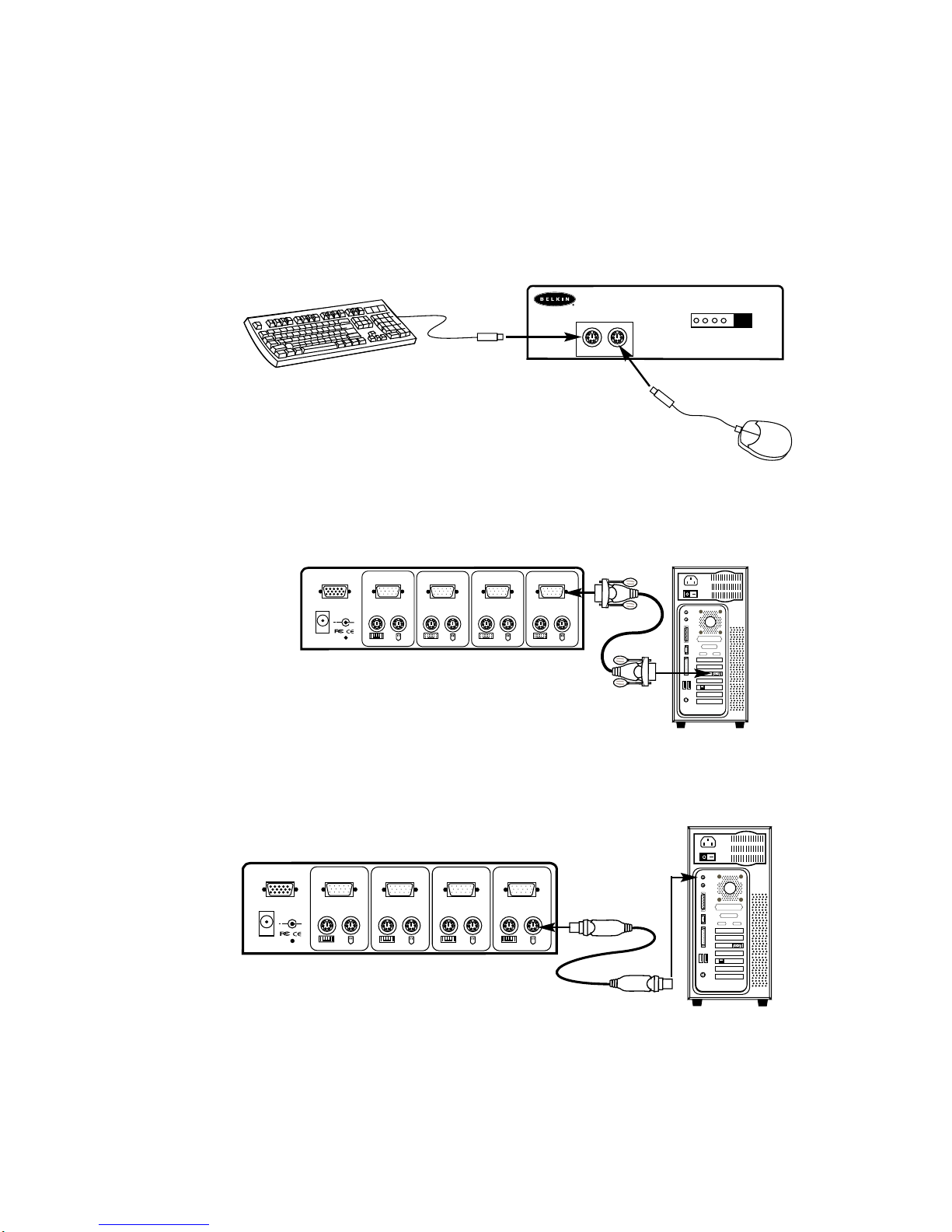

3. Connect the keyboard and mouse to the OmniCube™. If you have an

AT-style keyboard, you will need an AT-PS/2 adapter (Belkin Part# F2N017).

4. Connect the first computer's VGA cable to the OmniCube™. Using the

VGA cable (Belkin Part# F2N025-XX-T or A3H981-XX), connect the male

end of the cable to the VGA port on the computer, and the female end on

the PC1 VGA port at the back of OmniCube™.

PC SERIAL

USB 1

USB 2

VGA MONITOR

ATKEYBOARD

PS/2 MOUSE

PS/2 KEYBOARD

PARALLEL

RJ45 NETWORK

ATSERIAL

VGA

MONITOR

RESET

PC4

DC 9V 500mA

VGA

PC3

VGA

PC2

VGA

PC1

PC SERIAL

USB 1

USB 2

VGA MONITOR

AT KEYBOARD

PS/2 MOUSE

PS/2 KEYBOARD

PARALLEL

RJ45 NETWORK

AT SERIAL

VGA

MONITOR

RESET

PC4

DC 9V 500mA

VGA

PC3

VGA

PC2

VGA

PC1

PS/2 Style Keyboard

Front of

OmniCube™

F2N025-XX-T

Back of OmniCube™

Back of PC

F2N036-XX

Back of OmniCube™

Back of PC

PS/2 Mouse

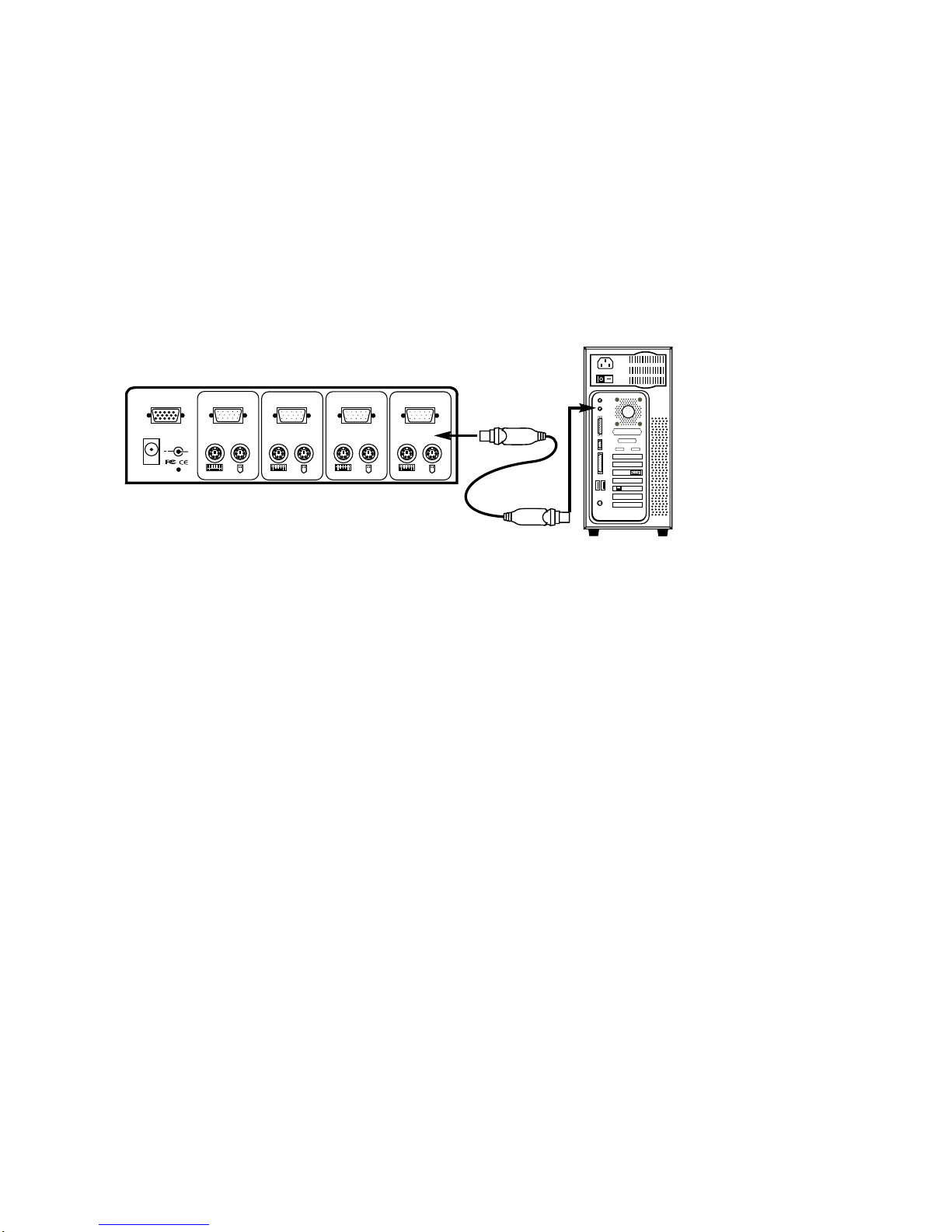

5. Connect the first computer's mouse cable to the OmniCube™. Using a PS/2

cable (Belkin Part# F2N036-XX), connect one end to the PS/2 mouse port

on the computer, and the other end to the PC1 mouse port on the back of

the OmniCube™.

6. Connect the first computer's keyboard cable to the OmniCube™. Using

another PS/2 cable (Belkin Part# F2N036-XX), connect one end to the

PS/2 keyboard port on the computer, and the other end to the PC1

keyboard port on the back of the OmniCube™. If your computer has an

AT-style keyboard port, you will need a PS/2-AT keyboard adapter

(Belkin Part# F2N018).

7. Double check all the connections. Make sure the keyboard and mouse

cables go to the correct ports.

8. Repeat steps 4-6 for the second, third and fourth computers.

9. Attach the power supply to the power supply connector at the back of

the OmniCube™. Plug this into any available AC outlet. You should see

an LED on the front panel blink, and hear a beep. Power up your monitor.

10.You can now power up both computers simultaneously. The first

computer will show up on the monitor. Check to see if the keyboard and

mouse works, as well as the image displayed on the screen. If this is okay,

press the SELECT button and check the functionality of the second

computer. If you find any errors, double check all the cable connections.

F2N036-XX

Back of OmniCube™

PC SERIAL USB 1

USB 2

VGA MONITOR

AT KEYBOARD

PS/2 MOUSE

PS/2 KEYBOARD

PARALLEL

RJ45 NETWORK

AT SERIAL

VGA

MONITOR

RESET

PC4

DC 9V 500mA

VGA

PC3

VGA

PC2

VGA

PC1

Keyboard Hot-Key commands:

To send commands to the OmniCube™, the SCROLL LOCK key must be

pressed twice within 2 seconds. You will hear a beep for confirmation. Below

are the different commands:

: Switch to Port 1 : Switch to Port 2

: Switch to Port 3 : Switch to Port 4

: Switch to previous port : Switch to next port

: Enables AutoScan mode.

In AutoScan mode, the OmniCube™remains on one port for 10 seconds before

switching to the next. There is no mouse or keyboard control in this mode.

This is necessary to prevent errors. Otherwise, if the user is moving the mouse

or using the keyboard when the OmniCube™switches to the next port, data

flow is interrupted and will cause erratic mouse movement and/or the wrong

characters to show up when using the keyboard.

To get out of AutoScan mode, hit the SPACEBAR.

OmniCube™

4-Port

CONSOLE

F1D094

1 2 3 4 Select

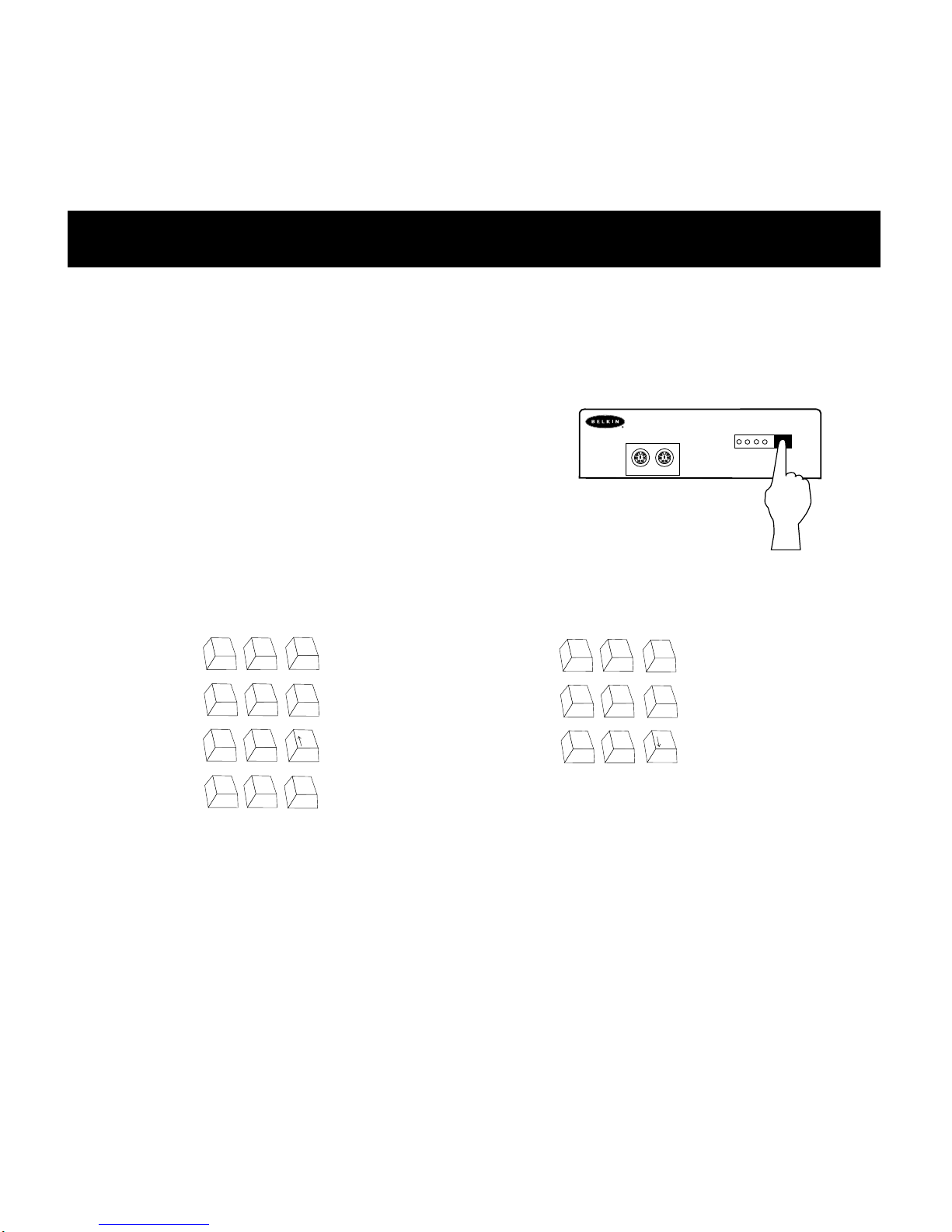

Usage

Selecting which computer to operate can be done either by pressing the

SELECT button, or through keyboard hot-key commands. You will notice that

after the OmniCube™ switches to another computer, the mouse will be

inoperative for about 1-2 seconds. This is normal operation and ensures that

proper mouse synchronization is established.

Pressing the SELECT button cycles

you through ports 1 - 4.

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock

Scroll

Lock Scroll

Lock
