Belkin OmniCube Manuale utente

The OmniCube™User Manual

Guide d’utilisation de

l’OmniCube™

Manual del usuario del

OmniCube™

OmniCube™- Manual do

Usuário

P73049 F1D092

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 1

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 2

Table of Contents

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Français (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Espanõl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 3

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 4

Introduction

Thank you for purchasing the Belkin Components OmniCube™KVM

(Keyboard Video Mouse) switch. Controlling two PCs from one keyboard,

mouse and monitor has never been easier or more affordable!

The OmniCube™is small in size, but big in performance. Compatible with any

PS/2 style computer, it is loaded with features comparable with more

expensive KVM switches. It has complete keyboard and mouse emulation for

error-free boot-ups, plus Microsoft®IntelliMouse®support. The OmniCube™is

also designed to handle the most demanding resolutions up to 1600 x 1200,

without any noticeable degradation in image quality. Switching can be done

through the convenient front-panel pushbutton, or by keyboard “Hot” key

commands. And if you wish to control a Macintosh®computer, simply add the

Belkin MAC Adapter™for even more system control – ideal for graphic artists!

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 1

Features

• Allows a user to control two PS/2 style computers from one keyboard,

mouse and monitor

• Keyboard and mouse emulation for error-free boot-ups

• Microsoft®IntelliMouse®support

• Up to 1600 x 1200 resolution support

• Supports both AT and PS/2 style keyboards (AT requires AT-PS/2 adapter)

• Support VGA, SVGA and Multisync monitors

• Uses standard cables

• Pushbutton on keyboard “Hot” key command switching

• AutoScan mode for even more convenience

• Audible feedback when switching

• Recalls CAPS LOCK, NUM LOCK and SCROLL LOCK keys' status for each

computer automatically

• Front-panel status LEDs

• Works with OmniView™PS/2 MAC Adapter™

• No software required

• One year product warranty

Package Contents:

OmniCube™2-Port F1D092

9VDC, 600mA power supply F1D065-PWR

This manual P72476

Registration card P72009

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 2

Technical Specifications

Console Connectors:

Keyboard: 6 pin MiniDIN female

Mouse: 6 pin MiniDIN female

Monitor: HDDB15 female

Computer Port Connectors:

Keyboard: 6 pin MiniDIN female

Mouse: 6 pin MiniDIN female

Monitor: HDDB15 male

Dimensions:

Width: 4 5/8" (118mm)

Height: 1 3/4" (45mm)

Depth: 4 5/8" (118mm)

Weight: 1.06 lbs (483g)

Operating Temp: 32 to 104 deg. F (0~40 deg. C)

Storage Temp: -4 to 140 deg. F (-20~60 deg. C)

Humidity: 0~80% RH

non-condensing

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 3

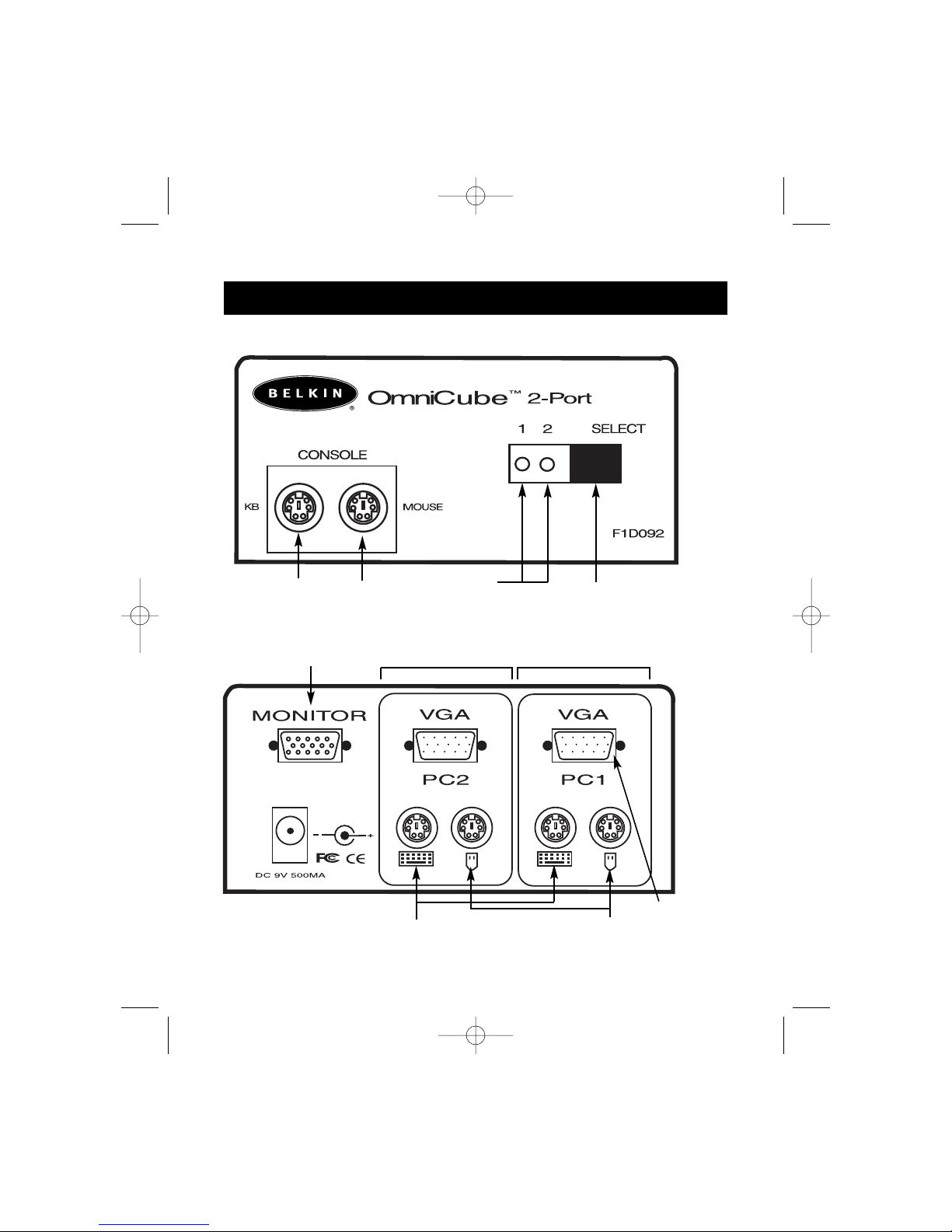

Product Detail

PS/2

Keyboard

Connector

PS/2 Mouse

Connector

Port Status LEDs

Port Select Button

HDDB15 Female

Connector to Monitor

HDDB15 Male

Connectors

to Computer

VGA Ports

PS/2 Connectors to

Computer Keyboard ports PS/2 Connectors to

Computer PS/2 Mouse ports

PC2 Connectors PC1 Connectors

Front View

Rear View

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 4

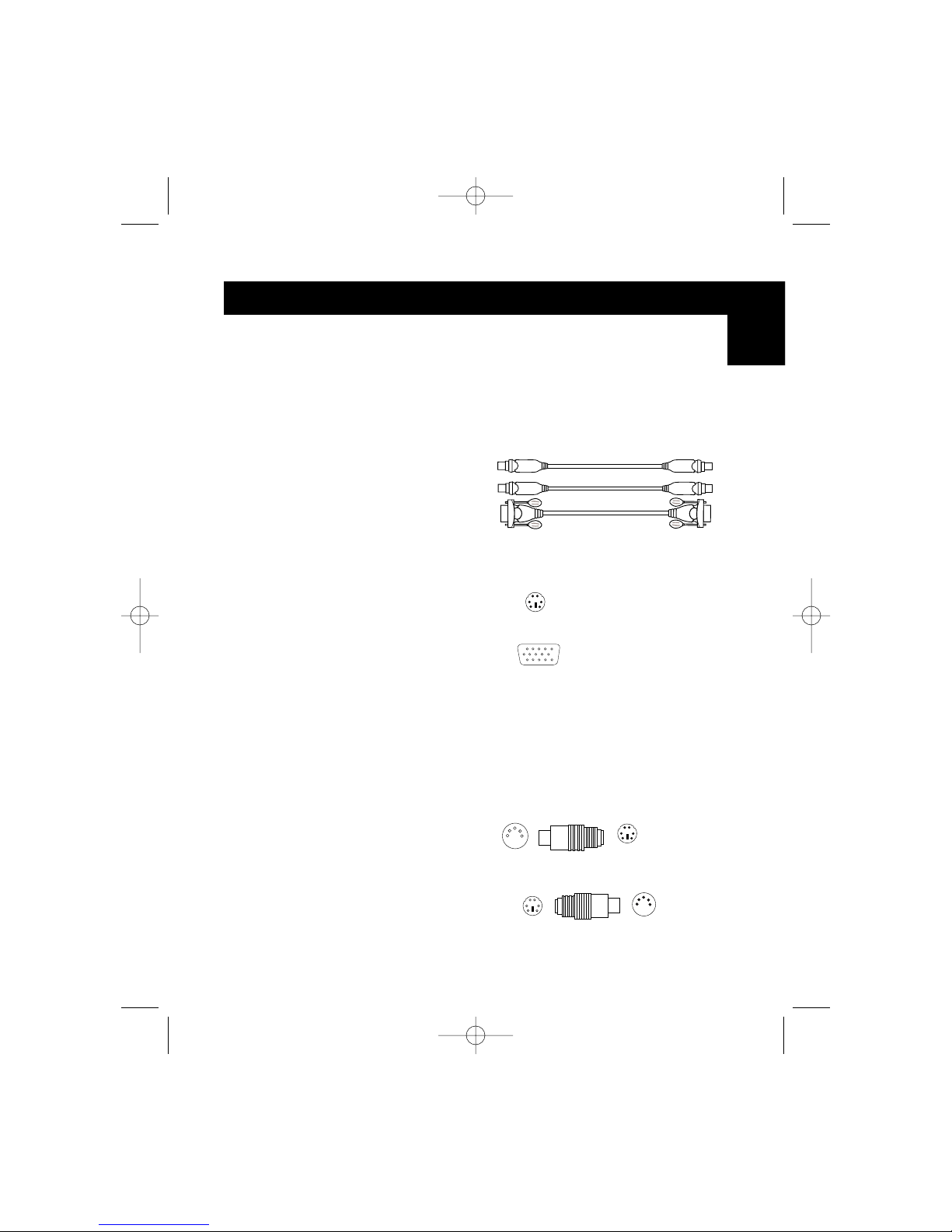

List of Parts Needed

Make sure you have the right cables!

The OmniCube™requires two sets of cables to connect to the two computers

you will be controlling. Below are the Belkin part numbers and their

descriptions. We recommend purchasing a PS/2 Cable Kit, as it contains all

the cables you need to connect one computer to the OmniCube™.

High-Resolution PS/2 Cable Kit - A3X982

Includes:

• 2 x F2N036-06

• 1 x F2N025-06-T

(see below for descriptions of each)

Individual Cables:

• PS/2 cable for keyboard and mouse ports

6 pin MiniDIN male/male

Part# F2N036-XX

• Standard VGA cable for monitor port

HDDB15 male/female with thumbscrews

Part# F2N025-XX-T

Other Cables and Adapters:

High-Resolution PS/2 Cable Kit - A3X983

Includes high-resolution/high-refresh rate VGA monitor cable

Includes:

• 2 x F2N036-06

• 1 x A3H981-06-T

• High-resolution/high-refresh rate VGA cable for monitor port

HDDB15 male/female with thumbscrews

Part# A3H981-XX

• AT to PS/2 keyboard adapter for use with an AT-style keyboard

5 pin DIN female/6 pin MiniDIN male

Part# F2N017

• PS/2 to AT keyboard adapter

for use with a computer having an AT-style keyboard port

6 pin MiniDIN female/ 5 pin DIN male

Part# F2N018

NOTE: The "XX" in the part number represents the length in feet.

6 pin MiniDIN

HDDB15

5 pin DIN Female 6 pin

MiniDIN Male

6 pin MiniDIN Female 5 pin

DIN Male

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 5

WARNING: Follow these directions closely and in the proper order. Failure

to do so may result in mouse and/or keyboard errors.

Before attempting to connecting anything to the OmniCube™or the

computers, make sure everything is powered off. Plugging and unplugging

cables may cause irreversible damage to your computers and the OmniCube™.

Belkin Components will not be held responsible for damage caused.

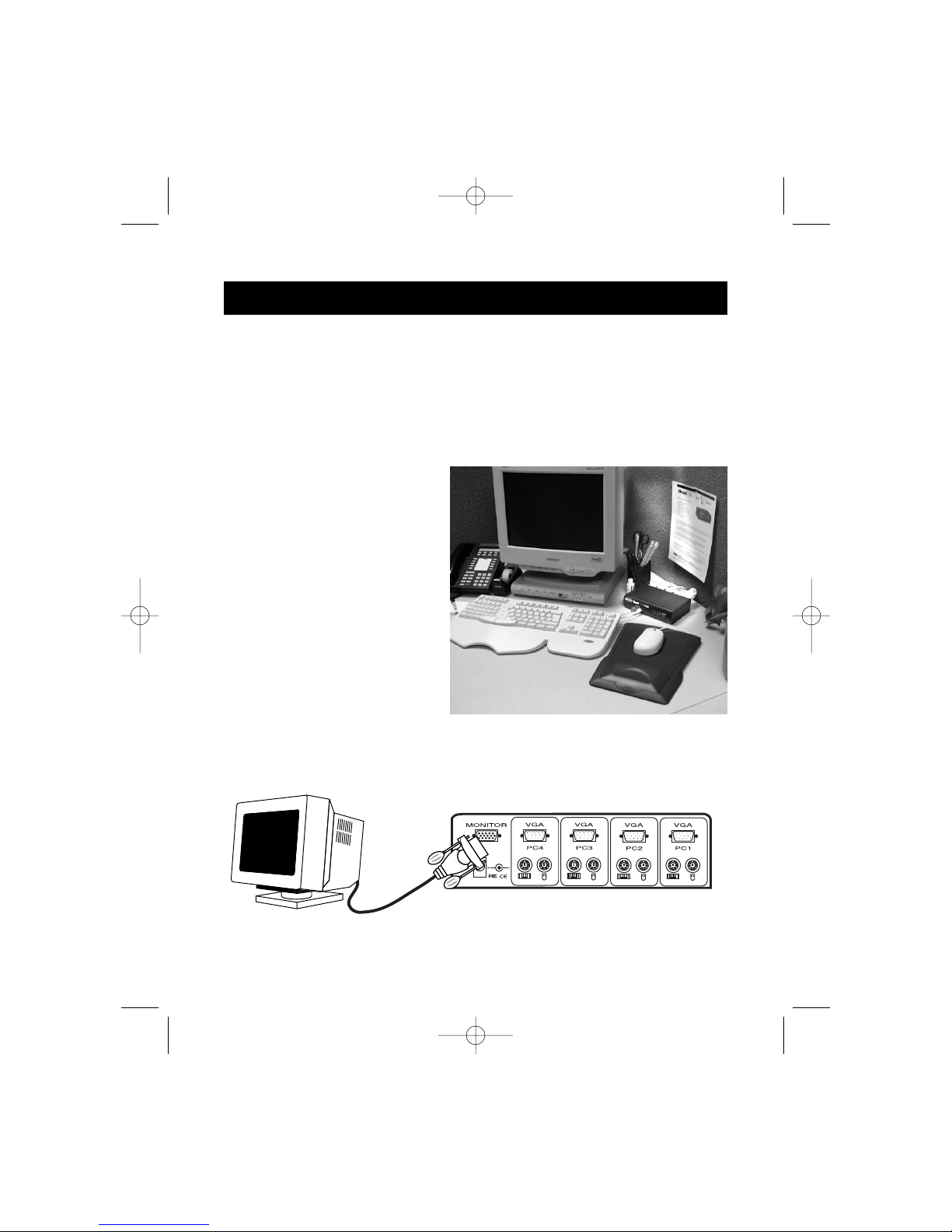

Hardware Installation

Back of OmniCube™

1. Find a convenient place to

put your OmniCube™. Its

small size makes it ideal for

the desktop. Take note of

the length of your cable kits

so that your computers,

OmniCube™, keyboard,

mouse and monitor are

distanced properly.

2. Connect the monitor to the

OmniCube™. Using the

attached cable which

is included with your

monitor, connect it to the

HDDB15 female port on

the back of the OmniCube™

labeled MONITOR.

P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 6
