KVM-Over-IP Mouse Synchronisation Guide

F1DP116G

F1DP108G

Synopsis:

Please read the following carefully;

Requirements:

This guide is designed to help you configure the

mouse settings to overcome the problems of

poorly synchronised local and remote mice via the

SMB Cat 5 KVM-Over-IP.

The guide is based on a remote session being

established from a Windows 2000 or XP machine.

This guide assumes that you are an Administrator

or Owner of an SMB Cat 5 KVM-Over-IP (F1DP108G

or F1DP116G) and have access to the KVM and its

connected Hardware.

•SMB Cat 5 KVM-Over-IP Unit

•IEC Power Cord for KVM

•Minimum 1 Host Machine

•Minimum 1 Server Interface Module (SIM)

•Ethernet Cable (To connect KVM to LAN)

•LAN Client PC with remote access to KVM

TSG-UK-2-002 | www.belkin.com | Page 1 of 4

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

First it is necessary to check the ‘Mouse Settings’ on the Servers connected to the KVM

to ensure that ‘Mouse Acceleration’ is adjusted to suit remote access. The ‘Mouse

Settings’ are accessed via ‘Control Panel’

Self Help Guide

KVM-Over-IP Mouse Synchronisation Guide | Step 1

TSG-UK-2-002 | www.belkin.com | Page 2 of 4

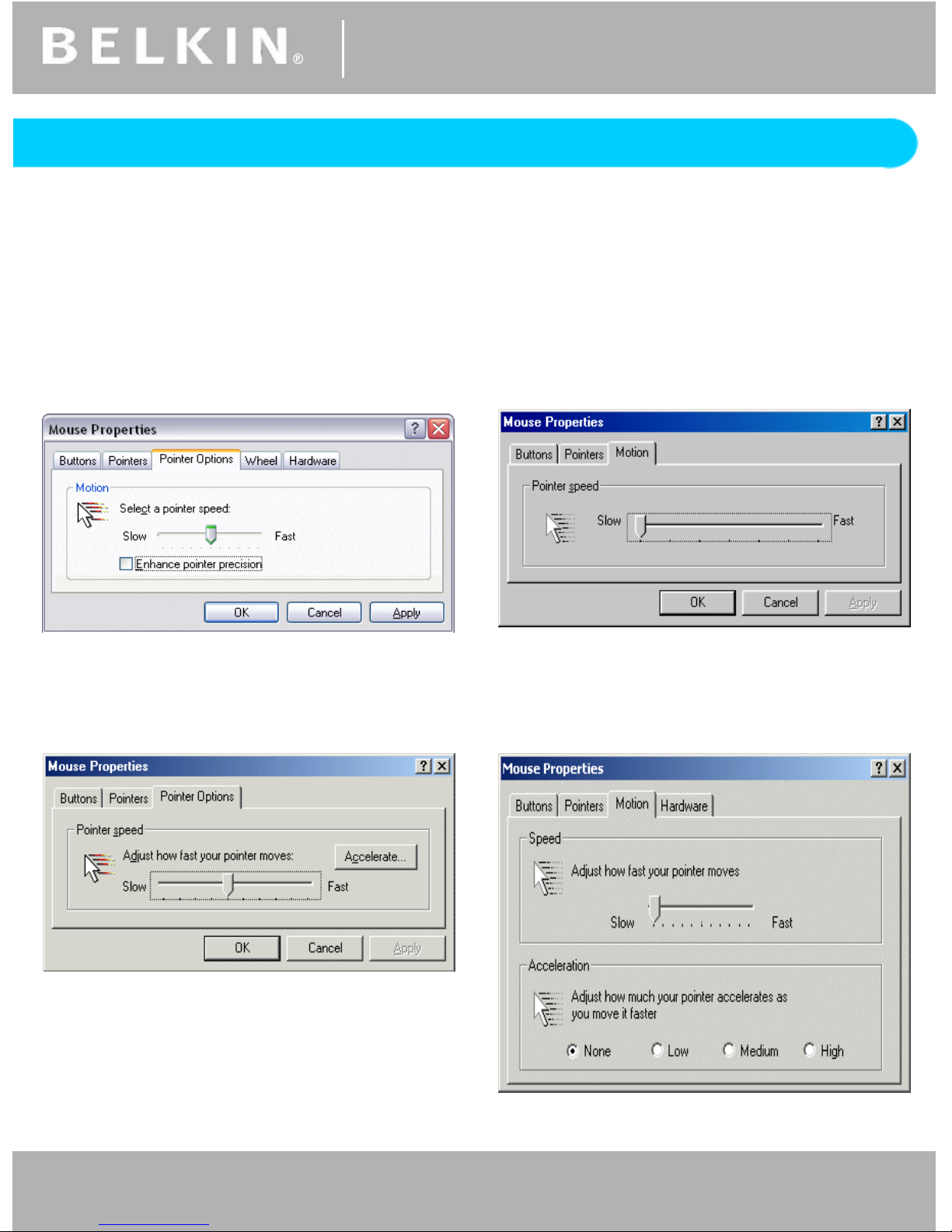

Windows XP | 2003 Server | Vista

Set ‘Pointer Speed’ is set half-way and

ensure the checkbox for ‘Enhance Pointer

Precision’ is un-ticked.

Windows 98 | 98SE | NT

Check that the ‘Pointer Speed’ is set to its

slowest position and leave trails off.

Windows ME

Set ‘Pointer Speed’ to half-way and make

sure that acceleration is turned off.

Windows 2000

Set ‘Speed’ to slow and ensure that the

acceleration is set to ‘None’.

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

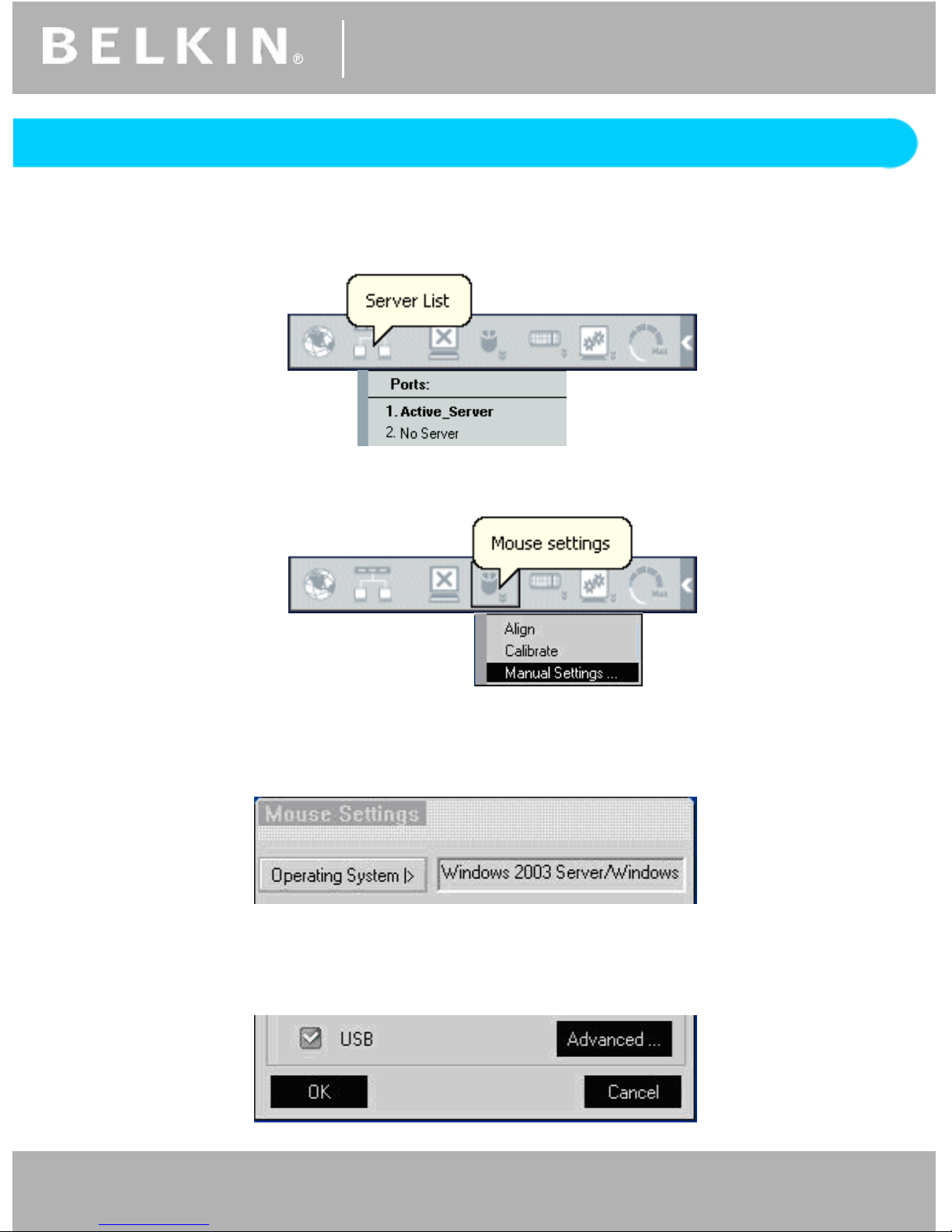

You can now login to the SMB Cat 5 KVM-Over-IP via its IP Address (e.g.

https://192.168.2.155). Once the Remote Access Session has been established, locate

the ‘Quick Access Toolbar’, choose ‘Server List’ and then select ‘Port 1’.

Next, select the ‘Mouse Settings’ Icon in the ‘Quick Access Toolbar’ and choose the

‘Manual Settings’ option from the drop down list.

In the ‘Mouse Settings’ section verify that the correct Operating System has been

selected from the options provided. For Windows 2000 un-check the ‘Default’ option

and set ‘Mouse Acceleration’ to none.

The ‘USB’ box on the bottom-left corner should only be ticked if the Host Machine

(Server) is attached to the KVM via a USB Server Interface Module (SIM).

Self Help Guide

KVM-Over-IP Mouse Synchronisation Guide | Step 2

TSG-UK-2-002 | www.belkin.com | Page 3 of 4

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

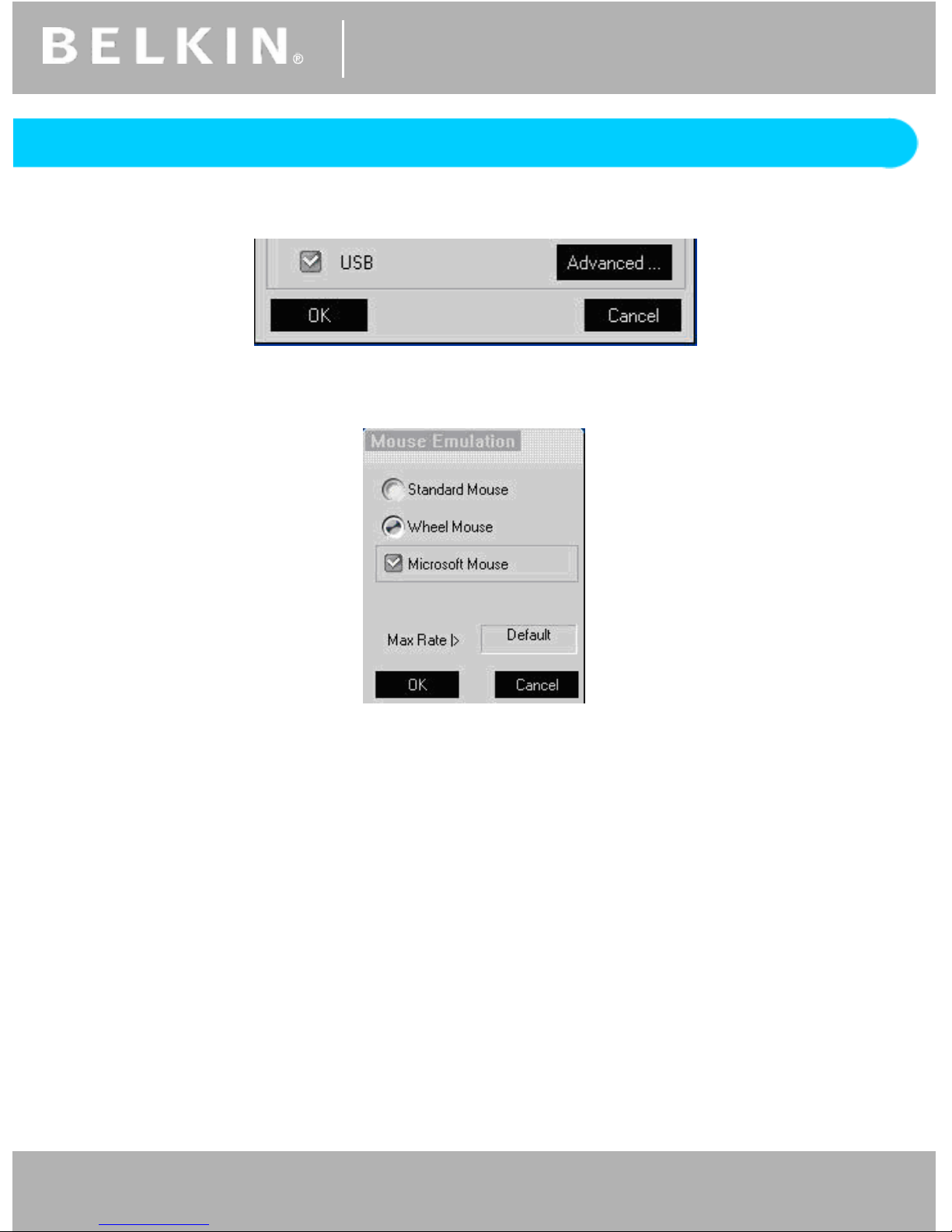

In the same ‘Mouse Settings’ window click on the ‘Advanced’ button;

Ensure that the ‘Mouse Emulation’ settings are as follows;

Once the settings have been changed accordingly click ‘OK’ on the ‘Mouse Emulation’

screen, and click ‘OK’ again on the ‘Mouse Settings’ screen.

Next, press the key combination LEFT CTRL + M to align the mouse.

Once complete, check that the local and remote mice are now synchronised.

Repeat these steps for all affected Host Server Ports.

Self Help Guide

KVM-Over-IP Mouse Synchronisation Guide | Step 3

TSG-UK-2-002 | www.belkin.com | Page 4 of 4
