Bellfires SMART BELL 75 PF Guida
INSTALLATION INSTRUCTIONS &
MANUAL FOR MAINTENANCE
SMART BELL
75 - 80 PF
Gas fire with closed combustion system
This document is an essential part of your gas fire. Read it carefully before
installation and use of the gas fire and keep it in a safe place!
Bellfires wishes you many cosy evenings with your new Bellfires gas fire
Serial number:
Production date:
3
Bellfires English
Installation instructions
BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM:
Smart Bell 75 - 80 PF (Premium Fire) (SB 75-80 PF)
4
Bellfires English
Installation instructions
IMPORTANT
These Installation Instructions form part of the documentation pack supplied
with the appliance.
The complete documentation, necessary for the installation of the appliance,
consists of:
1. INSTALLATION INSTRUCTIONS &
MANUAL FOR MAINTENANCE
2. AVAILABLE COMPONENTS CONCENTRIC FLUE-SYSTEMS FOR
BELLFIRES GAS FIRES WITH CLOSED COMBUSTION SYSTEM
3. INSTRUCTIONS FOR USE &
MANUAL DAILY MAINTENANCE
5
Bellfires English
Installation instructions
CONTENTS
Page
1. INSTALLATION INSTRUCTIONS .............................................................. 7
2. INSTALLATION .......................................................................
..........
.
...
..... 23
3. MAINTENANCE .....................................................................
...................
. 47
4. FAULTS ...................................................
.................................
...
.
...
..........
. 49
5. DISMANTLING / ASSEMBLING OF THE GLASS
.
....................
.
..
...
.......
... 50
6. DIAGRAM ELECTRICITY AND GAS ........................
........................
......... 53
7. DIMENSIONS ......................................................
..............................
....
....
. 54
8. TECHNICAL DETAILS/REGULATIONS .....................................
..
..
...
......... 60
9. REPLACEMENT PARTS LIST .........................................
..........
..
...
..
.
........ 62
10. DISPOSAL OF PACKAGING AND APPLIANCE .........
......................
...
.....
. 65
The installation must only be carried out by a
“Gas Safe Register” registered installation engineer.
IMPORTANT
6
Bellfires English
Installation instructions
7
Bellfires English
Installation instructions
1 INSTALLATION INSTRUCTIONS
1.1 GENERAL
The gas !re must be positioned and connected as a “room sealed system” (balance
"ue) appliance by a “Gas Safe Register” registered gas installation engineer in
accordance with the following installation instructions, nationally and locally applicable
regulations (see “Technical Details / Regulations” at the rear of this manual). If you have
any queries regarding the installation, please consult your local gas company.
Important: Before beginning the installation, check that the details on the
rating plate correspond to the gas type and pressure to which
the appliance will be connected.
The appliance is factory set to the correct nominal heat input. The pilot light is set to the
correct level of consumption.
The appliance will be delivered from the factory with a Ø100 mm - Ø150 mm concentric
connection for extracting the "ue gases and supply of combustion air.
It is possible to install the gas !re with either a wall or roof outlet.
The roof connection must be carried out using the concentric "ue system Ø100 mm -
Ø150 mm. The fumes are exhausted naturally to the outside environment through the
inner Ø100 mm pipe whereas the combustion air supply passes between the Ø100 mm
and Ø150 mm pipes.
The gas !re can be installed in a completely sealed or mechanically ventilated house
without extra ventilation and/or fume extraction.
The gas !re can be installed as an insertion into an existing open !replace or as
a built-in appliance in a new !replace.
In order to prevent the fireplace heating up excessively, it must be properly
ventilated by installing vents at the top and bottom of the !replace.
The appliance is equipped with a convection casing. This brings the heated air into
the room. Optionally, the appliance can be equipped with a convection fan for faster
dissemination of this hot air.
If an existing chimney is to be used, please consult your installer !rst. If the chimney
was previously used for a wood or coal !re, then it should be cleaned by an expert.
8
Bellfires English
Installation instructions
1.2 CONCENTRIC FLUE SYSTEMS Ø100 MM - Ø150 MM
• Bellfires - Muelink & Grol system
• Poujoulat - DUOGAS system
• Ontop - Metaloterm US system
• Jeremias/STB - H-Twin system (STB = Chimney-Technics
Brummen NL)
• Jeremias - TWIN-GAS system
The gas !re, in combination with the concentric "ue system [Ø100 mm - Ø150 mm]
(rigid and/or "exible)
for the brand types mentioned above, has been approved in
accordance with the European CE-norm for gas appliances and may therefore be used
only with these systems.
The permitted components for these systems are listed in instructions enclosed:
AVAILABLE COMPONENTS CONCENTRIC FLUE-SYSTEMS FOR BELLFIRES GAS
FIRES WITH CLOSED COMBUSTION SYSTEM. The guarantee on the
appliance lapses if it is installed, fully or partially, with other components or a different
"ue system.
The concentric "ue [Ø100 mm - Ø150 mm] systems can be used with either a
newly-built or existing chimney.
N.B. If any part is missing, please contact your dealer.
1.3 INVENTARIS
Set documentation - Installation instructions & Manual for maintenance
- Instructions for Concentric Components
- Instructions for use & Manual daily maintenance
Attributes - Ceramic log set
- Hook (for opening the frame and the glass)
- Fire glass “Black”
- Fire glass “Dark Amber”
- Embers
- Decorative ash
9
Bellfires English
Installation instructions
1.4 OPTIONS AND ACCESSORIES
The following options and accessories can be supplied by your dealer:
Part no Accessorie
329874 Set carrying brackets (2 pieces)
302278 Adapter flue gas connection
Ø100 mm for stainless steel flex.
302279 Adapter combustion air connection
Ø150 mm for stainless steel flex.
3........ Bellfires (M&G) concentric flue system(*)
3........ Poujoulat (DUOGAS) concentric flue system(*)
3........ Ontop (Metaloterm US) concentric flue system(*)
3....... Jeremias/STB - H-TWIN concentric flue system(*)
3....... Jeremias - TWIN-GAS concentric flue system(*)
(*) Please refer to the instructions enclosed:
CONCENTRIC COMPONENTS SUITABLE
FOR THE INSTALLATION OF A BELLFIRES
GAS FIRE WITH CLOSED COMBUSTION
Part no Option
311967 Mantle iron L = 1250 mm
343785 Built-in Frame (3-sided)
343786 Built-in Frame 4 cm deepened
343788 Classic Frame 35 mm
343787 Classic Frame 52 mm
343789 Classic Frame 70 mm
343401 Black mirror rear wall
343790 Steel panel rear wall
343791 Fan set Smart Bell 75-80:
Set, consisting a convection fan (230VAC/39W),
cable, assembly material and convection cover.
10
Bellfires English
Installation instructions
1.5 PREPARATION FOR INSTALLATION
The following preparation must be carried out before the gas !re can be installed.
1.5.1 Instructions for positioning the outlet
1.5.1.1 Positioning the outlet for correct operation:

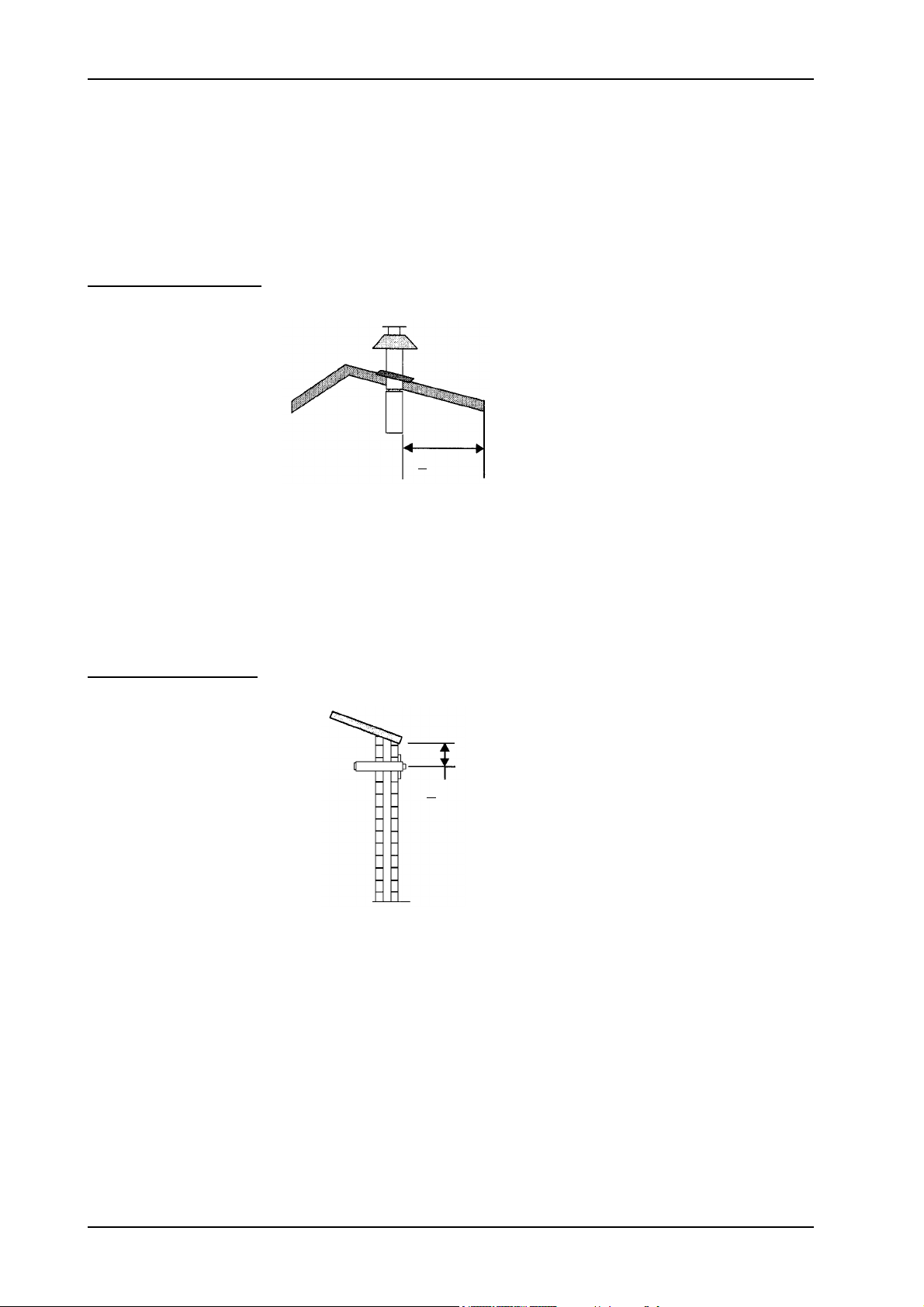

Roof-mounted outlet:
Figure 1: Roof-mounted outlet
This must be positioned at least 0.5 m from the roof edge;
the apex of the roof can be disregarded.
Wall-mounted outlet:
Figure 2: Wall-mounted outlet
This must be positioned at least 0.5 m from:
• the corner of the building.
• the roof overhang, the rain gutter.
• balconies etc., unless the exhaust construction
extends to at least the face of the protruding section.
>0.5 m
>0.5 m
