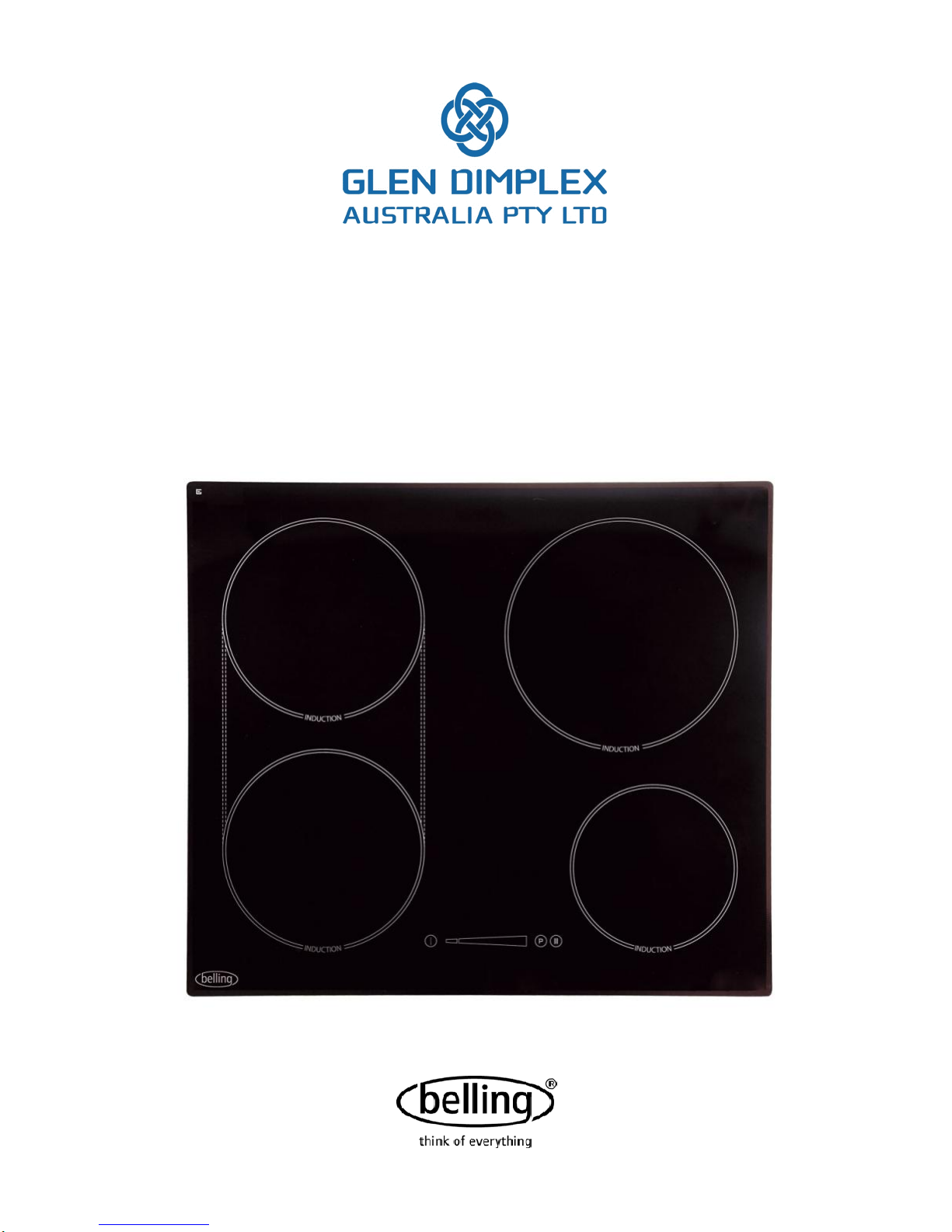

BELLING PBi 60 AU Mk2

SERVICE MANUAL

INDEX

PRODUCT IDENTIFICATION PAGE

APPLIANCE RATING PLATE ............................................................. 3

USER GUIDE AND INSTALLATION HANDBOOK

USER GUIDE.......................................................................................... 4-27

INSTALLATION INSTRUCTIONS....................................................... 28-33

TECHNICAL DATA............................................................................... 34-34

CONTACT DETAILS ............................................................................. 35-35

PART LIST PBI 60 AU MK 2................................................................. 36-36

WIRING DIAGRAM.............................................................................. 37-37

REPAIR AND MAINTAINANCE

DISASSEMBLY PROCEDURES.......................................................... 38-40

COMPONANT REMOVAL.................................................................. 41-45

FAULTFINDING GUIDES................................................................... 46-47

INDUCTION PRESENTATION........................................................... 48-59

THIS MANUAL COVERS THE FOLLOWING MODELS :-

BELLING PBi 60 AU MK 2

PRODUCT IDENTIFICATION

9 10 1 8 4 3 2 8

YEAR MONTH NUMBER OF PRODUCTION

FOR THE MONTH

4 4 4 4 4 0 0 2 8

PRODUCT IDENTIFICATION CODE

It is important that during all service calls the model and serial

numbers are recorded on all paper work.

Appliance rating plate location

The appliance rating plate is located on the right-hand side of the

front frame and also on the rear service panel

Users Guide

& Installation

Handbook

Belling

Built in Induction Hob PBi60 AU

Contents

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Beforeusingyourappliance............................................

Safety............................................................

Safetyandinduction .................................................

Usingtheinductionhob...............................................

WhatTheSymbolsMean..............................................

UsingTheInductionHob..............................................

CookwareforInductionHobs........................................

CareofPans......................................................

CookingonInductionHobs............................................

Cookingtips....................................................

Care&Cleaning....................................................

Troubleshooting....................................................

Installation .......................................................

TechnicalData..................................................

our warranty

Should you need it . . . .

Inside the paperwork which has come with this appliance, there is a leaflet and card

explaining the terms of our extended warranty and guarantee. In order to apply for our

five year guarantee, simply fill in the details on the card and post it off, this will register

your appliance.

Should you wish to take out extended warranty, please fill in the details on the leaflet

and post this off to:

If your appliance is covered by the warranty and guarantee, you will not be billed for

work undertaken should your appliance be faulty, terms and conditions do apply, so

please read through the literature carefully.

Please ensure that you have available your appliances model number and serial

number, there is a space at the back of this book for recording that information.

Glen Dimplex Australia

Unit 2, 205 Abbotts Road

Dandenong South

Victoria 3175

Australia

Ph: 1300 556 816

Fx: 1800 058 900

Glen Dimplex New Zealand Pty

38 Harris Road, East Tamaki

Auckland

New Zealand

Ph: 09 274 8265

Fx: 09 274 8472

Before Using Your Hob

Thank you for purchasing a new Belling Induction

Hob. Its stylish and practical design will enhance your

kitchen and make cooking a pleasure. Even if you

have used an induction hob before, it is important that

you read these instructions thoroughly before starting

to cook, paying particular attention to the installation

and safety instructions.

If you have any problems with any aspect of your

Belling hob, please check through these instructions

thoroughly to make sure that you have not missed

anything. If you still need help, then please contact us

using the customer care centre number at the back of

this book.

Before using this appliance please make sure that

you have removed all packaging and wrapping.

Also remove stickers & film from the ceramic glass.

Although every care has been taken to ensure this

appliance has no burrs, or sharp edges, we

recommend that you wear protective gloves when

installing and moving this appliance.

This will prevent any injury.

Our policy is one of constant development and

improvement. Strict accuracy of illustrations and

specifications cannot be guaranteed. Modification

to design and material may be necessary

subsequent to publication.

Always use a registered installer for this appliance.

WARNING! For your own safety, make sure that

these instruc tions on ins tallat ion, use and

maintenance are followed.

Environmental protection:

Glen Dimplex Home Appliance brands are

committed to protecting the environment and oper-

ates and Environmental Management System which

complies with BS EN ISO 14001.

All packaging with this appliance is recyclable and

environmentally friendly.

Please recycle whenever possible - contact your

local authority for your nearest recycling centre.

This appliance is for

use in a domestic

kitchen only, it is not

designed, or intend-

ed, for commercial

use.

!!!

lease keep these

instructions in a safe

place.

Should you sell or

pass on the appli-

ance, please give the

new owner this

handbook.

Safety

Keep children away from the vicinity of the hob

when you are cooking.

• Use pans with a flat base which are stable in use,

and avoid using any old misshapen pans or any pan

which is unstable when placed on a flat surface.

• Never leave fat or oil unattended on an active cook

zone. Don’t leave pans on the hob when you are

not around - remove them or turn the cook zones

off (even if only for a moment)

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to ensure that they

do not play with the appliance

• Keep all flammable materials away from the hob.

Ensure electrical leads do not trail over or go near

the hob.

• Do not place aluminium foil or plastic utensils on hot

surfaces.

• Turn pan handles to a safe position, so they are out

of reach of children, not overhanging the appliance

and cannot be caught accidentally.

• Commercial simmering aids should not be used as

they create excessive temperatures that can dam-

age the surface and may cause a hazard.

• Caution: Do not use the hob if the glass is cracked,

as electrical parts are directly beneath. To avoid the

possibility of electric shock, turn off the electricity

supply to the hob at the socket and arrange a

Service call.

WARNING: If you use a griddle plate, ensure that

it is completely cool before attempting to lift it from

the hob as residual heat may cause burns. Always

use oven gloves to protect your hands.

Do not allow yourself to be distracted whilst cooking.

When you have finished cooking check that all controls are in the off position.

WARNING:- this appliance is unsuitable for use in a marine enviroment.

WARNING:- servicing should be carried out only by authorised personnel.

Safety Advice

Smoke alarm - buy a smoke alarm fitted with a ‘hush

button’ which can silence the alarm instantly should it

activate accidentally & does not necessitate the removal

of the battery (except to change for a new one).

Fire Blanket - consider having a fire blanket in your

kitchen, mounted on the wall where you can get to it

easily & quickly.

Deep-fat Frying - never fill a chip pan (or other deep-

fat fryer) more than one-third full of oil. If you do have

a chip pan fire:

1) call emergency services immediately

2) never move the pan

3) turn off the heat but only if it is safe do so

4) never use water on a chip pan fire as this will create

a fireball.

Kitchen Fire - if you have a fire in the kitchen, do not

take risks - get everybody out of the house & call 999.

If a pan catches fire:

1) do not move it - it is likely to be very hot

2) turn off the heat but only if safe to do so & never

lean over a pan to reach the controls

3) if you have a fire blanket, put it over the pan

4) do not use a fire extinguisher on a pan of oil - the

force of the extinguisher can spread the fire

5) if you have managed to extinguish the fire, allow the

pan to cool completely.

Electrical Fire - if you have an electrical fire in the

kitchen, do not take risks - get everybody out of the

house & call emergency services immediately

1) pull the plug out or switch off the power at the fuse

box - this may be enough to extinguish the fire immedi-

ately

2) smother the fire with a fire blanket or use a dry pow-

der or carbon dioxide extinguisher

30 remember: never use water on an electrical fire.

Safety & Induction

Detection of an object or a pan on the heating

zone

A small object - such as a fork, a spoon or even a ring

- placed on a hob cooking zone on its own is not

detected as a pan.

The security system acts in the same way when it

detects a pan which is not suitable for use on an

induction hob.

If you are fitted with a pacemaker or an active

implant

The functions of the hob comply with the applicable

standards on electromagnetic interference

Your induction cooking hob thus complies fully with

the statutory requirements (Directive 89/336/EEC). It

is designed to not interfere with the functioning of

other electrical equipment as long as these also comply

with the same regulations.

Your induction hob generates magnetic fields in its

immediate vicinity.

So that there is no interference between your cooking

hob and a pacemaker, the pacemaker must be

designed in compliance with the appropriate regula-

tions.

In this respect we can only guarantee the compliance

of our own product. You can ask the manufacturer or

your doctor about the compliance or any incompatibili-

ties of your pacemaker.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Belling Piano cottura

Belling

Belling CH60R Aggiornamento firmware

Belling

Belling CH772TX Manuale utente

Belling

Belling IH60 UK Aggiornamento firmware

Belling

Belling PBI60R Istruzioni operative

Belling

Belling SCGHU60GC Aggiornamento firmware

Belling

Belling CH302TX Manuale utente

Belling

Belling IH60 UK Aggiornamento firmware

Belling

Belling shu60 Manuale di istruzioni

Belling

Belling 77cm Hob Touch Aggiornamento firmware

Belling

Belling Gas hobs Aggiornamento firmware

Belling

Belling PBI60R Istruzioni operative

Belling

Belling IHK80 Aggiornamento firmware

Belling

Belling GTG 60 LPG Series Manuale utente

Belling

Belling FSE 60 DO Aggiornamento firmware

Belling

Belling IH6013 Aggiornamento firmware

Belling

Belling E664 Istruzioni operative

Belling

Belling GHU60GE W Aggiornamento firmware

Belling

Belling CH60TX Manuale utente

Belling

Belling CRS60 Manuale di istruzioni

Belling

Belling IH60R Manuale di istruzioni

Belling

Belling Hob Aggiornamento firmware

Belling

Belling BCT60CER Manuale elenco delle parti

Belling

Belling PBi60 Guida

Belling

Belling IHL603 Manuale utente

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente
