Benassi F 1900 Manuale utente
F 1900
35456250_ 11/11
LIBRETTO USO E MANUTENZIONE
LIBRO DE USO Y MANTENIMIENTO
LIVRET D’UTILISATION ET D’ENTRETIEN
BETRIEBS UND WARTUNGSANLEITUNG
USE AND MAINTENANCE MANUAL
MOTOFALCIATRICE MOTOSEGADORA MOTOFAUCHEUSE
BALKENMÄHER SICKLE BAR MOWER
F1900
2
F1900
3
n°1
1
2
3
4
5
6
7
8
9
10
8
5
4
F1900
4

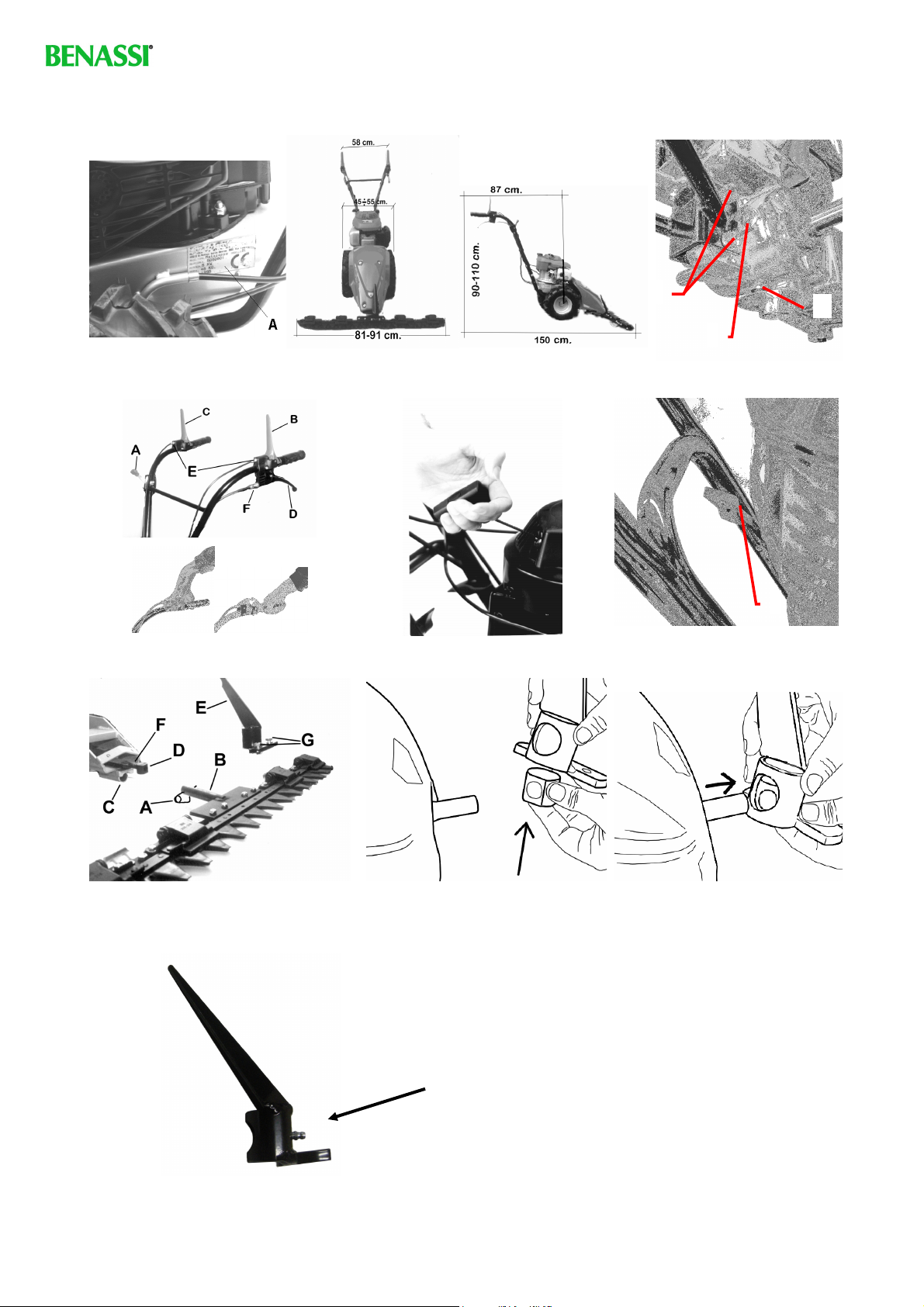

n°
2
n°
3
n°
4
n°
5
n°6 n°7
n°
8
n°
9
n°
10
n°
11
A
C
B
A
Ingrassatore
Greaser
Graisseur
Engrasador
SCHMIERER
F1900
5
Conteuto della
busta
Contenido del
paquete
Inhalt des
Umschlags
Contenu du sachet Bag contents
1 Fermo stegole Retenes manillar Befestigung
fuhrungholme Bloque mancherons Handlebar stop
2 Testina Cabeza Kopf Tete Head
3 Vite Tornillo Schrauben Vis Screw
4 Rondella Arandela Beilegsscheibe Rondelle Washer
5 Nottolino Tuerca Mitnehmer Cliquet Pawl
6 Istruzioni motore Libro motor Betriebsanleitung
motor Notice du moteur Engile booklet
7 Chiave motore(H) Llave motor Schulussel Motor Cle de moteur Motor key (H)
8 Chiave motore(b&s) Llave motor Schlussel motor Cle de moteur Motor key (b&s)
9 Fascette fermafilo Abrazadera s
sujecion cable Drahtklemmen Bandelettes de
calage du fil Wire holder
2
3
4
5
9
8
7
6
1
F1900
34
(TRANSLATED FROM THE ORIGINAL)
CONTENTS
1. INTRODUCTION
2. TECHNICAL DETAILS
3. MARK CE
4. PARTS OF THE MACHINE
5. INSTRUCTION FOR MOTORHOE ASSEMBLY
6. SECURITY TERMS
7. STARTING AND STOPPING
8. USE AND ADJUSTMENT
9. MAINTENANCE
10. WARRANTY
11. CE DECLARATION
INTRODUCTION
•Dear user, thank you for preferring , The top performance and the easy use of our machine should give
you any satisfaction.
•This machine is the result of a long experience working at the top quality standard and using first quality
material.
•Carefully using and servicing this machine, you will certainly get satisfactory performances for a long time.
•Please read very carefully this booklet before using your machine.
•The greater attention you give to our technical instructions the more reliable your machine will be. Pay
special attention to the instructions marked out by the following sign
DANGER!
Failure to comply with these instructions may result insidious or even cause fatal injury.
F1900
35
TECHNICAL DETAILS
FOR THE ENGINE FEATURES SEE THE ENGINE INSTRUCTION BOOKLET DELIVERED WITH THE MACHINE.
•Motor fuel: unleaded petrol
•Complete with self-winding start-up device
•Safety device on handles to stop machine
•Dry air filter
•Consumption at 3600 r.p.m.: 0.8 Kg/h
•Motor oil: SAE 30
•Oil quantity in motor: 0.6 l
•Gearbox: oil bath single gear
•Gearbox oil: SAE 80W/90
•Oil quantity in gearbox : 0.5 kg
•Manually controlled wheel release and cutting bar
•Steering handles mounted on vibration-damping supports
•"Tractor" type rubber wheels 360 x 85
•Central mowing unit with E.S.M. with 92 cm width or special bar with 82 cm width
•Clutch with belt tightening pulley.
•Packing: WIDTH: 100 cm HEIGHT: 47 cm LENGHT: 63 cm
Acoustic power level LwA = 89 -105 LdB (A)
Acoustic pressure to the operator’s ear: LpA = 76 - 91 dB(A)
Vibration to handles with weighting EN 1033-1 value : 4,9 - 13,4 m/sec2
MARK CE
For machine identification refer to the data plate as shown in the photo. See Ref. "A in Picture 2.
(serial number, mo or, weigh , power)
F1900
36
PARTS OF THE MACHINE
1 Wheel engage lever
2 Accelerator hand lever
3 Handles
4 Fuel inlet
5 Motor ignition
6 Grass divider
7 Central cutting blade
8 Oil inlet
9 Wheel release lever
10 Blade engage-release lever
INSTRUCTIONS FOR MOTORHOE ASSEMBLY
•Remove the power mower from its packing.
•Fix the handles to the handlebar support using the two screws and two knobs pre-mounted on the handle.
Make sure to position the control cables correctly.
•Fix the bar to the machine, by unspitting the spring (Pict. 8 Ref. “A”) on the pin (Ref. “B”). Thread the pin in
the casing (Ref. “C”) and thread the spring again (Ref. “A”). Take the little plastic cylinder (Pict. 8 Ref. “D”),
threat it in the grass divider head (Ref. “E”) and threat all in the pin of the lever arm (Ref. “F”), in the holes
on the head and on the cylinder. Fix the head (Ref. “E”) to the bar by screwing two screws (Ref. “G”) in the
threaded holes on the bar.
•If the machine is to be transported, empty out the petrol tank and always apply the plastic protective strip to
the cutting bar blade. If E.S.M. type, please read the sheet enclosed.
IMPORTANT: THE PACKED MACHINE IS SUPPLIED WITH THE MOTOR WITHOUT OIL OR PETROL.
IMPORTANT:
1)
FIT THE PAWL INTO THE HEAD AND MOUNT IT ONTO THE BAR
(Pict. 9).
2)
FIT THE HEAD AND BAR INTO THE MACHINE PIN. MAKE SURE THE MACHINE PIN GOES INTO THE HOLE
ON THE PAWL
(Pict. 10).
ATTENTION: WRONG OR IMPROPER MOUNTING CAN CAUSE SERIOUS DAMAGE TO THE MACHINE. IN
SUCH CASE, ALL THE WARRANTY CONDITIONS WILL BE NULL.
F1900
37
SECURITY TERMS
•Read carefully the operation and maintenance manual enclosed with the machine.
•The use of the machine is prohibited to persons under 16 years of age.
•The operator is liable for damages since the machine is under his control.
•Those unfamiliar with the machine or who have never used it are obliged to read the operation and
maintenance manual before operation.
•In case of transport, disassemble the bar and empty the petrol out of the tank.
•If the machine is left unattended, ensure that it cannot start up again.
•Before running the machine, the operator must have a 5 meter radius of free space around him.
•Dry any petrol leaks.
•Fill up the tank with the motor off. Filling the tank or transferring fuel must always be performed outdoors,
away from flames or heat sources. Do not smoke during this operation.
•When mowing in mountainous areas or on slopes, mow horizontally and use non-skid equipment on shoes
and wheels.
•If the blade needs replacement, observe E.S.M. operation and maintenance procedures.
•If the bar suffers impact, check the condition of the bar before resuming work.
•Keep feet and hands far away from the cutting bar and all rotating parts.
•Do not run the motor where exhaust containing carbon monoxide may accumulate.
•Never use the mower incomplete or without its safety device.
•Do not assemble/disassemble or clean the cutting bar or other equipment with the motor running.
•Caution! When the clutch is engaged the cutting bar is always in motion.
•Caution! Do not mow areas with slopes exceeding 20°.
We will not be held liable for accidents caused by the failure to observe these rules.
IMPORTANT: Working whit the machine for a longer time you should use ear
protection system.
F1900
38
STARTING AND STOPPING THE MACHINE
•Every time you get ready to start the motor, make a careful check of the following:
•Make sure that fuel is in the tank.
•Check the motor oil level: CAUTION: MACHINES OUT OF THE FACTORY DO NOT CONTAIN OIL IN
THE MOTOR. Make sure to add oil up to the level on the dipstick.
•CONSULT THE OPERATION AND MAINTENANCE MANUAL OF THE MOTOR UNDER "BEFORE
START-UP"
•Make sure oil is up to the level in the gearbox (Pict. 4 Ref. “A”)
•Check that all safety systems are released and functioning, especially the levers (Pict. 5 Ref. “C” and “B”)
•Always start the motor up outdoors.
•Bring the accelerator hand lever (Pict. 5 Ref. "A”) to the "START" position, grasp the cord handle (Pict. 6)
and pull it slightly until you feel some resistance, then pull harder. Make sure that the cord does not return
by itself -- accompany it with your hand.
•For best start-up, read the operation and maintenance manual on the motor under "START-UP".
•With the motor running, bring the accelerator lever (Pict. 5) to the middle position.
•To make the machine go forward squeeze the clutch lever (Pict. 5 Ref. “B”). Release it slowly and the
machine will start operating, keeping the "MOTOR STOP" lever pressed.
•In order to engage the bar, press the security button with the thumb (Pict. 5 Ref. “H”) and with the palm of
the hand let the bar clutch lever down (Pict. 5 Ref. “C”) keeping it pressed on the handle.
•To move the mower freely forward or back, squeeze the wheel release lever (Pict. 5 Ref. “B”) after
squeezing the clutch lever (Pict. 5 Ref. “D”).
•To switch off the engine, move the accelerator lever (Pict. 5 Ref. A) to the "STOP" position.
•The main function of the lever (Pict. 5 Ref. "E") is to turn off the motor when releasing your hands from the
steering handles. Do not ever tie the "MOTOR STOP" lever ("E") to the handlebar knob.
•Every time you get ready to start the motor, check that the button (Pict. 5 Ref. “F”) is pressed, keeping both
the "MOTOR STOP" lever and the clutch lever blocked.
•Before you start to mow, check that the motor shuts off with the "STOP" lever raised.
MOTOR STOP: lever "e" is squeezed; MOTOR START : lever "e" is lowered
•To stop the advancement, release the lever (Pict. 5 Ref "B").
•To stop the mowing bar, release the lever (Pict. 5 Ref "C").
•Caution! Do not non operate the wheel engage lever (Pict. 5 Ref. "B") and the wheel release lever (Pict. 5
Ref. "D") at the same time.
