BENETEAU OCEANIS 473 Manuale utente

OCEANIS 473

OWNER’S MANUAL

OCEANIS 473

FR-BEY _ _ _ _ _ _ _ _ _

BENETEAU REF: 052927

CONTENTS:

I) INTRODUCTION................................................................................................................................................3

II) TECHNICAL CHARACTERISTICS.................................................................................................................4

III) ACCOMMODATIONS.....................................................................................................................................6

IV) DECK (Location of life raft) ...........................................................................................................................10

V) SAILS AND RIGGING....................................................................................................................................11

VI) FRESHWATER AND BLACK WATER TANKS.........................................................................................15

VII) BAILING SYSTEM.......................................................................................................................................18

VIII) SEACOCKS AND SKIN FITTINGS...........................................................................................................20

IX) ELECTRICAL SYSTEMS..............................................................................................................................23

X) GAS SYSTEM .................................................................................................................................................32

XI) STEERING SYSTEM, EMERGENCY STEERING SYSTEM .....................................................................35

XII) ENGINE.........................................................................................................................................................36

XIII) HAULING OUT...........................................................................................................................................39

XIV) MAINTENANCE.........................................................................................................................................40

XV) ENVIRONMENT ..........................................................................................................................................43

EXPLANATION OF THE TYPOGRAPHY USED :

DANGER

WARNING

ATTENTION

OCEANIS 473

ANG 24/06/04 2 / 43

RECEIPT

NAME OF OWNER : …………………………………………………………………………..

ADDRESS : …………………………………………………………………………..

…………………………………………………………………………..

Owner of OCEANIS 473 n° ……………………………………………………………………………….

Do certify having received and read the information included in this owner’s manual delivered with the boat

Date …………………………………………

Signature

Copy to be kept by the owner

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

•

RECEIPT

NAME OF OWNER : …………………………………………………………………………..

ADDRESS : …………………………………………………………………………..

…………………………………………………………………………..

Owner of OCEANIS 473 n° ……………………………………………………………………………….

Do certify having received and read the information included in this owner’s manual delivered with the boat

Date …………………………………………

Signature

Copy to be sent back to

BENETEAU S.A

ZI des Mares BP66

85270 Saint Hilaire de Riez

FRANCE

OCEANIS 473

ANG 24/06/04 3 / 43

I) INTRODUCTION

Dear Madam, dear Sir,

You have just taken delivery of your new BENETEAU, and first of all we would like to thank you for

your confidence in choosing a product from our range.

A BENETEAU is built to last: each boat receives attentive care right down to the slightest details, from

her design until she leaves our factory and is launched, so that she might provide you with many years of joy,

which you have a right to expect.

This manual has been compiled to help you use your boat with pleasure and in complete safety. It

contains details of the boat and her installations and information relative to her use and maintenance. Please read

it carefully and familiarise yourself with the boat before casting off.

If this is your first boat or if you are changing for a type of boat with which you are not familiar, for

your comfort and safety, make sure that you obtain hand over and operating experience before taking command

of your boat. Your dealer, national sailing federation or your yacht club will be only too happy to recommend

local sailing schools or competent instructors.

Enjoy your sailing.

(1) Throughout their careers, our boats are regularly improved in line with our experience and that of

our customers, this is why the characteristics of the owner’s manual are not contractual and can be modified

without prior notice and without an obligation to update it.

Moreover, this document, whose purpose is general, may sometimes list certain equipment or cover

certain subjects that do not concern your boat. In case of doubt, please refer to your boat’s inventory.

KEEP THIS MANUAL IN A SAFE PLACE AND HAND IT OVER TO THE NEW OWNER IF YOU

SHOULD SELL THE VESSEL

OCEANIS 473

ANG 24/06/04 4 / 43

II) CHARACTERISTICS OF THE BOAT

Type ....................................................... OCEANIS 473

Name of builder .................................... BENETEAU SA

Design category...................................... A

N° of notified organisation..................... CE 0607

Length of hull 14.15 m

Beam of hull 4.31 m

Draught: Deep draught:

Shoal draught:

2.10

1.70

Air draught 18.10 m

Maximum authorised engine power: 75 kW

Fuel capacity: 235 Litres

Freshwater capacity: 600 Litres

Capacity of batteries 1x110 + 2x140 Amps

Category Wave height (m) Wind strength

(Beaufort)

A > 4

> 8

B < 4

≤ 8

C < 2

≤ 6

D < 0.5

≤ 4

For further information on the equipment fitted, please refer to their manuals included with the boat’s

documentation.

Maximum recommended number of persons carried aboard per design category:

Category Maximum number

of persons

A 10

B 12

C 12

D 14

The equipment on the boat with CE certification includes: the fuel tanks, steering system components, gas

system components and hatches and portlights.

OCEANIS 473

ANG 24/06/04 5 / 43

LOAD SHEET

DESIGN CATEGORIES A 10 pers B 12pers C 12pers D 14pers

Light boat : 10600 10600 10600 10600

Safety equipment : 140 140 140 140

Sails 60 60 60 60

Light displacement 11000 11000 11000 11000

Life raft : 80 80 80 80

Crew : 750 900 900 1050

Water: 600 600 600 600

Fuel: 192 192 192 192

Personal equipment : 207 250 250 290

Optional equipment 1200 1200 1200 1200

Teak deck 130 130 130 130

Rigid reserves 300 300 300 300

Air conditioning 80 80 80 80

Automatic pilot 25 25 25 25

Spinnaker pole 10 10 10 10

Microwave oven 5 5 5 5

Spray hood 10 10 10 10

Bimini top 20 20 20 20

Davits 40 40 40 40

Frigoboat refrigerator 25 25 25 25

Extra water capacity 240 240 240 240

Extra battery 35 35 35 35

Generator set 280 280 280 280

Margin for extra equipment 613 420 420 230

MAX LADEN DISPLACEMENT IN Kg 14654 14654 14654 14654

MAXIMUM LOAD (Kg) 3642 3642 3642 3642

MAXIMUM LOAD = MAXIMUM LADEN DISPLACEMENT – LIGHT BOAT

ANY OVERLOADING COULD LEAD TO FLOODING OR A LOSS OF

STABILITY

OCEANIS 473

ANG 24/06/04 6 / 43

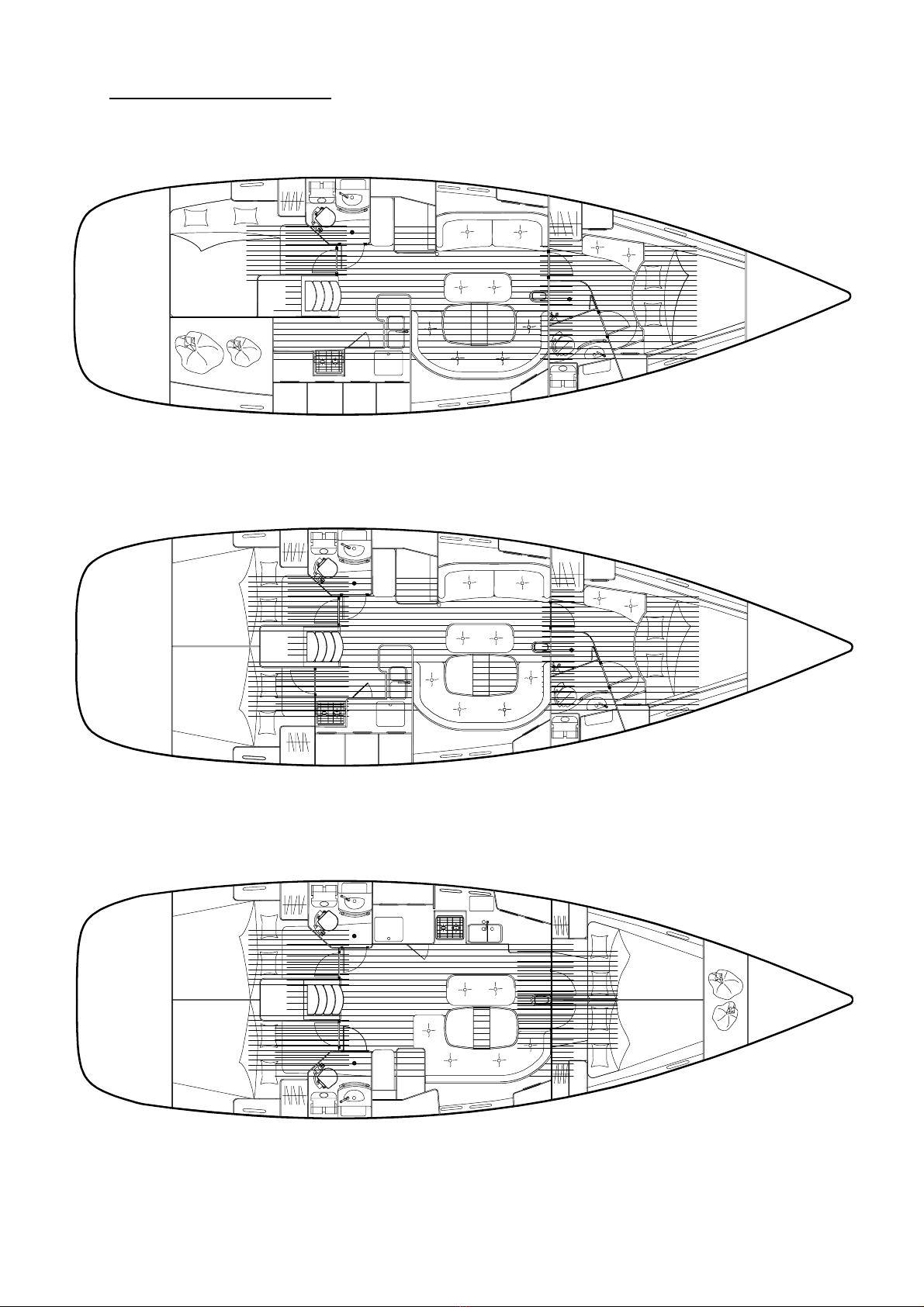

III) ACCOMMODATIONS

OCEANIS 473

ANG 24/06/04 7 / 43

III) ACCOMMODATIONS (CONT’D)

OCEANIS 473

ANG 24/06/04 8 / 43

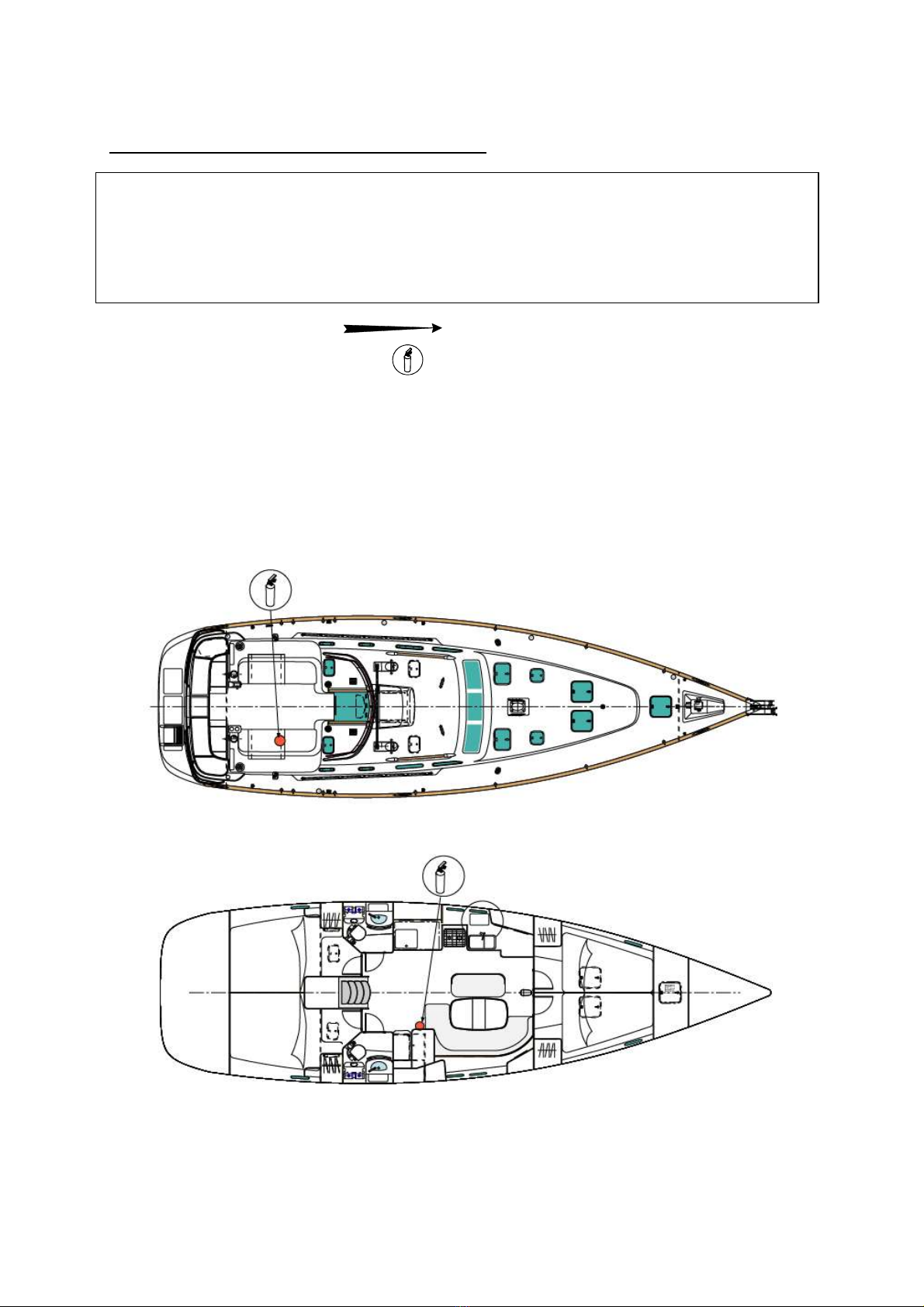

EVACUATION IN CASE OF FIRE

The boat is delivered without fire extinguishers, the application of the national regulations of

your country is under your responsibility (number, capacity, type, location).

We advise the installation of at least one extinguisher less than 5 metres from each berth, less than 2

metres from the engine compartment extinguisher aperture, at least 2 metres from any naked flame

appliance and at least 1 metre from the steering station. We recommend a total portable extinguishing

capacity of 8A/64B, each extinguisher having a minimum capacity of 5A/34B. CO2extinguishers should be

dedicated to galley fires or electrical fires.

= Recommended escape route

= Recommended extinguisher locations

NB:

Extinguishers recommended for the interior

on the drawings relate to the instructions

recommended by the standard.

Nevertheless we recommend that you

install a second extinguisher in position in

the forward part of the accommodations.

OCEANIS 473

ANG 24/06/04 9 / 43

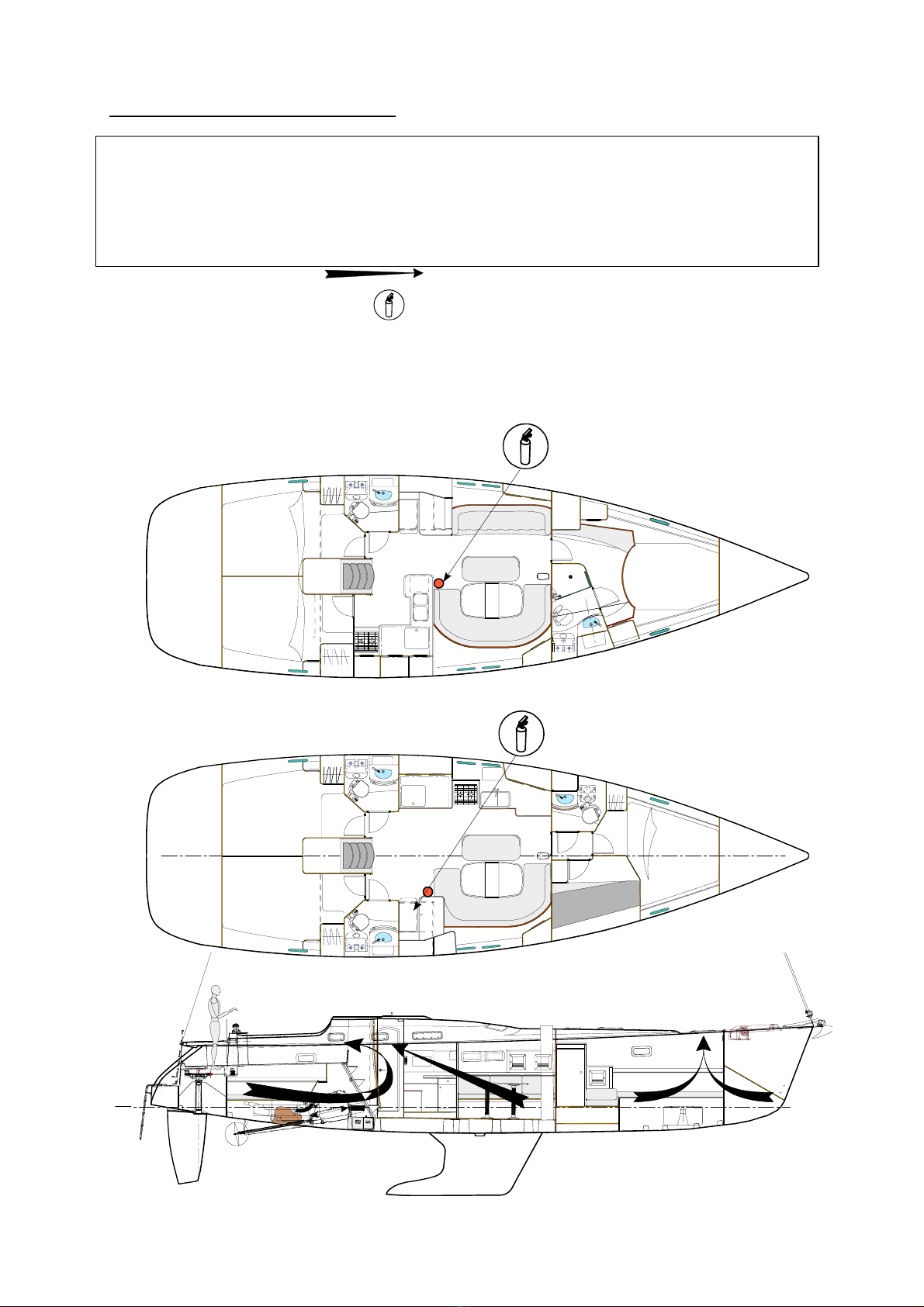

EVACUATION IN CASE OF FIRE (CONT’D)

The boat is delivered without fire extinguishers, the application of the national regulations of

your country is under your responsibility (number, capacity, type, location).

We advise the installation of at least one extinguisher less than 5 metres from each berth, at less than 2

metres from the engine compartment extinguisher hole, at least 2 metres from any naked flame appliance

and at least 1 metre from the steering station. We recommend a total portable extinguishing capacity of

8A/64B, each extinguisher having a minimum capacity of 5A/34B. CO2extinguishers should be dedicated

to galley fires or electrical fires.

= Recommended escape route

= Recommended extinguisher locations

NB:

Extinguishers recommended for the interior

on the drawings relate to the instructions

recommended by the standard.

Nevertheless we recommend that you

install a second extinguisher in position in

the forward part of the accommodations.

OCEANIS 473

ANG 24/06/04 10 / 43

IV) DECK

- Safety harness lines may be fastened on the mooring cleats or on the toerail.

Some boats are fitted with folding bathing ladders. The bathing ladder should be in place as soon

as your are aboard.

Make sure you close the hatches and portlights before putting to sea

In case of rough sea conditions, close up the boat with the washboards and companionway hatch

to avoid the risk of a wave flooding the boat.

Check that nothing is obstructing the self-bailing holes; they should never be voluntarily

obstructed

1 Life raft housing

2 Safety harness line attachment points

3 Excluded zone of the deck working area. Zone not protected by guardrails.
