BenQ CinePrime Series Manuale utente

Quick Start Guide

Digital Projector

CinePrime Series l W2710 / HT3560

Product information

Shipping contents

SOUND

MODE

Remote control

SOUND

MODE

LIGHT

OFF

DEFAULT

TEST PATTERN

SOURCE

CINEMA MASTER

HDR

Volume keys

PIC MODE

ECO BLANK

Keystone correction

Arrow keys

BACK

FILMMAKER MODE

MUTE

SOUND MODE

Picture quality adjustment keys

(BRIGHT, CONTRAST, COLOR TEMP,

COLOR MANAGE, GAMMA, SHARP)

DYNAMIC IRIS

LIGHT MODE

Control terminals

12V

TRIGGER -

RS 232

AUDIO

OUT

MEDIA

READER 25A

SERVICE SPDIF



Installation

Projection dimensions

•The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio

WProjection distance

Center of lens

Screen

16:9 Screen diagonal

Vertical Offset

Screen size Distance from screen (mm)

Diagonal H

(mm)

Min

length Average

Max

length

Inch mm (max.

zoom)

(min.

zoom)

30 762 374 664 750 863 976

40 1016 498 886 1001 1151 1302

50 1270 623 1107 1251 1439 1627

60 1524 747 1328 1501 1727 1953

70 1778 872 1550 1751 2015 2278

80 2032 996 1771 2001 2302 2603

90 2286 1121 1992 2251 2590 2929

100 2540 1245 2214 2502 2878 3254

110 2794 1370 2435 2752 3166 3580

120 3048 1494 2657 3002 3454 3905

130 3302 1619 2878 3252 3741 4231

140 3556 1743 3099 3502 4029 4556

150 3810 1868 3321 3752 4317 4881

160 4064 1992 3542 4003 4605 5207

170 4318 2117 3763 4253 4893 5532

180 4572 2241 3985 4503 5180 5858

190 4826 2366 4206 4753 5468 6183

200 5080 2491 4428 5003 5756 6509

210 5334 2615 4649 5253 6044 6834

• All measurements are approximate and may vary from the actual sizes.

•BenQ recommends that if you intend to permanently install the projector, you should

physically test the projection size and distance using the actual projector in situ before you

permanently install it, so as to make allowance for this projector's optical characteristics.

This will help you determine the exact mounting position so that it best suits your

installation location.

• To optimize your projection quality, we suggest doing the projection by following the values

in the non-gray cells.

•The values in the gray cells are for reference only.

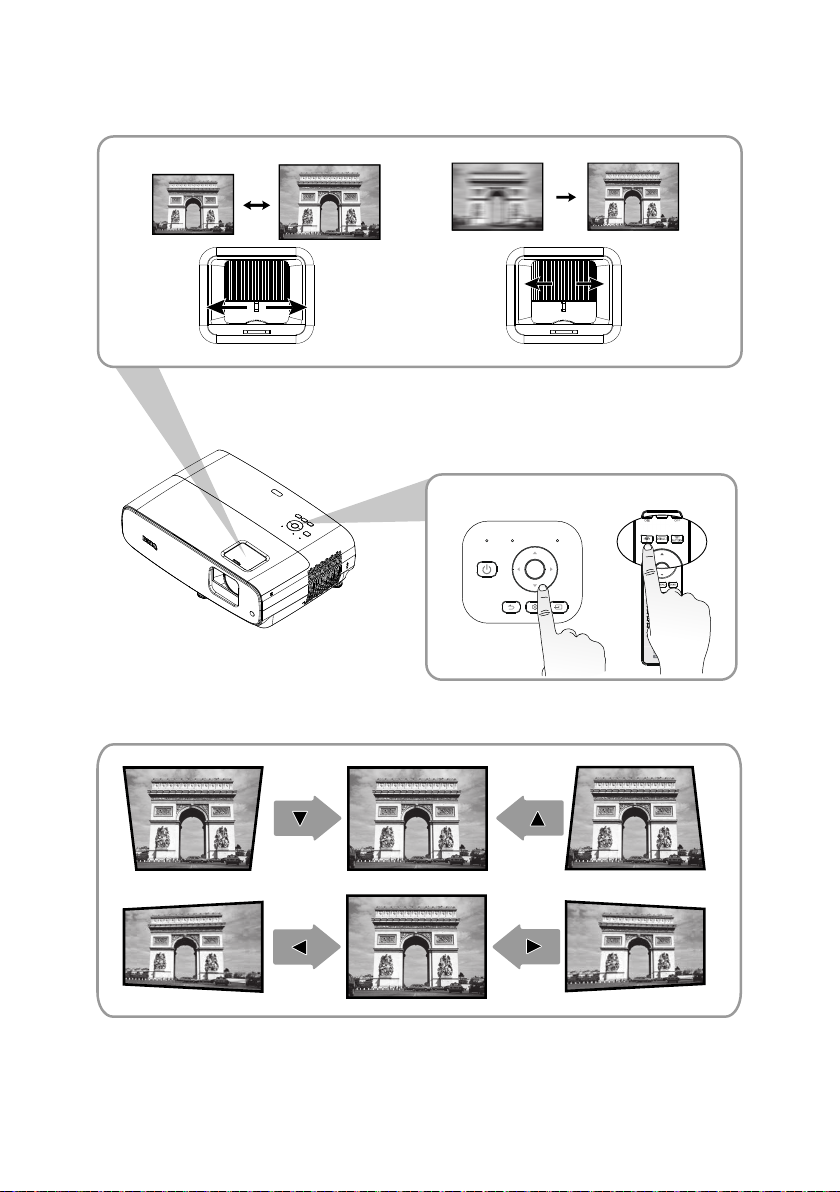

Shifting the projection lens

220 5588 2740 4870 5504 6331 7159

230 5842 2864 5092 5754 6619 7485

240 6096 2989 5313 6004 6907 7810

250 6350 3113 5535 6254 7195 8136

260 6604 3238 5756 6504 7483 8461

270 6858 3362 5977 6754 7770 8787

280 7112 3487 6199 7004 8058 9112

290 7366 3611 6420 7255 8346 9437

300 7620 3736 6641 7505 8634 9763

min. 0V

max. 0.1V

Desk-front

projection

Dimensions

Projector dimensions

380 mm (W) x 127 mm (H) x 263 mm (D)

Ceiling/Wall mount installation diagram

380

127

263

Unit: mm

49.7175108

118 104.3

226 154

47.3

222.3

380

537.9

577.7

704.7

127

380

127

387.7

519.8

Ceiling/Wall mount screw: M4

(Max L = 25 mm; Min L = 20 mm)

Unit: mm

POWER TEMP LAMP

SOUND

MODE

POWER TEMP LAMP

SOUND

MODE

2ON

POWER TEMP LAMP

SOUND

MODE
