BenQ LX785 Manuale utente

BenQ.com

P/N: 4J.JL701.001

Quick Start Guide

Digital Projector

LX785 / LU785

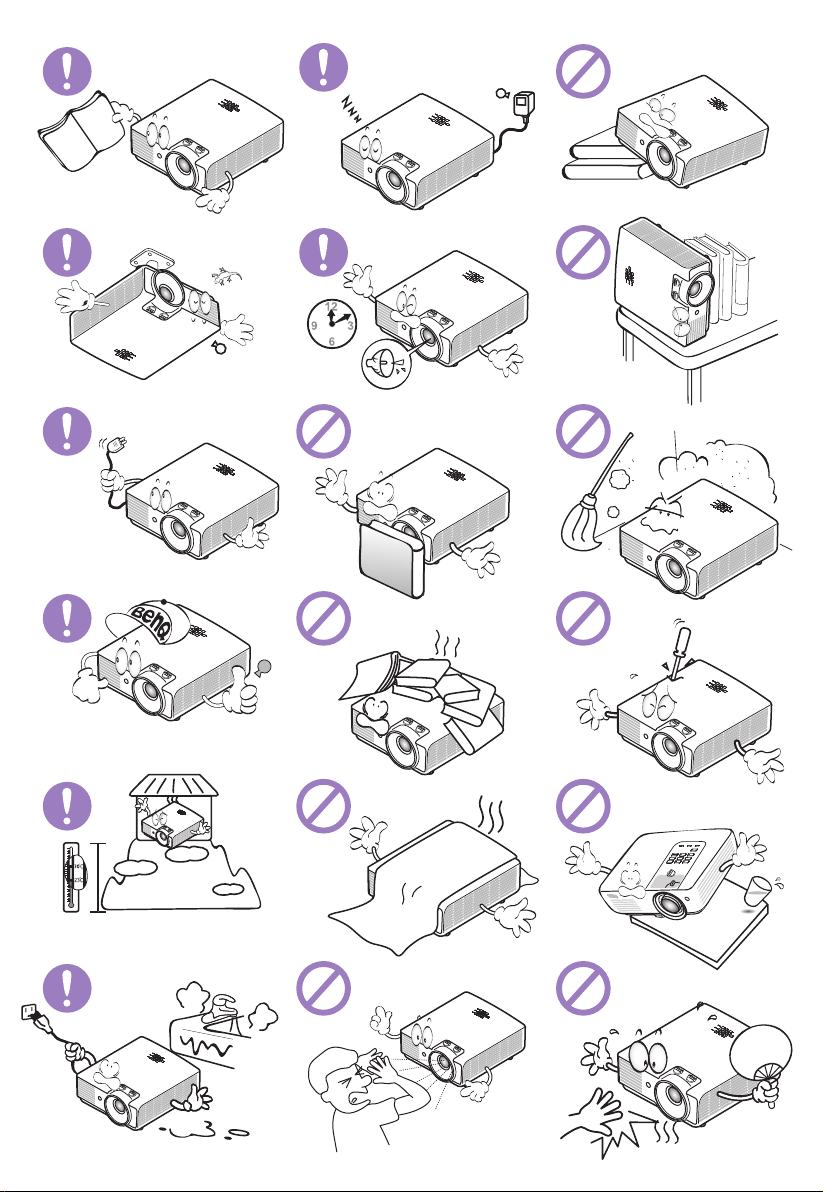

Important safety instructions

Risk Group2

Laser Caution

To ensure safe use of this product. Please read the user manual for details before you

operate your projection.

1. According to the classification of photobiological safety of light sources and light source

systems, this product is Risk Group 2, IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

The projector’s light source unit uses a laser.

(for WW) This Laser Product is designated as Class 1 during all procedures of operation

and complies with IEC/EN 60825-1:2014.

(for USA) This Laser Product is designated as Class 3R during all procedures of operation

and complies with IEC/EN 60825-1:2007.

LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

Caution: Use of controls or adjustments or performance of procedures other than

those specified herein may result in hazardous radiation exposure.

Projection dimensions

Maximum zoom Minimum zoom Screen

Center of lens

Projection distance

Vertical offset A

Diagonal

inch

Screen size Distance from

screen [mm]

Width Min

Distance Max

Distance A [mm]@

Wide mode

mm mm mm

Height Average

Offset

[mm]

LX785_XGA

TR: 1.51~2.5, offset = 121%

30 762 609 457 919 1220 1522 95

40 1016 812 609 1226 1628 2030 127

50 1270 1016 762 1534 2037 2540 160

60 1524 1219 914 1840 2443 3047 191

80 2032 1625 1219 2453 3257 4062 255

90 2286 1828 1371 2760 3665 4570 287

100 2540 2032 1524 3068 4074 5080 320

110 2794 2235 1676 3374 4480 5587 351

120 3048 2438 1828 3681 4888 6095 383

130 3302 2641 1981 3987 5294 6602 416

140 3556 2844 2133 4294 5702 7110 447

150 3810 3048 2286 4602 6111 7620 480

160 4064 3251 2438 4909 6518 8127 511

170 4318 3454 2590 5215 6925 8635 543

180 4572 3657 2743 5522 7332 9142 576

190 4826 3860 2895 5828 7739 9650 607

200 5080 4064 3048 6136 8148 10160 640

250 6350 5080 3810 7670 10185 12700 800

300 7620 6096 4572 9204 12222 15240 960

Diagonal

inch

Screen size Distance from

screen [mm]

Width Min

Distance Max

Distance A [mm]@

Wide mode

mm mm mm

Height Average

Offset

[mm]

LU785_WUXGA

TR: 1.15~1.9, offset = 115%

There is 5% tolerance among these numbers due to optical component variations.

BenQ recommends that if you intend to permanently install the projector, you

should physically test the projection size and distance using the actual projector

before you permanently install it, so as to make allowance for this projector's optical

characteristics. This will help you determinethe exact mounting position so that it

best suits your installation location.

To optimize the projection quality, we suggest to project images in an area without

grayscale.

To avoid damaging the DLP chips, never aim a high-power laser beam into the

projectiom lens.

30 762 646 403 742 984 1227 60

40 1016 861 538 990 1312 1635 80

50 1270 1076 673 1237 1640 2044 100

60 1524 1292 807 1485 1969 2454 121

80 2032 1723 1076 1981 2627 3273 161

90 2286 1938 1211 2228 2955 3682 181

100 2540 2153 1346 2475 3282 4090 201

110 2794 2369 1480 2724 3612 4501 222

120 3048 2584 1615 2971 3940 4909 242

130 3302 2800 1750 3220 4270 5320 262

140 3556 3015 1884 3467 4597 5728 282

150 3810 3230 2019 3714 4925 6137 302

160 4064 3446 2153 3962 5254 6547 322

170 4318 3661 2288 4210 5582 6955 343

180 4572 3877 2423 4458 5912 7366 363

190 4826 4092 2557 4705 6239 7774 383

200 5080 4307 2692 4953 6568 8183 403

250 6350 5384 3365 6191 8210 10229 504

300 7620 6461 4038 7430 9852 12275 605

The above numbers are approximate and may be slightly different from the actual

measurements. Only the recommended screen sizes are listed.

If your screen size is not in the table above, please contact your dealer for assistance.

To optimize your projection quality, we suggest you do the projection within non-gray area.

Pour optimiser la qualité de votre projection, nous vous conseillons de réaliser la projection dans la

zone non grise.

Zur Optimierung Ihrer Projektionsqualität sollten Sie die Projektion innerhalb des nicht grauen

Bereichs durchführen.

Per ottimizzare la qualità della proiezione, si consiglia di eseguire la proiezione all'interno dell'area non

grigia.

Para optimizar la calidad de proyección, le recomendamos que realice la proyección dentro de un área

no gris.

Para optimizar la calidad de proyección, le recomendamos que realice la proyección dentro de un área

no gris.

För att optimera projektionskvaliteten föreslår vi att du projicerar inom ett icke-grått område.

Alla mätvärden är ungefärliga och kan skilja sig från de faktiska måtten.

Для оптимального качества проецирования рекомендуется не проецировать на поверхности

серого цвета.

Om uw projectiekwaliteit te optimaliseren, stellen wij u voor te projecten binnen een niet-grijs gebied.

W celu optymalizacji jakości projekcji, zalecamy wykonywanie projekcji w obrębie nie szarego obszaru.

Yansıtma kalitenizi en uygun duruma getirmek için gri olmayan alan içinde yansıtmanızı öneririz.

Para optimizar a qualidade da projecção, sugerimos que efectue a projecção numa área que não

seja de cor cinzenta.

為提供您最佳的投影品質，建議您在非灰色區域內投影。

为优化投影质量，我们建议您在非灰色区域内投影。

投射品質を最適化するために、非グレー領域内での投射をお勧めします。

영사 품질을 최적화하기 위해 비회색 영역에서 영사할 것을 권장합니다 .

เพอื่ ปรับคุณภาพการฉายใหดี้ทสีุ่ด เราแนะนำใหคุ้ณทำการฉายภายในบริเวณทไี่ ม่ใช่สีเทา

Source selection buttons NETWORK

AUTO

MODE/ENTER

PAGE +/PAGE -

MIC/VOL +/MIC/VOL -

MUTE

SMART ECO

QUICK INSTALL

SOURCE

ECO BLANK

ZOOM+/ZOOM-

ASPECT

FREEZE

NETWORK SETTING

Numeric buttons

MENU/EXIT

OFF/ON

Keystone/Arrow keys

( / Up)

▲

Keystone/Arrow keys

( / Down)

▲

Left/

◄Right/

►

LASER

MHL control buttons

TEST

Source selection buttons

MODE/ENTER

SOURCE

Keystone/Arrow keys

▲

( / Down)

PAGE +/PAGE -

MIC/VOL +/MIC/VOL -

MUTE

SMART ECO

TEST

ECO BLANK

ZOOM+/ZOOM-

ASPECT

FREEZE

NETWORK SETTING

Numeric buttons

Keystone/Arrow keys

( / Up)

▲

MENU/EXIT

OFFON /

◄Left/ ►Right/

(Available in Japan region)

NETWORK

(Not available for this projector.)

AUTO

537.9

360.0

679.7 577.7

99.8 453.5

Unit: mm

Ceiling Mount Installation

360.0 mm (W) x 164.4 mm (H) x 453.5 mm (D)

453.5

102.0

99.8

164.4

360.0

130.0

160.0

135.0135.0

Ceiling Mount Screws

*Ceiling Mount Screws:

M4 (Max. L=12, Min. L=10)
