Welcome

PB8253/PB8263 Digital Projector

Installation Series

User's Manual

reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or

computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect

to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any

particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to

make changes from time to time in the contents hereof without obligation to notify any person of

such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are

copyrights of their respective companies or organizations.

Table of contents 3

Table of contents

Important safety instructions.................................... 5

Introduction ............................................................... 9

Projector features ................................................................. 9

Shipping contents............................................................... 10

Projector exterior view ....................................................... 11

Controls and functions ...................................................... 13

Positioning your projector ...................................... 17

Choosing a location ........................................................... 17

Safety instructions for ceiling mounting of the projector 18

Obtaining a preferred projected image size ...................... 19

Connection............................................................... 22

Connecting a computer or monitor ................................. 22

Connecting Video source devices...................................... 25

Operation ................................................................. 30

Start up ............................................................................... 30

Switching input signal ........................................................ 31

Adjusting the projected image .......................................... 31

Selecting the aspect ratio.................................................... 33

Optimizing the image......................................................... 34

Operating in a high altitude environment ........................ 37

Personalizing the projector menu display ........................ 37

Hiding the image ................................................................ 38

Remote paging operations ................................................ 38

Freezing the image ............................................................. 38

Using the laser pointer in the presentation ...................... 38

PIP (Picture In Picture) operation .................................... 39

Shutting down the projector.............................................. 40

On-Screen Display (OSD) menu operation...................... 41

Maintenance............................................................. 48

Care of the projector ......................................................... 48

Lamp information ............................................................. 50

Table of contents4

Temperature information ..................................................52

Indicators.............................................................................53

Troubleshooting....................................................... 55

Specifications............................................................ 57

Projector specifications ......................................................57

Dimensions..........................................................................58

Timing chart .......................................................................58

Warranty................................................................... 60

Limited Warranty ...............................................................60

Regulation Statements ............................................. 61

FCC statement ....................................................................61

EEC statement ....................................................................61

MIC statement ....................................................................61

WEEE directive ...................................................................61

Important safety instructions 5

Important safety instructions

Your BenQ projector is designed and tested to meet the latest standards for safety of

information technology equipment. However, to ensure safe use of this product, it is

important that you follow the instructions mentioned in this manual and marked on the

product.

Safety Instructions

1. Please read this manual before you

operate your projector. Save it for

future reference.

2. Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

3. When you think service or repair is

required, take the projector only to a

suitably qualified technician.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is designed

to operate safely within a mains

voltage between 100 to 240 volts AC,

but could fail if power cuts or surges

of ±10 volts occur. In areas where the

mains voltage may fluctuate or cut

out, it is recommended that you

connect your projector through a

power stabilizer, surge protector or

uninterruptible power supply (UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

BLANK on the projector or remote

control.

Important safety instructions6

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. The only

user serviceable part is the lamp

which has its own removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

Important safety instructions 7

Safety Instructions (Continued)

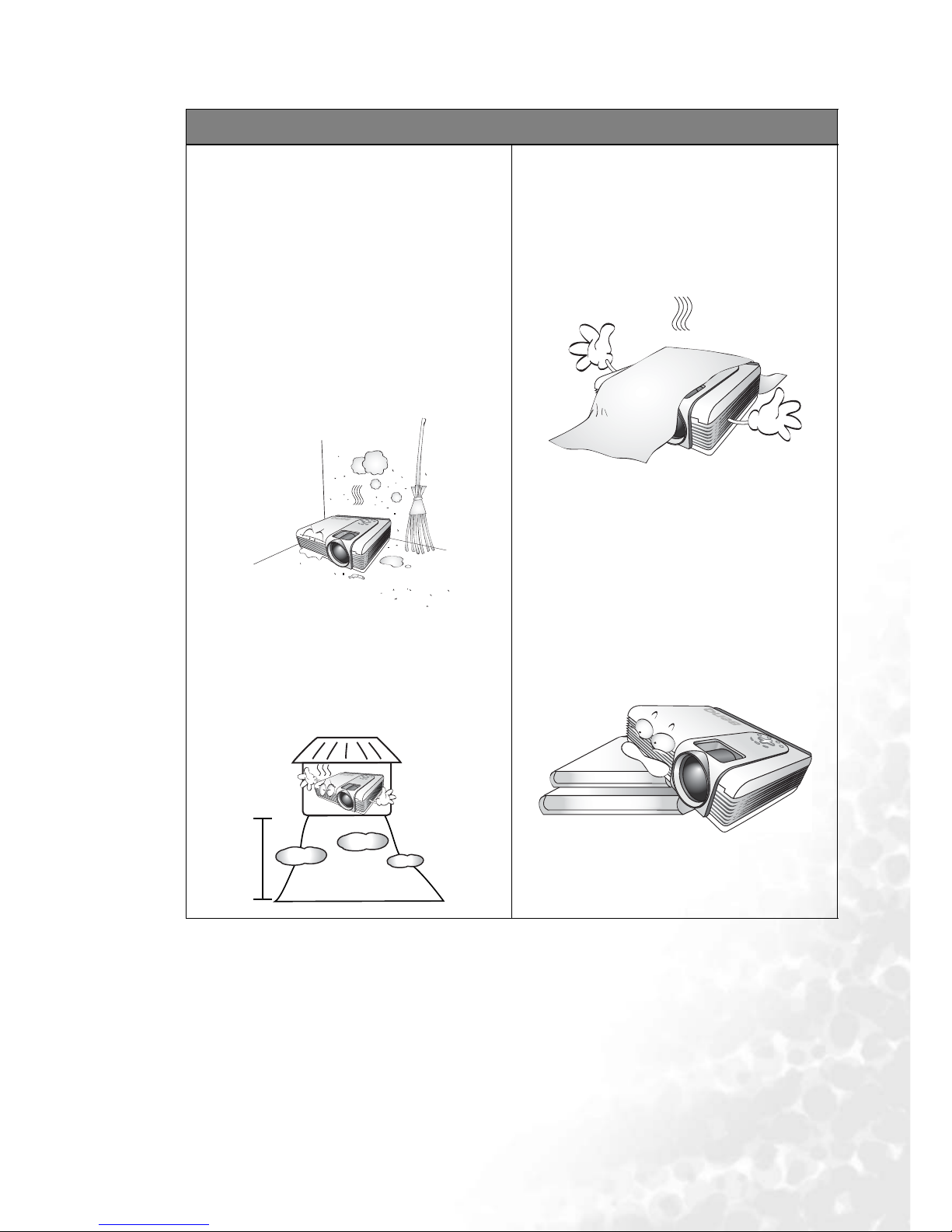

12. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or confined.

Allow at least 50 cm clearance from walls

and free flow of air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity, dust,

or cigarette smoke may contaminate

optical components, shortening the

projector's life span and darkening the

image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C/104°F

- Locations where the altitudes are higher

than 10000 feet.

13. Do not block the ventilation holes.

- Do not place the projector on a blanket,

bedding or any other soft surface.

- Do not cover the projector with a cloth or

any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

14. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

10000

feet

Important safety instructions8

Safety Instructions (Continued)

15. Do not store the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage.

16. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

17. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply's wall socket

and call BenQ to have the projector

serviced.

18. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

19. When the projector is under operation,

you may sense some heated air and

odor from its ventilation grill. It is a

normal phenomenon and not a

product defect.

Introduction 9

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features:

• High quality manual zoom lens

• Full-function remote control with laser pointer

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• Ultra-high brightness projection lamp

• Ability to display 16.7 million colors

• Multi-language On-Screen Display (OSD) menus

• 8 sets of preset application mode

• Switchable normal and Economic modes to reduce the power consumption

• Built-in speakers provide stereo audio reproduction

• Component HDTV compatibility (YPbPr)

• Two PC input terminals (RGB signal input socket and a shared DVI-A connector) and

one PC output terminal

• Replaceable dust filter

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions, selected input source contrast/brightness settings, and is directly

proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction10

Shipping contents

The projector is shipped with the cables required for connection to a PC and to video

equipment. Carefully unpack and verify that you have all of the items shown below. If any of

these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

Optional accessories

1. Ceiling mounting kit

2. Spare lamp kit

3. Presentation Plus

4. Dust filter kit

Projector Soft carry case Remote control with batteries

User's manual Quick start guide User's manual CD

VGA cable USB cable Power cord

PC audio cable Video cable

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali BenQ Proiettore

BenQ

BenQ Mainstream MP620 Manuale utente

BenQ

BenQ PB6210/ PB6110 Guida utente

BenQ

BenQ EP5920 Manuale utente

BenQ

BenQ PW9500 Manuale utente

BenQ

BenQ PE7700 - DLP Projector - HD 720p Manuale utente

BenQ

BenQ MX703 Manuale d'uso e manutenzione

BenQ

BenQ GP10 Manuale utente

BenQ

BenQ Portable Entertainment Series Manuale utente

BenQ

BenQ MX611 Manuale utente

BenQ

BenQ MH680 Manuale utente

BenQ

BenQ MS500+ Manuale utente

BenQ

BenQ LW500 Manuale utente

BenQ

BenQ LX890UST Manuale utente

BenQ

BenQ PointWrite PT20 Manuale utente

BenQ

BenQ MX854UST Manuale utente

BenQ

BenQ HT9050 Manuale utente

BenQ

BenQ W20000 Home Cinema Series Manuale utente

BenQ

BenQ PB8120 - SVGA DLP Projector Manuale di istruzioni per l'installazione

BenQ

BenQ L890UST Series Istruzioni operative e di manutenzione

BenQ

BenQ V6000 Manuale utente

BenQ

BenQ MS521 Manuale utente

BenQ

BenQ SP891 Manuale utente

BenQ

BenQ MX805ST Manuale utente

BenQ

BenQ SX912 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente
