berlinger SmartSystem SHIP L Manuale utente
SmartSystem SHIP L Datalogger
Operators
Manual
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 2 of 26
Table of Contents
1 Safety instructions.......................................................................................................................4
2 Quick Guide .................................................................................................................................5
2.1 Quick Start if configuration is already loaded on the device...................................................5
2.2 Quick Start if configuration needs first loaded to the device .................................................6
3 Device view and description........................................................................................................7
4 Display..........................................................................................................................................8
4.1 7-digit display...........................................................................................................................9
5 Multifunctional button ................................................................................................................9
6 Confirmation LED.......................................................................................................................10
7 Light sensor................................................................................................................................10
8 Humidity and pressure sensor...................................................................................................11
9 Tilt / Shock / Vibration...............................................................................................................11
10 Configuration.............................................................................................................................12
11 Start/Stop ..................................................................................................................................13
11.1 Start .......................................................................................................................................13
11.2 Stop........................................................................................................................................14
12 Start delay..................................................................................................................................15
12.1 Start SmartMonitor SHIP L with start delay...........................................................................15
12.2 Start SmartMonitor SHIP L with scheduled start...................................................................15
13 Usage Process............................................................................................................................16
13.1 Preparation............................................................................................................................16
13.1.1 Battery check.................................................................................................................16
13.1.2 Display check .................................................................................................................16
13.1.3 Housing check................................................................................................................16
13.2 Setup......................................................................................................................................17
13.2.1 Review/Check configuration..........................................................................................17
13.3 Start .......................................................................................................................................17
13.3.1 Start delay......................................................................................................................17
13.3.2 Scheduler Start ............................................................................................................18
13.4 Transit/Recording ..................................................................................................................18
13.4.1 Assess state of goods and information..........................................................................18
13.4.2 Manual Flight Mode.......................................................................................................18
13.5 Stop........................................................................................................................................18
13.5.1 Read out.........................................................................................................................18
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 3 of 26
13.5.2 Upload data manually of read out data to Berlinger SmartView..................................19
13.5.3 Return device.................................................................................................................19
14 Where to place SmartMonitor SHIP L........................................................................................19
15 External Temperature Sensor....................................................................................................20
15.1 Connect an external sensor to SmartMonitor SHIP L device.................................................21
16 Connect SmartMonitor SHIP L device to SHIP S devices ...........................................................22
17 Troubleshooting.........................................................................................................................23
18 Disposal......................................................................................................................................25
19 Certification ...............................................................................................................................25
19.1 Specific Information for North America (FCC/ISED) ..............................................................25
20 Standards...................................................................................................................................26
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 4 of 26
1Safety instructions
Intended use
Temperature
•Temperatures outside the operating range may damage the battery. For the
operating range, see the information in the technical data sheet.
IP Protection
•Limited protection against dust ingress and protection against splashing water from
all directions.
Air Pressure
•Excess pressure or vacuum can damage the device. Do not vacuum when used for air
cargo.
Mechanical force
•Avoid violent shocks and impacts.
Microwave
•Do not expose the device to microwave radiation (risk of battery explosion).
X-rays
•Avoid long-term exposure to X-rays (risk of damage to the device).
Battery
•The battery cannot be removed or replaced. SmartMonitor SHIP L device has a
rechargeable Non–lithium NiMH battery.
•Risk of fire or explosion if the battery is replaced by an incorrect type
•Risk of explosion if the battery is disposed of in a fire or hot oven
•Leaving the battery in an extremely high temperature surrounding environment can
result in an explosion or leakage
•Do not subject battery to extremely low air pressure that may result in an explosion
or the leakage of flammable liquid or gas
Safe use
•Ordinary persons can install and operate the unit without taking any other safety
precautions.
Radio Equipment
•Cellular (LTE M1, NB–IoT, 2G), BLE
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 5 of 26
2Quick Guide
2.1 Quick Start if configuration is already loaded on the device
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 6 of 26
2.2 Quick Start if configuration needs first loaded to the device
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 7 of 26

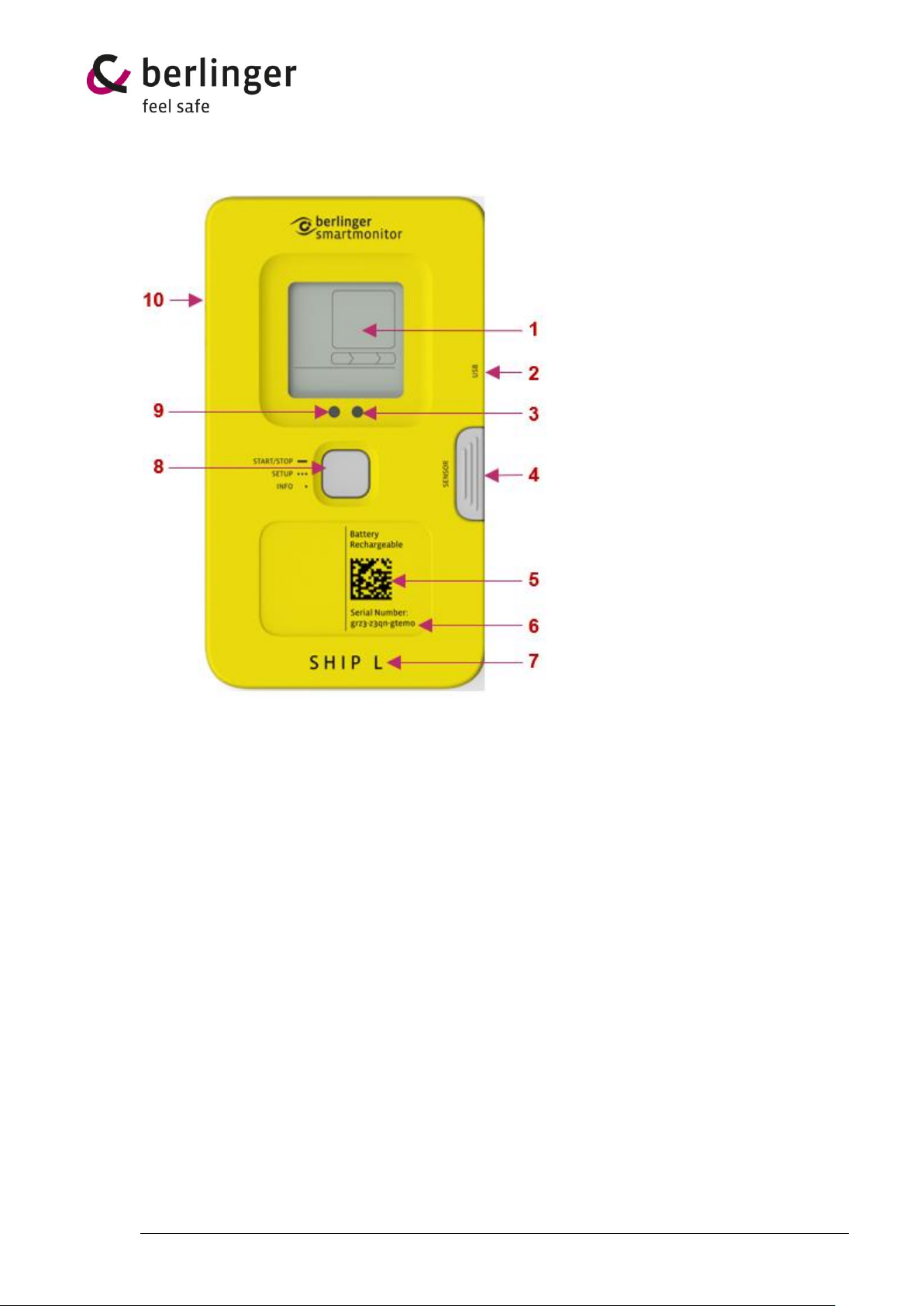

3Device view and description
No. Name Description
1Display Multi-information display
2USB-connector To charge the battery or download the data manually
3Confirmation/Status LED LED (small lamp) indicates if use of multifunctional
button was successful or not
4Cover for ext. sensor Protect plug for external sensor
5QR Code Contains the serial number for M2M
(Machine to Machine)
6 Serial number Serial number of the device
7Device Type Indicates which type of device you have
8Multifunctional button 1 x long press →Start the device
1 x short press →Info
3 x short press →loading profile
9 Light sensor Measure the light sensitivity
10 Humidity and atmos- Measure humidity and atmospheric pressure
pheric pressure sensor
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 8 of 26
4Display
Icon Name Description
1Battery status Indicates the battery status
2Battery charging Indicates whether external power has been plugged in
3Alarm status Device indicates that there is no alarm violation
Device indicates that there is one or more alarm violation
4Logging Modus OFF →SmartMonitor SHIP L is ready to start
REC →SmartMonitor SHIP L is logging
→SmartMonitor SHIP L has stopped
57-digit display Information line (see more in section 7-digit display)
6External readout Device ready for readout via USB or Bluetooth
7 Warning Symbol Additional warning for function
8Cloud status Upload successful
Upload not possible
9Signal strength Cellular connection
Cellular signal available
No cellular signal available
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 9 of 26
4.1 7-digit display
The 7-digit display gives additional information about the status, shipment or other data.
In normal logging operation it displays the temperature.
5Multifunctional button
SmartMonitor SHIP L device has one multifunctional button to operate.
•Long press to multifunctional button
One long press (> 5 sec.) to multifunctional button will start or stop the device.
•3 short press to multifunctional button
Three short press to the multifunctional button will start setup process
•1 short press to multifunctional button
One short press to the multifunctional button, device will show information on the display or
skip to the next information.
1 x long press →Start / Stop the device
3 x short press →Setup –Load configuration
1 x short press →Information
Draft version 02 Operatots Manual / SmartMonitor SHIP L page 10 of 26
6Confirmation LED
Device has an LED which gives an indication if the use of multifunctional button was successful or if a
task has been terminated.
7Light sensor
SmartMonitor SHIP L device has a built-in light sensor to monitor whether a transport box has been
opened and the light ratio has changed. That sensor can be enabled or disabled in the Berlinger
SmartView software (version 6.0 and higher).
Important:
Do not stick any label or tape over the light sensor.
1 x short white flash →Confirmation of an action or task
1 sec. green flash →“Cancel Message”
Short press has released too early.
Green blinking →when longpress is going on
1 x long green flash →Longpress was successful, multi-
functional button can be released
1 x long blue flash →Information about a BLE connection
1 x long red flash →Information about cancelling a status
