CenterfireTM contact tips, nozzles and diffusers

are easy-to-use and high performing - they

provide better arc starts, less spatter and more

consistent welds - and also last up to three times

longer than competitive brands.

Necks available in fixed, rotatable and multiple

length options for optimal weld accessibility and

improved operator comfort. Rotatable necks

changeover without tools.

Patented Jump Liner allows quick neck change

and replacement of only most commonly worn or

clogged liner area, which reduces the amount of

time a gun is offline and minimizes inventory.

Liners coiled in-house with proprietary process

that improves wire feed performance and 100

percent tested to ensure smoothest wire feed in

the industry.

Handle is comfortable to reduce user fatigue and

ventilated to reduce heat.

Back end with durable rigid strain relief and

easily interchangeable direct plugs and trigger

leads connect to wire feeders and machines

from major manufacturers and allow simple

maintenance.

Q150 MIG Q-GunTM shown with

curved handle, medium 45˚

rotating neck.

All Guns are Not Created Equal.

A MIG gun should be durable, easy to

use and customized to your specific

application. Our MIG guns put you in

control: you choose the options you need

and we'll build a gun to last. We even

ship most of our guns within 24 hours.

Issued Nov. 2006 • Index No. SPEC Q150-1.3

Q-Gun™

Series

150 Amp MIG Guns

USA

Made with

Pride and without

Compromise in the

Lightweight, comfortable and

easy-to-use. Our Q150 MIG gun

is a perfect fit for low amperage

industrial applications.

Phone: 800-946-2281 (US Only) 708-946-2281 (Outside US)

Fax: 708-946-6726

For more information, visit us at BernardWelds.com

Q150 Amperage Ratings

Duty Cycle Description

100% NEMA 100%CE 60% CE 35%CE

160 150 180 225 CO2 Gas

n/a 140 150 180 80%AR20%CO2

Bernard®

An Illinois Tool Works Company

449 West Corning Road, Box 667

Beecher, Illinois 60401 USA

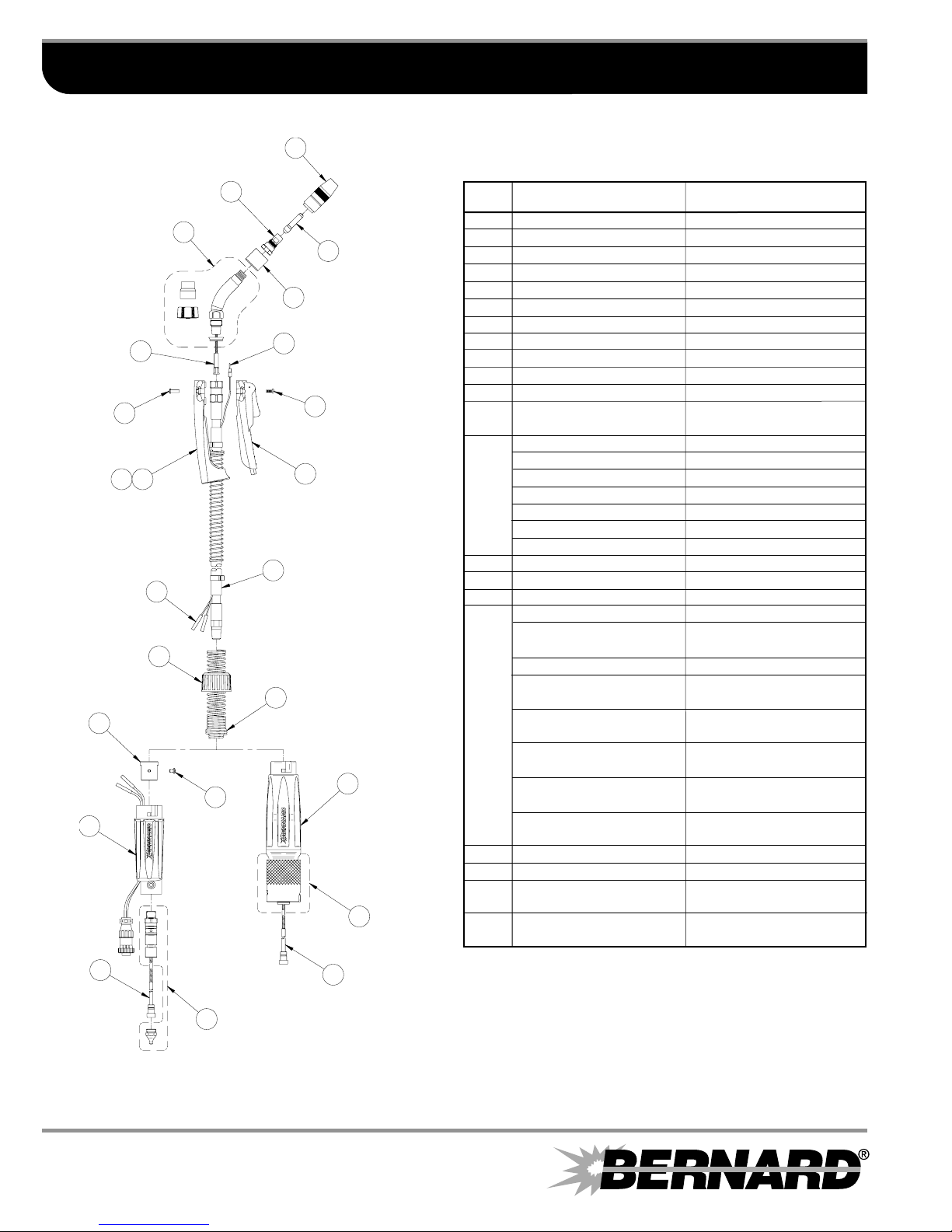

ITEM # PART # DESCRIPTION

1 See Centerfire Spec Sheet Nozzle Assy

2 See Centerfire Spec Sheet Contact Tip

3 See Centerfire Spec Sheet Gas Diffuser

4 See Centerfire Spec Sheet Cap

5 See Neck Spec Sheet Neck

6 See Jump Liner Spec Sheet Jump Liner

7 2660001 Terminal, Quick Disconnect (2 req’d)

8 1780062 Handle Half, Upper

9 2620054 Switch Assy, Handle Half, Lower

10 4207 Post Fastener (2 Req'd)

11 4209 Handle Screw (2 Req'd)

12 1880194 Handle Kit - (Includes: (1) #8, (1) #9,

(2) #10, (2) #11)

13 Replacement Cable with Fittings

1060107 8' (2.44 m)

1060097 10' (3.05 m)

1060098 12' (3.66 m)

1060099 15' (4.57 m)

1060100 20' (6.10 m)

1060101 25' (7.62 m)

14 4932 Butt Connector (2 Req'd)

15 2520007 Cap, Rigid Strain Relief

16 2520048 Spring, Strain Relief

17 Rigid Strain Relief

2520073 Strain Relief with Installed Gas Pin

(Bernard Direct Plug)

2520047 Strain Relief (Euro Direct Plug)

2520047E Strain Relief with Trigger Cable

Adapter (OXO, Tweco 4 w/Twist Lock)

2520047H Strain Relief with Trigger Cable

Adapter (L-Tec, Hobart Direct Plug)

2520047L Strain Relief with Trigger Cable

Adapter (Lincoln Direct Plug)

2520047T Strain Relief with Trigger Cable

Adapter (National, Tweco Direct Plug)

2520047M Strain Relief with Trigger Cable

Adapter (All Other Direct Plugs)

18 See Direct Plug Spec Sheet Direct Plug Components

19 See Liner Spec Sheet Liner

20 1010027 Adapter Block (Not Req'd on Bernard

or Euro Direct Plug)

21 W11127-002 Screw, Strain Relief (Not Req'd on

Bernard Direct Plug)

AMP

10 11

19 19

Replacement Parts List
