Bernina 8 SERIES V29.39.00 Manuale tecnico

Information on Software Update

BERNINA 8 Series, V29.39.00

Information on Software Update

BERNINA 830 / 820

Software Version 3

1 General Changes 3

1.1 Language “Finnish” integrated 3

1.2 Display of data version number 3

2 Sewing Updates 4

2.1 Thread tension for the underlay segments (buttonholes) 4

2.2 Manual threading 5

2.3 The use of straight stitch feet with thread cutting 5

2.4 Disable automatic thread cutting when opening the bobbin door 5

2.5 Thread cutting without fabric movement 5

2.6 “Manual” winding of the lower bobbin thread 5

2.7 Winding indicator during sewing/embroidery 6

2.8 Reset of back stepping history 6

2.9 Thread breakage hint 7

2.10 Problem with Foot #57D and straight stitch plate compatibility 7

2.11 Presser Foot #0 can be used for automatic threading. With the “Walking foot”

automatic threading is not possible 8

2.12 Information Foot #2a corrected 8

2.13 Pattern #169 improved 9

2.14 Tension changed for the “tie on” stitches 9

2.15 Upper thread detection changed 9

3 Embroidery Updates (BERNINA 830 only) 10

3.1 Start of embroidery 10

3.2 Using zoom option with panning 10

3.3 Using Foot #44C (The new CutWork & Echo quilting foot) 10

3.4 Thread tension can be changed to a minimum of 0.5 11

3.5 Stop for manual cutting can be switched off 12

3.6 Manual “tie on” for embroidery 12

3.7 Delay of Start/Stop button reduced for embroidery 13

3.8 Thread breakage during jump stitches 13

3.9 Stitching “without thread”, shown now in embroidery mode 13

4 Important points 13

4.1 Hoop calibration 13

4.2 Feedback issues 13

4.3 Free memory 13

2/14, 04.11.2009

SOFTWARE VERSION

The Release Note V29.39.00 is in addition to the Release Note V29.21.40 (6/2009).

The newest ﬁrmware version for:

Sewing machine Firmware Embroidery module

BERNINA 830 V 29.39.00 V 1.00.10

BERNINA 820 V 29.39.00 Not available

1 GENERAL CHANGES

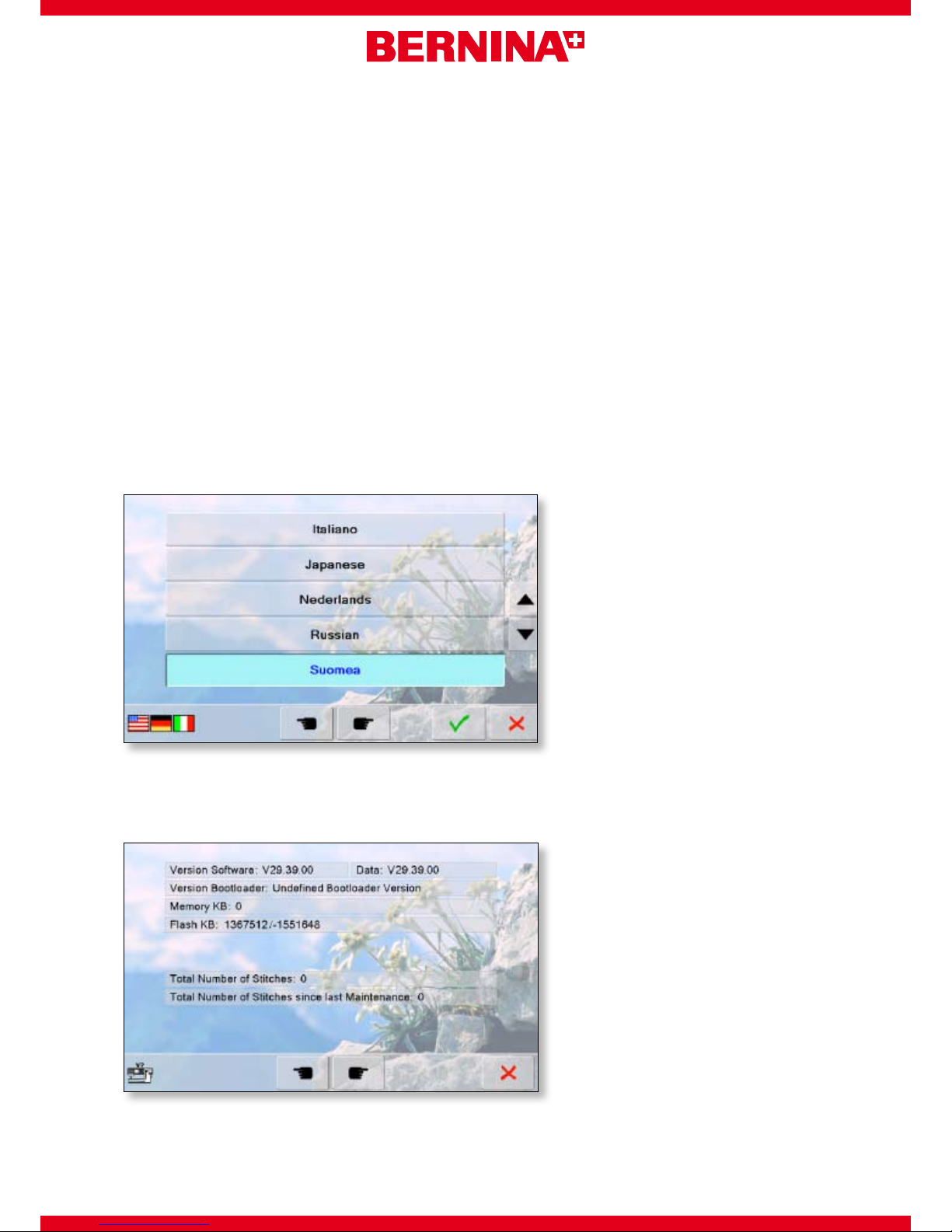

1.1 Language “Finnish” integrated

The following languages are now integrated: Danish, German, English, Spanish, French, Italian,

Japanese, Dutch, Russian, Swedish, Turkish and Finnish.

1.2 Display of data version number

In “Setup-Program/Information/Version”, the version of the data is visible.

Data contains all sewing and embroidery stitches.

3/14, 04.11.2009

2 SEWING UPDATES

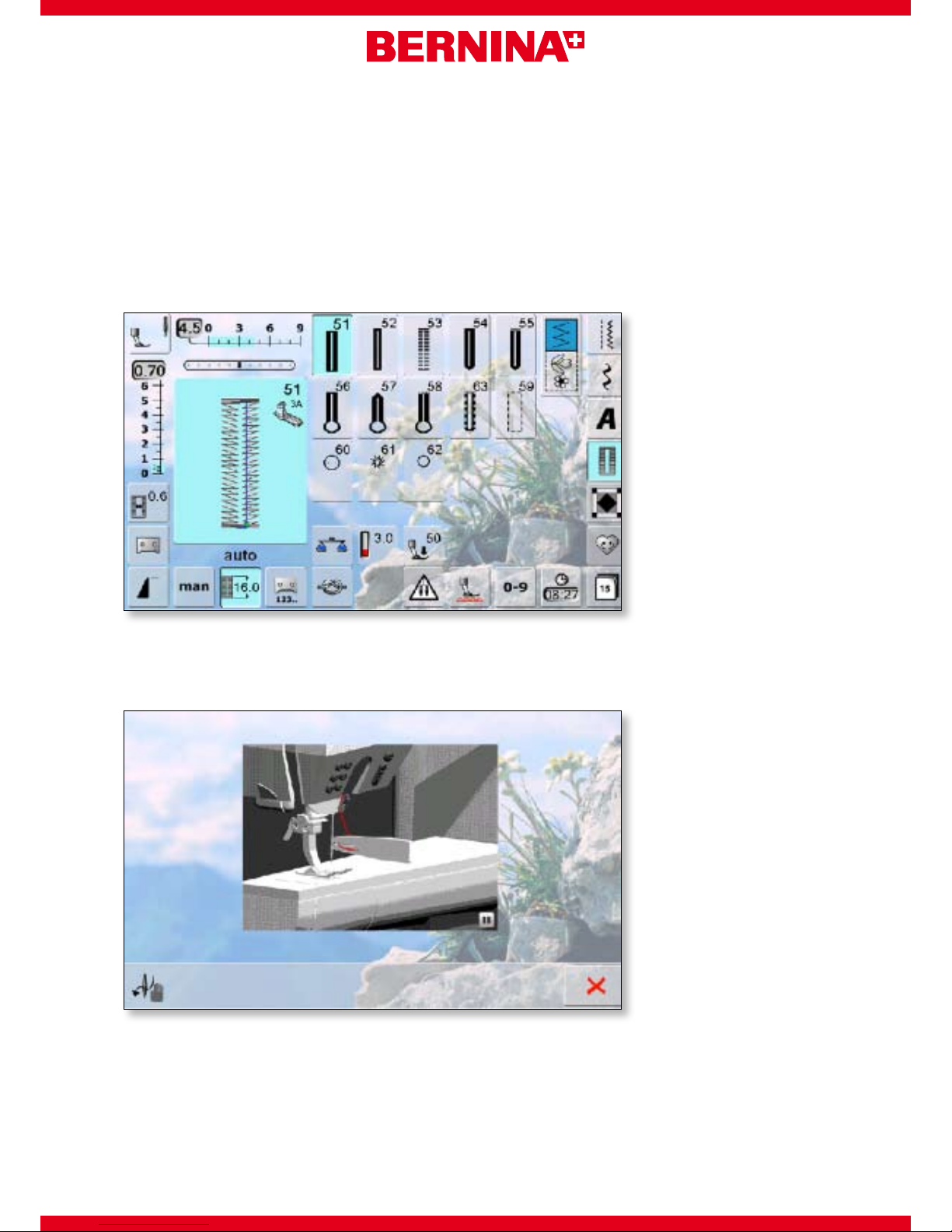

2.1 Thread tension for the underlay segments (buttonholes)

To eliminate possible thread loops, the thread tension for segments with short step stitches is inc-

reased from 2.0 to 3.0.

2.2 Manual threading

In some cases during manual threading, the thread swing support mechanism can be blocked.

This update avoids this issue without performing any mechanical readjustments.

4/14, 04.11.2009

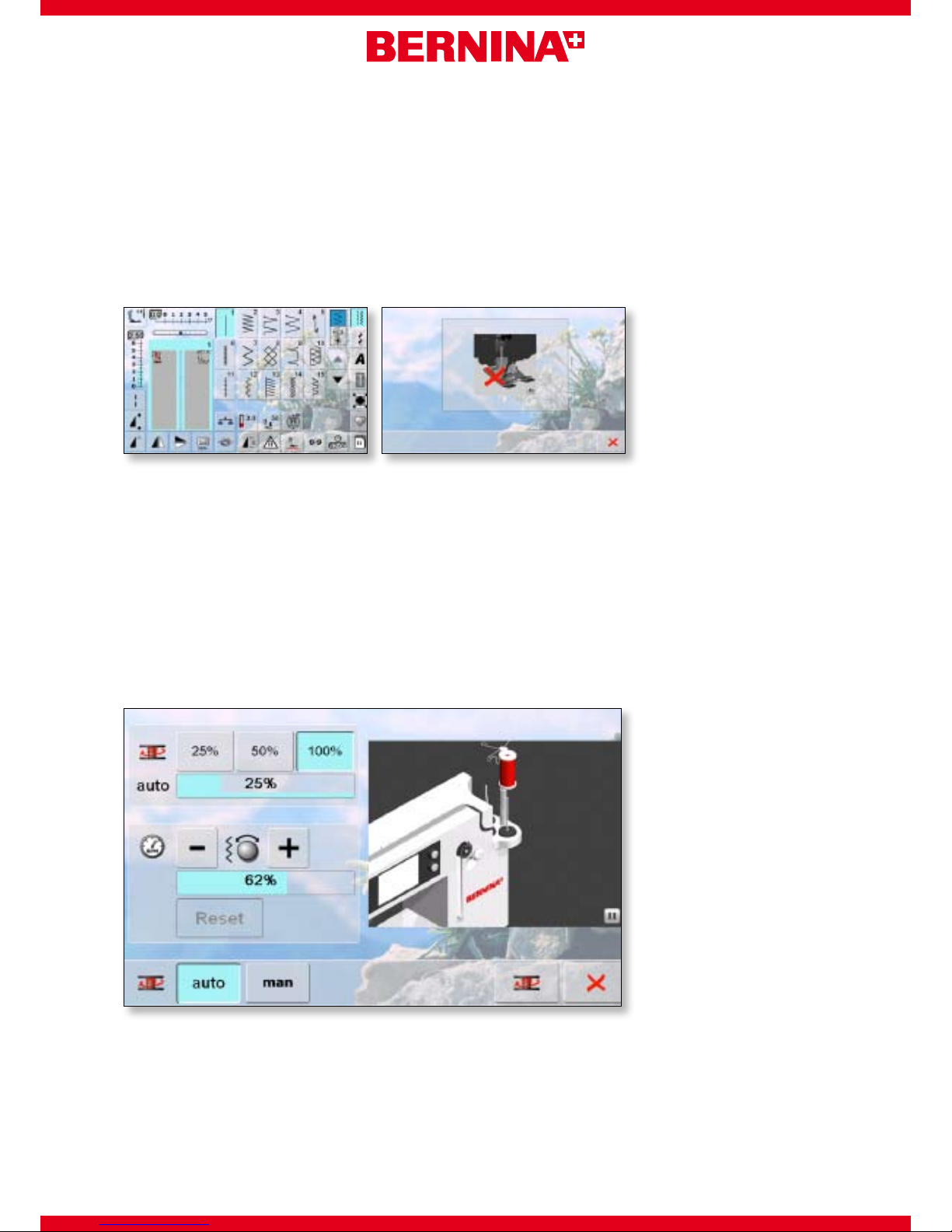

2.3 The use of straight stitch feet with thread cutting

The opening of the straight stitch foot is 0.4mm on both sides. The “tie on” stitch after cutting is

0.4mm to the left side. After thread cutting, the ﬁrst stitch failed resulting in the animation “need-

le will penetrate presser foot” due to the narrow tolerance in the foot opening. This has been

resolved.

2.4 Disable automatic thread cutting when opening the bobbin door

Previously the thread was cut automatically before the hook turned to the front.

To accommodate the need to change the bobbin without cutting the upper thread, the cutter is

disabled and the “lower thread empty” message appears.

2.5 Thread cutting without fabric movement

Thread cutting with the needle stop down, will NOT result in fabric movement.

2.6 “Manual” winding of the lower bobbin thread

The ﬁlling process stops at a detection of 100% ﬁll level. As a result of mechanical tolerances, it

is possible that the bobbin does not ﬁll to the maximum capacity.

5/14, 04.11.2009

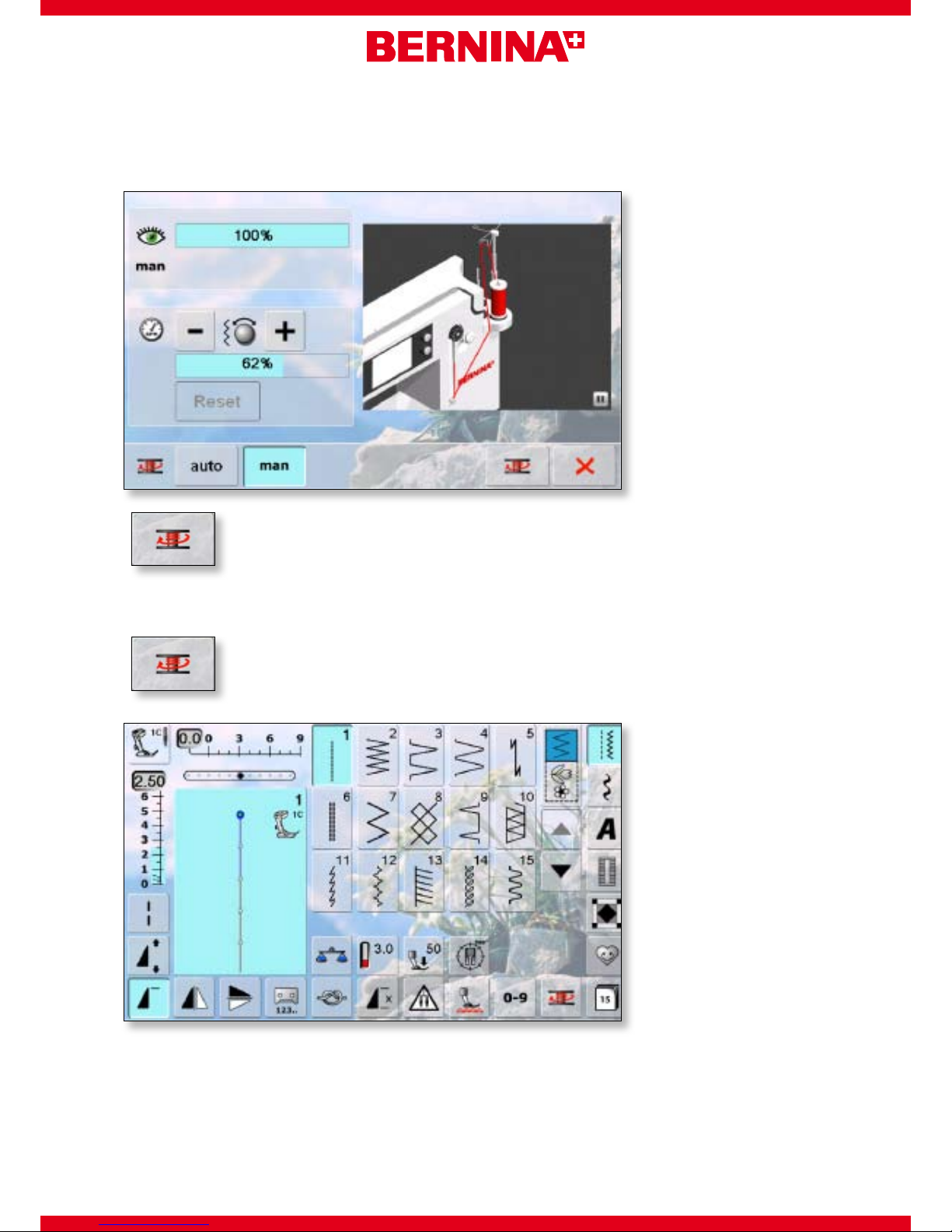

In addition to the “automatic” mode, an extended manual mode is implemented.

This mode gives the user the opportunity to start and stop the winding process by

holding and releasing the winding button.

2.7 Winding indicator during sewing/embroidery

When closing the winder menu during winding, the clock symbol changes to the

winding symbol and allows switching back to the winding menu.

2.8 Reset of back stepping history

Lifting the presser foot when the needle is up automatically deletes the back stepping history in

memory.

6/14, 04.11.2009

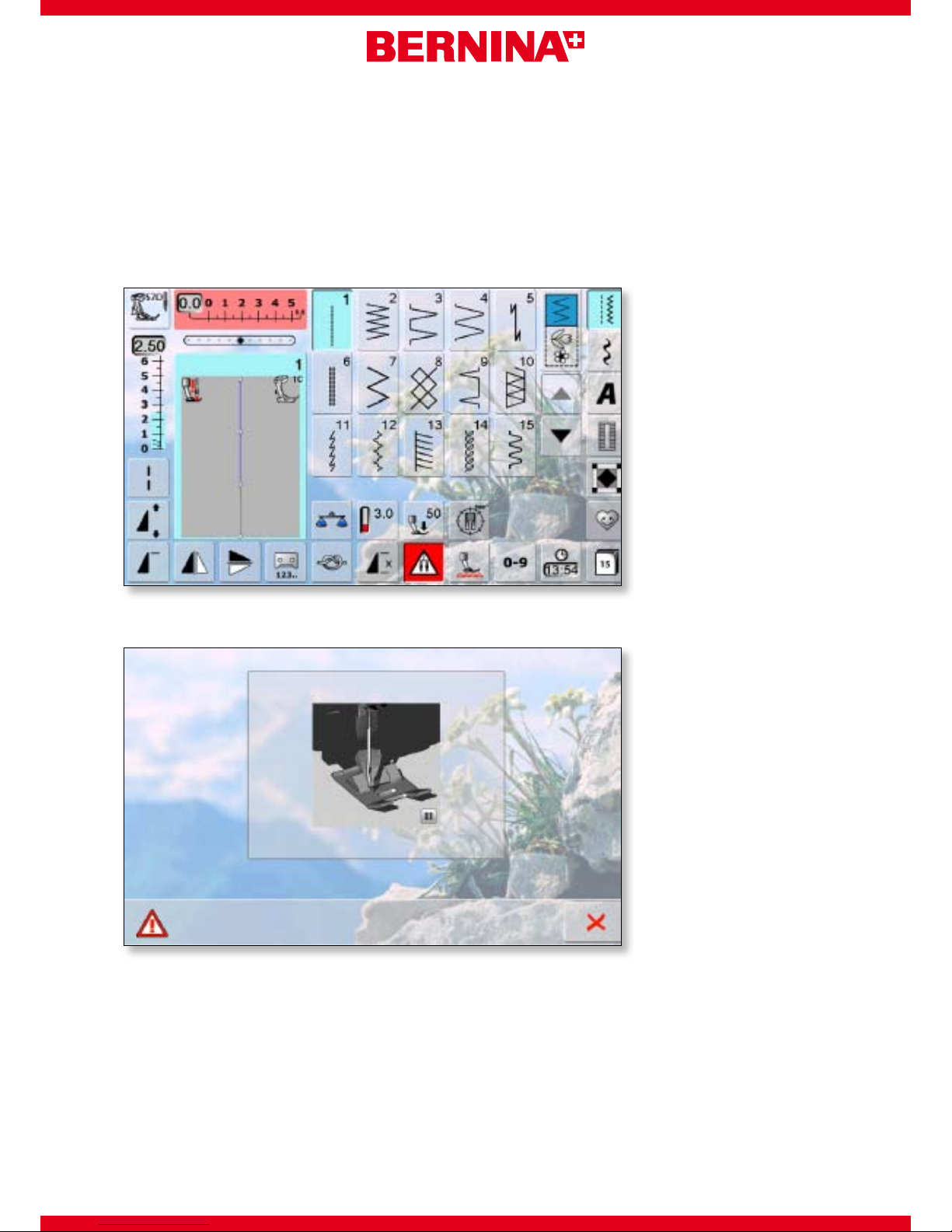

2.9 Thread breakage hint

If the thread breaks, press the threading button to open the thread tension and remove the th-

read. Rethread the normal way.

2.10 Problem with Foot #57D and straight stitch compatibility

Select stitch #1, attach and select the foot #57D (Patchworkfoot with guide).

Open the securing function and select the straight stitch plate.

Now, it is possible to start the sewing process, without the warning message appearing:

7/14, 04.11.2009

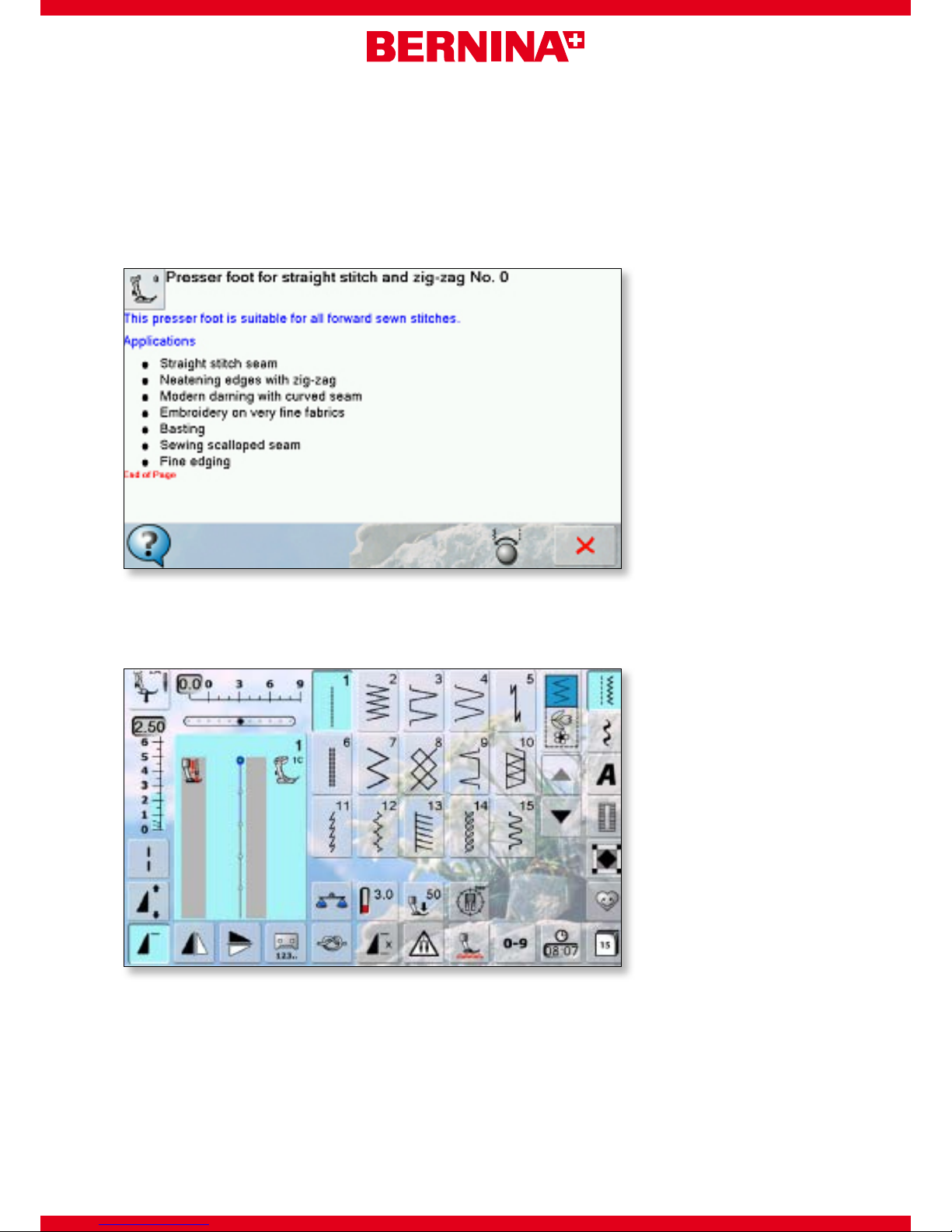

2.11 Presser Foot #0 can be used for automatic threading. With the “Walking foot”

automatic threading is not possible

The original help text mentioned that the machine cannot be threaded automatically with foot

attached. New help text implemented:

2.12 Information Foot #2a corrected

Data correction of the dimensions of the presser foot sole.

8/14, 04.11.2009

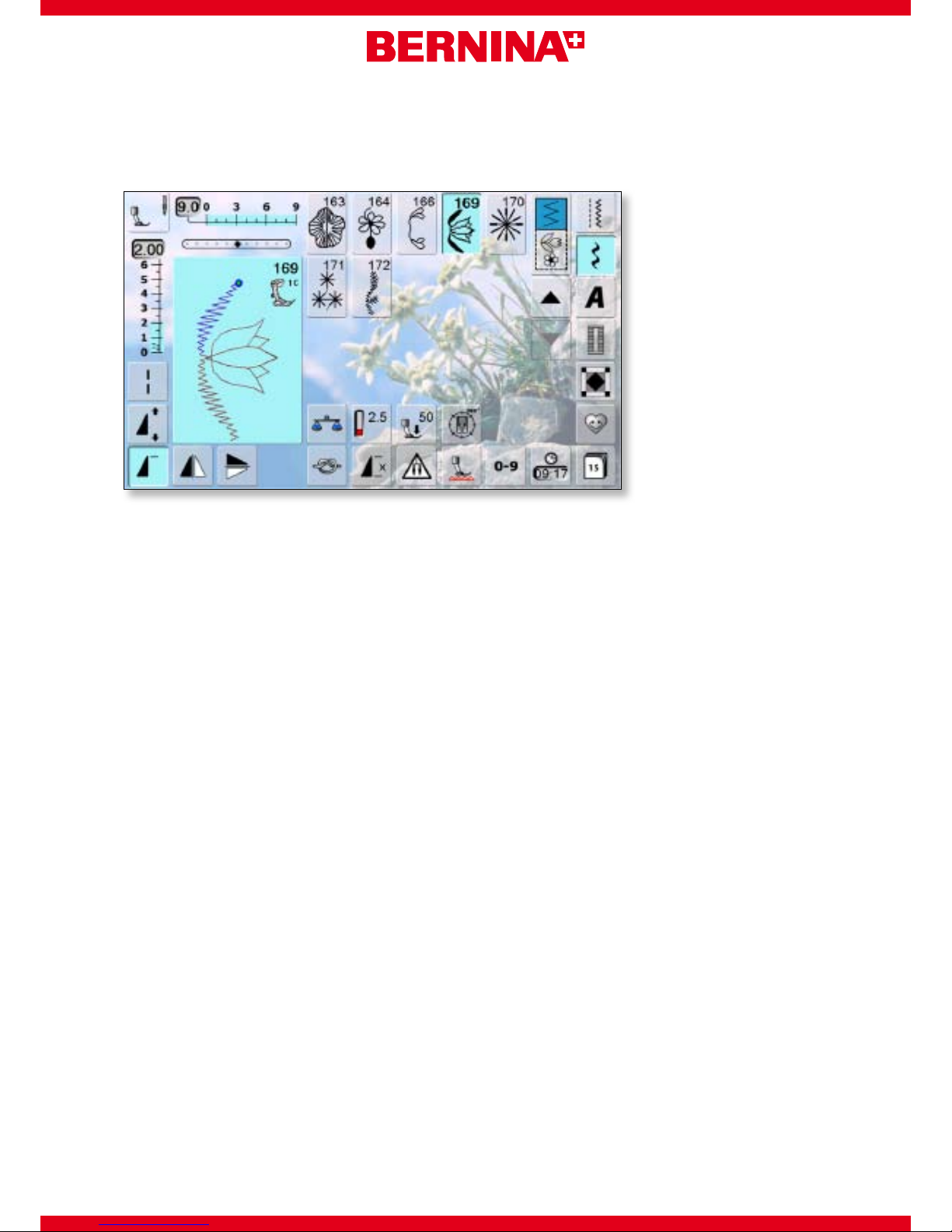

2.13 Pattern #169 improved

Elongation limited to a maximum value of two for optimal results.

2.14 Tension changed for the “tie on” stitches

To improve the “tie on” quality with stretchy threads, such as polyester, monoﬁlament etc. the

tension setting for the ﬁrst four stitches is reduced.

2.15 Upper thread detection changed

To prevent an inaccurate warning messages from the upper thread detection, if the thread tensi-

on is detected not to be correct the machine now stops after eight stitches.

New: Before:

Max. Warning Stitches = 8 Max. Warning Stitches = 6

9/14, 04.11.2009

3 EMBROIDERY UPDATES (BERNINA 830 ONLY)

3.1 Start of embroidery

If the Start button was pressed while the bobbin door was open, either the embroidery start was

not possible or the start position was incorrect. This has been resolved.

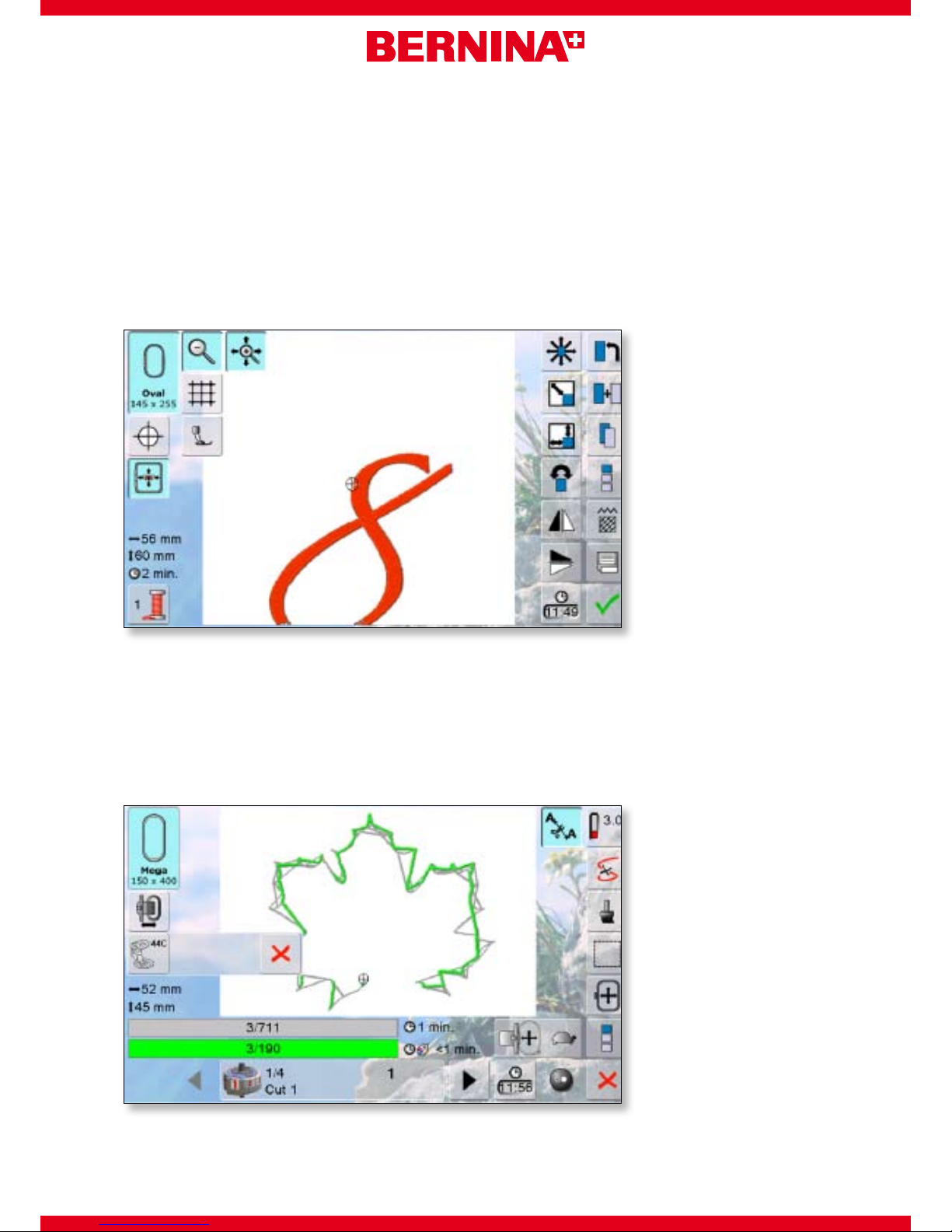

3.2 Using zoom option with panning

When using the zoom option, only the view of the design will be moved. The hoop position rela-

tive to the design will not be changed.

3.3 Using Foot #44C (The new CutWork & Echo quilting foot)

Developed for the CutWork tool, this foot can also be used for quilting.

For designs with “cut” and “normal” embroidery layers, the foot #44C can be selected in the

stitch out mode. The outlines for the selected foot will be immediately set. The position of the

design will not change.

10/14, 04.11.2009
