SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

HK0077

HB0035

70D 99043330C

Especiallydesignedtobeinstalledinoutdoorcustom

hood for use over residential commercial-style

cooking surfaces or gas and electric grills. This unit

is not for use with a charcoal grill.

A complete installation requires several optional

components. Refer to page 2 when planning your

installation.

FEATURES

•Corrosion resistant 316 Stainless Steel construction

•UL Listed for use in damp locations when properly connected

to a GFCI circuit.

•Cabinet mount _ custom application

•Insert width: 33’’

•Halogen lighting (2 x 50 watt GU10) lamps not included

•Switch controls: Lighting, on-off, and infinite speed

•Easily accessible, dishwasher-safe stainless steel

baffle filters

•Heat Sentry™ turns blower ON to HIGH speed when

excess heat is detected

OPTION

•Custom hood liners (L3336D and L3348D Series):

Widths - 36’’ and 48’’

Adjustable depth - see liner spec sheet for details

Corrosion resistant 316 Stainless Steel construction - protects

custom hood base and wipes clean easily

•Designed for use with either interior blower (Model P8D), in-

line blower (Model ILB11), or exterior blower (Model EB12 or

EB15)

INSERT SPECIFICATIONS

120 VAC, 60 Hz

Amps (without blower): 0.8 A

Mount insert so bottom of custom hood is 36’’ to 42’’

above cooking surface.

PIK33D SERIES

INSERT

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

Custom Hood Liner

L3336D and L3348D Series

HA0043A

4''

32 1/2''

10 3/4''

16 1/2''

2 1/4''

min.

11/16''

HH0043

1 1/2”

NOTE: If optional L3336D or L3348D series liner is used,

refer to installation instructions for size and location

of the cut-out.

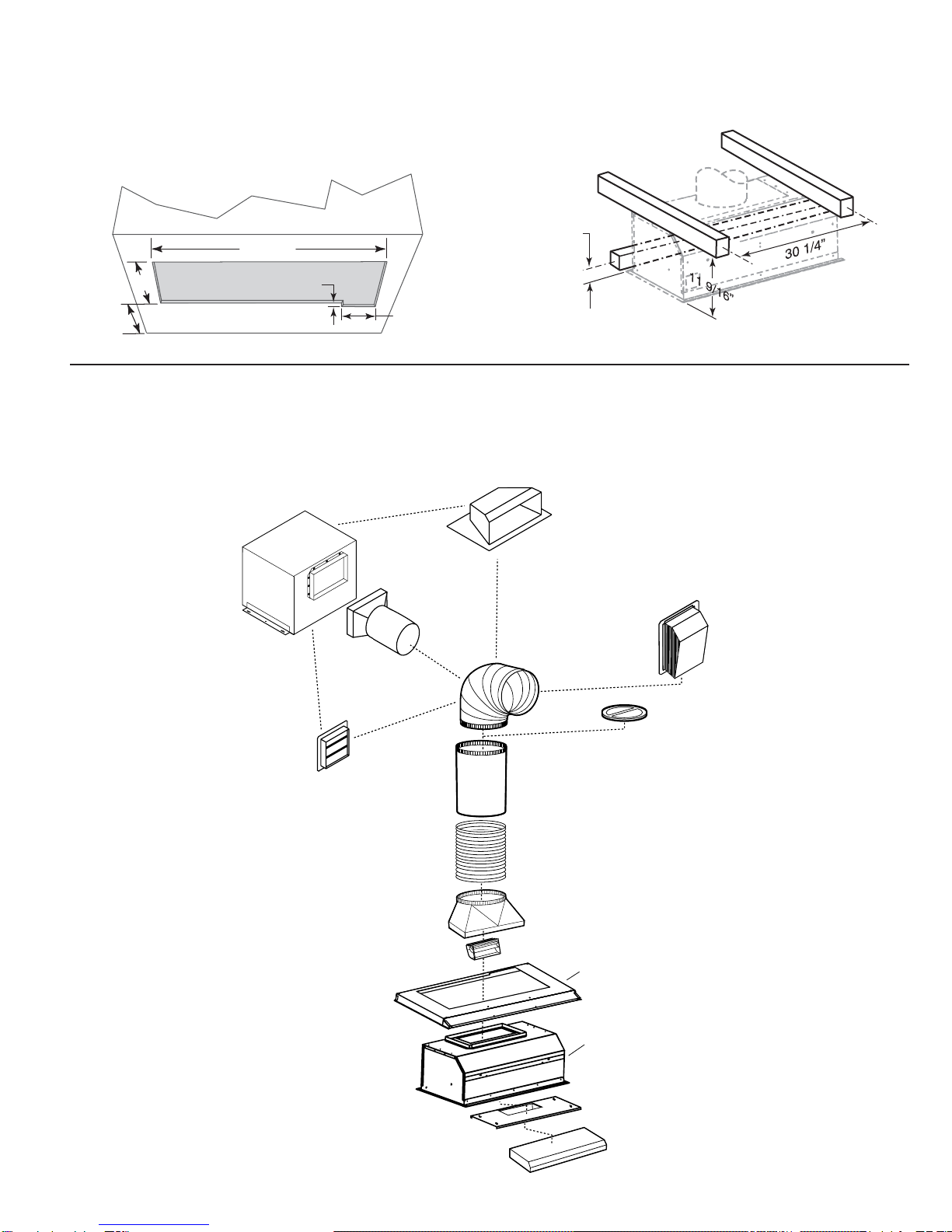

Suggested Custom Hood Internal Framework

PIK MOUNTING

SIZE OF THE CUT-OUT

HL0080

L3336D or L3348D

Custom Hood Liner (optional)

Model 418

10” round adjustable

elbow (optional)

PIK33D INSERT

PIK33D

INSERT SYSTEM

Model EB12

(1200 cfm) or

EB15 (1500 cfm)

exterior blower

Flow deviator

(supplied with interior blower P8D)

Model 421

(10” Round vert.

in-line damper)

Recommended

for use with

exterior blowers

Model SV03428 transition

(9” x 18” to 10” round) (included)

10” round metal

flexible duct

(optional)

Dual-blower P8D

(sold separately)

Rough-in plate (supplied

with interior blower P8D)

Model 441

(10” Round

wall cap)

Model 437

(High capacity roof cap)

Model ILB11 (1100 cfm)

in-line blower (includes two 8” x 12”

to 10’’ round transitions)

Model 410

(10” Round duct

—2 ft. sections)

HB0035

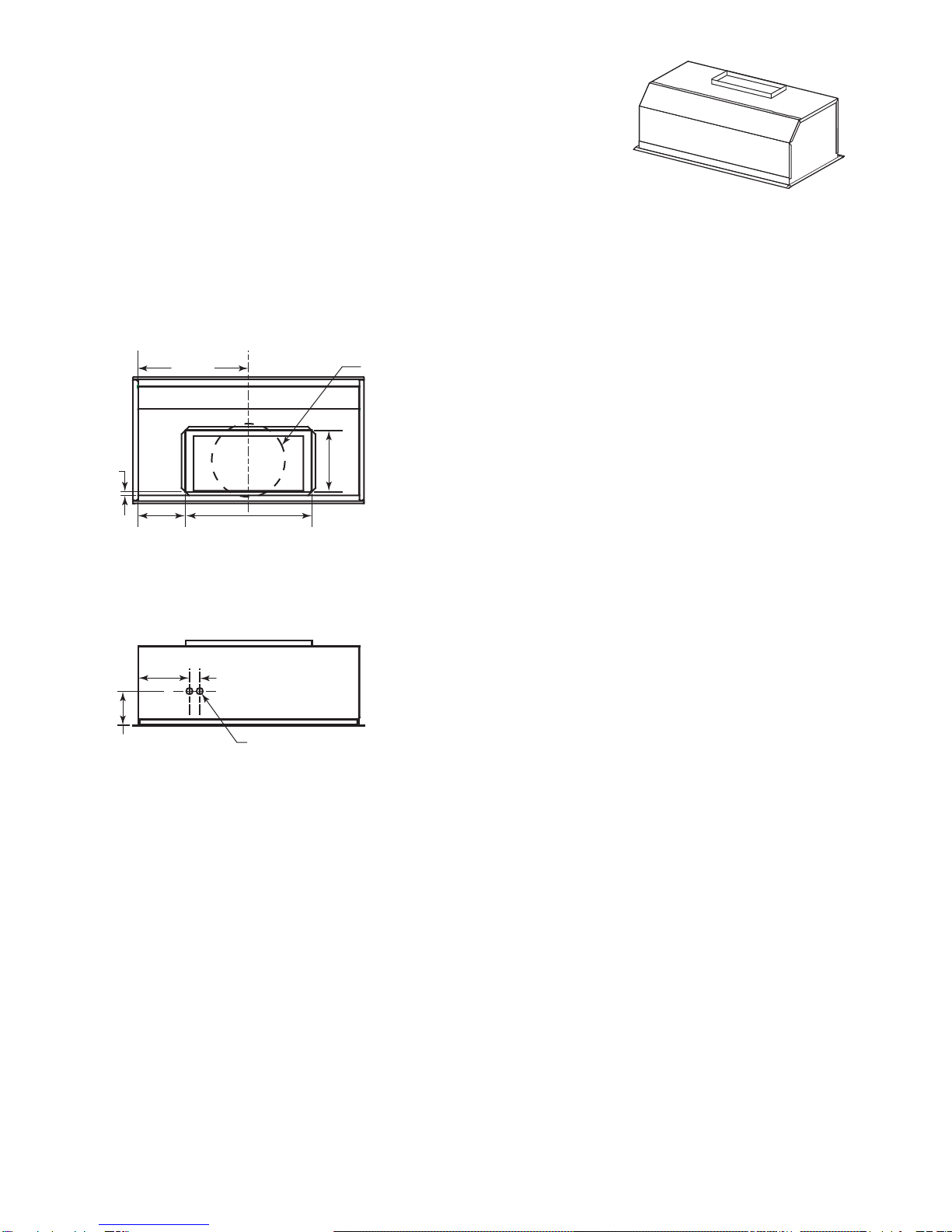

MODELPIK33DWITHP8D, EB12OREB15BLOWER

(Vertical outlet)

PIK33D INSERT

BLOWER DUCTING

POSITION

Rear view

16 1/8’’

7’’ 18’’

9’’

3/4’’

10’’ round transition

7 1/2’’ 1 1/2’’

4 15/16’’ Two 7/8’’ diameter wiring holes

Top view
