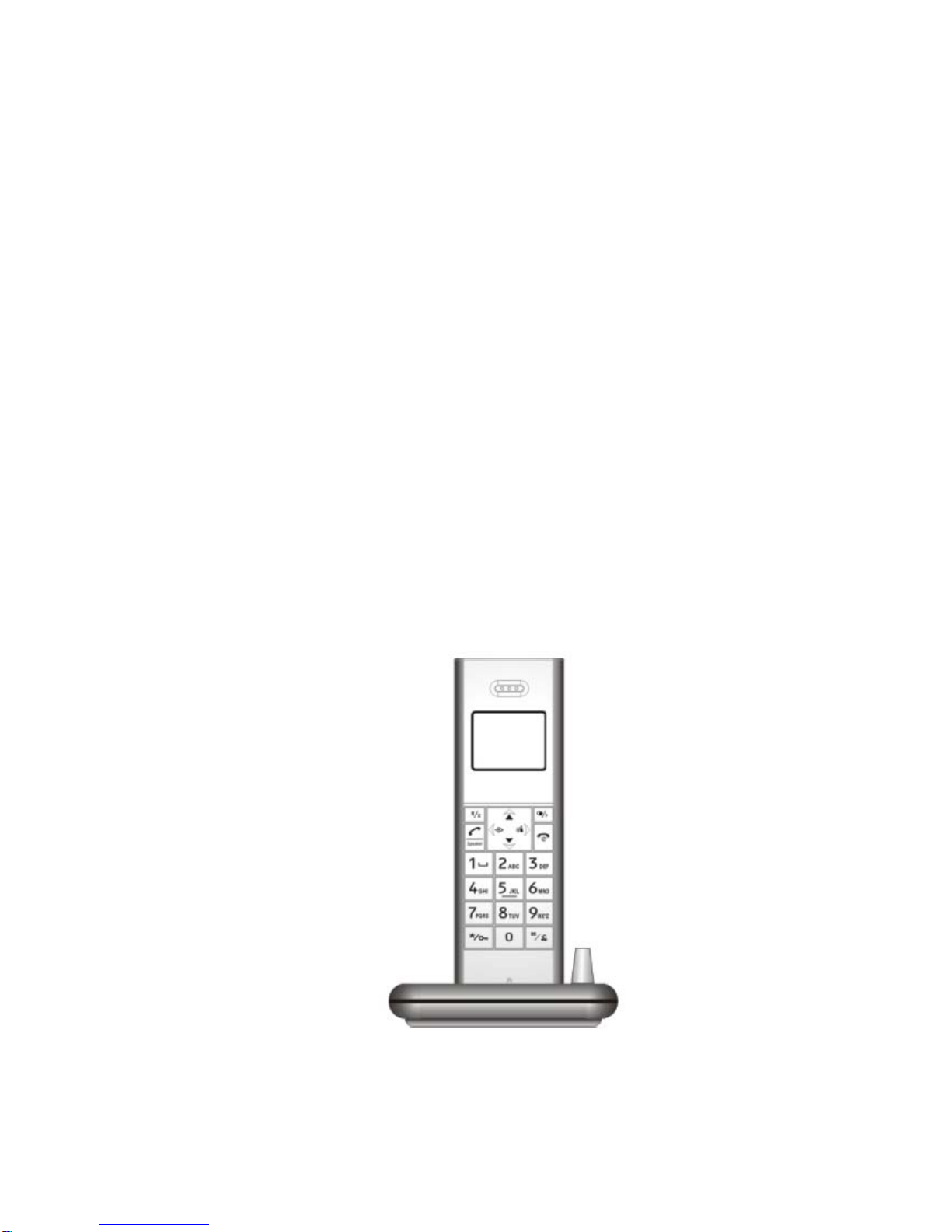

Main Features

z1.8G/1.9G wireless VoIP phone with USB 2.0 interface

zSeamless integration with Skype and 11 other popular VoIP services.

zEffective working range: indoor 50m; outdoor 250 m

zBlue backlit LCD supports 16 languages and caller ID display

zAdvanced echo-cancellation and noise-reduction technology

zHands free Speakerphone with full duplex communication

zCall transfer

zIntercom, Page, 3-way conference

zMelody ring tones

zNon-disturb function

zKey pad knock function.

zRegister up to 5 handset

zPhonebook function

User Manual for Wireless VoIP Phone

-5- Version1.0 2007-12-29

Caution

Rechargeable battery

It is recommended to replace with well-known brand battery in case the original battery is run out,

never use unknown brand ones.

Power Adapter

Avoid putting flammable stuffs near 20cm around power jack, never attempt to use nude line cord or

multiple power sockets to install the phones, it may risk electronic shock.

Emergency-shooting

In case of burned smell or the power adapter get over heat, unplug the power jack or remove the

batteries immediately, it may risk fire under the abnormal use. Contact with our service if any

abnormal performance happened.

*Recycle batteries for reclaim*

Package contents:

Item Quantity

Base 1 pcs

Handset 1 pcs

USB cable 1 pcs

User’s manual 1 book

Installation CD 1 pcs

Power adapter (DC6v/200mA) 1 pcs

Rechargeable battery (1.2v/400mAh) 2 pcs

User Manual for Wireless VoIP Phone

-6- Version1.0 2007-12-29

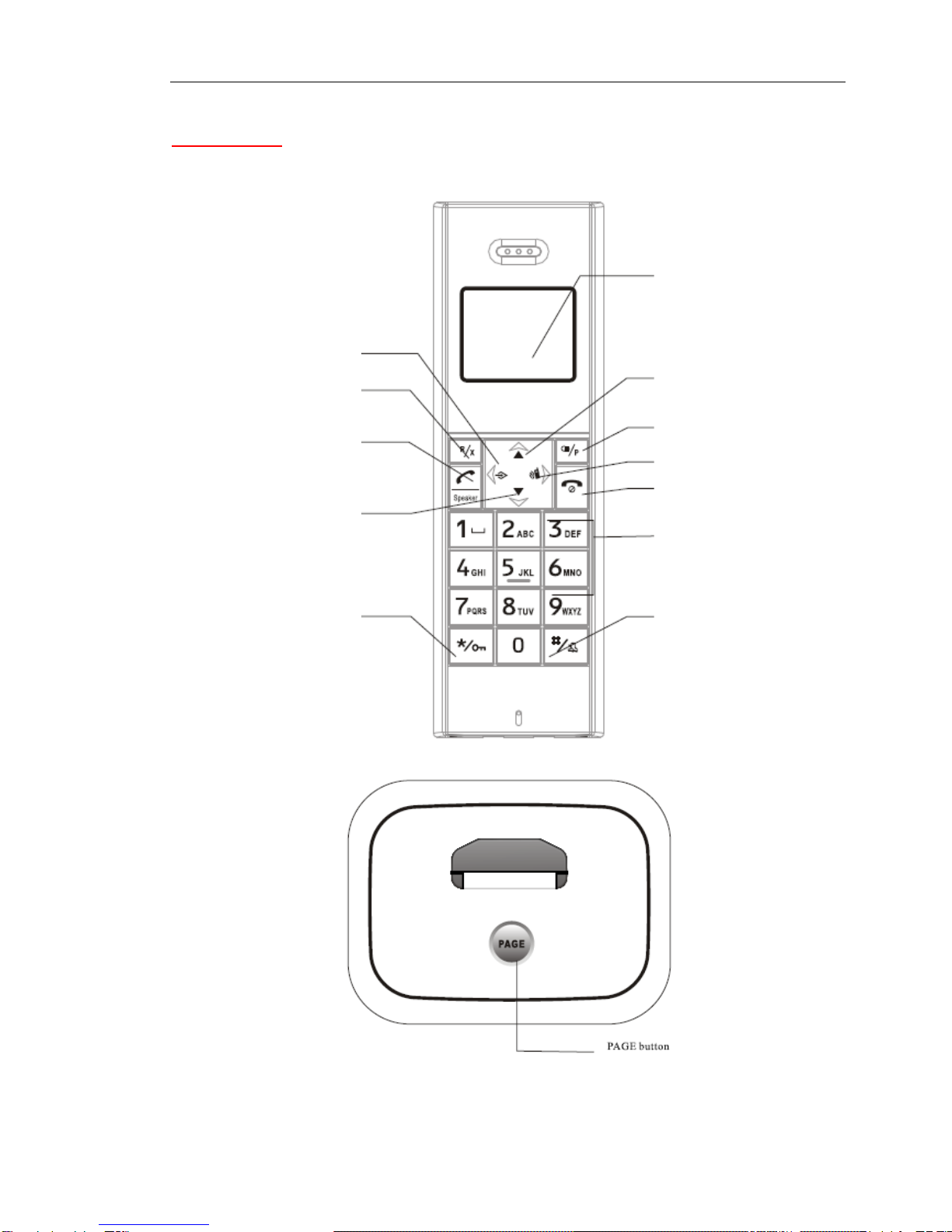

Phone layout

LCD Screen

Redial

Down Arrow

Up Arrow

Page button

End/Off

Numbers

Hash / VibrationStar / Lock

TALK

Return / Delete

Menu / Confirm

User Manual for Wireless VoIP Phone

-7- Version1.0 2007-12-29

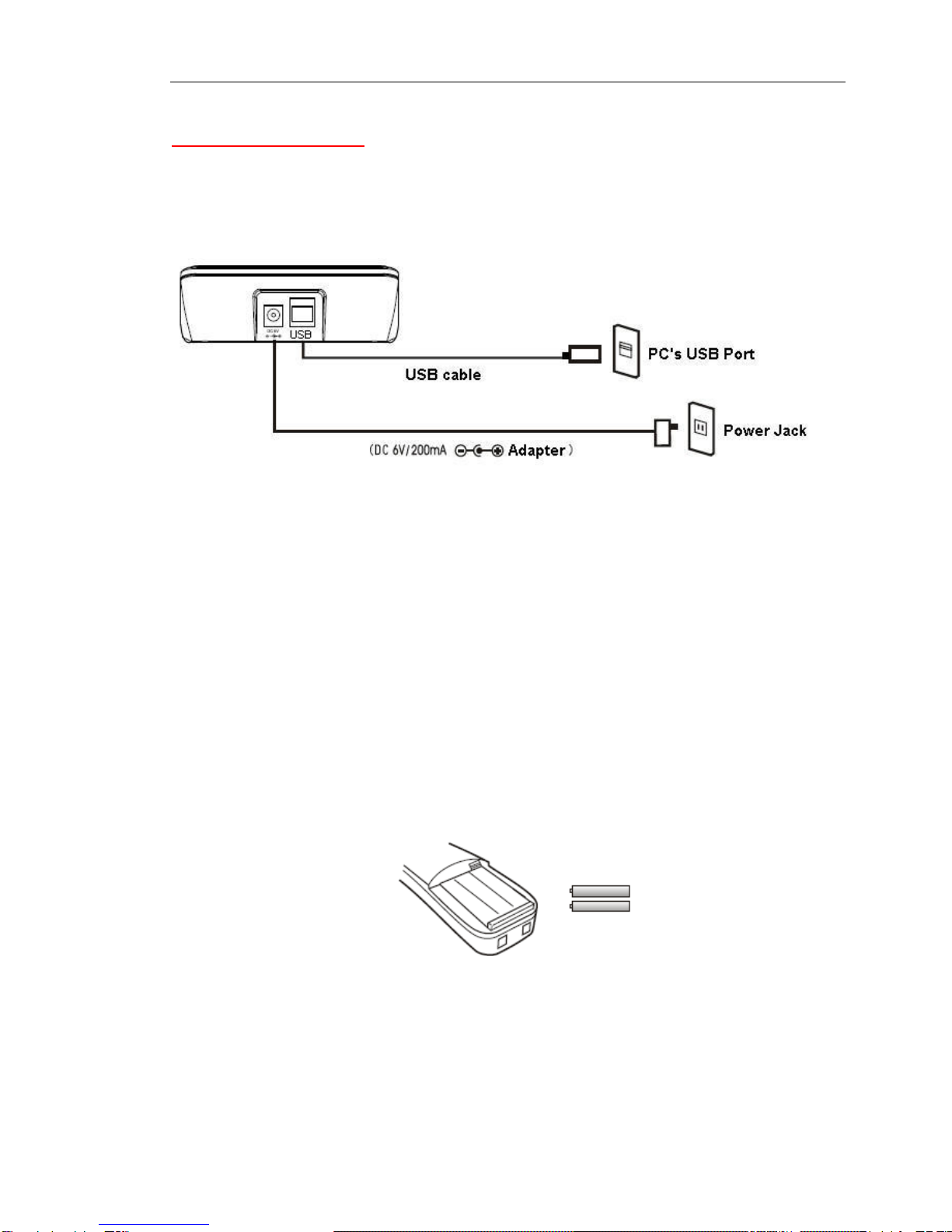

Connection Instruction

BASE UNIT:

※ USB cable, USB port, adapter, power jack,

※ It is not recommended to install extension handsets over 3 units which may degrade the

conversation quality.

※ Please check before use whether our adapter (DC6V/200mA) comply with your local standard of

voltage. If not so, please contact your local dealer for help.

HANDSET:

(1.2v/400mA rechargeable battery 2pcs)

※ To fully perform this device, we recommend having the batteries charged for over 10 hours at the

initial use.

User Manual for Wireless VoIP Phone

-8- Version1.0 2007-12-29

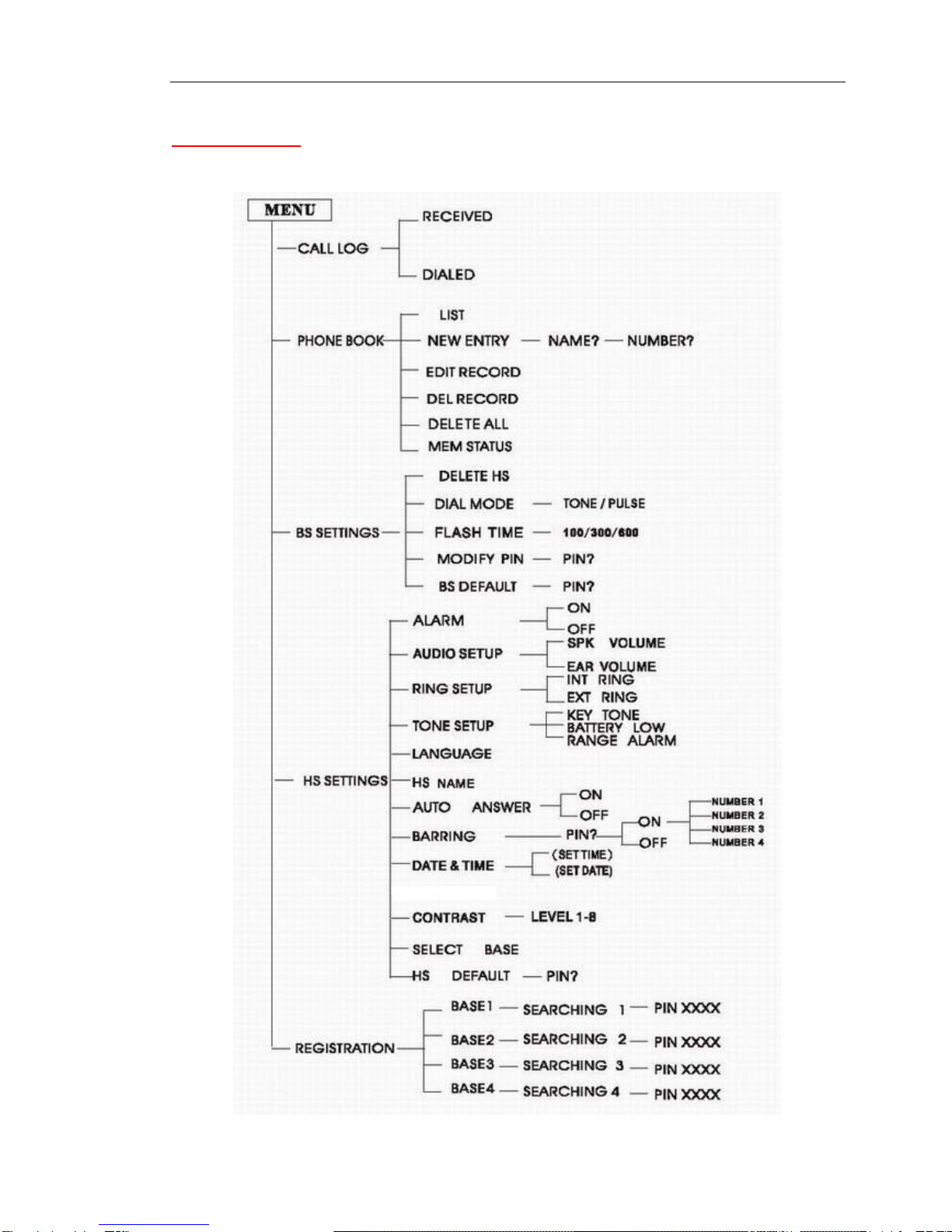

Menu Overview

User Manual for Wireless VoIP Phone

-9- Version1.0 2007-12-29

Skype Installation

The latest version of Skype (Version 3.0 or above) is strongly recommended. You can download it from

Skype’s official website:

http://www.skype.com/download/skype/windows/

Other VoIP applications can be downloaded in the following websites:

VoipBuster http://www.voipbuster.com/en/download.html

VoipStunt http://www.voipstunt.com/en/download.html

VoIPCheap http://www.voipcheap.co.uk/en/download.html

VoipDiscount http://www.voipdiscount.com/en/download.html

SparVoip http://www.sparvoip.de/de/download.html

Internetcalls http://www.internetcalls.com/en/download.html

NetAppel http://www.netappel.fr/fr/download.html

FreeCall http://www.freecall.com/en/download.html

WebCallDirect http://www.webcalldirect.com/en/download.html

VoipCheapCom http://www.voipcheap.com/en/download.html

Poivy http://www.poivy.com/en/download.html

SkyDECT Driver Installation

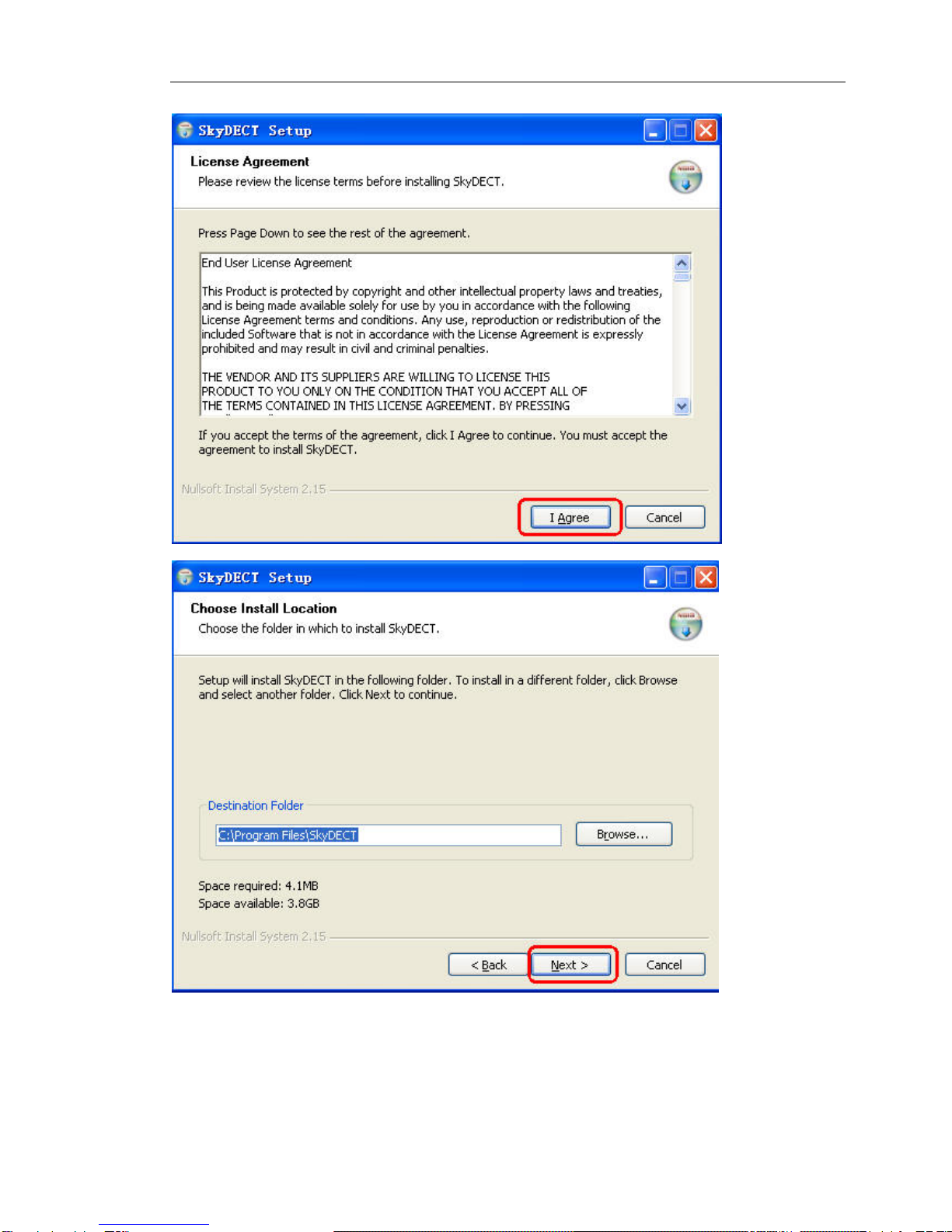

You can insert the supplied installation CD into your PC and the installation will run automatically. And

the latest SkyDECT driver, which can be downloaded from the official website http://www.skydect.net is

strongly recommended for the best performance of your wireless VoIP phone.

Please follow the instructions to install your SkyDECT driver as below:
