Bico ECHO CELLCYTE X Manuale utente

CELLCYTE X

Quick Start Guide

2| CELLCYTE X

Welcome to the world

of live-cell imaging

Details are vital in live-cell imaging. That is why we have designed the CELLCYTE X™

to give scientists maximum insight into every experiment. Our goal is to remo-

ve the obstacles and variables in live-cell imaging so researchers can focus on the

results. The most cost-efficient and high-throughput live-cell imaging system on

the market is ready to address cell culture needs and empower research.

Live-cell imaging is a powerful tool for ensuring successful cell monitoring, but

most systems are large, costly, and hard to use. The CELLCYTE X com-

bines compact size with reliable power to deliver fast, sharp live-cell imaging

from an incubator. Keep cells stationary without ever missing a relevant inte-

raction or response. Tap into a study’s full potential with automatic data ac-

quisition and analysis.

This Quick Start Guide will help new users get started with the CELLCYTE X.

Please review the entire document before using the product for the first time.

Welcome to the future of cell monitoring!

1 Content 3

2 Safety information 4

2.1 General safety information 5

2.2 Unpacking, lifting and carrying 6

2.3 Electrical information 6

2.4 Protective equipment 7

2.5 Hazardous materials 7

3 Specifications 8

3.1 Product map 8

3.2 Technical specifications 11

3.3 CELLCYTE X main unit 11

3.4 CELLCYTE X computer unit 11

4 Hardware setup 12

4.1 Contents of the box 12

4.2 Unpacking the CELLCYTE X 13

4.3 Manually cleaning or sterilizing the CELLCYTE X 14

4.4Mounting the objective lens 15

4.5 Setting up CELLCYTE X inside an incubator 16

5 Connecting to CELLCYTE X 18

5.1 Connection: Existing network 18

5.2 Netowrk connection setup 19

5.3 Connection: No existing network 20

6 Getting started 21

6.1 System Requirements for laptop/PC 21

6.2 Software installation and update 22

6.3 Initial Setup in CELLCYTE Studio 23

7 Understanding the CELLCYTE X status light 27

Content

4| CELLCYTE X

2. Safety Information

Review the complete document before using the CELLCYTE X™. Mishandling can

lead to equipment damage and severe injury. The following symbols are used

to indicate the risk of equipment damage or personal injury:

Manufacturer

CYTENA GmbH

Zollhallenstr. 5

79106 Freiburg

Germany

This symbol indicates the risk of personal injury or damage to

the product or equipment.

This symbol indicates the presence of UV light. Wear pro-

per safety attire while operating the CELLCYTE X microscope.

5CELLCYTE X |

If the CELLCYTE X acts in a way that is not described by this document, turn it

off and contact CELLINK.

Use the CELLCYTE X for its intended purposes only. Do not modify

its instruments, sub-components or accessories. Do not open the

CELLCYTE X, disassemble it, or otherwise use in ways not described

in this manual.

2.1 General Safety Information

Never place your fingers near the machine until all parts have sto-

pped moving. Moving parts can cause serious injury.

Never clean or service the CELLCYTE X while the machine is opera-

ting. Always turn off the power and disconnect any external sources

of power before cleaning or servicing the CELLCYTE X.

Always ensure that equipment is correctly mounted before opera-

ting. Improperly mounted vessel trays, objective lenses, accessories,

and cables can be dangerous. If any equipment appears damaged,

turn off the machine, unplug all external connections, and contact

CELLINK before further use.

The CELLCYTE X uses UV light to illuminate samples. Never look di-

rectly at the UV light! Never expose skin to the UV light! Eye or skin

exposure can result in serious personal injury.

6| CELLCYTE X

CELLCYTE X is designed to operate inside a controlled incubator.

Operating the instrument outside its indented environment may

cause harm. Harmful conditions include, but are not limited to, li-

quids getting into the system or hostile environments such as X-rays

or hard UV. Please contact CELLINK for additional inquiries.

Never tamper with the optics or electronics of the CELLCYTE X.

Tampering risks equipment damage and personal injury.

Read how to safely unpack and set up the CELLCYTE X in Chapter 3.

The CELLCYTE X is a heavy instrument. Always use a minimum of

two people to unpack and move the machine.

2.2 Unpacking, Lifting and Carrying

Always connect the CELLCYTE X to a grounded socket and use the

voltage described in the specifications. Improper electrical handling

can cause equipment damage and personal injury.

2.3 Electrical Information

7CELLCYTE X |

Always wear gloves and proper personal protective equipment

(PPE) during CELLCYTE X operation.

2.4 Protective Equipment

Always wear appropriate PPE while handling hazardous materials

including materials that are toxic, corrosive, or carcinogenic.

Read the material safety data sheets, packing labels, and the ma-

nufacturer’s or distributor’s catalogue before using the

CELLCYTE X.

Consult material safety data sheets, packaging labels, and the ma-

nufacturer’s or distributor’s catalogue before handling hazardous

materials such as flammable and corrosive materials. Ensure any

users are informed of the material’s characteristics and compati-

bility with the CELLCYTE X. Always use appropriate safety equi-

pment and attire. If you are unsure of a material’s compatibility,

contact CELLINK.

2.5 Hazardous Materials

Use ethanol to disinfect the CELLCYTE X, taking care not to lea-

ve liquid on the linear guides. After using ethanol, wait at least 60

seconds for the liquid to evaporate to ensure that all flammable

vapors have dissipated. The CELLCYTE X can then be placed inside

the incubator for operation. For inquiries about other disinfectants,

please contact CELLINK.

8| CELLCYTE X

3. Specifications

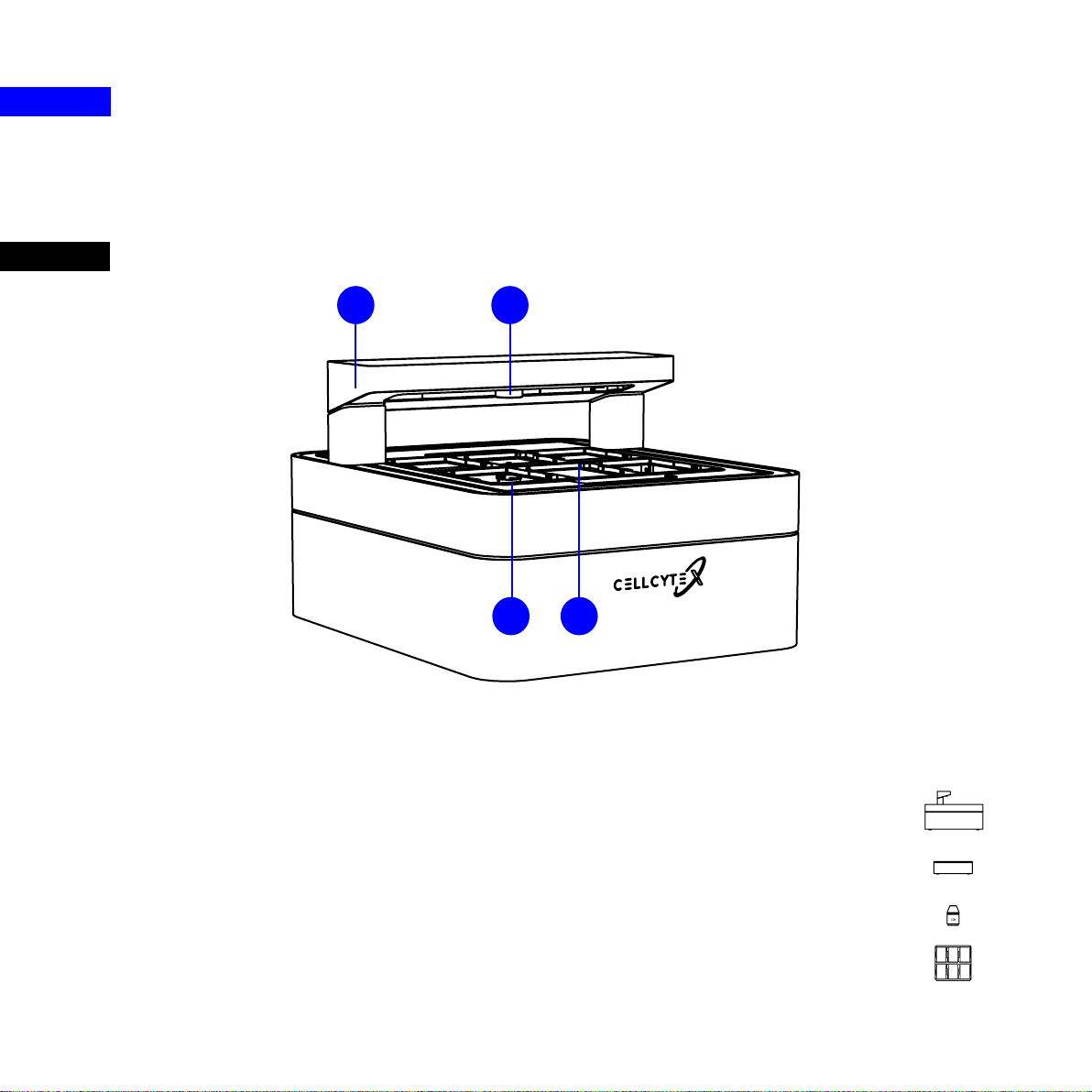

3.1 Product

A. CELLCYTE X Main Unit

B. Transmission Unit

C. Objective Lens

D. Vessel Tray

A B

Figure 1 Product map: CELLCYTE X main unit.

9CELLCYTE X |

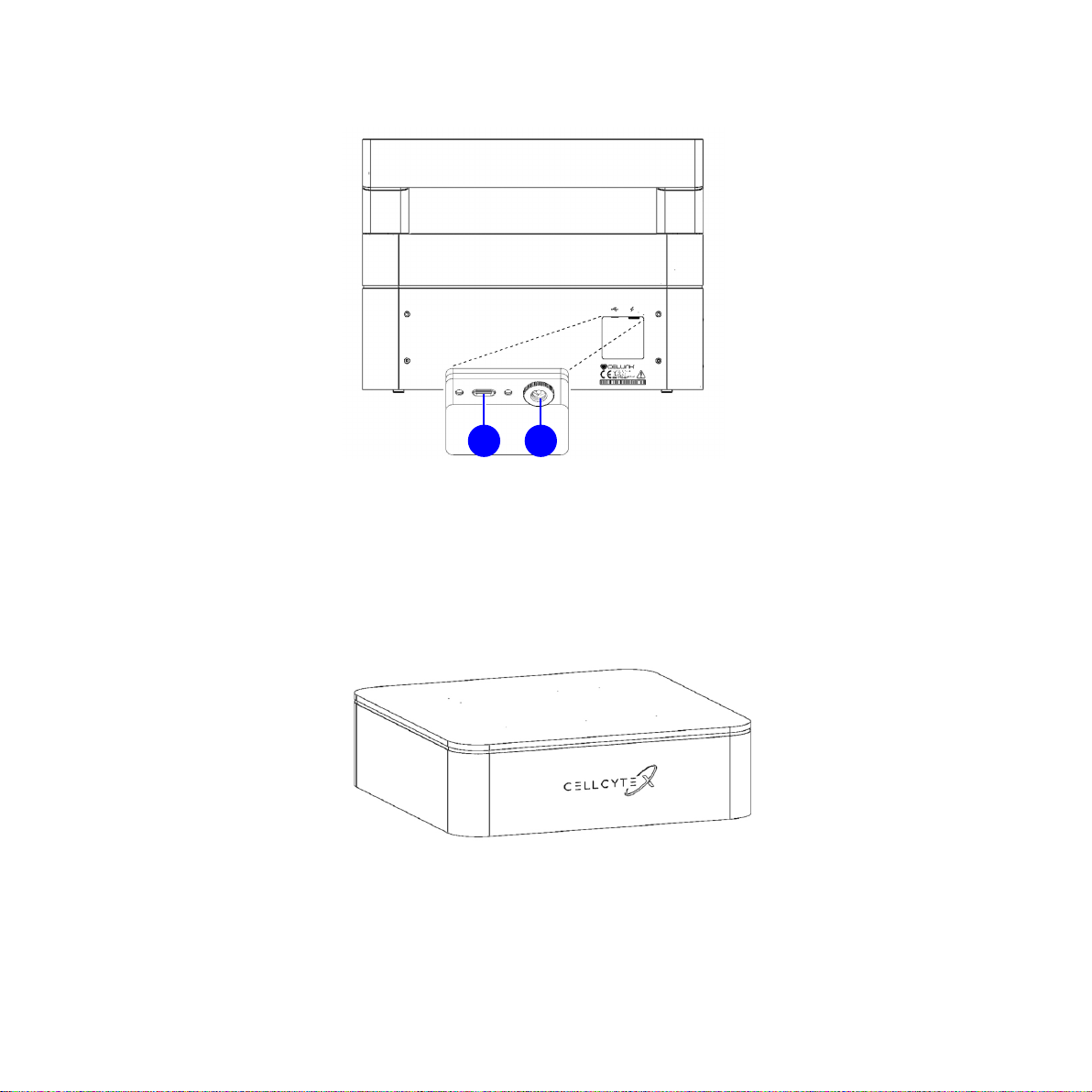

A. USB-C port

B. DC Power Port

Figure 2 CELLCYTE X main unit power port and USB-C port.

Figure 3 CELLCYTE X computer unit.

10 | CELLCYTE X

Serial number

Figure 5 CELLCYTE X serial number on the backside of the computer unit. The

MAC addresses can be found on a sticker at the bottom of the CELLCYTE X

computer box.

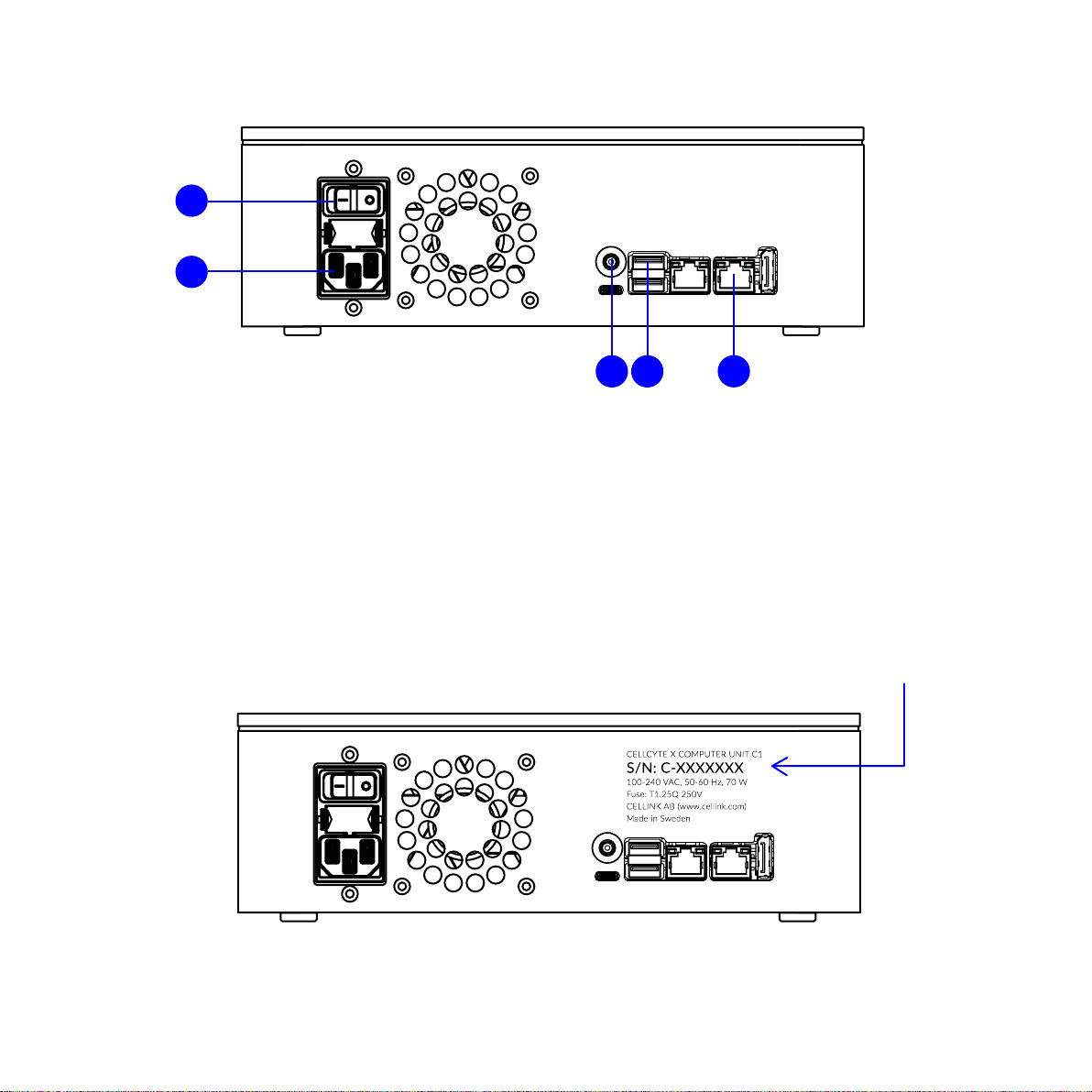

A. Power Switch

B. Power Port

C. DC Power Port

D. Computer USB ports 1 and 2

E. Ethernet Output

Figure 4 CELLCYTE X computer unit ports and power switch.
