Bigassfans HAIKU L Manuale utente

Installation Guide

Guide d’installation

Guía de instalación

bigassfans.com

HAIKU®L

FR127C-U1H

FR150C-U1H

FR127C-U1J

FR150C-U1J

FR112C-U1H

Rev. U

01/18/2024

CONTENTS

Speciﬁcations.................................................................................................. 1

Before You Start............................................................................................ 2

Fan Installation .............................................................................................. 5

Troubleshooting..........................................................................................22

Maintenance ................................................................................................24

READ AND SAVE THESE INSTRUCTIONS

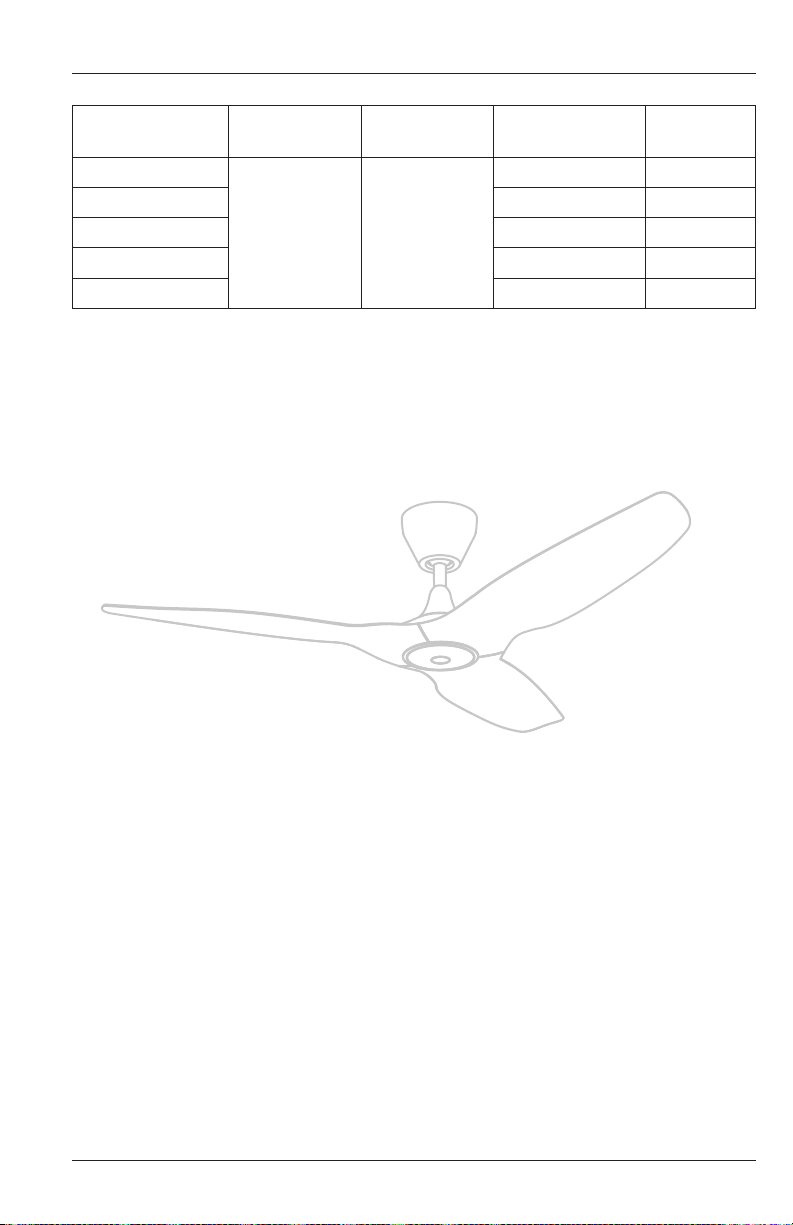

SPECIFICATIONS

Model Mounting Input Voltage Maximum

Weight

Maximum

Watts

FR127C-U1H

Flat or sloped

ceilings 8 ft

(2.4 m) or taller

100–240 VAC,

1 Φ, 50/60 Hz

13.89 lb (6.3 kg) 39 W

FR150C-U1H 14.33 lb (6.5 kg) 55 W

FR127C-U1J 13.45 lb (6.1 kg) 33 W

FR150C-U1J 13.89 lb (6.3 kg) 34 W

FR112C-U1H 13.45 lb (6.1 kg) 36 W

BEFORE YOU START

☑Turn O Power at Breaker

Contact an electrician if you are uncomfortable

performing electrical work. A licensed electrician

must install the fan if required by local code.

☑Prepare Fan Site and Gather Hardware

CAUTION

Do not use the fan with a dimmer switch or a third-party switch.

Outlet Box: Make sure your outlet box is suitable for fan support. If there is not an

outlet box at the fan location, install one on a ceiling joist or beam. You will need to

supply two 10-32 screws for attaching the fan mounting bracket to the outlet box.

Concrete Ceiling: You will need to supply four M6 anchor bolts* for attaching the

fan mounting bracket to the ceiling. If required by your local building and safety

codes, you will also need to supply an M6 anchor hook* for the safety cable. See

page 4 for hardware speciﬁcations and installation details.

Wood Ceiling Joist: You will need to supply two corrosion-resistant 12-11 x 45mm

hex head timber screws with seal for attaching the fan mounting bracket directly to

the joist. If required by local code, mount or embed an outlet box into the joist. The

outlet box must be suitable for fan support.

Exposed Outdoor Locations**: Wet-rated fans installed in exposed outdoor

locations must have ﬁxed/permanent coverage above the fan wiring cover, must

be installed in a GFCI protected branch circuit, and can be mounted to ﬂat ceilings

only.

☑Gather Tools

*If anchor bolts and anchor hook are included with your fan, use them for concrete mounting.

**When installing the fan in an exposed outdoor location, use only light kits marked “Suitable for Use in

Wet Locations.”

BEFORE YOU START

☑Check Ceiling Slope

Consult the table below to make sure you have the appropriate downrod length

for your ceiling slope. The fan can be installed on a ﬂat or sloped ceiling with an

angle no greater than 33° (approximately 8:12 roof pitch). For minimum clearance

guidelines, consult the Important Safety Instructions booklet included with this

installation guide.

Ceiling

Height

Fan

Diameter

Downrod

Length

Maximum Ceiling

Slope (Indoor Only)*

≥ 8 ft

(≥ 2.4 m)

44 in. (112 cm) 5 in. (128.5 mm) Flat

52 in. (132 cm)

≥ 9 ft

(≥ 2.7 m)

44 in. (112 cm) 10 in. (256 mm) 10°

52 in. (132 cm)

≥ 10 ft

(≥ 3 m)

44 in. (112 cm) 22 in. (561 mm) 32°

52 in. (132 cm)

≥ 11 ft

(≥ 3.4 m)

44 in. (112 cm) 34.8 in. (884 mm) 33°

52 in. (132 cm)

≥ 12 ft

(≥ 3.7 m)

44 in. (112 cm) 50.8 in. (1291 mm) 33°

52 in. (132 cm)

≥ 13 ft

(≥ 4 m)

44 in. (112 cm) 62.8 in. (1595 mm) 33°

52 in. (132 cm)

*Wet-rated fans installed in exposed outdoor locations can be mounted to ﬂat ceilings only.

BEFORE YOU START

☑Prepare Concrete Ceiling (if applicable)

Use mounting bracket as drilling template and drill four Ø 8 mm holes in concrete

ceiling (Fig. 1). The hole depth should not exceed 40 mm (Fig. 2).

Remove dust from holes. Insert four M6 anchor bolts* into holes. Strike the heads

of the anchor bolts with a hammer, ensuring bolt sleeves are ﬂush with ceiling

surface. Position mounting bracket on anchor bolts (Fig. 3). Ensure all anchor bolts

are fully tightened to expand and lock the anchors.

If required by local building and safety codes, install an M6 anchor hook* for the

safety cable. Drill an Ø 8 mm hole for the anchor hook. The hole depth should not

exceed 50 mm (Fig. 2). Remove dust from hole, and then insert the anchor hook

and fully tighten.

*If anchor bolts and anchor hook are included with your fan, use them for concrete mounting.

Fig. 1

Fig. 2

50 mm max

40 mm max

Fig. 3

88 mm

57 mm

Ø 8 mm

Mounting

Bracket

Downrod

Steel Pin

Wiring Cover

M8 x 33 mm Bolt M8

Washer

and Nut

Motor Cover Trim

Motor Cover

(6) M5 x 12 mm Screws

Motor Unit

(3) Airfoils

Control Box

Fan Stabilizer*

(2) M3 x 20 mm

Screws*

Wedge,

Wedge Screw,

Mounting Ball

FAN INSTALLATION

The fan stabilizer is required for outdoor installations and is for use on

ﬂat ceilings only.

Electrical wires and safety cable not shown.

(3) M3 x 6 mm Screws

*Included only with outdoor fans.

FAN INSTALLATION

Hardware included

Airfoil Hardware–Step 3

Upper Mounting Hardware–Step 7

x1 Steel Pin x1

Wedge Screw

Wedge

x6 M5 x 12 mm Screw

Motor Cover Hardware–Step 4

Lower Mounting Hardware–Step 5

Safety Cable Shackle–Step 11

Shackle

x1 x1

M8 x 33 mm Bolt M8 Washer M8 Nut

M3 x 6 mm Screw

Fan Stabilizer Hardware–Step 12*

x2 M3 x 20 mm Screw

*Included only with outdoor fans.

FAN INSTALLATION

1. Install mounting bracket

WARNING

Disconnect power to fan location before installing mounting bracket.

Mount only to an outlet box marked acceptable for fan support.

Secure mounting bracket to mounting structure with suitable hardware (not supplied)

(Fig. 1). Outlet box shown. Your mounting structure may dier. Mounting bracket

electrical wires not shown.

Suitable Mounting Hardware

(not supplied)

Mounting Bracket

Fig. 1

FAN INSTALLATION

2. Wire fan

WARNING

Disconnect power to fan location before wiring fan.

Do not connect fan to a damaged power source. Do not attempt to resolve

electrical failures on your own. Consult a qualiﬁed electrician if uncertain of the

electrical installation of this fan.

Do not use the fan with a dimmer switch or a third-party switch.

Connect wires from mounting bracket to supply power wires (Fig. 2). Carefully tuck

wiring into outlet box or building structure so that only the wiring harness is hanging

out. Ensure wire connectors are turned upward and that wires are spread apart

with grounded conductors on one side of the outlet box/mounting structure and

ungrounded conductors on the other side.

Supply Power Wire Colors

North America

100–120 V Australia All other regions

AC Hot/L1

Brown Black Brown or Red Brown

AC Neutral/L2

Blue White Black or Light Blue Blue

PE/Earth Ground

Green with Yellow

Green or Bare

Copper Green with Yellow Green with Yellow
