Junior < Small >
The Bike Shield Assembly Instruction

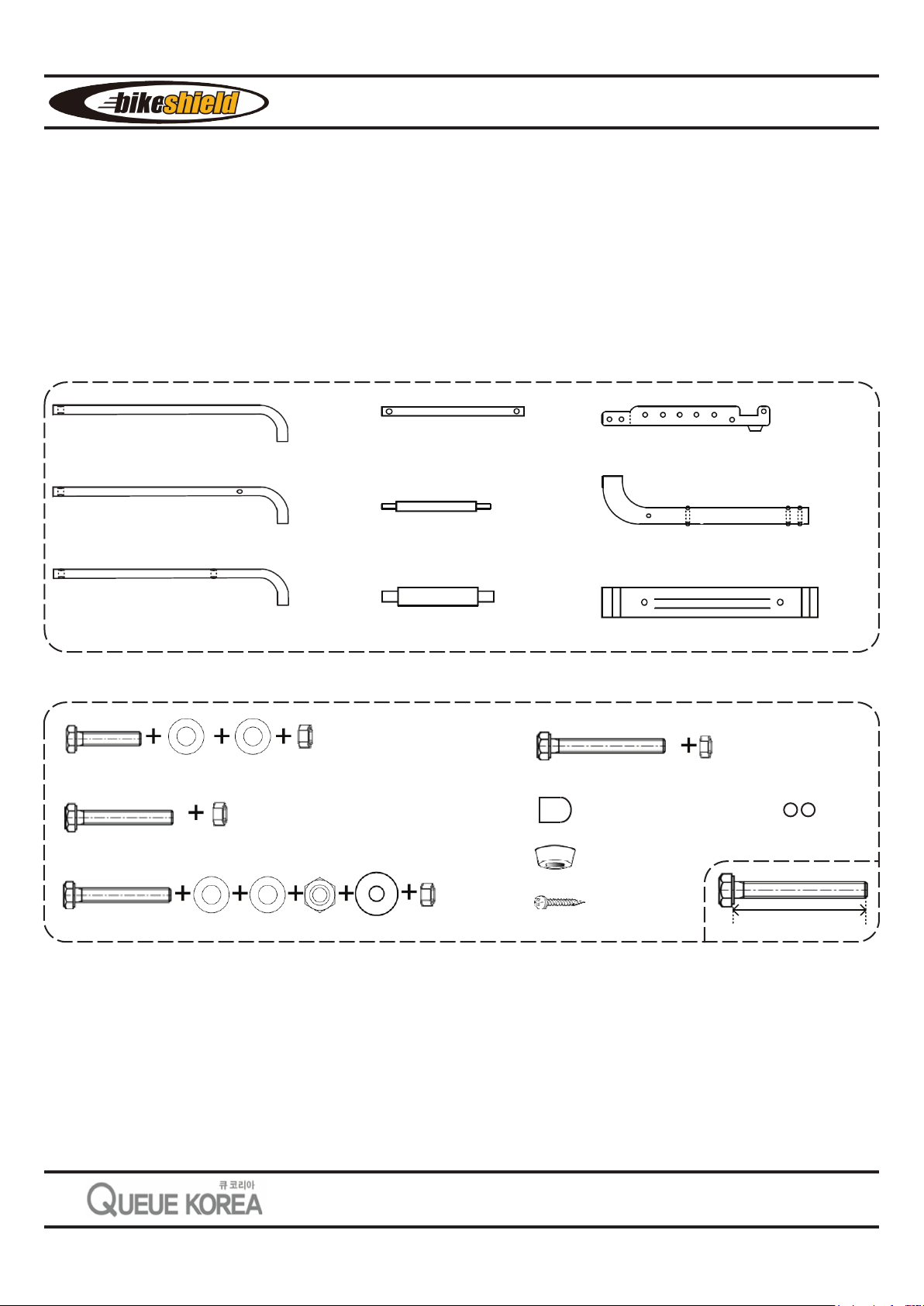

- Frame Tube List -
- Bolts List -
A Bolt Set
B Bolt Set
C Bolt Set
D Bolt Set
C Tube: Square 15x15mm
1 Hole
B Tube: Square 15x15mm
2 Holes on different sides
I Tube: Square 15x15mm
2 Holes on same sides
L Tube: Square 15x15mm
AP Tube: Square 15x15mm
AO Tube: Square 25x25mm
Tube Binding Bar
A Tube: Square 25x25mm
Cross Plate
8 pcs
2 pcs
2 pcs
2 pcs
6 pcs
1 pcs
2 pcs
(Left, Right)
2 pcs
1 pcs
Bolt Length
Length : 35mm Plastic Washer Loose Proof Nut
10 sets
Length : 40mm Loose Prof Nut
6 sets
Length : 40mm Plastic Washer Nut Steel Washer Loose Prof Nut
2 sets
4 ea Rubber Leg
4 ea Screw
2 sets
1 - 4 (English)
Length : 50mm Loose Prof Nut
2 ea Rubber Bolt Cap (STEP 4 - 3 , 6 )
* During the assembly, please be careful of the sharp area like the edge of Cross Plate. Screwdriver and 10 mm
(13/32 inch) spanner tools required to assemble The Bike Shield.
► The Bike Shield assembly video at http://thebikeshield.com/assemblyinstruction.php
You have just purchased the most advanced and practical motorcycle storage solution on the market. Please check
“Frame Tube List” and “Bolts List” before you start assembling. Follow assembly instruction from “STEP 1” to “STEP 7”
in order.
The Bike Shield carries one year warranty against manufacturing defects in materials and workmanship. The Bike Shield
is supposed to be fixed on the ground using the cross plate and anchor bolts so that it prevents The Bike Shield from
falling down in high winds. It is also recommended to place The Bike Shield against the wall. Under customer’s
responsibility, The Bike Shield has to be secured to prevent any accident caused by strong wind, heavy snow or other
natural disasters. Warranty does not cover defects or damages caused by accidents, alteration, improper installation, fire,
earthquake, flood, lightning, storm, and other natural disasters.
The Bike Shield has to be secured to the ground.

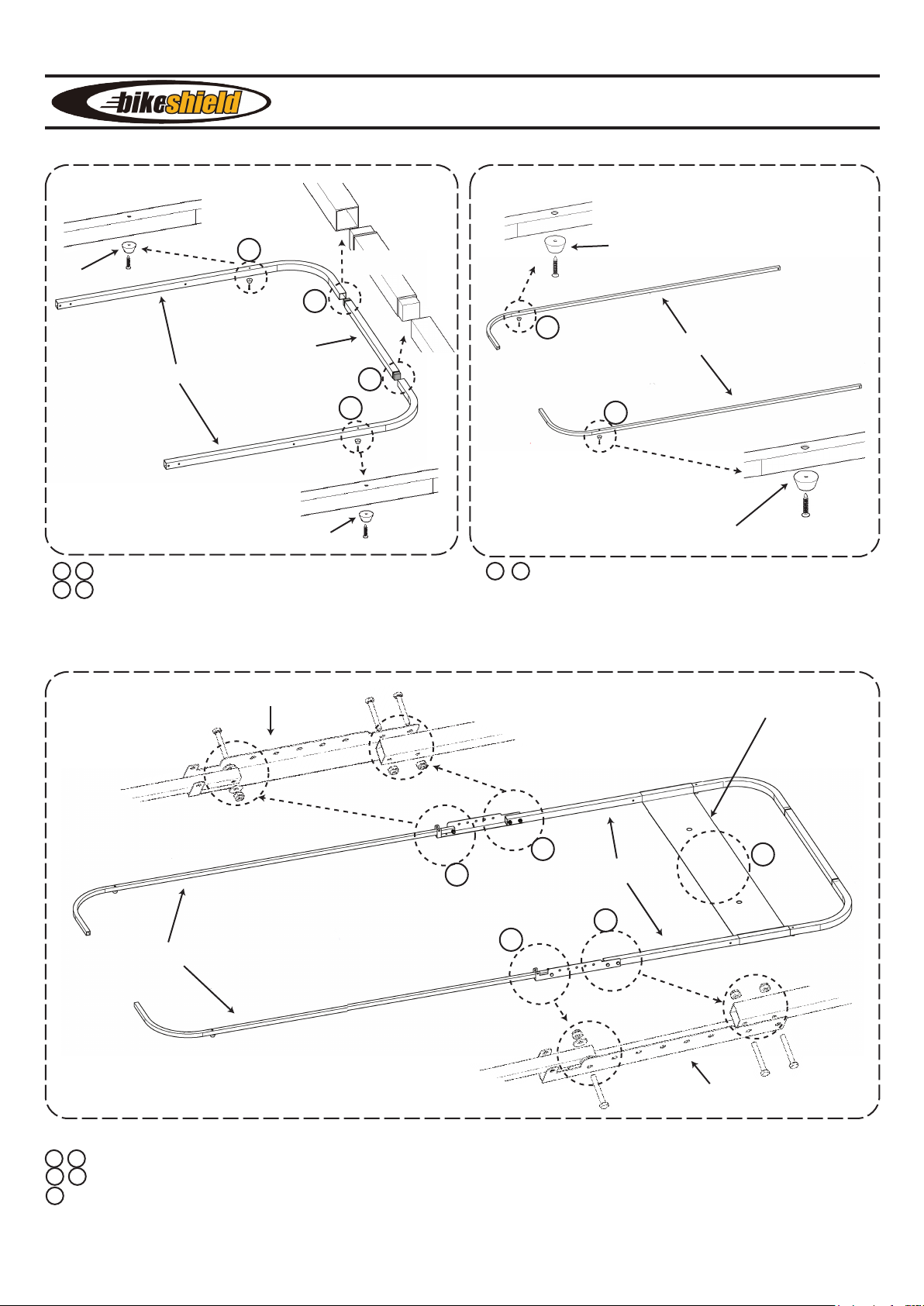

The Bike Shield Frame assembly
- STEP 1 - - STEP 2 -
- STEP 3 -
A Tube
AO Tube
Rubber Leg
Rubber Leg
1
2
3
4
1
2
Rubber Leg
Rubber Leg
B Tube
Cross Plate
Tube Binding Bar
Tube Binding Bar
B Tube
A Tube
1
2
3
1 , 2 Screw up Rubber Leg into A Tube.
3 , 4 Connect AO Tube with two A Tube (right and left side).
* Use rubber or wooden hammer to connect Tubes.
1 , 2 Screw up Rubber Leg into B Tube.
4
5
* All bolts should be inserted from outside to inside of The Bike Shield.
1 , 2 Assemble A Tube with Tube Binding Bar using B Bolt Set.
3 , 4 Assemble B Tube with Tube Binding Bar using A Bolt Set
5 Put Cross Plate on A Tube. Cross Plate has two holes for anchor bolts, fixing to the floor.
A Tube A Tube
AO Tube
B Tube
B Tube
B Tube
B Tube
A Tube
A Tube
2 - 4 (English)
Junior < Small >
The Bike Shield Frame assembly

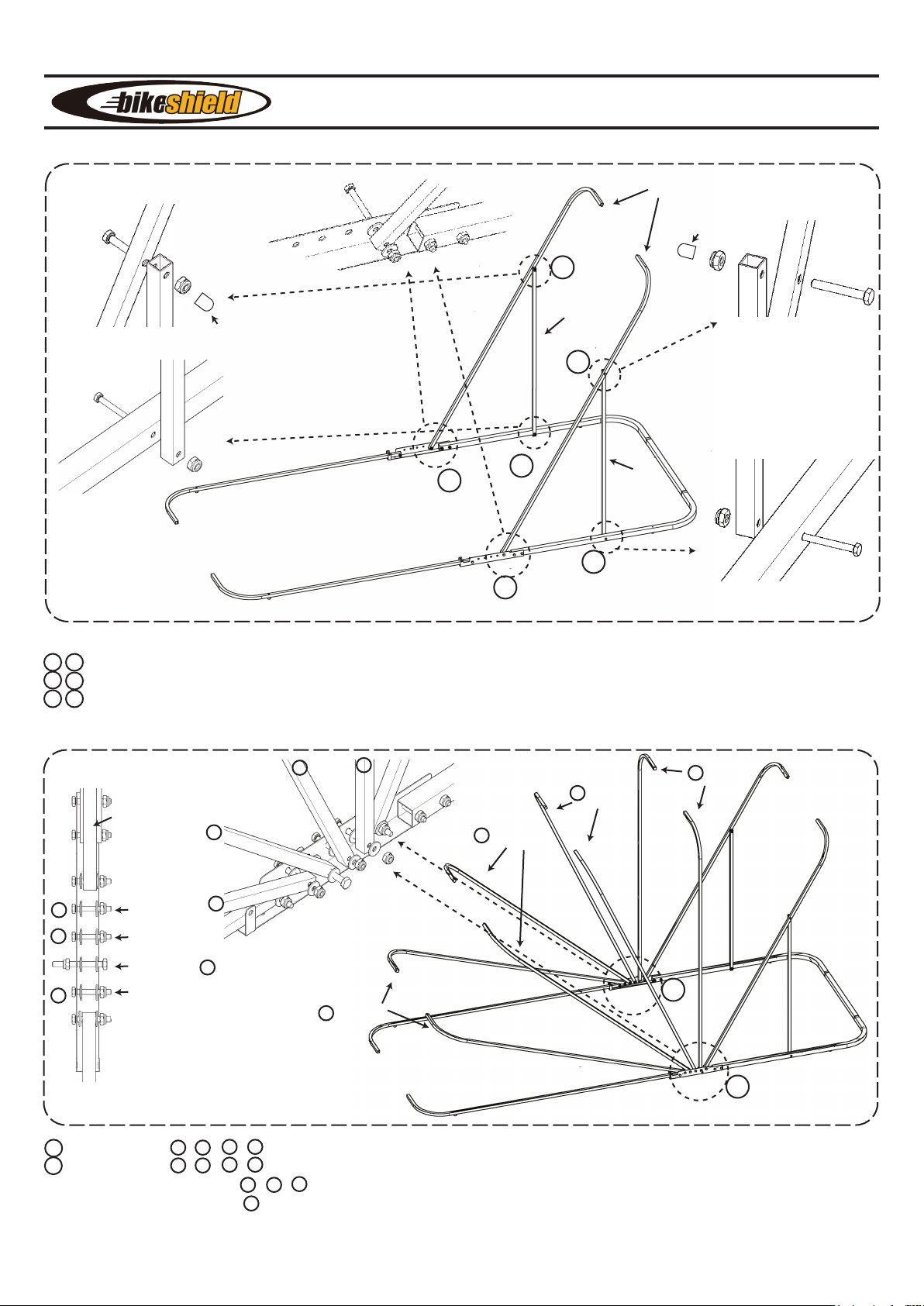

- STEP 4 -
- STEP 5 -
a
b
Top View
4 C Tube
2 C Tube
3 C Tube
1 C Tube
* All bolts should be inserted from outside to inside of The Bike Shield.
1 , 4 Assemble L Tube with A Tube using D Bolt Set.
2 , 5 Assemble I Tube with Tube Binding Bar using A Bolt Set.
3 , 6 Assemble I Tube with L Tube using B Bolt Set and assemble Rubber Bolt Cap.
1 C Tube
2 C Tube
3 C Tube
4 C Tube
A Bolt Set
A Bolt Set
B Tube
C Bolt Set
B Tube
A Tube
A Tube
A Bolt Set
4
2
1
3
3 - 4 (English)
a Assemble four 1 , 2 , 3 , 4 C Tubes on the left side with Tube Binding Bar.
b Assemble four 1 , 2 , 3 , 4 C Tubes on the right side with Tube Binding Bar.
Use A Bolt Set to assemble 1 , 2 , 4 C Tubes. Bolts should be inserted from outside to inside of The Bike Shield.
Use C Bolt Set to assemble 3 C Tube. Bolt should be inserted from inside to outside of The Bike Shield.
* Do not assemble AP Tubes. AP Tubes will be assembled on the next STEP.
Junior < Small >
1
2
3
4
5
6
L Tube
I Tube
L Tube
L Tube
L Tube
I Tube
A Tube
I Tube
L Tube
L Tube
A Tube
A Tube
Rubber Bolt Cap
Rubber Bolt Cap

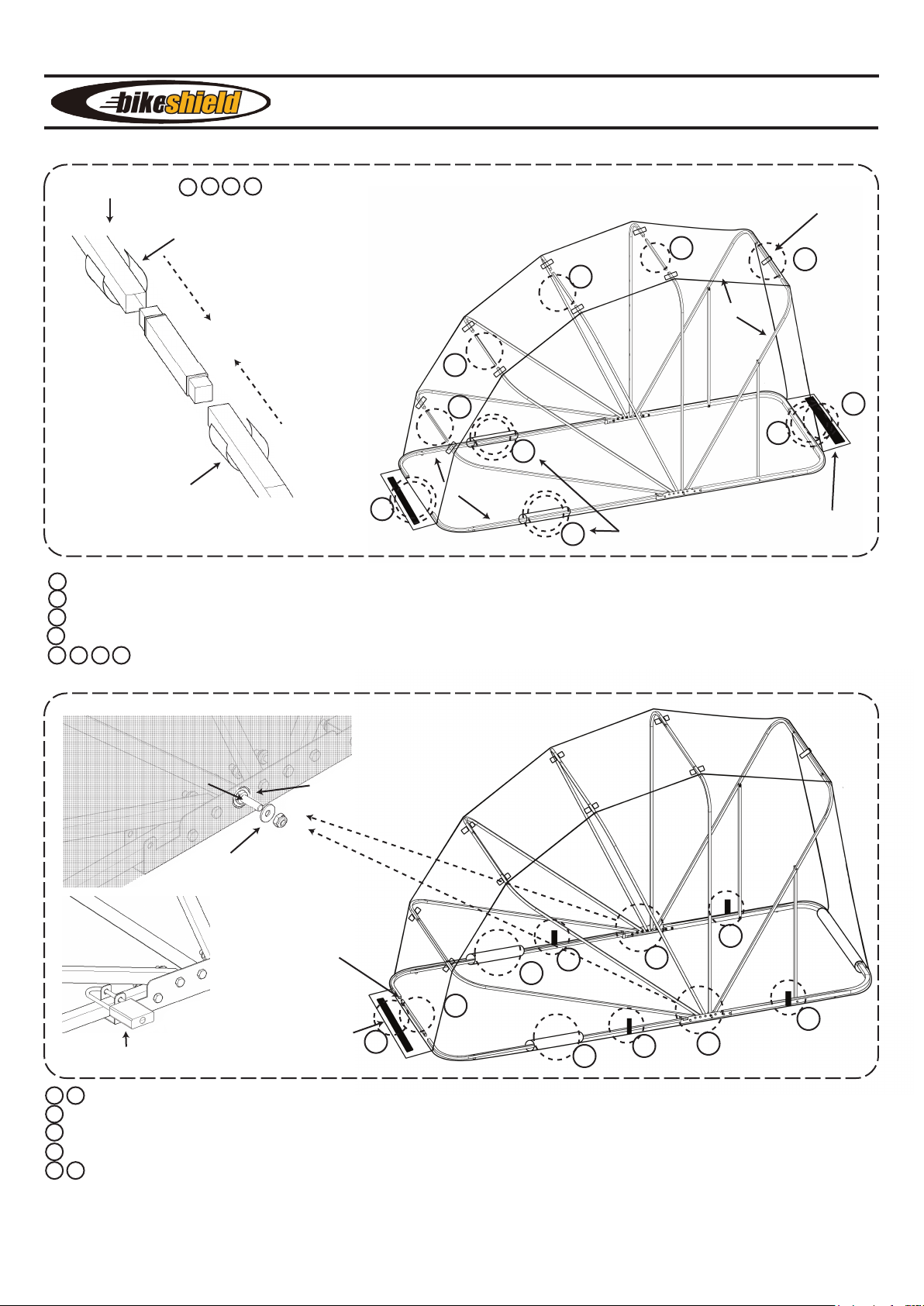

The Bike Shield Cover assembly
- STEP 6 -
- STEP 7 -
AP Tube
a
a
REAR
FRONT
1
2
3
4
5
6
Pocket for tube
Pocket for tube
AP Tube
a Identify front and rear side of the cover. Cover’s rear side - Look up the position of two pockets for B Tube as shown.
b “FRONT” and “REAR” are stamped on each side.
1 Put AP Tube through one pocket in the middle and connect AP Tube with both side of I Tube.
2 Start by pulling the front side Large Velcro flap under the AO Tube and attaching together.
3 , 4 , 5 , 6 Put each pair of C Tube through left and right side of pockets and connect with each AP Tube.
Front Large Velcro
1
2
Steel Washer
Rear Large Velcro
3
4
5
5
57
6
1 , 2 Put B Tube through pockets on left and right side of cover.
3 Assemble AP Tube with both side of the B Tube.
4 Pull the rear side Large Velcro flap under the rear side of AP Tube and B Tube, then attach Large Velcro flap together.
5 Attach Velcro straps.
6 , 7 Insert the Steel Cover Ring to the C Bolt Set, insert Steel Washer and fasten loose proof nut.
* Adjust tension with the front and rear Velcro flaps as well as the side Velcro straps to fit cover properly on the frame.
* You can use Padlock on the right or the left side of Tube Binding Bar.
* Padlock dimensions: http://thebikeshield.com/assemblyinstruction.php
AP Tube
Steel Cover Ring
C Tube Right
C Tube Left
C Bolt Set
Padlock
Assembly for 3 , 4 , 5 , 6
B Tube
5
4 - 4 (English)
Pocket for B Tube
I Tube
b
b
