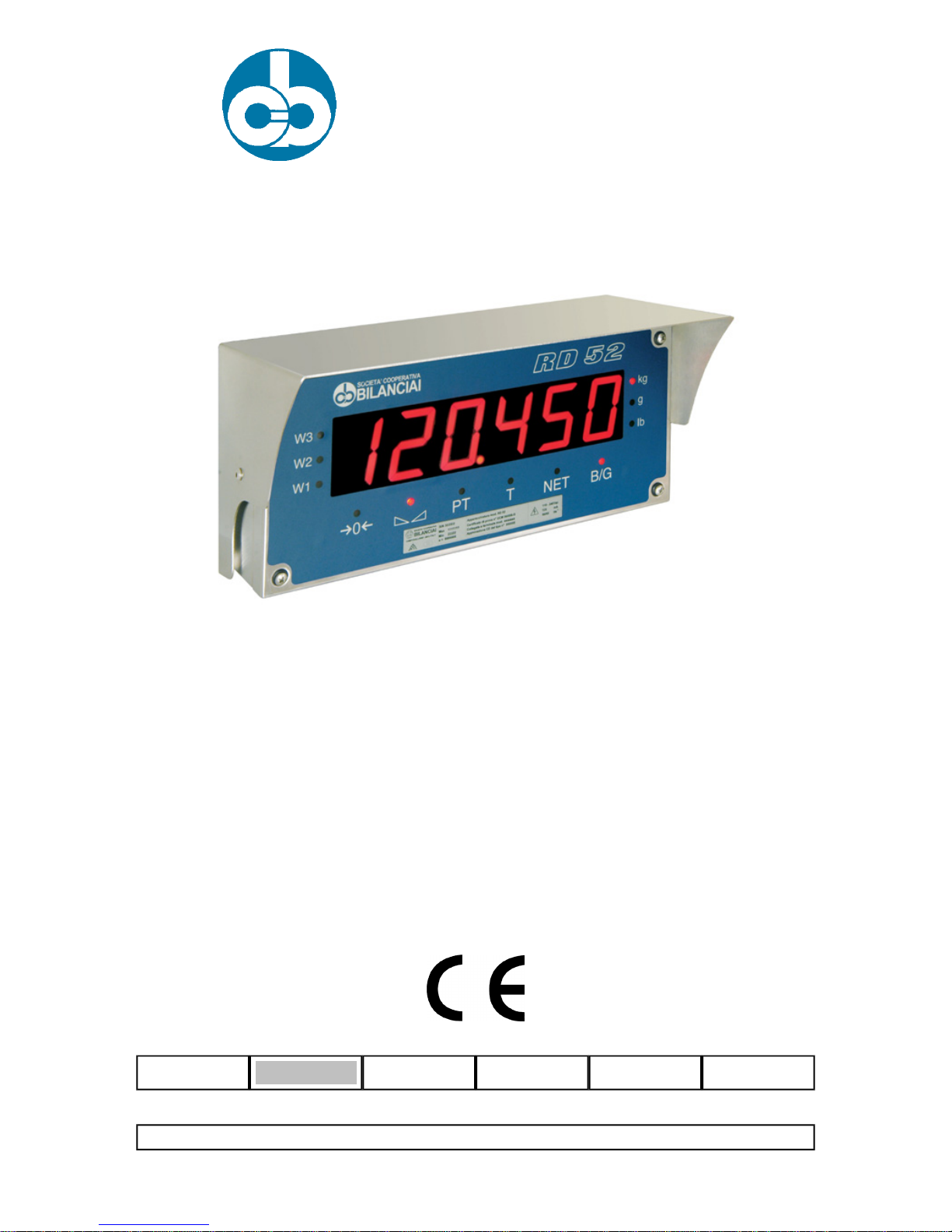

Bilanciai RD52HL Manuale utente
SOCIETÀ COOPERATIVA
BILANCIAI
Ripetitore RD52HL: manuale di uso e manutenzione
RD52HL repeater scale: use and maintenance manual
Répétiteur RD52HL: manuel d'utilisation et d'entretien
Anzeige-Terminal RD52HL: Gebrauchs- und
Wartungsanleitung
Repetidor RD52HL: manual de uso y mantenimiento
Repetidor RD52HL: manual de utilização e manutenção
Deutsch PortuguêsItaliano English Français Español
81320030 10.06.2004
Table of Contents
1. GENERAL INFORMATION 1-5
1.1 Declaration of conformity 1-5
1.2 Foreword 1-6
1.3 Symbols 1-8
1.4 Description of the terminal 1-8
1.5 Technical characteristics of the terminal 1-9
1.6 Operation 1-10
1.7 Overall dimensions 1-11
1.8 Obtaining technical assistance 1-12
1.9 Warranty 1-12
2. SAFETY INSTRUCTIONS 1-13
2.1 Prohibited uses 1-13
2.2 Regulations 1-13
2.3 Prescriptions for use 1-13
3. DELIVERY AND INSTALLATION 1-15
3.1 Recommendations for installation 1-15
3.2 Connection of the terminal to the electricity main 1-15
3.3 Serial connection 1-16
3.4 Opening and closing the weight repeater to set the switch 1-18
4. CONTROLS, DISPLAY, SWITCHING THE TERMINAL ON AND OFF 1-19
4.1 Display of the weight and accessory indications 1-19
4.2 Switching the terminal on and off 1-20
5. PROGRAMMING DIALOGUES VIA SERIAL LINKS 1-21
5.1 Symbols used 1-21
5.2 Communication protocol 1-22
5.3 Strings 1-23
5.3.1 Cb (or Bilanciai) string 1-23
5.3.2 Extended string 1-24
RD52HL
1-3
RD52HL
1-4
1. GENERAL INFORMATION
1.1 Declaration of conformity
DECLARATION OF CONFORMITY
Manufacturer: SOCIETÀ COOPERATIVA
BILANCIAI
Address: Via S. Ferrari, 16
41011 Campogalliano (MO)- Italy
The electronic terminal model: RD52HL
with the options all those described in this manual
conforms to:
✔standards EN45501, EN50081-1 in accordance with the
requirements of Directive 89/336 EEC (electromagnetic compatibility)
✔standard EN60950 in accordance with the requirements of Directive
73/23 EEC (low voltage directive)
RD52HL
1-5
1.2 Foreword
✔The aim of this manual is to provide the operator, through the use of
text and illustrations, with essential information regarding the
installation, safe operation and maintenance of the weighing system.
✔This manual must be kept in a safe place where it is readily available
for consultation! Always observe the instructions contained in the
manual!
✔Safe operation of the system is the responsibility of the operator, who
must be fully familiar with it.
✔The user is responsible for ensuring that the installation conforms to
the applicable regulations.
✔The equipment must only be installed by specialised personnel who
have read and understood this manual.
✔The term "specialised personnel" means any personnel who, by
virture of the training they have received and their professional
experience, have been explicitly authorised by the "System safety
supervisor" to install, operate and service the system.
✔Contact your nearest Service Centre if problems occur.
✔Any attempt on the part of the user or unauthorised personnel to
dismantle, modify or tamper with the terminal is prohibited. Any such
attempt shall invalidate the warranty and relieve the manufacturer
from all liability for any damage or injury to persons or property.
✔It is also forbidden to alter or remove the data plates and seals on the
terminal. Make sure that all plates and seals are present and legible,
if not contact the After-Sales Service.
✔The manufacturer shall not be liable for any damages caused by
incorrect handling of the terminal.
✔The information and illustrations contained in this manual were up to
date at the time of publication.
✔The manufacturer is committed to a policy of continuous product
improvement and parts of the system may therefore be subject to
modification.
✔All the technical information contained in this manual remains the
exclusive property of the manufacturer and may not be disclosed to
third parties.
✔No part of this document may be reproduced or transmitted in any
RD52HL
1-6
form, including publication in computerised form or on the World Wide
WEB, without the explicit written permission of the manufacturer.
✔This manual may not be used for purposes other than those directly
related to installation, operation and maintenance of the terminal.
✔In order to more clearly describe certain maintenance or adjustment
operations, some of the illustrations in this manual show the weighing
system with the safety guards removed. Under no circumstances may
the system be operated in these conditions. The safety guards may
only be removed for the time strictly required to carry out the required
repairs or maintenance work after which they must be fitted back in
place.
RD52HL
1-7
1.3 Symbols
Below is a list of the symbols used in this manual to alert the reader to
the various hazards associated with the operation and maintenance of
the instrument.
DANGER
Denotes an operation or procedure where failure to observe
the instructions will result in death or serious injury.
1.4 Description of the terminal
The digital weight repeater is an electronic device that can be connected
to weighing terminals with load cells of the strain gauge type.
RD52HL
1-8
1.5 Technical characteristics of the terminal
6Digits displayed: 0 - 999999Numeric range:
Decimal point settings: (0000.0) - (000.00) - (00.000)
Reception time-out: 5 s
Piloting via serial link: RS232 or RS422
Power supply: 85-265 Vac 50/60 Hz
-10 +40°COperating temperature range:
Protection: IP65
Holder: Stainless steel
RD52HL
1-9
1.6 Operation
Whenever it is connected to the electricity main, the weight repeater
comes on and tests the digits and LEDs, which light up in sequence.
After this, the program number and software release are displayed.
This is followed by flashing dashes which remain on until the repeater is
connected to the serial line. If valid data are transmitted along the serial
line, they are immediately displayed. The data remain displayed for up to
5 seconds, as determined by the time-out setting. If no other signal is
transmitted to the repeater, the central segments begin to flash once this
time has elapsed.
The type of string received can either be CB (see par. 5.3.1 on page
1-23) or EXTENDED (see par. 5.3.2 on page 1-24) and
acknowledgement is automatic.
If the string is the CB type, enter the number of decimal digits using the
SETUP switch on the board (consult par. 3.4 on page 1-18). If an
EXTENDED string is received, all the information is within the string
itself and there is no need to set anything. This string also handles the
metrological indications on the front panel of the display in the automatic
mode.
The serial interface used can be either RS232 or RS422, depending on
the connection made. The repeater automatically selects the type of
interface used, checking the lines piloted.
RD52HL
1-10
