Billion 810VNTX Manuale utente

Table of Contents

CHAPTER 1: INTRODUCTION..........................................................................................................................................3

Introduction to your Router..............................................................................................................................................3

Features ..........................................................................................................................................................................3

Express Internet Access..............................................................................................................................................3

3G................................................................................................................................................................................3

802.11n Wireless AP with WPA Support.....................................................................................................................3

Fast Ethernet Switch....................................................................................................................................................3

Multi-Protocol to Establish a Connection.....................................................................................................................3

Quick Installation Wizard.............................................................................................................................................4

Universal Plug and Play (UPnP) and UPnP NAT Traversal........................................................................................ 4

Network Address Translation (NAT)............................................................................................................................4

SOHO Firewall Security with DoS and SPI .................................................................................................................4

Domain Name System (DNS) Relay ...........................................................................................................................4

Dynamic Domain Name System (DDNS)....................................................................................................................4

Quality of Service (QoS)..............................................................................................................................................4

Virtual Server (“port forwarding”) .................................................................................................................................4

Rich Packet Filtering....................................................................................................................................................5

Dynamic Host Configuration Protocol (DHCP) Client and Server...............................................................................5

Static and RIP1/2 Routing ...........................................................................................................................................5

Simple Network Management Protocol (SNMP) .........................................................................................................5

Web based GUI ...........................................................................................................................................................5

Firmware Upgradeable ................................................................................................................................................5

Rich Management Interfaces.......................................................................................................................................5

Virtual Private Network (VPN) ..................................................................................................................................... 5

CHAPTER 2: INSTALLING THE ROUTER ........................................................................................................................6

Package Contents...........................................................................................................................................................6

Device Description ..........................................................................................................................................................7

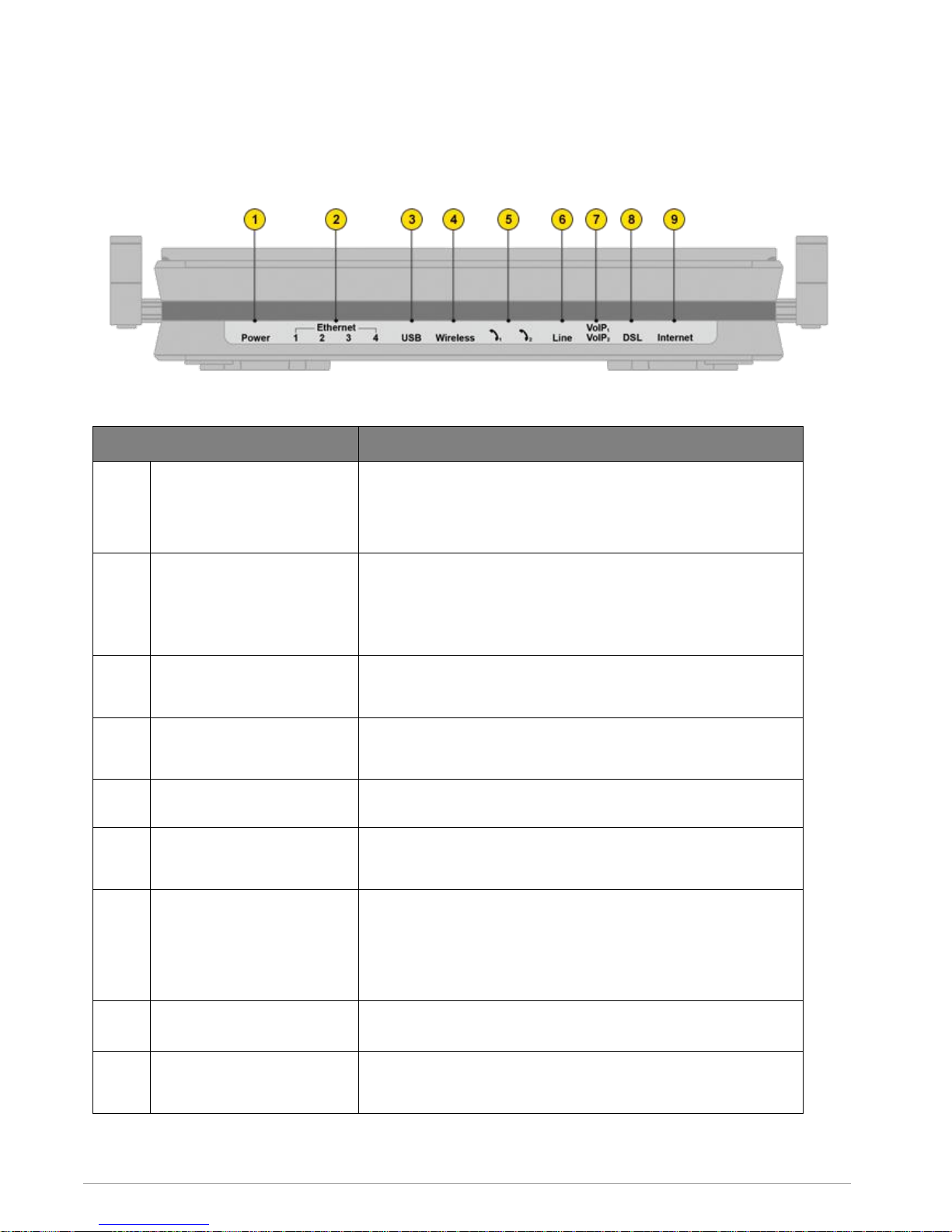

The Front LEDs ........................................................................................................................................................... 7

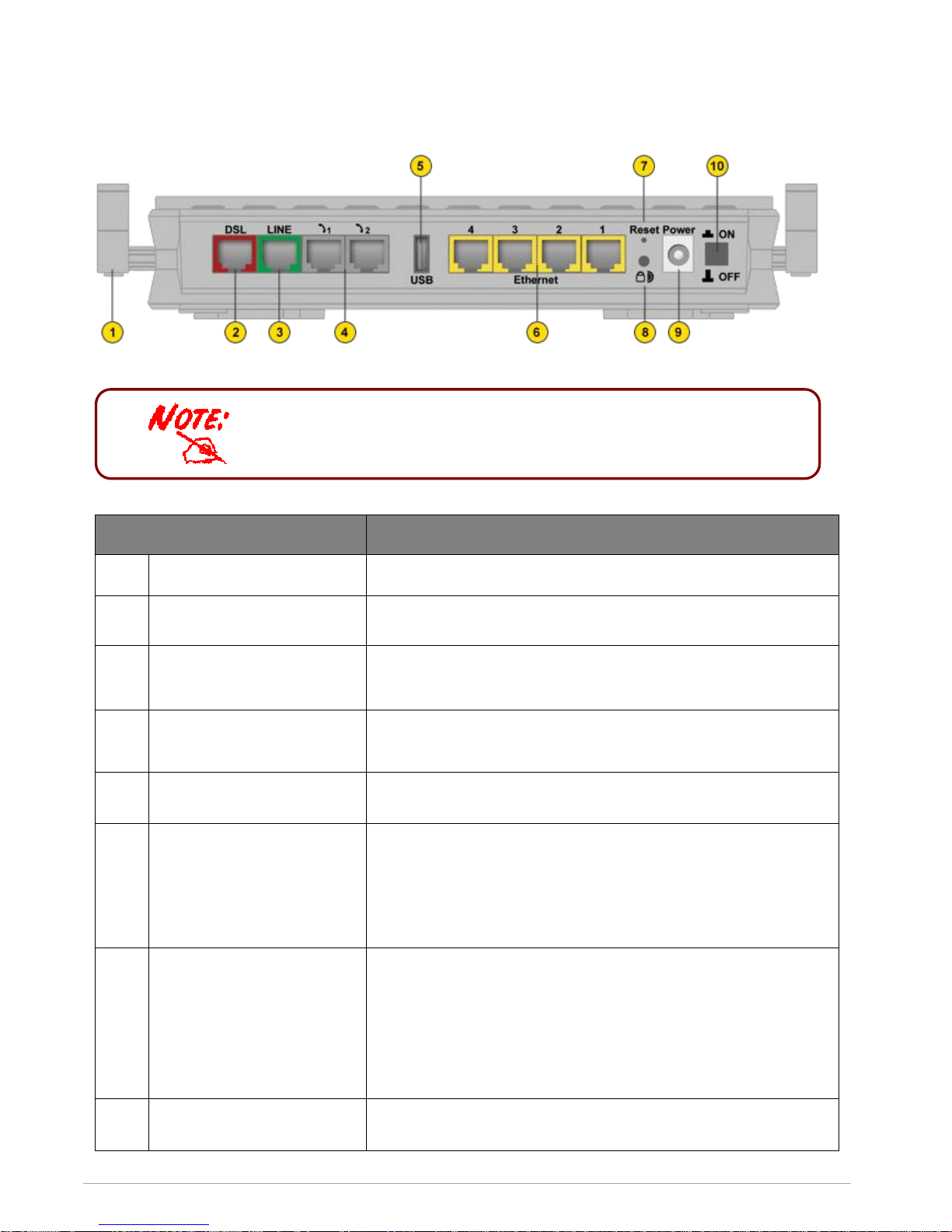

The Rear Ports ............................................................................................................................................................8

Cabling......................................................................................................................................................................... 9

CHAPTER 3: BASIC INSTALLATION ............................................................................................................................. 10

Connecting Your Router ............................................................................................................................................... 10

Network Configuration.................................................................................................................................................. 11

Configuring PC in Windows Vista/ 7..........................................................................................................................11

Configuring PC in Windows XP.................................................................................................................................12

Configuring PC in Windows 2000..............................................................................................................................13

Configuring PC in Windows 95/98/Me.......................................................................................................................14

Configuring PC in Windows NT4.0............................................................................................................................15

Factory Default Settings............................................................................................................................................... 16

Information from your ISP ............................................................................................................................................ 17

Configuring with your Web Browser............................................................................................................................. 17

Billion 810VNTX Router

Page | 2

CHAPTER4: CONFIGURATION...................................................................................................................................... 18

Status ........................................................................................................................................................................... 19

ADSL Status ..............................................................................................................................................................19

3G Status...................................................................................................................................................................19

ARP Table..................................................................................................................................................................20

DHCP Table ...............................................................................................................................................................21

Routing Table.............................................................................................................................................................21

NAT Sessions.............................................................................................................................................................22

UPnP Portmap...........................................................................................................................................................22

PPTP Status ..............................................................................................................................................................23

IPSec Status..............................................................................................................................................................23

VoIP Status.................................................................................................................................................................24

VoIP Call Log .............................................................................................................................................................25

Event Log...................................................................................................................................................................25

Error Log....................................................................................................................................................................26

Diagnostic..................................................................................................................................................................26

Quick Start.................................................................................................................................................................... 27

Configuration................................................................................................................................................................ 32

LAN - Local Area Network .........................................................................................................................................32

WAN - Wide Area Network.........................................................................................................................................41

System.......................................................................................................................................................................52

Firewall and Access Control ......................................................................................................................................57

VPN - Virtual Private Networks..................................................................................................................................71

L2TP (Layer Two Tunneling Protocol)........................................................................................................................86

VoIP - Voice over Internet Protocol ............................................................................................................................96

SIPAccounts..............................................................................................................................................................98

Phone Port.................................................................................................................................................................99

QoS - Quality of Service..........................................................................................................................................107

Virtual Server (known as Port Forwarding)..............................................................................................................114

Time Schedule.........................................................................................................................................................120

Advanced.................................................................................................................................................................122

Logout......................................................................................................................................................................127

Chapter 5: Troubleshooting............................................................................................................................................ 128

Problems with WAN interface..................................................................................................................................... 128

Problem with LAN interface........................................................................................................................................ 128

Contact Telkom ADSL Support.................................................................................................................................. 129

Contact Modem Support ............................................................................................................................................ 129

Billion 810VNTX Router

Page | 3

CHAPTER 1: INTRODUCTION

Introduction to your Router

Welcome to the 3G/VoIP/802.11n/ADSL2+/VPN Firewall Router. The router is an “all-in-one” ADSL router,

combining an ADSL modem, ADSL router and Ethernet network switch functionalities, providing everything you

need to get the machines on your network connected to the Internet over your ADSL broadband connection. With

features such as an ADSL Quick-Start wizard and DHCP Server, you can be online in no time at all and with a

minimum of fuss and configuration, catering for first-time users to the guru requiring advanced features and control

over their Internet connection and network.

Features

Express Internet Access

The router complies with ADSL worldwide standards. It supports downstream rate up to 12/24 Mbps with

ADSL2/2+, 8Mbps with ADSL. Users enjoy not only high-speed ADSL services but also broadband

multimedia applications such as interactive gaming, video streaming and real-time audio much easier and

faster than ever. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (ITU G.992.1);

G.lite (ITU G.992.2); G.hs (ITU G994.1); G.dmt.bis (ITU G.992.3); G.dmt.bis.plus (ITU G.992.5)).

A 3G-based Internet connection (requires an additional 3G USB modem); with automatic fail-over to ensure

an always-on Internet connection in the event that one of your Internet services fails. Secure WLAN setup is

simplified by the web browser-based configuration for easy access to the Internet wherever a 3G connection

is available - whether you're seated at your desk or taking a cross-country train trip.

802.11n Wireless AP with WPA Support

With integrated 802.11n Wireless Access Point in the router, the device offers a quick and easy access

among wired network, wireless network and broadband connection (ADSL) with single device simplicity,

and as a result, mobility to the users. In addition to 300 Mbps 802.11n data rate, it also interoperates

backward with existing 802.11g and 802.11b equipment. The Wireless Protected Access (WPA-PSK and

WPA2-PSK) and Wireless Encryption Protocol (WEP) supported features enhance the security level of data

protection and access control via Wireless LAN.

Fast Ethernet Switch

A 4-port 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI and MDI-X for

10Base-T and 100Base-TX ports. An Ethernet straight or crossover cable can be used directly for auto

detection.

Multi-Protocol to Establish a Connection

It supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation overATM

(bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with the

ISP. The product also supports VC-based and LLC-based multiplexing.

Billion 810VNTX Router

Page | 4

Quick Installation Wizard

It supports a WEB GUI page to install this device quickly. With this wizard, end users can enter the

information easily which they get from their ISP, then surf the Internet immediately.

Universal Plug and Play (UPnP) and UPnP NAT Traversal

This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from

many different vendors. It makes network simple and affordable for users. UPnP architecture leverages

TCP/IP and the Web to enable seamless proximity networking in addition to control and data transfer

among networked devices. With this feature enabled, users can now connect to Net meeting or MSN

Messenger seamlessly.

Network Address Translation (NAT)

Allows multi-users to access outside resources such as the Internet simultaneously with one IP

address/one Internet access account. Many application layer gateways (ALG) are supported such as web

browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.

SOHO Firewall Security with DoS and SPI

Along with the built-in NAT natural firewall feature, the router also provides advanced hacker pattern-filtering

protection. It can automatically detect and block Denial of Service (DoS) attacks. The router is built with

Stateful Packet Inspection (SPI) to determine if a data packet is allowed through the firewall to the private

LAN.

Domain Name System (DNS) Relay

It provides an easy way to map the domain name (a friendly name for users such as www.yahoo. com) and

IP address. When a local machine sets its DNS server with this router‟s IP address, every DNS conversion

request packet from the PC to this router will be forwarded to the real DNS in the outside network.

Dynamic Domain Name System (DDNS)

The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP

address is the WAN IP address. For example, to use the service, you must first apply for an account from a

DDNS service like http://www.dyndns.org/. More than 5 DDNS servers are supported.

Quality of Service (QoS)

QoS gives you full control over which types of outgoing data traffic should be given priority by the router,

ensuring important data like gaming packets, customer information, or management information move

through the router at lightning speed, even under heavy load. The QoS features are configurable by source

IP address, destination IP address, protocol, and port. You can throttle the speed at which different types of

outgoing data pass through the router, to ensure P2P users don‟t saturate upload bandwidth, or office

browsing doesn‟t bring client web serving to a halt. In addition, or alternatively, you can simply change the

priority of different types of upload data and let the router sort out the actual speeds.

Virtual Server (“port forwarding”)

Users can specify some services to be visible from outside users. The router can detect incoming service

requests and forward either a single port or a range of ports to the specific local computer to handle it. For

example, a user can assign a PC in the LAN acting as a WEB server inside and expose it to the outside

network. Outside users can browse inside web servers directly while it is protected by NAT. A DMZ host

setting is also provided to a local computer exposed to the outside network, Internet.

Billion 810VNTX Router

Page | 5

Rich Packet Filtering

Not only filters the packet based on IP address, but also based on Port numbers. It will filter packets from

and to the Internet, and also provides a higher level of security control.

Dynamic Host Configuration Protocol (DHCP) Client and Server

In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP)

automatically. In the LAN site, the DHCP server can allocate a range of client IP addresses and distribute

them including IP address, subnet mask as well as DNS IP address to local computers. It provides an easy

way to manage the local IP network.

Static and RIP1/2 Routing

It has routing capability and supports easy static routing table or RIP1/2 routing protocol.

Simple Network Management Protocol (SNMP)

It is an easy way to remotely manage the router via SNMP.

Web based GUI

It supports web based GUI for configuration and management. It is user-friendly and comes with on-line

help. It also supports remote management capability for remote users to configure and manage this

product.

Firmware Upgradeable

Device can be upgraded to the latest firmware through the WEB based GUI.

Rich Management Interfaces

It supports flexible management interfaces with local console port, LAN port, and WAN port. Users can use

terminal applications through the console port to configure and manage the device, or Telnet, WEB GUI,

and SNMP through LAN or WAN ports to configure and manage the device.

Virtual Private Network (VPN)

It allows user to make a tunnel with a remote site directly to secure the data transmission among the

connection. User can use embedded PPTP and L2TP client/server, IKE and IPSec which are supported by

this router to make a VPN connection or users can run the PPTP client in PC and the router already

provides IPSec and PPTP pass through function to establish a VPN connection if the user likes to run the

PPTP client in his local computer.

Billion 810VNTX Router

Page | 6

Attention

CHAPTER 2: INSTALLING THE ROUTER

Important note for using this router

Package Contents

Billion 810VNTX Router

CD-ROM containing this online manual

3 x RJ-11 ADSL/telephone Cable

Ethernet (CAT-5) Cable

Serial to Ethernet converter

Integrated surge and AC-DC power adapter (15VDC, 1.6A)

2 x detachable antennas

ADSL Micro Filter

ADSL Splitter

Quick Start Guide

Warning

Do not use the router in high humidity or high temperatures.

Do not use the same power source for the router as other equipment.

Do not open or repair the case yourself. If the router is too hot, turn off the

power immediately and have it repaired at a qualified service center.

Avoid using this product and all accessories outdoors.

Place the router on a stable surface.

Only use the power adapter that comes with the package. Using a different

voltage rating power adaptor may damage the router.

Billion 810VNTX Router

Page | 7

Device Description

The Front LEDs

LED

Meaning

Power

Both red and green LEDs lit together when power is ON.

Lit red means system failure. Restart the device or contact Billion

for support.

Lit green when the device is ready.

Ethernet Port

1X —4X

(RJ-45 connector)

Lit when one of LAN ports is connected to an Ethernet device.

Lit green when the speed of transmission is 100Mbps;

Lit orange when the speed of transmission is 10Mbps.

Flashing when data is being Transmitted / Received.

USB

Lit green when the router is connected to a USB device.

Flashing when data is received / transmitted

Wireless

Lit green when the wireless connection is established.

Flashes when sending/receiving data.

Phone 1X –2X

(RJ-11 connector)

Lit green when phone is off hook.

LINE

Lit green when the inbound and outbound calls are transmitted

through PSTN.

VoIP 1x-2x

(RJ-11 connector)

After SIP registration is complete, the LED will light up green

whenever phone 1 is off hook but will light up orange for phone 2.

Note: Orange light also means that both Phone 1 and 2 have

been registered correctly at the same time.

DSL

Lit Green when the device is successfully connected to an ADSL

DSLAM. (“line sync”).

Internet

Lit red when WAN port fails to get IP address.

Lit green when WAN port gets IP address successfully.

Billion 810VNTX Router

Page | 8

Ethernet port #4 can be used as a console port. You need a special

console connector which is included in the package to connect with the

LAN.

The Rear Ports

LED

Meaning

Antenna

Connect the detachable antenna to this port.

DSL

Connect this port to the ADSL/telephone network with the RJ-11 cable

(telephone) provided.

Line

Connect this port to the telephone jack on the wall with RJ-11 cable.

Phone

1X –2X

(RJ-11 connector)

Connect this port to an analogue phone set with RJ-11 cable.

USB

Connect the USB cable to this port.

Ethernet 1X —4X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the LAN

ports when connecting to a PC or an office/home network of 10Mbps

or 100Mbps.

Caution: Port 4 can either be LAN or Console port but not both at the same

time.

RESET

After the device is powered on, press it to reset the device or restore

to factory default settings.

1-3 seconds: reset the device

6 - 8 seconds: restore to factory default settings (this is useful when

you have forgotten the router‟s administrative password).

Note: If the reset button is pressed for more than 10 seconds the device will

need to be power cycled before normal operation can be resumed.

WPS

Push WPS button to trigger Wi-Fi Protected Setup function.

Billion 810VNTX Router

Page | 9

Cabling

One of the most common causes of problems is bad cabling or ADSL line(s). Make sure that all connected

devices are turned on. On the front panel of your router is a bank of LEDs. Verify that the LAN Link and ADSL line

LEDs are lit. If they are not, verify if you are using the proper cables.

Makesurethatalldevices(e.g.telephones,faxmachines,analoguemodems)connectedtothesame telephone line as

your router have a line filter connected between them and the wall outlet (unless you are using a Central Splitter

or Central Filter installed by a qualified and licensed electrician), and that all line filters are correctly installed in a

right way. If line filter is not installed and connected properly, it may cause problem to your ADSL connection or may

result in frequent disconnections.

Indice

Altri manuali Billion Punto di accesso wireless

Billion

Billion BiPAC 3100SN Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
