Binary HD-2CAT-1080P-130 Manuale utente
HD-2CAT-1080P-130
OWNER’S MANUAL Binary™ 2CAT Extender
>>
WELCOME TO THE BINARY™ BRAND OF PRODUCTS
This product is engineered to provide years of exceptional reliability. Binary™
is one of the most highly-regarded cable and media distribution brands available
today. We appreciate your business and we stand committed to providing our
customers with the highest degree of quality and service in the industry.
TMDS DDC
IMPORTANT SAFETY INSTRUCTIONS
1. Read and follow all instructions and warnings in this manual.
Keep for future reference.
2. Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus (including ampliers).
3. Do not install the unit near water or where moisture is present.
4. Clean with a dry cloth.
5. Unplug this apparatus during lightning storms or when unused for long
periods of time.
6. Protect the power cord from being walked on or pinched particularly at plug,
convenience receptacles, and the point where it exits from the apparatus.
7. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
8. To completely disconnect this equipment from the AC mains, disconnect
the power supply cord plug from the AC receptacle.
CAUTION: To reduce the risk of electrical shock, inspect the premises carefully.
Do not use the unit if proper equipment grounding cannot be veried.
PACKAGE CONTENTS
• (1) Transmitter
• (1) Receiver
• (4) Mounting Screws
• (8) Rubber Feet
• (1) 5V DC, 4 amp power supply unit
• (1) User manual
INTRODUCTION
The HD-2CAT-1080P-130 extends HDMI®over two Cat5e/6 cables allowing
video and audio transmission.
FEATURES
• HDMI 1.3c compliant
• Extend the transmission up to 200 ft. from the HDMI source at
HD 1080i or 720p 24-Bit on Cat6
• Extend the transmission up to 166 ft. from the HDMI source at
Full HD 1080p 24-Bit on Cat6
• HDCP compliant
• Maximize adjustable 8-level equalization control
• Uncompressed 7.1 channel digital HDMI over Cat5e/6
cable transmission
• DTS-HD Master and Dolby TrueHD audio support
• Wall-mountable housing design for easy installation
Note: The transmission distance is subject to the grade of installed cable(s),
source device, and display. Any keystone jack along the transmission path
will reduce the transmission performance signicantly.

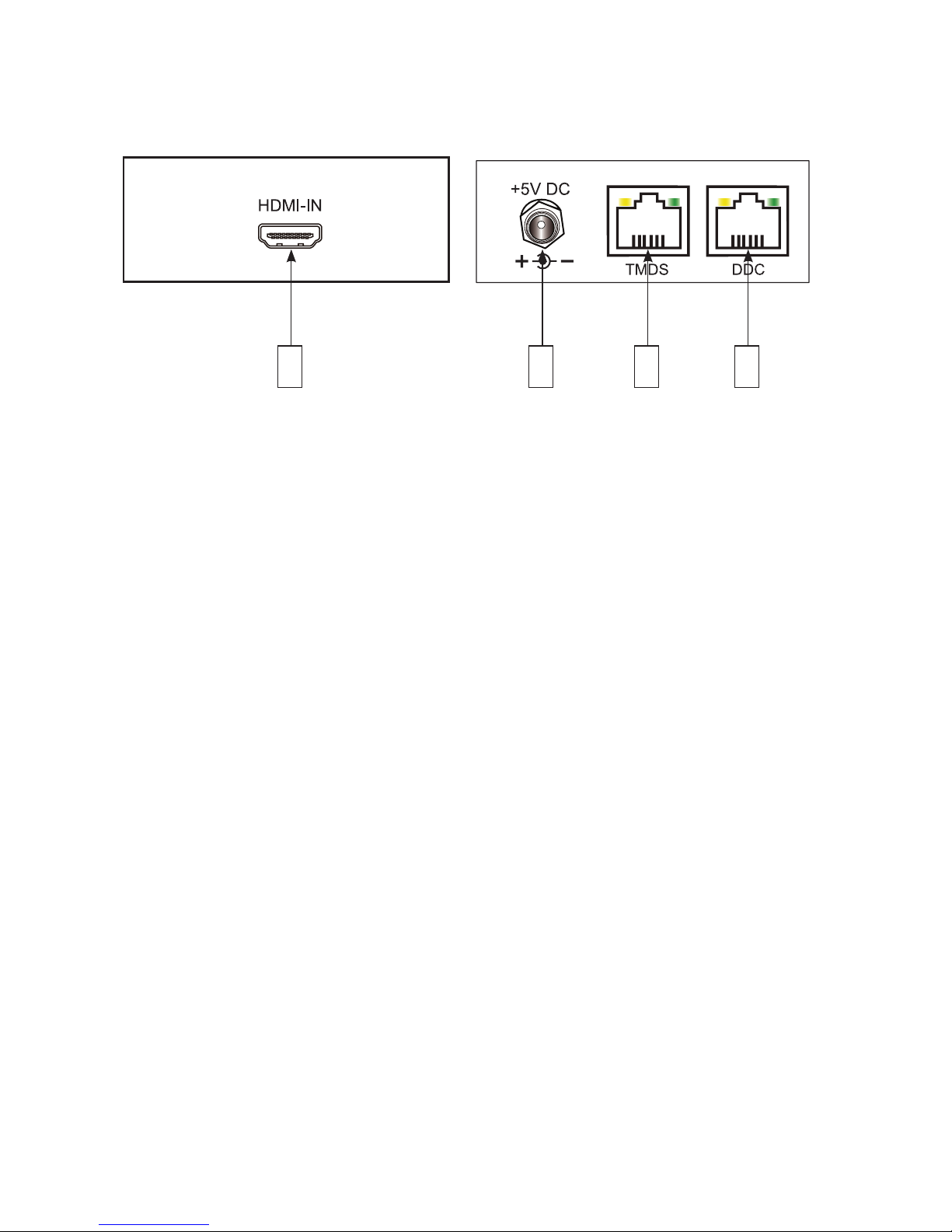

1. HDMI IN: Connect to a HDMI source with a HDMI male-to-male cable
2. Latch-locking power jack: Connect to 5V DC power supply.
3. TMDS: Transmission Minimized Distance Signal (Audio/Video)
4. DDC: Display Data Channel (Data)
TRANSMITTER
NOTE: Transmission distance up to 200 feet at 1080i on Cat6, 165 feet at 1080p
on Cat6, and 130 feet at 1080p on Cat5e (24-Bit).
1 2 3 4
INPUT PANEL OUTPUT PANEL
5. Latch-locking power jack: Connect to 5V DC power supply.
6. TMDS: Transmission Minimized Distance Signal (Audio/Video)
7. DDC: Display Data Channel (Data)
8. HDMI OUT: Connect to a HDMI display with a HDMI male-to-male cable
9. Rotary control: Adjust the 8-level equalization control to the received HDMI
signals. The HDMI signal level varies from 0 (strongest) to 7
(weakest) for respective transmission length from longest
possible range to short distance. Adjust the signal
level from 7 to 0 and stop turning the rotary switch when
the audio/video is playing normally. Inappropriate signal
level setting may cause an overpowering issue that would
shorten the product life signicantly.
RECEIVER
5 6 7 8 9
INPUT PANEL OUTPUT PANEL
SET-UP
HDMI Cable
Power
Power
HDMI Cable
Cat 5e/ Cat 6 Cables
TRANSMITTER
RECEIVER
SET-UP
INSTALLATION
1. Test all associated equipment and cables in the system for proper operation.
Turn o all power before proceeding.
2. Make sure the HDMI cables being used do not exceed 1.0M (3.28 ft) and
are at least 26 AWG. Any length longer than this may cause intermittence
issues. To ensure maximum performance, use high-quality HDMI cables
capable of transmitting 1080p signals.
3. Determine the best placement of the unit based on how it will be incorporated
into the system design. Leave enough room to reach the EQ adjustment after
installation.
4. Make sure both CAT5e or CAT6 cables are properly terminated (EIA/TIA-568B is
recommended) and connected as shown in the diagram to the left. For proper
connection, see pin-out diagram below. Both Cat cables must be connected.
5. Connect the HDMI cables as shown in the diagram to the left.
6. Turn on all associated equipment, plug in the 5V DC power, to either the
transmitter or receiver, and verify that the signal LEDs are illuminated.
Note: There is no need to power both units, only one power connection
is needed.
7. If a ickering, blinking, or snowy image is seen, adjust the EQ dial to improve
the cable signal. An EQ set to zero “0” stands for the strongest signal for longer
cable lengths, while 7 is for short cable lengths. Try adjusting the EQ from 7 to
0 until picture is clear.
8. Once you have a picture, turn clockwise towards 7 until you no longer have a
picture; adjust counter clockwise until picture comes back. This will ensure you
have reached the optimal setting.
• Pin 1 - White / Orange
• Pin 2 - Orange
• Pin 3 - White / Green
• Pin 4 - Blue
• Pin 5 - White / Blue
• Pin 6 - Green
• Pin 7 - White / Brown
• Pin 8 - Brown
Gold Pins Facing Up
Cat5e/6 EIA/TIA-568B
SPECIFICATIONS
Technical Transmitter Receiver
HDMI Compliance HDMI 1.3c
Video Bandwidth Single-link 225MHz (6.75Gbps)
Video Support 480i / 480p / 720p / 1080i / 1080p up to 36-bit color
HDMI over UTP Transmission
(24-bit)
Full HD (1080p)-130ft (CAT5e) / 165ft (CAT6)
HD (720p/1080i)- 164ft (CAT5e) / 200ft (CAT6)
Audio Support Surround sound (up to 7.1ch) or stereo digital audio
Signal Equalization 8-level digital control at RX
Input TMDS Signal 1.2 Volts (peak-to-peak)
Input DDC Signal 5 Volts (peak-to-peak, TTL)
Input 1x HDMI 2x RJ45
Output 2x RJ45 1x HDMI
HDMI Connector Type A (19-pin female)
RJ45 Connector WE/SS 8P8C 2 LED indicators
Rotary Control Switch — Signal level
Mechanical
Housing Metal enclosure
Dimensions (L x W x H) 3.3” x 3.6” x .94”
Weight .70 lbs each
Power Supply 5V 4A DC
Power Consumption 1.5 Watt (max)
*Note: Specications are subject to change without notice. Dimensions and weight are approximate.
WARRANTY
2-Year Limited Warranty
This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs
on all components found to be defective in material or workmanship under normal conditions of use.
This warranty shall not apply to products which have been abused, modied or disassembled. Products
to be repaired under this warranty must be returned to SnapAV or a designated service center with
prior notication and an assigned return authorization number (RA).
For Technical Support: 1-866-838-5052
100117
