USER GUIDE

Before operating this set,

please read these instructions carefully.

Concept Combo 2300

CORDED AND

DIGITAL CORDLESS

TELEPHONE

UK BTP Ver 3, Dec 07

Note:This guide is for the corded part only. For instructions on how to use

the cordless part see the "Combo 2300 Cordless Handset" user guide.

Importantnote —emergencycalls

TheCC2300 cordless handset isnot designed for

making emergencycallswhenthe mains power fails.

But,ifthere’s a powerfailure, you can use the base

unit telephone tomake an Emergency Call, by lifting

up thecorded handsetinstead of using the

speakerphone.

*** Before operating thisset, pleasereadthese

instructions carefully.

If youneed help …..

Binatone Helpline (forUKonly)

Monday toFriday from9:00am to 5:00pm

Tel: 0845 345 9677

**Please note thatallcalls are charged at localrate

Orvisit our website:

http://www.binatoneonline.com

Unpacking yourCC2300system

In the box,you willfind:

Ƶthe base unit telephone

Ƶa telephone linecablefor the baseunit

Ƶa mains power adapterfor the baseunit

Ƶthe cordless handset(uptofive, depending on

which CC2300 system you’ve bought)

Ƶtwo 1.2V 550mA rechargeable batteries and a

battery compartment cover for each handset

Ƶup to five charger pods, each with a mains power

supply for multi handset systems

Ƶtwo user guides, one for the corded phone and one

for the cordless handset.

Keep the packaging materials in a safe place in case

you later need to transport the unit.

Keep your sales (till) receipt, which is your

guarantee.

Note: After lifting the handset you will need to wait

for several seconds to get dial tone, before keying in

the telephone number to make the call.

Also you cannot dial numbers from memories when

the mains power is off.

Binatone Help Line : 0845 345 9677 1

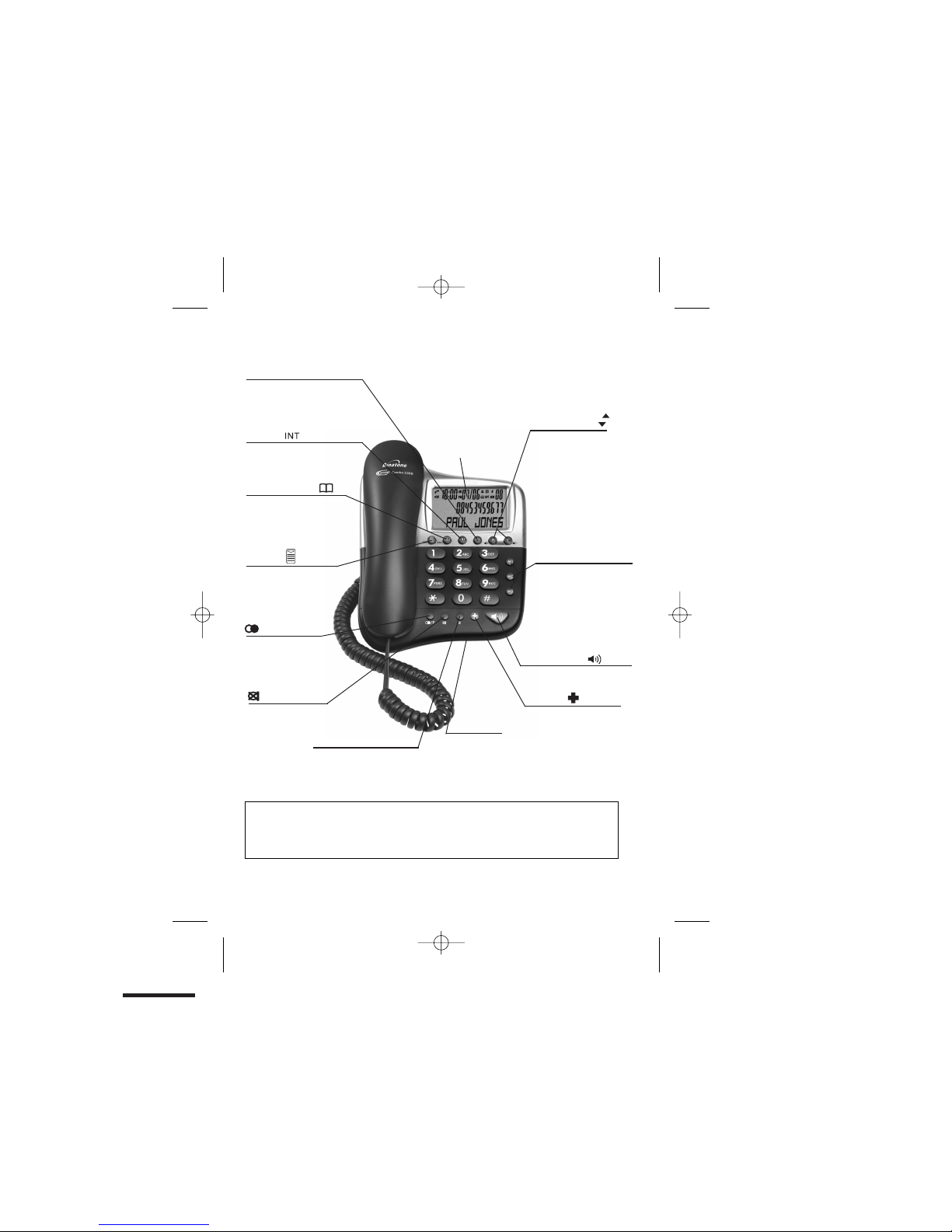

LCD Display

Menu/Ok

Press to access menu

Pressas “OK”keyto

confirm your operation

Press to mute/

un-mute microphone

Phonebook/Back /C

Press to access phonebook

records

Press to exit present menu

R(Recall)

You mayneedthisfunction

if your phone is connected

to a PBX, or if you use BT

SOS Call

Press and hold for 2 seconds

to activate the SOS call

Speakerphone

Press to call or answer a call

by using the speakerphone.

Microphone

Forspeakerphone

and answering

Where to find it

Important:

When the instruction simply say ‘press’ a button, this means you should press it briefly then

release it.

When the instruction say ‘press and hold’ a button, this means you should keep it pressed

until the display changes or you hear a tone.

Pres

messages, memos,

stored numbers or

Call

Delete(DEL)

s to delete

er Display records.

Intercom

Press to make an intercom

Up-Down(CDS)

Press to access the

Caller display records

and scroll through them

Press to change earpiece

speakerphone volume

Press to scroll through the

lists and menu options

Press to redial the

last number

Press while dialing a

number to insert a pause

Calling Features.

machine recording.

during acall

MUTE

M1,M2, M3

Press to call numbers

stored on One Touch

memory

One-touch Memory

call or to transfer a call

Binatone Help Line : 0845 345 9677 2

What's on the display?

The display of your telephone contains one line with the Time/Date

and Icons, one line of numbers and one line of text.

What do the symbols mean?

Number field: showsthe telephone

numbers

Character field: showsthe Menu,

name and status of a call

Talk x This will display when the user picks up the

handset

Ring Off x This will display when the ringer is set to

OFF

Phonebook x This will display when you are in the

phonebook menu

Voicemail x

Repeat CID x This will display when the same caller has

called more than once

New CID x This will display when there is a new CID

entry or if one is being viewed

Sequence x Indicates the sequence number of the CID

record

Hands free/speakerphone x This will display when the speakerphone is

in use

A.M. x This will display if it is A.M., in the 12 hour

clock mode

P.M. x This is display if it is P.M., in the 12 hour

clock mode

This will display when you have a new Voice

Mail message. (This is a caller id service and

is not usually available from UK network

providers.)

Binatone Help Line : 0845 345 9677 3

Contents

Page

Where to find it 1

What’s on the display? 2

x What the symbols mean? 2

Read First before Use 5

x Choosing a site for base unit and

charger pod 5

x Mains power connection 5

x If you have a broadband line 5

Installation and Set-up

x Choose a suitable site for the base unit

x Connect the mains power lead and the

telephone line cord into the base unit 6

x Plug the main adaptor into your wall

socket 6

x Connect the base unit to the telephone

line 6

Desk/Wall mount installation 7

Desk Mount 7

Wall Mount 7

Basic settings

x To set Dateand Time9

Making and answering calls 10

x To make call

x

Tomake acall from redial list 10

x To make a call from caller display (CID)

list10

x To answer a call 10

x

ToMute orun-mute themicrophone11

x To change the earpiece or speakerphone

volumeduring a call11

x

Emergencycallwithoutmainspower

Memory/Phonebookmanagement 12

x To create a contact in your phonebook

Page

x

To delete a contact in the phonebook 13

x To delete all contacts in your phonebook

x

To edit a contact in yourphonebook 14

x To store a last number redial in your

phonebook

x Making calls from the phonebook

x

Reviewing phonebookmemorystatus

x

Direct MemoryCall

x

To Store the telephonenumber

x

To Speed-Dial the telephonenumber

x New CID log 17

x

To review the CID li

x To delete a Caller ID record 18

st 17

x

To delete all Caller ID records 18

x To Store a Caller ID contact in

phonebook18

Ringer volume, and melody 19

x To change ringer volume 19

Using multi-handset 21

x To make intercom calls 21

x To Transfer intercom call 21

x To set up a three-way conference 22

SOS call function 25

x How SOS call functipn works 25

x How to terminate SOS call function

x To Set SOS number 25

x

Caller Display (CDS)/Caller ID (CID) 17

Binatone Help Line : 0845 345 9677 4

Advanced use ofyourPhone26

x ToTurnkey tones on/off 26

x To Set flash (Recall)time26

x To Set Dialling Mode (Tone/Pulse)27

x To Set Base todefault settings27

x To Change thePIN code28

Troubleshooting 29

Cleaning and Care 31

Declaration of Conformity31

Guarantee and Service 32

Technical Details 33

Connection and conditions for use.

You can connect your Concept Combo 2300 to a direct exchange line (DEL) - a line

connected to a local exchange, with its own phone number; to an extension on an approved

compatible PBX. Do not connect the Concept Combo 2300 as an extension to a payphone.

The ringer equivalence numbers (RENs) of all instruments (phones, fax machines, etc.)

connected to an exchange line must not add up to more than 4 - otherwise, one or more

of them may not ring and/or answer calls correctly. The Concept Combo 2300 has a

REN of 1, and most other telephones have a REN of 1 unless marked otherwise.

BinatoneHelpLine : 0845 345 9677 5

Read FirstBefore Use

Choosing a site for thebase unitandcharger pod

The base unit and charger pod(s) should be placed on a level surface, ina position where:

x

the mains adapter plugwillreach aneasily accessible230-VAC switched mains

supplysocket- never tryto lengthen the mains power cable

x

the baseunit'stelephoneline cable will reachyour telephone line socket or

extension socket

x

it is not closeto asink, bathor shower, or anywhere else where it might get wet

x itisnot close to otherelectricalequipment-fridges,washing machines,

microwaveovens,fluorescentlights, televisions etc.

x

if the basecomes intocontactwith liquids,disconnectitpromptlyand use a soft

clothtodryit; if you believe thattheliquidhas seeped into theunit, donot

reconnect the basestation. Contact the Binatonehelpline.

x

it is away fromhot, humid conditionsand strong sunlight

Mainspower connection

IMPORTANT- The CC2300 base unit mustbe used with the mains adapter supplied

withthe unit.

Using any other adapter will result in non-compliance with EN60950, and will

invalidate any approval given to this apparatus.

If you have a Broadband line

If you connect your telephone to a line with a broadband connection, you will need to

insert a micro-filter between the telephone and the telephone line; otherwise you may

get interference between the telephone and the broadband, which could cause

problems.

In a home with broadband, every telephone must have a micro-filter connected, not

just the one at the telephone point that your modem is connected to. If you need more

broadband micro-filters, contact your broadband supplier.

Binatone Help Line : 0845 345 9677 6

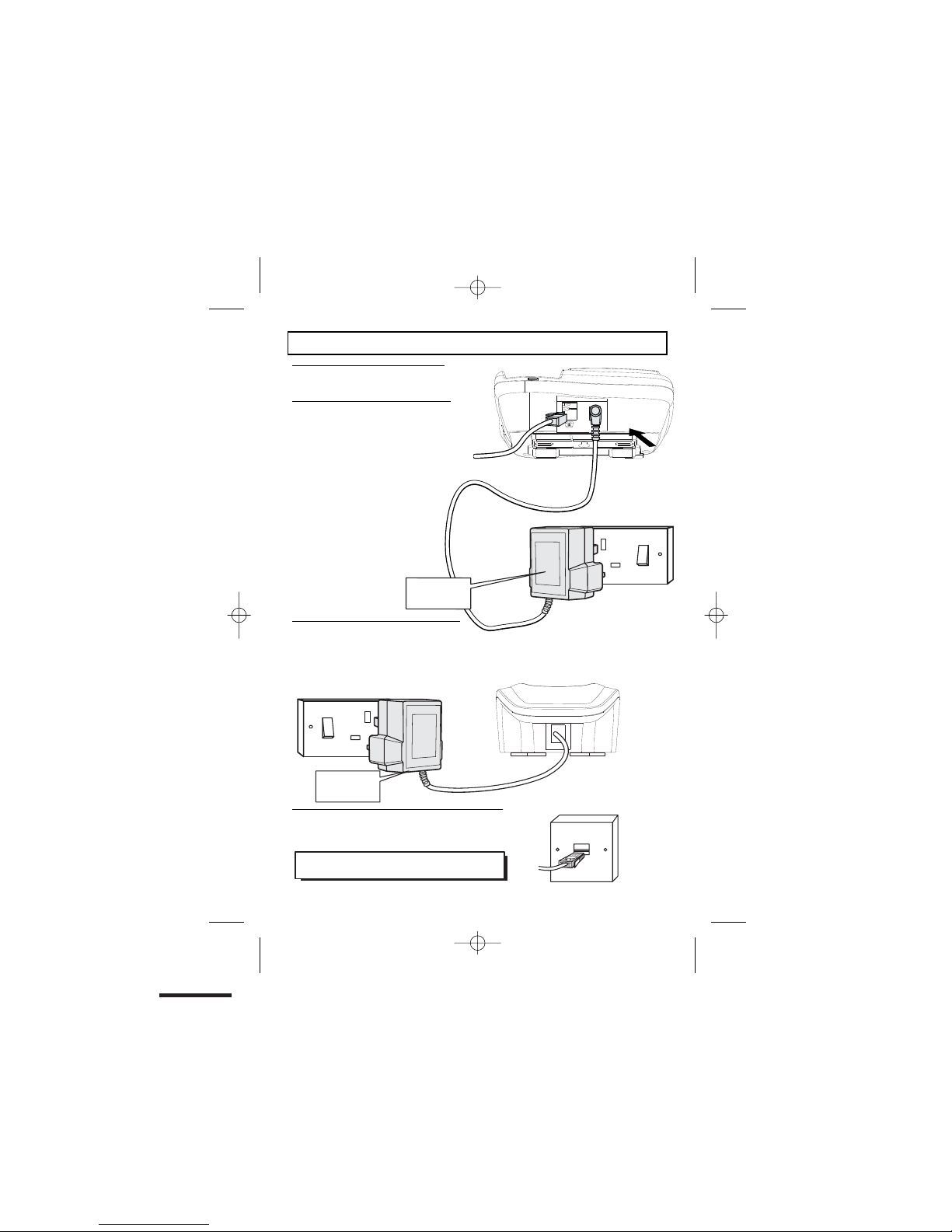

Installation and Set-up

1/ Choose a suitable site for the

base unit (see page 5)

2/ Connect the mains power lead

and the telephone line cord into the

base unit

Plug one end of the telephone line

cord into the jack on the back of the

base (the other end will plug into the

telephone wall socket later)

3/ Plugthe mainsadaptorintoyourwall

socket. If you have one or morecharger pods,

plugthemainsadaptors accordingly

Makesurethat the 230VAC, 50hz mains socket is switched OFF

whenyouplugthe mains adapter into the socket.

4/ Connect the base unit to the telephone line

Insert the telephone line plug into the socketthen

See the note

on page 5

See the note

on page 5

switch mains power back ON.

Make sure the mains socket is switched on —

the phone won’t work without electrical power

BinatoneHelpLine : 0845 345 9677 7

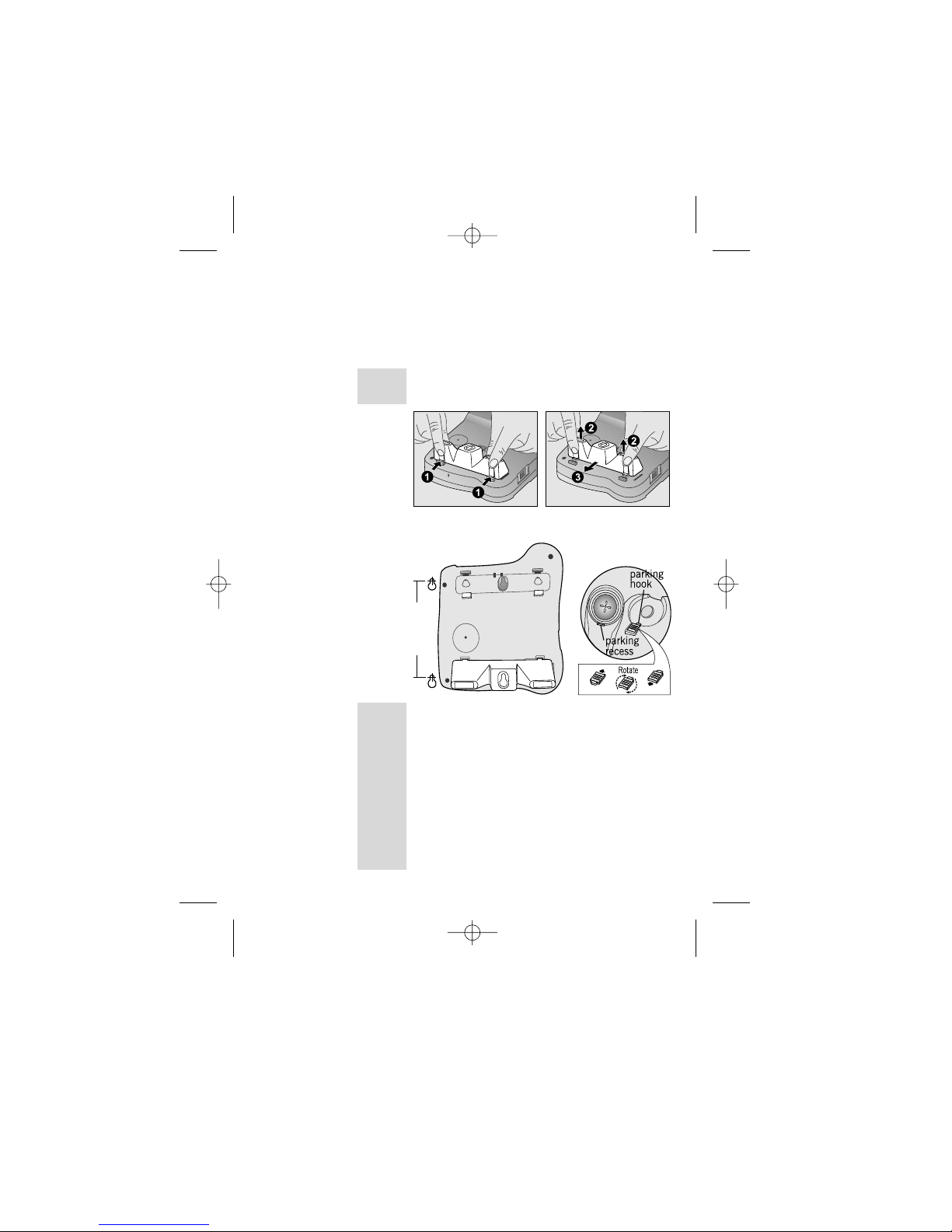

Desk/Wallmount installation

To place the CC2300 on a desk, connect

the stand to the bottom of the phone in the

slots near the rear of the base as shown below.

Desk Mount

Insert the rigid clips of the stand into the slots

on the bottom of the phone (nearer the centre

of the base ). Press down firmly until the

flexible clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2)pull back the stand, and then (3)

slide up and forward as shown below.

To place the CC2300 on a wall, connect the

stand to the bottom of the phone in the slots

near the front of the base as shown below.

Wall Mount

Desk/Wall mounting continued...

Insert the rigid clips of the stand into the slots

on the bottom of the phone (nearer the centre

of the base). Press down firmly until the flexible

clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward as shown below.

Mark two points on the wall that are 77 mm

apart to lay the fixing centers as shown below.

BE CAREFULto check that there are no

electrical wires hidden in the wall. Fix two screws

at the marked locations, leaving approximately

7mm between the wall and the the screw head.

Hang the telephone on the screws using the

wall mount slots. You may need to remove the

telephone from the wall and tighten the screws

so that the telephone is securely fixed and does

not wobble. Place the Handset on the cradle with

the parking hook on the cradle arranged to fit

in the parking recess under the earpiece on

the Handset.

BinatoneHelpLine : 0845 345 9677 8

77 mm

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Binatone Telefono senza fili

Binatone

Binatone SYMPHONY 2600 Manuale utente

Binatone

Binatone Brick 4home edition Manuale utente

Binatone

Binatone iDECT Q2i System Manuale utente

Binatone

Binatone iDECT C3i system Manuale utente

Binatone

Binatone IDECT V2 Manuale utente

Binatone

Binatone DP270 Manuale utente

Binatone

Binatone Vesta 1305 Call Blocker Manuale utente

Binatone

Binatone E3300 Manuale utente

Binatone

Binatone Euro Elite 2825 Twin Manuale utente

Binatone

Binatone E800 Manuale utente

Binatone

Binatone 1505 Manuale utente

Binatone

Binatone Elite 2025 Manuale utente

Binatone

Binatone ICARUS 1500 Manuale utente

Binatone

Binatone DP411 Manuale utente

Binatone

Binatone Eclipse Plus Manuale utente

Binatone

Binatone ICARUS 200 SYSTEM Manuale utente

Binatone

Binatone ICARUS 1210 Manuale utente

Binatone

Binatone iDECT Eclipse Plus Single Manuale utente

Binatone

Binatone 2020 Manuale utente

Binatone

Binatone e820 System Manuale utente

Binatone

Binatone IDECT V2I Manuale utente

Binatone

Binatone The brick Manuale utente

Binatone

Binatone Fusion 2815 Manuale utente

Binatone

Binatone TRIPLE 3725 Manuale utente

Manuali Telefono senza fili popolari di altre marche

3Com

3Com NBX Manuale utente

Panasonic

Panasonic KX-TGK210HK Manuale utente

Panasonic

Panasonic KX-TCA181EX Manuale utente

BT FREESTYLE 3200 Manuale utente

AT&T

AT&T CL84102 Manuale utente

BREZZICNI

BREZZICNI CL-3622 Manuale utente

Panasonic

Panasonic KX-TG1831NZ Manuale utente

Panasonic

Panasonic KX-TG7301E Manuale utente

Furuno

Furuno FM-4721 Manuale utente

Sanyo

Sanyo CLT-J70 Manuale utente

Amplicomms

Amplicomms BigTel 201 Manuale utente

GE 26992 Manuale utente

AT&T

AT&T E1812B Manuale utente

Sanyo

Sanyo CLT-670 Manuale utente

GE 15432970 Manuale utente

Curtis

Curtis TC595 Manuale utente

Gigaset

Gigaset Gigaset 3000 Micro Manuale utente

Poly

Poly VVX D230 Guida all'installazione
