Big Button Corded phone with

Digital Cordless Caller Display

Telephone

SC2050 Big Button Combo telephone

Important note:

The Corded Handset Phone can still make

emergency calls if the mains power fails.

Binatone Helpline

The Binatone Help Line is available from 9.00 am to 5:00pm,

Monday to Friday on

0845 345 9677

**Please note that all calls are charged at local rate

Important note - emergency calls

The SC2050 Big Button Combo cordless handset is not

designed for making emergency calls when the mains

power fails. If you ever need to call Emergency Services

during a power failure, use the corded base telephone,

lifting the handset rather than using the speakerphone.

If you need help ...

The Binatone Help Line is available from 9.00 am to

5.00 pm, Monday to Friday, on

0845 345 9677

Unpacking your phone

In the box are:

none or more cordless handsets (depending on the

system you have purchased)

none base telephone (which is also the base unit for

the cordless handset), including a corded handset

na mains power lead and adapter for the base telephone

na telephone line cable for the base unit telephone

na rechargeable battery pack and a battery

compartment cover for each handset

ndepending on the system you have purchased, up to

four charger pods, each with mains power lead and

adapter attached

Keep the packaging materials in a safe place in case

you later need to transport the unit.

Keep your sales (till) receipt, which is your guarantee.

Charging batteries for the first time

Before you start to use your cordless telephone, make

sure that the battery is fully charged for 15 hours.

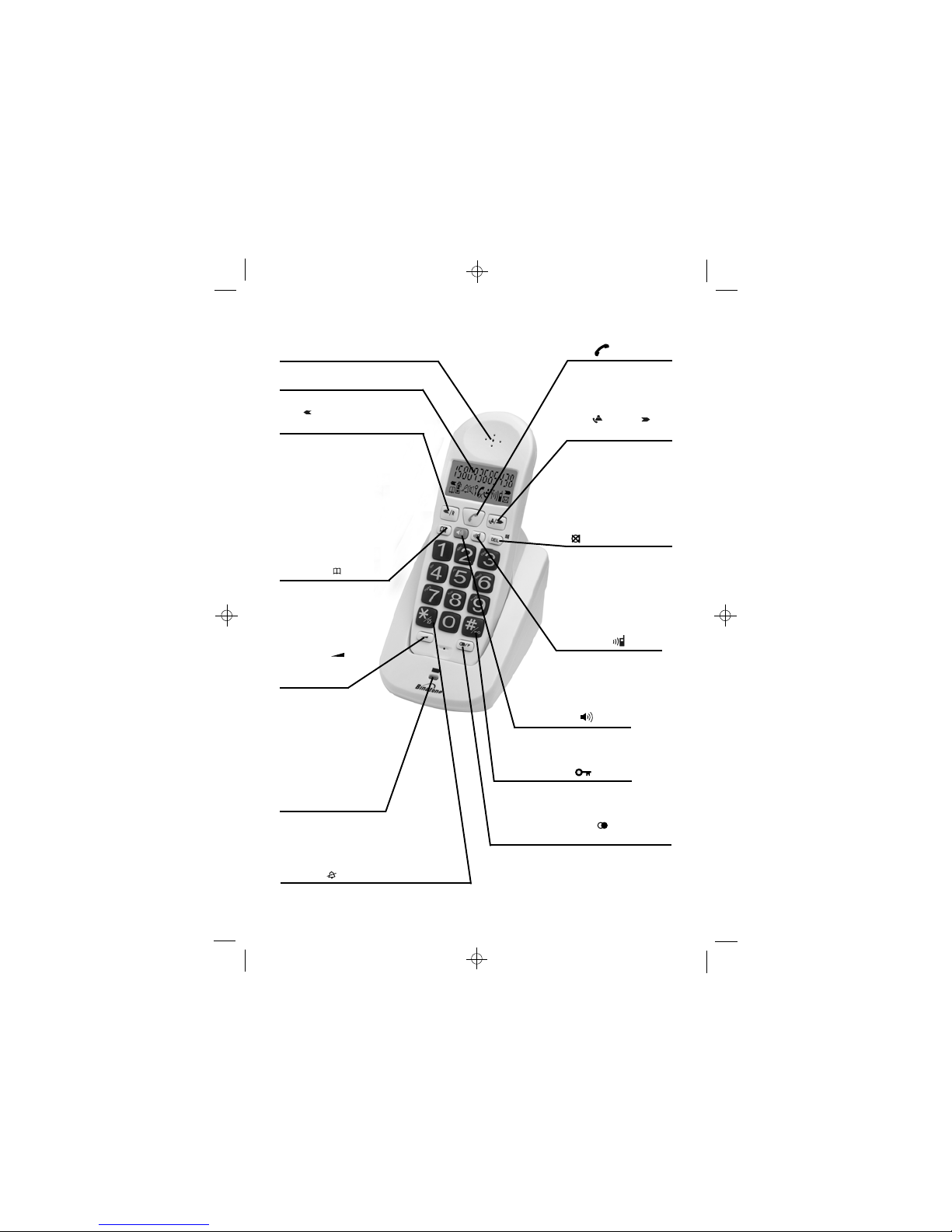

Where to find it - the cordless handset

Earpiece

VOLUME /

MELODY

button

Press and hold to

change the handset

ringer melody.

Press to adjust the

handset ringer volume.

During a call, press to

adjust the earpiece or

speakerphone volume. #/Keypad lock button

In idle mode, press and hold to lock

or unlock the keypad.

Last number redial /Pause P

button

In idle mode, press to view the last 3

phone numbers you called.

In dialling mode, press to insert a

pause (you may need this function if

your phone is connected to a PBX)

MEMORY button

Press to store numbers

in the Phone Book,

and to make calls

to stored numbers.

*/Ringer button

In idle mode, press and hold to turn

the handset ringer on or off.

LCD Display

Left /Recall

button

Press to move up option lists.

During a call, press to use the

Recall function. You may need

the Recall function if your

phone is connected to a PBX.

Talk button

Press to make or

answer a phone call.

Press to end a call.

CHARGE light

Comes on steadily when

the handset battery is

being charged.

Intercom button

Press to make an

intercom to the base or

another handset (if you have

more than one handset).

Handsfree button

During a call, press to switch

the speakerphone on or off.

CID /Right

button

In idle mode, press

to review the Caller

ID list.

Press to move down

option lists.

DELETE DEL/Mute

button

During a call, press to

mute the mouthpiece.

Press to delete an

option or to clear

digits from the

display.

3Binatone Help Line: 0845 345 9677

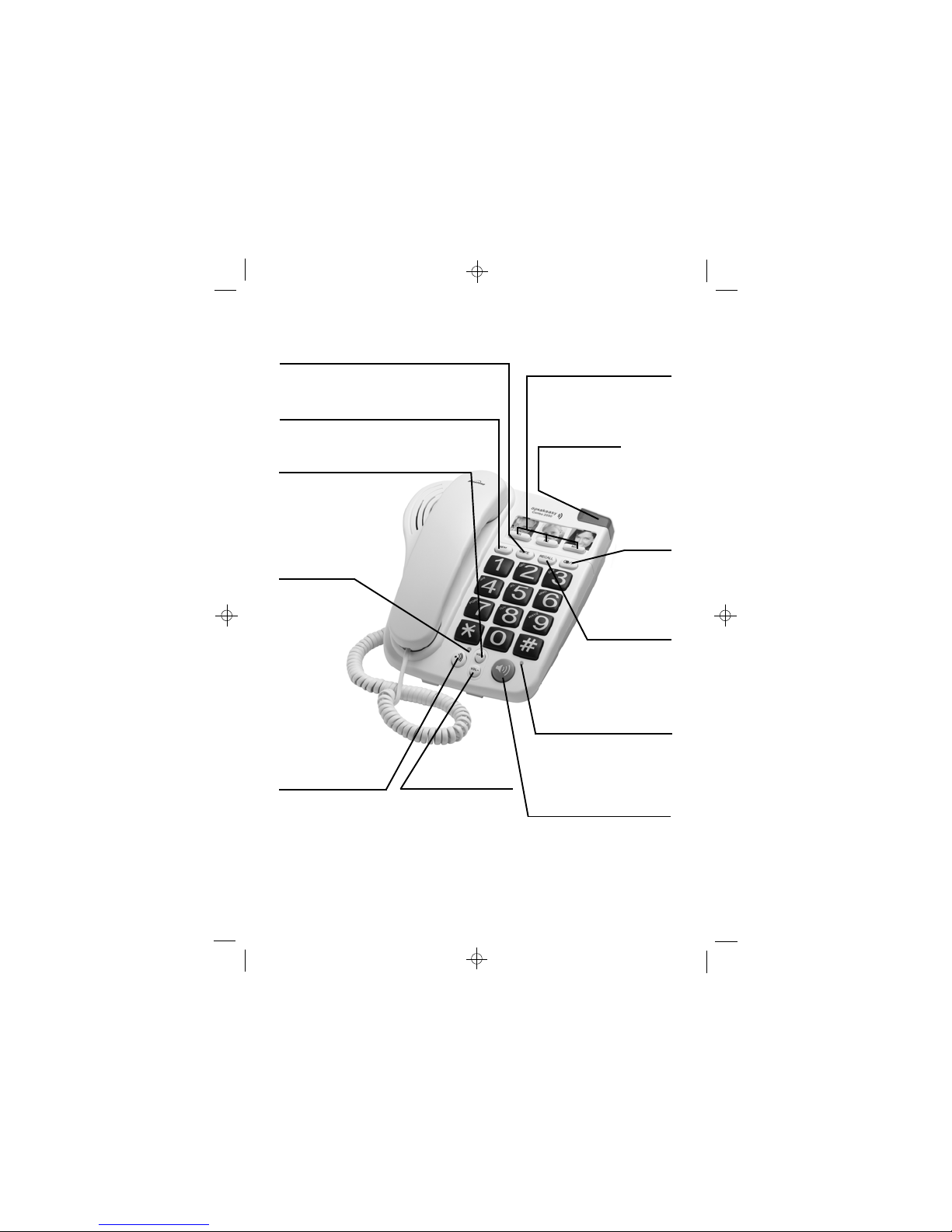

Where to find it - the base telephone

RINGING light

Flashes when the phone

is ringing for an incoming

call.

M1, M2 and M3 one-

touch memory buttons

For storing important

numbers so you can make

one-touch calls to them.

MEM (Memory) button

Press to store numbers in memory, and

to make calls to the stored numbers.

VOL+/SET RINGER MELODY button

During a call, press to increase

the earpiece or speakerphone

volume.

In idle mode, press and

hold to program the

base telephone ringer

melody.

IN USE light

Flashes when

the telephone

line is in use or

the phone is

ringing.

PAGE/INTERCOM

button

In idle mode, press

briefly to make the

cordless handset ring.

During a call, press

and hold to make an

intercom call.

LAST NUMBER

REDIAL/

PAUSE

button

In dialling

mode, press

to redial the

last number

you called.

RECALL button

You may need this

if your Big Button

Combo is connected to

a PBX, or if you use

BT’s Select Services.

SPEAKERPHONE button

Press to make, answer or

end a call using the

speakerphone.

MUTE button

Press during a call to mute the mouthpiece or

microphone so the other person can’t hear you.

Speakerphone/Mute light

The light comes on when

the speakerphone is in use,

and flashes when you press

the MUTE button.

VOL-/SET RINGER

VOLUME button

During a call, press to

decrease the earpiece

or speakerphone

volume.

In idle mode, press

and hold to program

the base telephone

ringer volume.

Contents

Information on the display 6

Read these notes first 7

Choosing a site for the base

telephone and charger pod, 7

Radio signals between handset

and base unit, 7

Connection and conditions

for use, 7

Mains power connection,8

Electrical safety, 8

Installation and set-up 9

Before you start11

Interference, 11

‘Out of range’ warning, 11

BASE TELEPHONE

Making and answering calls 12

To switch between the handset

and the speakerphone, 12

Last Number Redial, 12

To mute the mouthpiece or

microphone, 13

To adjust the volume, 13

Ringer volume, 13

Ringer melody, 13

Memory dialling 14

To store a number in memory, 14

To make a one-touch memory

call, 14

To make a two-touch memory

call, 14

CORDLESS HANDSET

Making and answering calls 15

The handset’s speakerphone, 15

Last Number Redial, 16

To mute the mouthpiece, 16

To lock the keypad, 16

Earpiece volume, 17

Ringer volume, 17

Ringer melody, 17

Transferring calls between the base

telephone and the cordless

handset 18

From base telephone to cordless

handset, 18

From cordless handset to base

telephone, 18

To page the cordless handset, 19

To make an intercom call, 19

CORDLESS HANDSET -

ADVANCED FEATURE

Memory dialling 20

To store a number, 20

To make a memory call, 21

To delete a number from

memory, 21

Caller Display 22

To check Caller Display records, 22

To return a call, 23

To store a Caller Display record in

memory, 23

To delete a Caller Display

record, 23

Multi-handset use 24

To make an intercom call, 25

To end an intercom call, 25

To transfer a call between

handsets, 25

To shuttle between two calls, 26

Conference calls, 27

New Call tone, 27

Registering new handsets 28

To register a handset, 28

To remove (de-register)

all handsets, 29

Contents

GENERAL INFORMATION

Troubleshooting 28

Cleaning and care 33

Guarantee and service 34

Technical details 35

Index 36

Declaration of conformity 37

Binatone Help Line: 0845 345 9677 5

GENERAL INFORMATION

Troubleshooting 30

Cleaning and care 34

Guarantee and service 35

Technical details 36

Declaration of conformity 37

Comes on steadily when your handset is within range of the

base unit. It flashes if you go out of range.

Signal

level

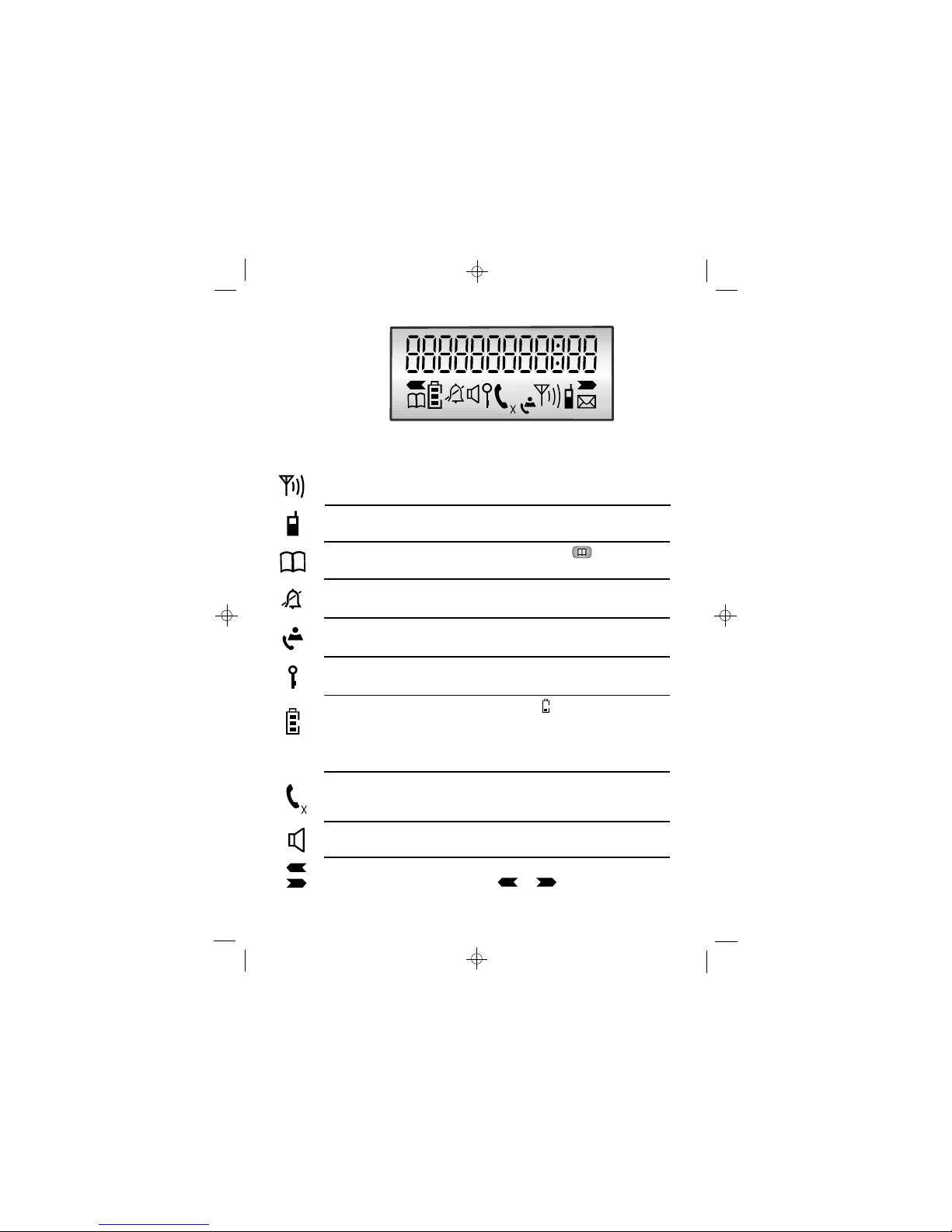

What the symbols mean

Appears when you make an intercom call to another

handset.

Intercom

call

Appears when you press the MEMORY button to store

a number in memory or to make a call to a stored number.

Memory

Indicates the handset ringer is turned off.

Flashes when you have received new call/s. On steady when

there are only old calls in the calls list.

Caller ID

(CLIP)

Appears when the keypad is locked.

Keypad

lock

When this shows nearly empty ( ), put the handset on

the charger pod to charge the batteries.

While the handset is on the charger pod, the bars on this

symbol move continuously, even when the batteries are fully

charged.

Battery

charge

On steady when the handset is on an outside call. Flashes

when there is incoming ringing.

The appears when the microphone is muted.X

Phone

Appears when the Handsfree function is turned on.

Speaker-

phone

Ringer Off

Left/Right

arrow

When a number is too long for the display, these show

that you can press the or buttons to scroll.

Read these notes first

If you have a Broadband line

If you connect your telephone to a line with a broadband

connection, you will need to insert a microfilter between

the telephone and the telephone line, otherwise you may

get interference between the telephone and the

broadband, which could cause problems.

In a home with broadband, every telephone must have a

microfilter connected, not just the one at the telephone

point that your modem is connected to. If you need more

broadband microfilters, contact your broadband supplier.

The base telephone and charger pod(s) should be placed

on a level surface, in a position where:

nthe mains adapter plug will reach an easily accessible

230-V AC switched mains supply socket - never try

to lengthen the mains power cable

nthe base unit’s telephone line cable will reach your

telephone line socket or extension socket (the charger

pod does not have a telephone line connection)

nit is not close to another telephone — this can cause

radio interference

nit is not close to a sink, bath or shower, or anywhere

else where it might get wet.

if the base comes into contact with liquids,

disconnect from the mains power and the telephone

line and use a soft cloth to dry it;

if you believe that the liquid has seeped into the unit,

Choosing a site

for the base

unit and

charger pod

Connection and conditions for use:

You can connect this phone to a direct exchange line

(DEL) or to an approved compatible private exchange

(PBX). Do not connect the Big Button Combo as an

extension to a payphone.

The ringer equivalence number (REN) of all instruments

(phones, fax machines, modems, etc.) connected to an

exchange line must not add up to more than 4, otherwise

one or more of them may not ring and/or answer calls

correctly. The Big Button Combo REN=1, and most other

telephones have a REN=1 unless otherwise marked.

To use your cordless handset and base unit (part of the

base telephone) together, you must be able to establish a

radio link between them. Be aware that:

nany large metal objects, like a refrigerator, a mirror,

filing cabinet etc, between the handset and the base

unit may block the radio signal.

nother solid structures, like walls, may reduce the

signal strength.

Radio signals

between

handset and

base unit

If the sound quality gets worse as you move around

while on a call, this is probably caused by interference

between the cordless handset and the base unit, perhaps

because you are too near to another phone or other

electrical equipment.

Move to a different position to clear the interference. If

you do not move, it might cause a short break or your

call may be cut off.

If you hear a warning tone during a call on your cordless

handset, and the sound in the earpiece becomes faint or

distorted, you may be going out of range of the base unit.

Move nearer to the base unit within 20 seconds, until the

warning tone stops. Otherwise, your call may be cut off.

IMPORTANT - the Big Button Combo base telephone

and charger pod must be used with the mains adapters

supplied with them. Using any other adapter will result

in non-compliance with EN60950, and will invalidate

any approval given to this.

Interference

“Out of range”

warning

Mains power

connection

do not reconnect the base station. Follow the same

procedure for your handset after removing the internal

batteries.

nit is not close to other electrical equipment — fridges,

washing machines, microwave ovens, fluorescent

lights, televisions etc.

nit is away from hot, humid conditions and strong

sunlight.

The base telephone can be wall mounted if you prefer,

using the template supplied.

Installation and set-up

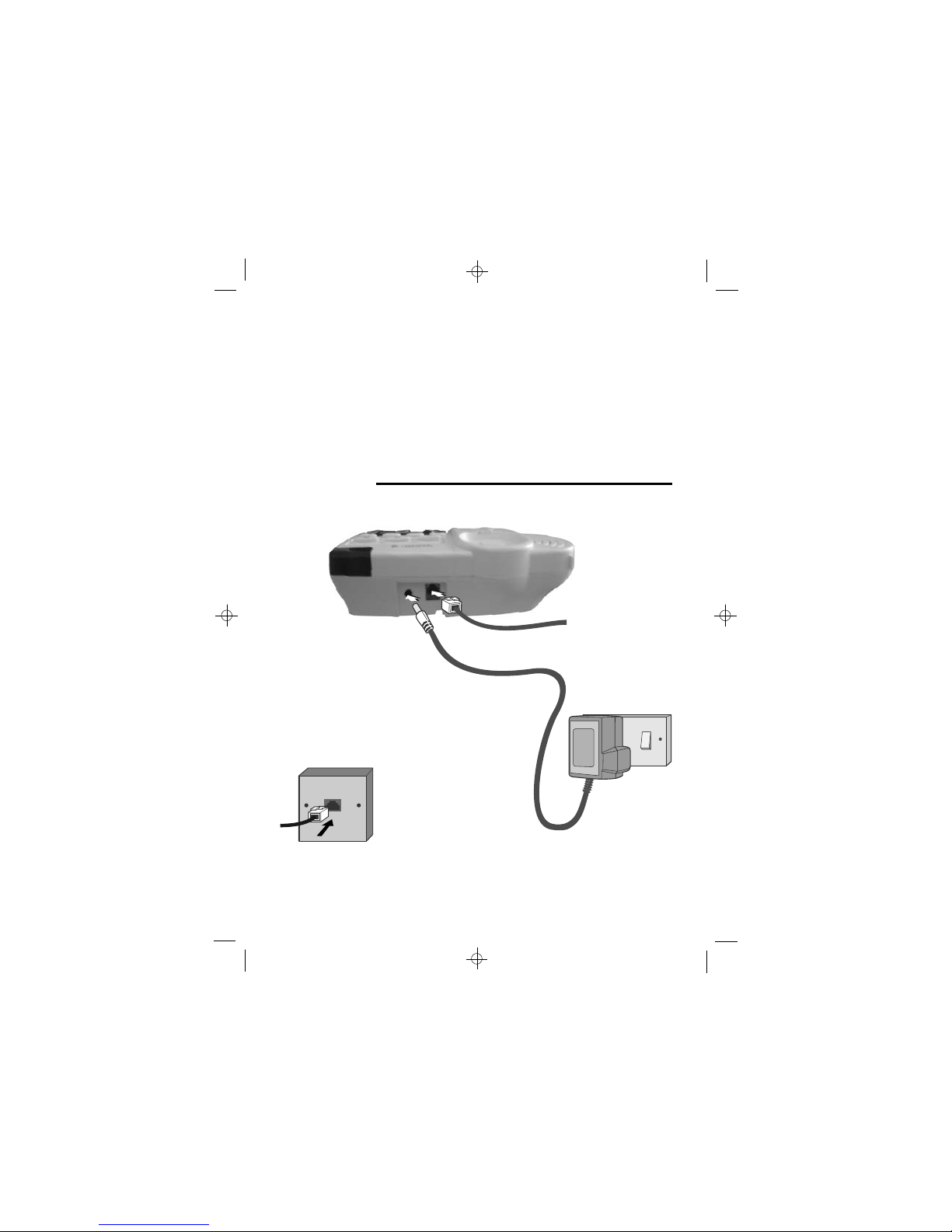

1Choose a suitable location for the base telephone

See page 7

2Connect the mains

power lead and the

telephone line cord

into the base unit

3Plug the mains power adapter into a

switch on the socket set to OFF

Use only the

telephone line cord

supplied with your

Big Button Combo

- do not use any

other telephone

line cord.

ONLY use the rechargeable battery pack supplied with

the cordless handset.

DO NOT use non-rechargeable batteries - they may burst

and cause damage to your telephone.

CAUTION: Risk of explosion if replaced by an incorrect

battery type. Dispose of used batteries according to the

instructions.

Use only with Ni-MH AAA size 2.4V 500mAh

rechargeable battery pack.

Battery Safety

- Cordless

handset

4Connect the base

telephone to the

telephone line

Insert the telephone

line plug into the socket

as shown.

NOTE: the charger pod does not have a connection to the telephone

line.

2 0 V AC, 50 Hz mains socket, with the3

Indice

Altri manuali Binatone Telefono

Binatone

Binatone 433 Manuale utente

Binatone

Binatone Trend LCD Manuale utente

Binatone

Binatone DECT Solo Single Manuale utente

Binatone

Binatone Speakeasy 17 Manuale utente

Binatone

Binatone Cliptel 50 Manuale utente

Binatone

Binatone DSR-3716PA Manuale utente

Binatone

Binatone Veva 1210 Manuale utente

Binatone

Binatone Smart 66 Manuale utente

Binatone

Binatone Trend 0119 Manuale utente

Binatone

Binatone Caprice 670 Manuale utente

Binatone

Binatone Speakeasy 6 Manuale utente

Binatone

Binatone Acura 3000 Manuale utente

Binatone

Binatone 433 Manuale utente

Binatone

Binatone SPEAKEASY 5 Manuale utente

Binatone

Binatone Speakeasy Combo 3865 Triple Manuale utente

Binatone

Binatone CAPRICE CAPRICE 600 Manuale utente

Binatone

Binatone Acura 3000 Manuale utente

Binatone

Binatone IDECT X3I SYSTEM Manuale utente

Binatone

Binatone Caprice 670 Manuale utente

Binatone

Binatone 3488 Manuale utente

Binatone

Binatone 2102 Manuale utente

Binatone

Binatone ACTIVE XA2020 Manuale utente

Binatone

Binatone Spirit 110 Manuale utente

Binatone

Binatone AQUAREL XDC1520 Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente
