BioLAB BCBHR-304 Manuale utente
Benchtop High Speed
Refrigerated Centrifuge
Thank you for Choosing Biolab products. Please read the “Operating Instructions” and
“Warranty” before operating this unit to assure proper operation.
Operation Manual
BCBHR-304
Index
. The name and model of the product...........................................................................................3
2. Features and applications.................................................................................................................3
3. The operation principles...................................................................................................................4
4. Technical parameters..........................................................................................................................5
5. The rotor parameters..........................................................................................................................5
6. The operation procedures................................................................................................................6
7. Safety Notice......................................................................................................................................... 2
8. Warranty Service Instruction........................................................................................................... 3
9. Comment Malfunctions and Obviating Methods................................................................... 3
0. Transportation and storage of the machine............................................................................. 4
. Unpacking and examination of the machine............................................................................ 5
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
2
0 The name and the model of the product
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
02 Features and Applications
1. BCBHR-304 Benchtop High Speed Refrigerated Centrifuge (BCBHR-304 is now will be
referred as this machine) is an advanced facility widely applied in biochemistry, health
and medicine, food safety, life science, agriculture science, grassland farming science,
blood bank, blood station, biological product, pharmacy product, to make sample
separation, precipitation and concentration, and it’s the high-tech product aiming at
replacing import facility and becoming export.
2. This machine features good rigidity, high strength and corrosion proofing, owing to its
high material of steel and its surface with spurt models processing. Meanwhile, this
machine possesses the advantages of succinct structure, small volume, low noise,
smooth temperature rise, high efficiency, safe and reliable, and it is fit for the
experimental analysis with fewer samples and more separation steps.
3. This machine adopts the advanced technologies like microcomputer control, direct
drive brushless DC motor, TFT Zhencai touch panel, mute mechatronics electronic lock
and so on.
The features of this machine are as followed:
. Step : Set up the rotor mode, the rotating speed and the needed time.
The vibration-absorption effect of this machine works very well by the application of its
special damper. This machine also has a self-balance function.
2. Step 2: Set up the rotor mode, the rotating speed and the needed time.
The special PWM-controlled speed control system assures its high control accuracy and
its fast acceleration and deceleration function, which provides different acceleration
and deceleration time to be freely chosen. To meet the requirement of labs, the
brushless DC motor also assures the operation of the machine in a quiet working state.
The carbon brush doesn’t need to be replaced, so there are no carbon pollutions.
3. Step 3: Set up the rotor mode, the rotating speed and the needed time.
This machine has a parameter-saving function, and it can calculate the RCF value
automatically.
4. Step 4: Set up the rotor mode, the rotating speed and the needed time.
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
3
There are many rotors with different levels. The tube frame can be replaced, and there
are many tubes, convenient to choose.
5. Step 5: Set up the rotor mode, the rotating speed and the needed time.
This machine has a protective function owing to its electronic lock. When its faceplate
is uncovered, the centrifuge machine cannot be operated.
This machine can be safely operated in the environment with the temperature within 5
to 40 centigrade, under RH<80%, and without conducting dust, explosive gas and
corrosive gas.
03 The operation principles
The centrifuge machine helps to separate, condense or purify the different density
components (or particles) of the solutions by the usage of centrifugal sedimentation principal.
After placing the centrifuge tubes with equivalent test solutions in the test tubes around the
rotors symmetrically and starting the machine, the RCF produced in the high-speed rotary of
the rotors, which are driven by the motor, separates the different density components (or
particles) in the test solutions. The value of RCF depends on the rotating radius “r” (the
horizontal distance from the position of the test solutions to the axle center) and the rotating
speed “n”, and here is the calculation formula.
RCF＝. 8× 0-6n2r×g
n------------ The rotating speed (r/min)
r------------The rotating radius (mm)
The time (Ts) needed during the separation and deposition of the mixed solutions is
calculated by this formula:
27.4×（logeRmax-logeRmin）μ
Ts ＝min
n2r2（б-ρ）
Type: Rmax------The rotating radius of the test solutions having the farthest distance with the axle center
Rmin------The rotating radius of the test solutions having the nearest distance with the axle center
ρ------The density of the mixed solutions (g/cm )
μ------ The viscosity of the mixed solutions (p)
n ------ The rotating speed (r/min)
r------The particle’s radius (cm)
б------The particle’s density (g/cm )
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
4
04 Technical parameters
Maximum rotate speed 16800r/min
Maximum centrifugal force 19600×g
Maximum capacity 4×100ml
Time range 0～99h59min
Noise: 50dB ≦
Rotate speed precision ±50r/ min
Power AC 220V 50HZ 15A
Dimension(L×W×H) 710×6 0× 50mm
Weight 75kg
05 The rotor parameters
Model Product name Maximum capacity
Maximum rotate
speed
(r/min)
Maximum
centrifugal
force(×g)
BCBHR-
304
Benchtop High
Speed Refrigerated
Centrifuge
6800 9600
No. Angle rotor 2× .5/2.0ml 6800 9600
No.2 Angle rotor 8× .5/2.0ml 4000 3600
No.3 Angle rotor 24× .5/2.0ml 3500 7000
No.4 Angle rotor 0×5ml 3000 700
No.5 Angle rotor 8×7ml 3500 480
No.6 Angle rotor 2× 0/5ml 2000 3400
No.7 Angle rotor 6×50ml 000 600
No.8 Swing rotor 2× 0ml 4000 2330
No.9 Swing rotor 4×50ml 4000 2 50
No. 0 Swing ELISA plate
rotor 2×2×48hole 3000 400
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
5
06 The operation procedures
Step : Place the centrifuge machine on the platform and ensure its balance. Shake the
machine with hands to check out whether the machine has been placed stably or not.
Step 2: Plug the supply cord into the outlet and press down the power switch (the power
switch is on the right bottom of the machine).
Step 3: After pressing down the button of “ STOP & OPEN”, put the rotors on the
motor shaft, and connect the rotors with motorshaft tightly together by tightening the screw
nuts (the move should be very gentle and substantially shaking and pressing should be
avoided, so as to protect the flexible support system of the motor. Then, place the adapter
with test tubes on the rotors and rotate the rotors. The rotors should be turned flexibly, the
adapter should be rotated freely, and there should be no block or collision.
Step 4: Place the centrifuge tubes into the test tubes. The centrifuge tubes should be
placed symmetrically, and the test solutions in the tubes should be even, so as to make sure
the equilibrium operation of the machine.
Step 5: Cover the faceplate and check out whether it is covered tightly, or the centrifuge
machine cannot be operated.
Step 6: Set up the rotor mode, the rotating speed and the needed time.
The control panel of the machine is as shown below.
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
6

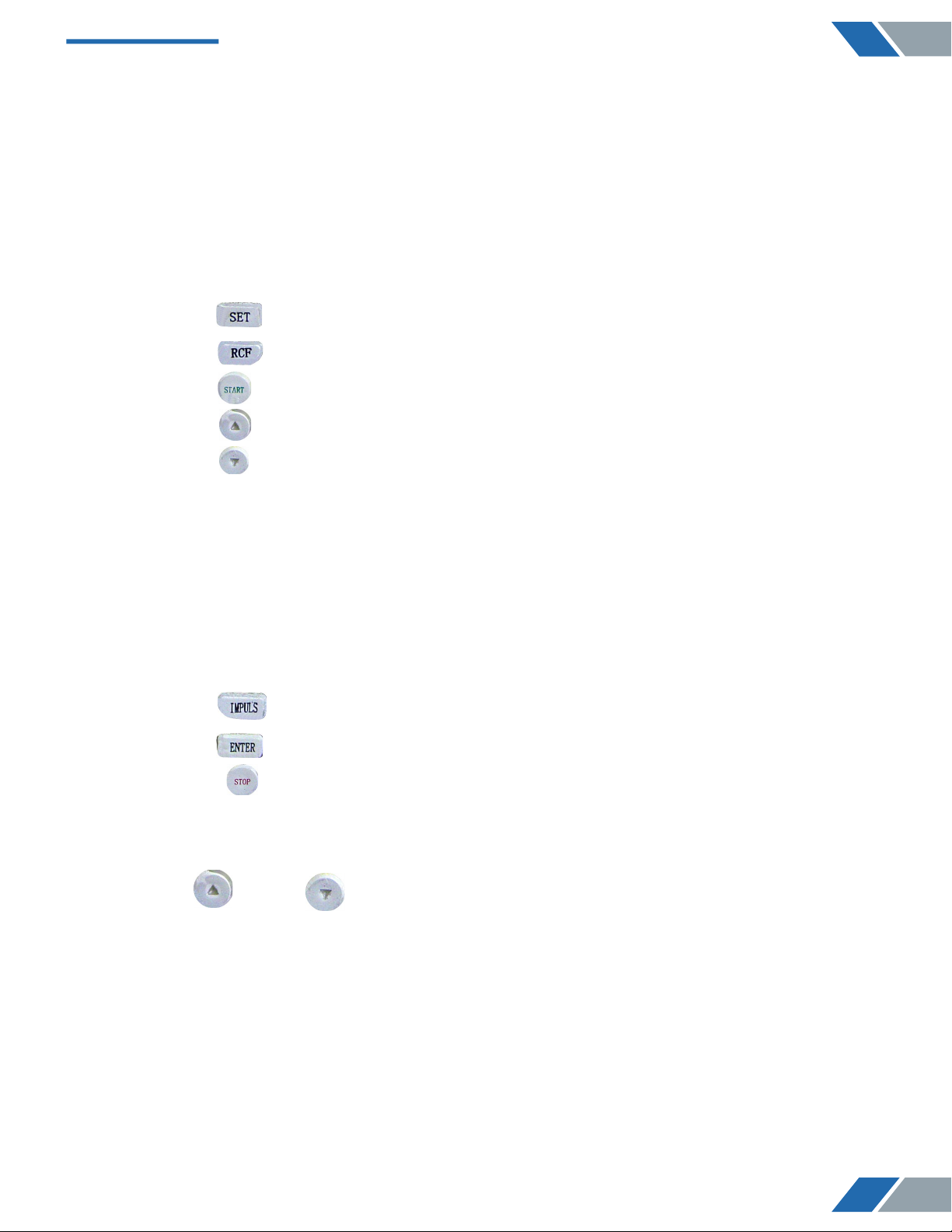

The diagram of the control panel.
. The operation and time setting area.
2. The display area of the parameter numbers.
3. The operation icon.
4. The setting of rotor modes.
5. The setting of rotating speed.
6. The " SET ” button.
7. The “RCF” button.
8. The “START” button.
9. The “UP” button.
0. The “DOWN” button.
. The temperature setting and display area.
（This is the cavity temperature, and non-refrigerated centrifuge has no such setting
function.）
12. The display area of rotating speed and centrifugal force.
1 . The shift button of rotating speed and centrifugal force.
14.The area of acceleration and deceleration
15. The “INPULS” button
16. The “Enter” button
17. The “STOP & OPEN”button
）The display panel of the startup
Press the “ UP” or “ DOWN” button to choose the proper parameter set.
Attention: There are 20 sets of parameter set ranging from 00 to 9.

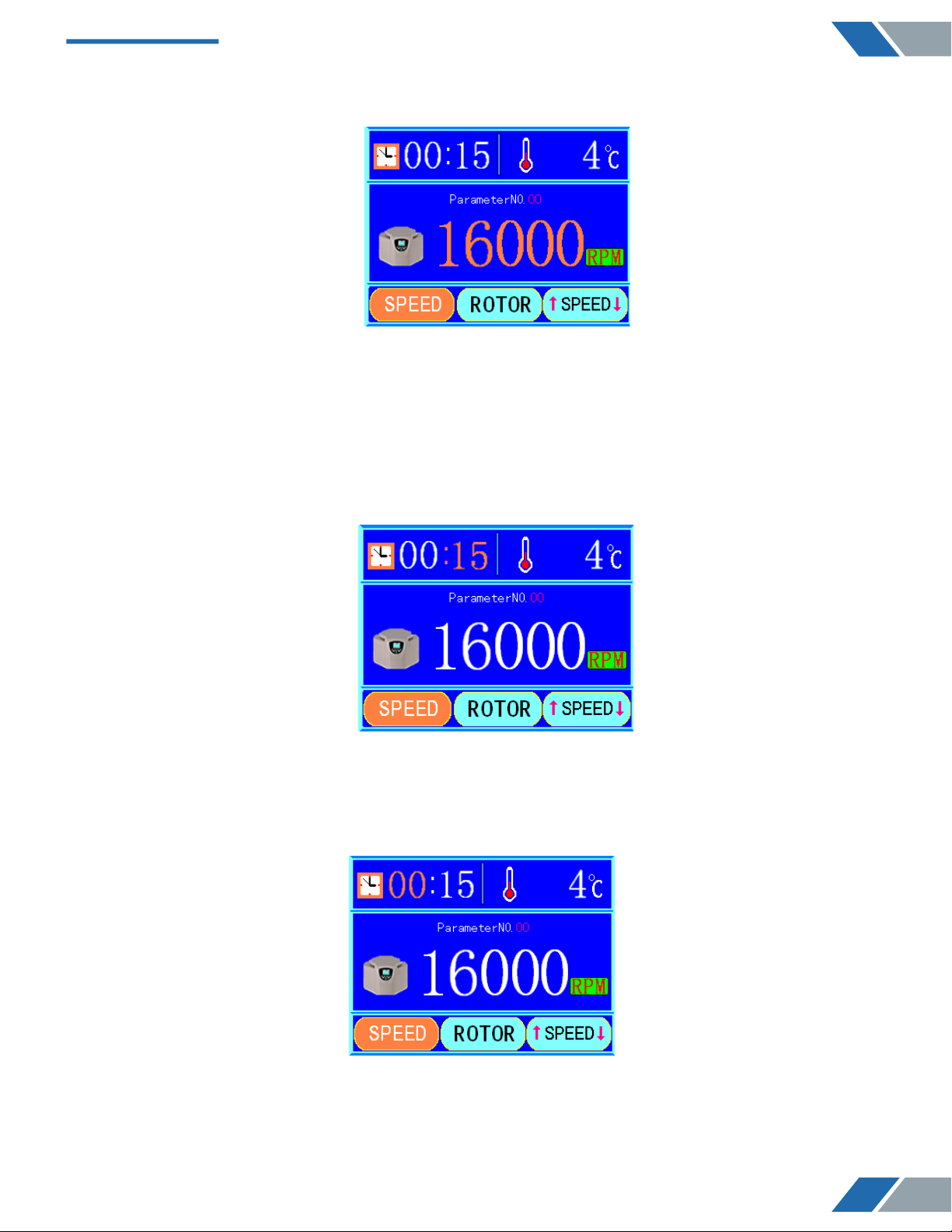

As it is shown below:
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
7
2）Press the “ SET” button to enter the first adjustment panel, or touch the screen and
click the rotating speed area to enter the same panel.

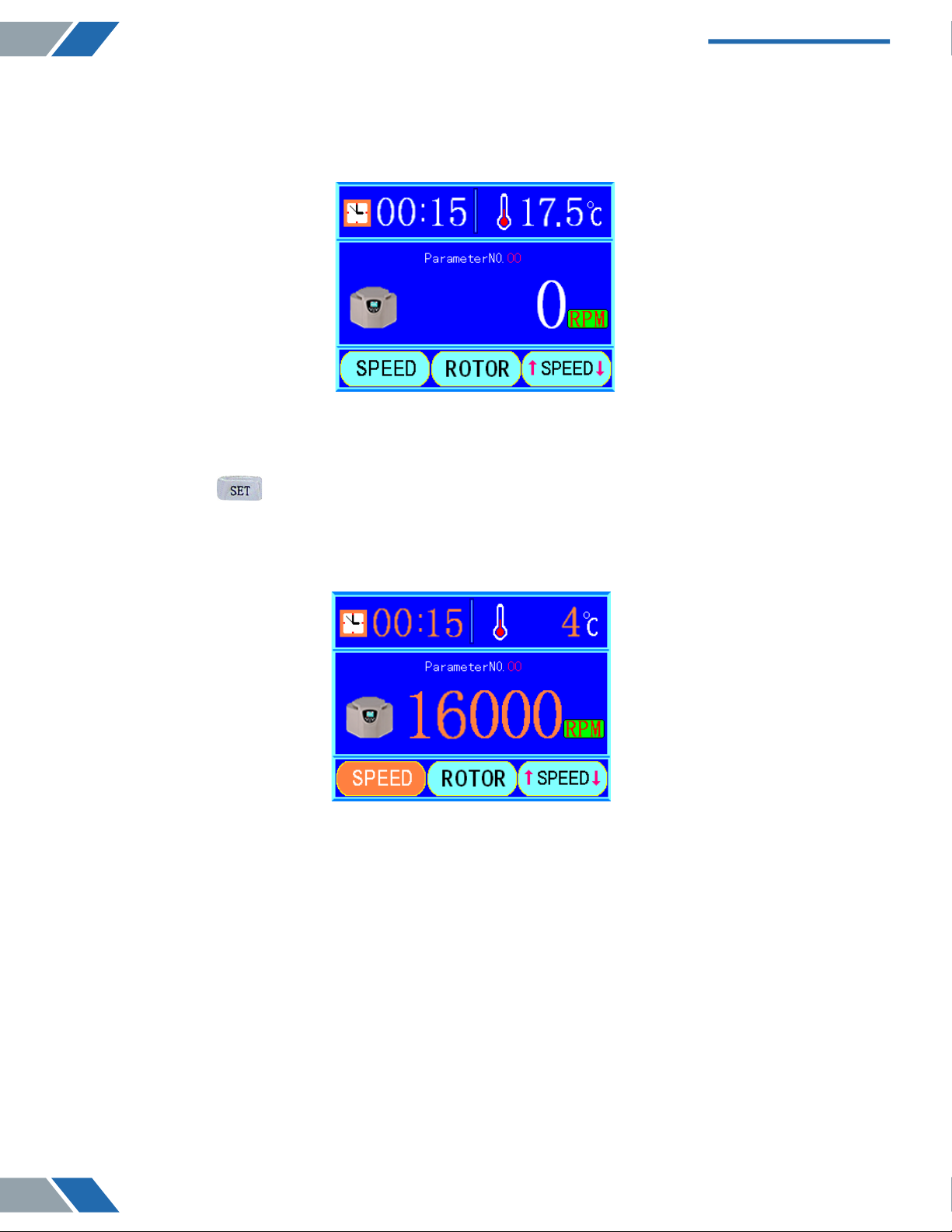

As it is shown below:
●Press the “ UP” or “ DOWN” button to adjust the rotating speed value.
Attention: The slowest rotating speed is 100r, and the fastest is the maximum rated speed of the rotor.
50r rotating speed can be adjusted by each press. Pressing the “UP” or “DOWN” button fixedly can
adjust the speed value continuously.
As it is shown below:
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
8
●Press the “ SET” button to enter the rotating speed adjustment panel. Next, press the “
UP” or “ DOWN” button and press the “ SET” button again to enter the time adjustment
area. The needed minutes can be chosen by pressing the “ UP” or “ DOWN” button.
As it is shown below:
●Press the “ SET” button to enter next step, and the needed hours can be chosen by pressing
the “ UP” or “ DOWN” button.
As it is shown below:
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
9
●Press the “ SET” button to enter next step, and the needed temperature can be chosen from
-20 centigrade to 40 centigrade by pressing the “ UP” or “ DOWN” button.
As it is shown below:
）On the bottom of the first adjustment panel, press the “ SET” button to enter the second
adjustment panel (the adjustment panel of rotor modes), or touch the screen and click the rotor
number area to enter the same panel.

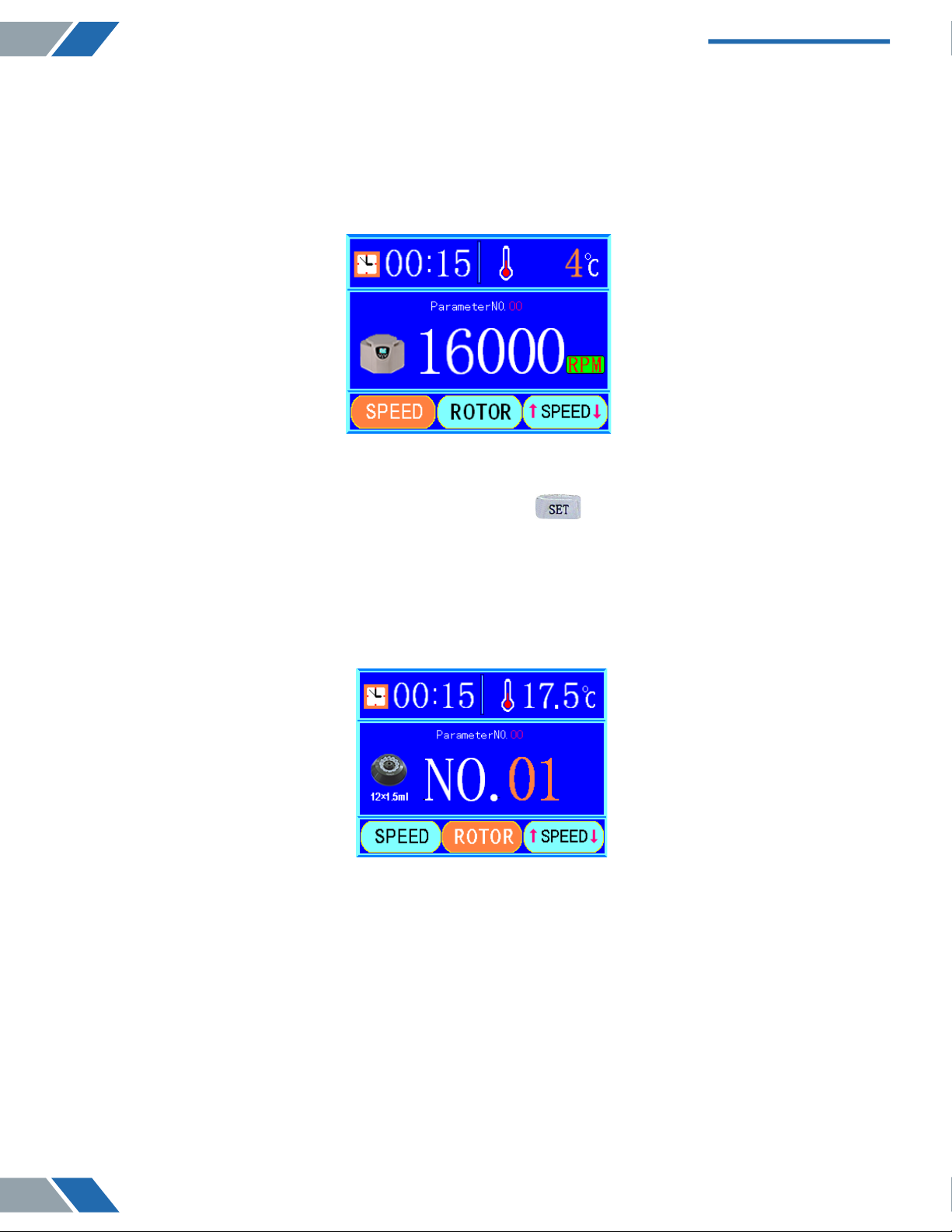

As it is shown below:
●Press the “ UP” or “ DOWN” button to choose the rotor number.
Attention: Please take the real objects as the reference, and find the corresponding real rotor pictures
and rotor number.
4）Press the “ SET” button to enter the third adjustment panel (the adjustment panel of
acceleration and deceleration), or touch the screen and click the acceleration and deceleration area to
enter the same panel.
As it is shown below:
www.biolabscientific.co
Benchtop High Speed Refrigerated Centrifuge BCBHR-304
10
