BioSmart 5M-O Manuale utente

BioSmart 5M-O/5M-E

Installation Guide

www.biosmart-tech.com

1 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

Contents

Contents.............................................................................................................................................................1

Safety Instructions.............................................................................................................................................2

1. Overview ....................................................................................................................................................3

Specifications......................................................................................................................................3

Part names and functions...................................................................................................................5

Package contents................................................................................................................................5

Opening the case................................................................................................................................6

Circuit board.......................................................................................................................................7

Circuit board LEDs and jumpers .........................................................................................................7

Connector names and description .....................................................................................................7

2. Installation .................................................................................................................................................8

Cable types .........................................................................................................................................8

General installation notes ..................................................................................................................8

Mounting on wall ...............................................................................................................................9

Power supply connection .................................................................................................................10

Network connection.........................................................................................................................11

Locks connection ..............................................................................................................................11

Exit buttons and door sensors connection.......................................................................................12

Wiegand output connection.............................................................................................................13

2 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

Safety Instructions

Safety instructions must be followed in addition to International Standards (ISO/IEC)*, and other

safety regulations.

Caution

Caution indicates a hazard with a low level of risk which, if not avoided, could

result in minor or moderate injury.

Note

Note indicates an important remark, which should be taken into attention.

Caution

General requirements:

Read, follow and retain instructions –All safety and operating instructions

must be read and followed properly before putting the unit into operation.

Do not turn on the power supply until all installation procedures are

finished –this may lead to injury or equipment damage.

Do not disconnect or connect cables while unit is powered on –this may

lead to unit malfunction and software errors.

Do not expose unit to heat or fire –high temperature impact may lead to

case deformation and circuit board damage.

Make sure that all cables and screws are fastened properly - otherwise

case damage or circuit shortcut may happen.

Note

Additional requirements:

Use a clean, dry cloth to remove any dirt or dust from the unit.

*IEC 60204-1: Safety of machinery –Electrical equipment of machines. (Part 1: General requirements)

3 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

1. Overview

BioSmart 5M-O Controller is designed for identification of users by fingerprints and RFID cards. It

can also control a lock or a turnstile (from one side only).

BioSmart 5M-E is a modification of BioSmart 5M-O designed to operate at the below zero

temperatures (in Celsius). The controller is equipped with a capacitive fingerprint scanner that

improves the quality of biometric identification. The controller internal elements have special

protection against corrosion and condensate, making device suitable for outdoor application.

Fingerprint scanner is equipped with a heating circuit that ensures comfortable scanning even at

low temperatures down to -40 °С.

Controller is compatible with BioSmart Studio software version V5.7.0 and above.

Specifications

Parameters

5M-O

5M-E

Authentication types

Biometric or card

Card + biometric

Biometric or card

Card + biometric

Users

1000

Fingerprint templates

4 500

Event log capacity

25 000

Match time (1:1000) in local mode, by

fingerprints

< 970 ms

Verification time (1:1)

< 600 ms

FAR (False Acceptance Rate)

10-4 -10-8

FRR (False Rejection Rate), at FAR = 10-5**

Sensor technology

Optical

Capacitive

Image size

272 x 320

Resolution

500 dpi

Smart card reader

HID Prox/iClass/iClass SE

(125 kHz / 13.56 MHz)

Legic Advant (13.56 MHz)

EM Marin (125 kHz)

HID Prox/iClass/iClass SE

(125 kHz / 13.56 MHz)

Legic Advant (13.56 MHz)

EM Marin (125 kHz)

LED indication

Tri-color (blue, red, green)

Communication

Ethernet (100 BASE-T),

4 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

ZFlex Relay Module support

None

WIEGAND I/O

Output, 26/32 bit

Discrete inputs

Onboard lock control relay

12VDC, 1A

Tamper detection

1 sensor –on case

opening

1 sensor –on case

opening

Power requirements

12VDC±15%, 0.5 A

PoE (Power over Ethernet)

None

Operating temperature

0 … +50°C

-40 … +50°C

Housing type

Aluminum, wall mount

Dimensions (H x W x D)

160 x 50 x 43 mm

Weight

260 g

Warranty

5 years

Note: * - Each user can be provided with single card code

5 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

Part names and functions

Name

Description

LED indicator

Blue –waiting mode

Green –identification successful

Red –identification failed

RFID card reader

RFID card identification

Fingerprint scanner

Fingerprint identification

Package contents

Item

Number, pcs

BioSmart 5M Controller

Mounting kit (two 6х35 dowels, two

3.5х38 self-tapping screws)

6 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

Opening the case

1) Remove the back cover retaining screw;

2) Detach the case from the back cover to access the circuit board.

7 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

Circuit board

Circuit board LEDs and jumpers

Name

Type

Description

VL3

LED

Indicates if Relay 2 is powered on

IP RST

Jumper

IP settings reset

BOOT

Jumper

Boot mode

Connector names and description

№

Name

Description

Used for

GND

Power supply -ground

Power supply

+12V

+12VDC Power supply

Power supply

REL

Relay output

Fail-safe lock/ Fail-secure lock, turnstile

REL

Relay output

Fail-safe lock/ Fail-secure lock, turnstile

IN+

Discrete input «+»

Enter/exit buttons, door sensors

Discrete input

Enter/exit buttons, door sensors

WG1

Wiegand output DATA1

External controller wiegand output

DATA1

WG0

Wiegand output DATA0

External controller wiegand output

DATA0

Ethernet

Ethernet connection

Local network connection

8 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

2. Installation

Cable types

№

Cable connection

Max. length

Type

Ethernet (IEEE 802.3)

100 m.

Four twisted pair cables of no lower than category five

with a wire size of no less than 0.2 mm2

Power source

50 m.

Duplex cable with a wire size of no less than 0.75 mm2(for

example, 3192Y)

Turnstile, lock

20 m.

Duplex cable with a wire size of no less than 0.75 mm2(for

example, 3192Y)

Exit buttons, sensors

10 m.

CQR-6 or RAMCRO-6 cable

Wiegand interface

60 m.

Four twisted pair cables of no lower than category five

with a wire size of no less than 0.2 mm2

General installation notes

Install the controller on vertical surface;

Cables must be installed in accordance with the operational code for electrical

installations;

Do not lay cables within 30 cm of sources of electromagnetic interference;

All cables must only intersect power cables at a right angle;

All cable extensions must be soldered.

Carefully check for mechanical damage on the surface of the controller circuit board and

case;

In order to avoid short circuits, the protected ends of cables used to connect the controller

must not exceed 5 mm.

Caution

BioSmart 5M-E should be protected from rain and water.

9 BioSmart 5M-O/5M-E Installation Guide v1.2|10.2018|en

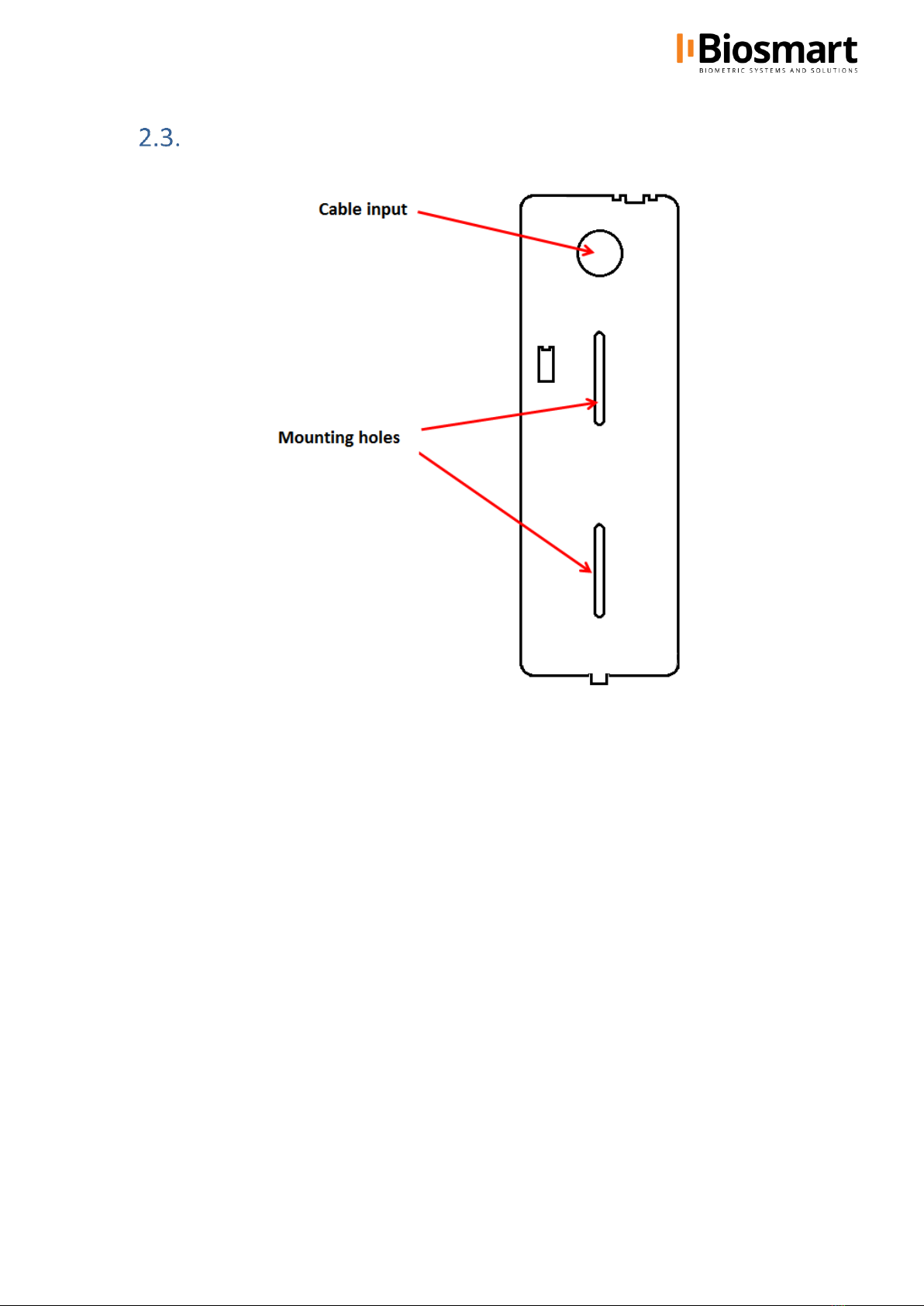

Mounting on wall

1. Decide where to install controller, using a mounting template.

2. Drill holes, according to a mounting template and insert dowels inside the holes.

3. Place back cover on wall and fix it with self-tapping screws.

4. Connect power supply, lock and buttons, if needed, according to p.2.4-2.8. Put cables

through cable input.

5. In order to protect controller from electrostatic discharge, connect an annular crimp in a top

left corner of PCB with a grounding device (see figure below).
