Biostar BVK2A Manuale utente

Federal Communications Commission

(F.C.C) Statement

This device complies with Part 15 of the FCC Rules. Operation of this

device is subject to the following two conditions (1) this device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation.

Accessories This device has been tested and found to comply with the

limits of a Class B digital device, the accessories associated with this

equipment are as follows

1. Shielded serial cable. (Can be obtained from multiple retail outlets)

2. Shielded printer cable. (Can be obtained from multiple retail outlets)

3. Shielded video cable. (Can be obtained from multiple retail outlets)

4. Shielded power cord. (Provided by manufacturer)

These accessories are required to ensure compliance with FCC Rules. It

is the responsibility of the user to provide and use these accessories

properly.

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the

equipment off and on, you are encouraged to try to correct the

interference by one or more of the following measures

1. Reorient / relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Caution Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

Disclaimer

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves

the right to revise this publication and to make changes to the contents

here of without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without

first obtaining the vendor’s approval in writing.

Trademarks and Remarks

MS-DOS, Windows, Windows NT, Windows 9X and Windows 2000 are

products of Microsoft Corp, with its ownership of trademark, and are

distributed by the vendor under a license agreement.

All trademarks used in this manual are the property of their respective

owners.

Canadian D.O.C. Statement

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the radio interference regulations of

the Canadian Department of Communications.

Cet appareil numbérique n‘émet pas de bruits radioélectriques dépassant les

limites appliquées aux appareils numbériques de Class B préscrits dans le

réglement du brouillage radioélectrique edict par le minister Des Communications

du Canada.

Contents
Introduction.................................................................................1-1
Motherboard Description........................................................1-2
1 Features....................................................................................................1-2
1.1 Hardware..........................................................................................1-2
1.2 Software...........................................................................................1-4
1.3 Attachments.....................................................................................1-4
2 Motherboard Installation.........................................................................1-5
2.1 Layout of Motherboard....................................................................1-5
3 Motherboard Connectors.........................................................................1-6
3.1 Front Panel Connectors (JPANEL1 / JP5).......................................1-7
3.2 Floppy Disk Connector (FDD1)......................................................1-9
3.3 Hard Disk Connectors (IDE1/IDE2)................................................1-9
3.4 ATX 20-pin Power Connector (JATXPWR1)...............................1-11
4 Back Panel Connectors..........................................................................1-12
4.1 PS/2 Mouse / Keyboard CONN.  JKBMS1...................................1-12
4.2 USB Connectors  JUSB1...............................................................1-13
5 Serial and Parallel Interface Ports..........................................................1-16
6 CPU Installation.....................................................................................1-19
6.1 CPU Installation Procedure  Socket A...........................................1-19
6.2 CPU Clock Selection  JCLK1........................................................1-20
7 Jumper Settings......................................................................................1-21
7.1 CPU Fan Connector  JCFAN1.......................................................1-21
i

Contents
7.2 System Fan Connector  JSFAN1...................................................1-23
7.3 Wake-On MODEM Header  JWOM1(Optional)...........................1-23
7.4 Wake-On-LAN Header  JWOL1...................................................1-23
7.5 AMR Code Primary/Secondary Selection  J4...............................1-23
7.6 CMOS Function Selection  JCMOS1............................................1-24
8 DRAM Installation................................................................................1-25
8.1 DIMM............................................................................................1-25
8.2 How to install a DIMM Module....................................................1-27
9 Audio Subsystem...................................................................................1-28
9.1 CD Audio-In Connectors  JCDIN1/JCDIN2.................................1-29
9.2 Telephony Connector  JTAD1.......................................................1-29
9.3 AUX Audio in Connector  JAUX1 (Optional)..............................1-29
9.4 Front Audio Connector  JF_AUDIO (Optional)............................1-30
BIOS Setup..............................................................................2-1
1 Main Menu...............................................................................................2-3
2 Standard CMOS Features........................................................................2-6
3 Advanced BIOS Features........................................................................2-9
4 Advanced Chipset Features...................................................................2-13
5 Integrated Peripherals............................................................................2-18
6 Power Management Setup.....................................................................2-24
7 PnP/PCI Configurations.........................................................................2-30
8 PC Health Status....................................................................................2-33
9 Frequency / Clock Control....................................................................2-35
ii

Contents
10 Load Fail-Safe Defaults.......................................................................2-36
11 Load Optimized Defaults.....................................................................2-37
12 Set Supervisor / User Password...........................................................2-38
13 Save & Exit Setup................................................................................2-40
14 Exit Without Saving............................................................................2-41
Software Setup.........................................................................3-1
1 Software List............................................................................................3-1
2 Software Installation................................................................................3-2
3 Using Software........................................................................................3-3
Trouble shooting.......................................................................4-1

iii

Chapter 1 Motherboard Description

Introduction

System Overview

Thanks for buying this product! This manual was written to help you start using

this product as quickly and smoothly as possible. Inside you will find adequate

explanations to solve most problems. In order for this reference material to be of

greatest use, refer to the “expanded table of contents” to find relevant topics.

This board incorporates the system board, I/O, and PCI IDE into one board that

provides a total PC solution. The mainboard, AMD AthlonTM and DuronTM

processor based PC ATX system, supports single processors with ISA Bus, PCI

Local Bus, and AGP Bus to support upgrades to your system performance. It is

ideal for multi-tasking and fully supports MS-DOS, Windows, Windows NT,

Windows 2000, Novell, OS/2, Windows95/98, UNIX, SCO UNIX etc. This

manual also explains how to install the mainboard for operation, and how to setup

your CMOS configuration with the BIOS setup program.

1-1

Chapter 1 Motherboard Description

1 Motherboard Description

1.1 Features

1.1.1 ardware

Single AMD Socket-A for Athlon TM (Thunderbird TM ) / Duron TM

processor Module-500MHz and faster.

200MHz System Interface speed.

Speed

Support 33MHz PCI Bus speed.

Support 4X AGP Bus.

DRAM Memory

Supports 8/16/32/64.......MB DIMM module socket.

Supports Synchronous DRAM (3.3V).

Support a maximum memory size of 768MB with SDRAM.

Shadow RAM

A memory controller provide shadow RAM and supports 8-bit ROM

BIOS.

Green Function

Support power management operation via BIOS.

Power down timer from 1 to 15 mins.

Wakes from power saving sleep mode at the press of any key or any

mouse activity.

BUS Slots

Provide one AGP slot and one AMR slot.

Five 32-bit PCI bus and one ISA slot bus master slots.

1-2

Chapter 1 Motherboard Description

Flash Memory

Support flash memory.

Support ESCD Function.

IDE Built-in On Board

Supports four IDE hard disk drives.

Supports PIO Mode 4, Master Mode, high performance hard disk drives.

Support Ultra DMA 33, 66 Bus Master Mode.

Supports IDE interface with CD-ROM.

Supports high capacity hard disk drives.

Support LBA mode.

P I-Based A 97 Digital Audio Processor (Optional)

AC 97 2.1 interface.

16 channels of high-quality sample rate conversion.

16x8 channel digital mixer.

Stereo 10 band graphic equalizer.

Sound Blaster® and Sound Blaster Pro® emulation.

S/PDIF output (allows standard interface to consumer electronics).

64-voice wavetable.

PC99 complaint and WHQL certified.

I/O Built-in On Board

Supports one multi-mode Parallel Port.

(1) Standard & Bidirection Parallel Port.

(2) Enhanced Parallel Port (EPP).

(3) Extended Capabilities Port (ECP).

Supports two serial ports, 16550 UART.

Supports one Infrared transmission (IR).

Supports PS/2 mouse and PS/2 keyboard.

Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk

drivers.

1-3

Chapter 1 Motherboard Description

Universal Serial Bus

Supports two back Universal Serial Bus (U.S.B.) Ports and two front

Universal serial Bus (U.S.B) Ports (Optional).

Supports 48 MHz USB.

Hardware Monitor Function

CPU Fan Speed Monitor.

System (Optional) and CPU Temperature Monitor.

System Voltage Monitor.

Dimensions (ATX form-factor)

22.2 cm X 30.5 cm (W x L)

1.1.2 Software

BIOS

AWARD legal BIOS.

Supports APM1.2.

Supports USB Function.

Supports ACPI.

Operating System

Offers the highest performance for MS-DOS, OS/2, Windows, Windows

NT, Windows 2000, Windows 95/98, Novell, UNIX, SCO UNIX etc.

1.1.3 Attachments

HDD Cable.

FDD Cable.

Flash Memory Writer for BIOS Update.

Retention Kits for CPU.

USB2 Cable (Optional).

Rear I/O Panel for ATX Case (Optional).

Fully Setup Driver CD.

1-4

Chapter 1 Motherboard Description

1.2 Motherboard Installation

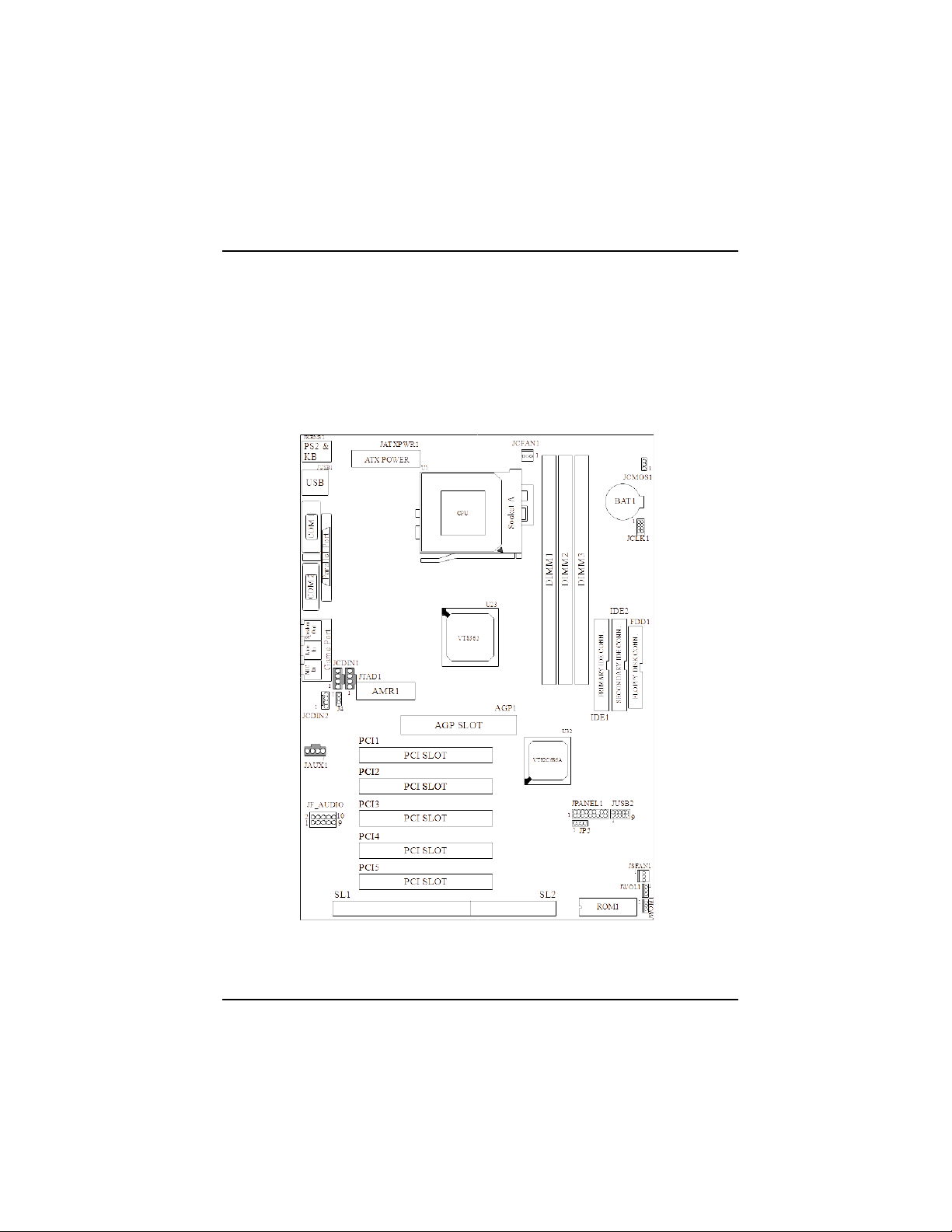

1.2.1 Layout of Motherboard

Model No.BVK2A

1-5

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar B350GT3 Manuale utente

Biostar

Biostar TH55XE - BIOS Guida utente

Biostar

Biostar P43D3 - BIOS Manuale utente

Biostar

Biostar M7 VIQ Manuale utente

Biostar

Biostar P4M80-M7 Manuale utente

Biostar

Biostar H61MH Guida utente

Biostar

Biostar A780L3L Guida utente

Biostar

Biostar Racing X370GT7 Manuale utente

Biostar

Biostar B660MXC PRO Manuale utente

Biostar

Biostar GF8200 M2 PLUS - BIOS Guida utente

Biostar

Biostar K8NHA Grand Guida utente

Biostar

Biostar TB360-BTC PRO Manuale utente

Biostar

Biostar H61MGV3 Manuale utente

Biostar

Biostar G41D3 Manuale utente

Biostar

Biostar A85W 3D Manuale utente

Biostar

Biostar M7SXG Manuale utente

Biostar

Biostar M6VLQ Grand Manuale utente

Biostar

Biostar TPOWER X58 - BIOS Manuale utente

Biostar

Biostar G31-M7 Manuale

Biostar

Biostar TA760GE - SETUP Guida utente

Biostar

Biostar NF61S MICRO AM2 SE Guida utente

Biostar

Biostar TH61 Guida utente

Biostar

Biostar M7VIG Pro-D Guida utente

Biostar

Biostar H81MLC Guida utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
