G41D3C BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by a battery so that it retains the Setup information when the power

is tur ned o f f.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage of the booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide yo u through the options and settings in BIOS

Setup.

Plug and Play Support

This AMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

This AMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Vers ion 1.1&1.2 of the Advanced Power Management

(AP M) specification. Power management features are imp lemented via the System

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in the ACPI specification, developed by

Microsoft, Intel and Toshiba.

G41D3C BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus spec ific ation.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

This AMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the BIOS s etup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default und er the Exit Menu.

zFor better system perfo rmance, the BIOS firmware is being continuo us ly updated.

The BIOS information described in this manual is for your reference only. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be c aused by wrong-settings.

General Help

Navigation Keys

G41D3C BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

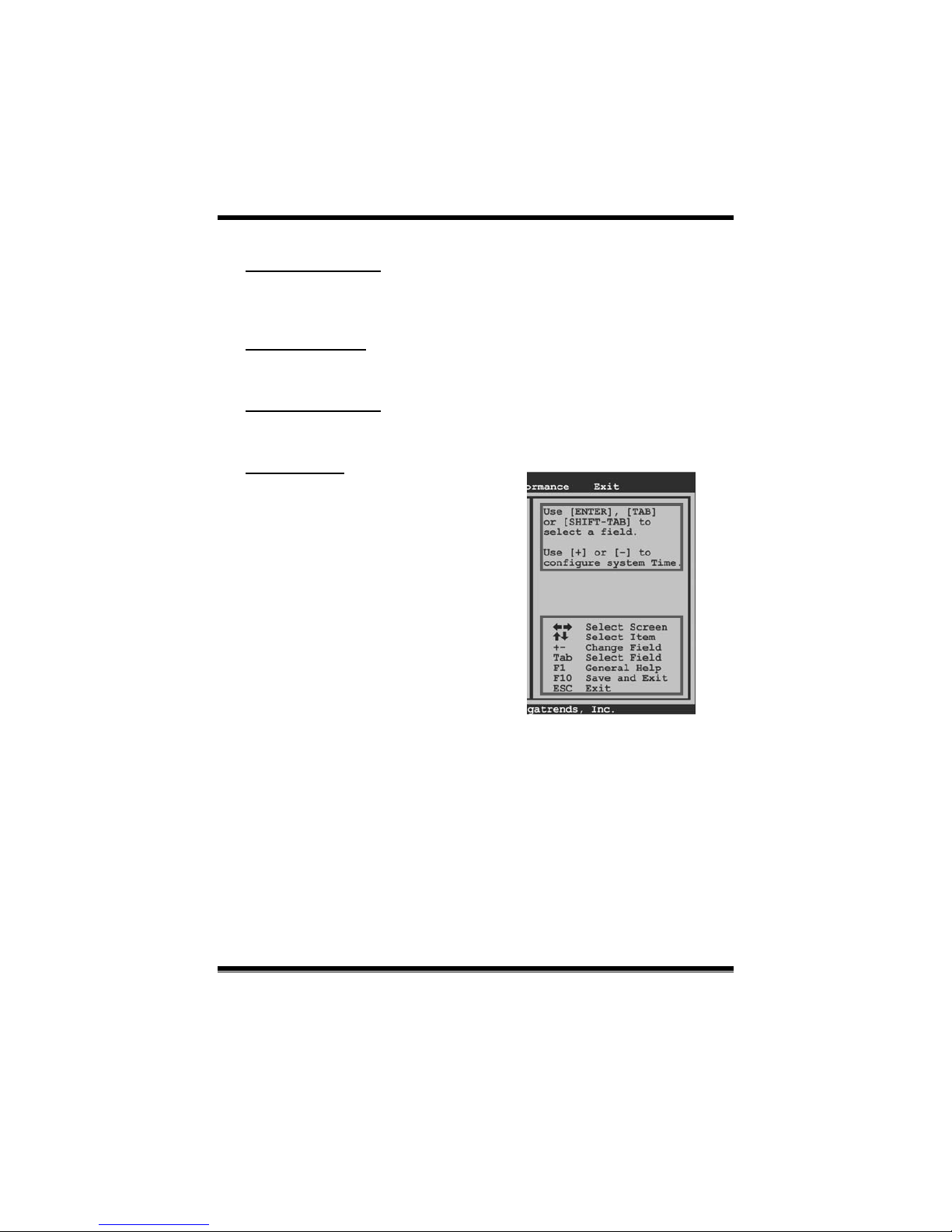

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

[ :00:00]

System Date [Fri 01/01/2010]

> SATA/IDE Configuration

Version :01.01.01

Build Date:01/01/10

System Time 00

Exit

AMI BIOS

Shows s ystem information including BIOS version, built date, etc.

System Memory

Shows s ystem memory size, VGA s hard memory will be excluded..

System Time

Set the system internal cloc k.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

G41D3C BIOS Manual

SATA/IDE Configuration

The BIOS will auto matically detec t the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu of detailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

SATA/IDE Configuration

Configure SATA Channels [Before PATA]

Legacy IDE Channels [SATA Pri, PATA Sec]

> SATA1 Device

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

SATA2 Device

> IDE Channel 1 Master

> IDE Channel 1 Slave

ATA/IDE Configuration [Enhanced]

Port0 SATA AHCI Speed:

Options

Disabled

Compatible

Enhanced

ATA/IDE Configuration

This item allows you to control the onboard IDE controller.

Options: Enhanced (Default) / Compatible / Disabled

Configure SATA Channels

This item allows you to control the SATA channel configuration sequence.

Options: Before PATA (Default) / Behind PATA

Legacy IDE Channels

This item appears only when “ATA/IDE Configuration” is set to “Compatible”.

Options: SATA Pri, PATA Sec (Default) / SATA Only / PATA Pri, SATA Sec /

PATA Only

G41D3C BIOS Manual

SATA1/2 Device; IDE Channel 1 Master/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA1 Device

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respec tive devices, and these

info rmation and values are sho wn below to the name of the sub-menu.

Type

Select the type of the IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Dis abled

PIO Mode

Select the PIO mode.

Options: Auto (Default) / 0 / 1 / 2 / 3 / 4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Dis abled

G41D3C BIOS Manual

S.M.A.R.T

Set the Smart Monitoring, Analysis, and Reporting Technology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed thro ugh BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devic es.

Options: 35 (Default) / 30 / 25 / 20 / 15 / 10 / 5 / 0

G41D3C BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILIT

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> USB Configuration

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> Power Configuration

> CPU Configuration

Exit

CPU Configuration

This item shows the CPU information that the BIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Configure advanced CPU settings

Module Version:xx.xx

Manufacturer:Intel

Frequency :

FSB Speed :

Cache L1 :

Cache L2 :

Ratio Actual Value:

C1E Support [Enabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Max CPUID Value Limit [Disabled]

Intel(R) Virtualization Tech [Enabled]

Execute-Disable Bit Capability [Enabled]

Core Multi-Processing [Enabled]

Options

Disabled

Enabled

G41D3C BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat b y lo wering CPU freq uenc y while the p rocessor is not wo rking.

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches data and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hard ware ad jac ent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cac he latency b y making the next c ac he line

immediately available if the processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines the kind of basic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Tec hno logy can virtually sep arate your system reso urce into several

parts, thus enhance the performance when running virtual machines or multi

interface s ystems.

Options: Enabled (Default) / Disabled

Execute-Disable Bit Capability

This item allows you to configure the Execute Dis abled Bit function, which protects

your system from buffer overflow attacks.

Options: Enabled (Default) / Disabled

G41D3C BIOS Manual

Core Multi-Processing

This item allows multi-processing function for multi-core processors.

Options: Enabled (Default) / Disabled

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Select

Parallel Port Base

Addresses.

Configure ITE8728 Super IO Chipset

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Keyboard PowerOn [Disabled]

Mouse PowerOn [Disabled]

Restore on AC Power Loss [Power Off]

Parallel Port Address

This item allows you to determine access onboard parallel port controller with which

I/O Address.

Options: 378 (Default) / 278 / 3BC / Disabled

Parallel Port Mode

This item allows you to determine how the parallel port should function.

Options: Normal (Default) Using Parallel port as Standard Printer Port.

EPP Using Parallel Port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

ECP Mode DMA Channel

This item allows you to select parallel port ECP DMA.

Options: DMA3 (Default) / DMA0 / DMA1

Altri manuali per G41D3C

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar A770E3+ Guida utente

Biostar

Biostar H110MDS2 PRO D4 Manuale utente

Biostar

Biostar M6TWO Manuale utente

Biostar

Biostar M6TLI Manuale utente

Biostar

Biostar GF8200C M2 Guida utente

Biostar

Biostar BIH11-IHP Manuale utente

Biostar

Biostar M6VCI Manuale utente

Biostar

Biostar Z490GTA EVO Manuale utente

Biostar

Biostar Racing X370GT7 Manuale utente

Biostar

Biostar U8668-D Manuale utente

Biostar

Biostar TA880GB - BIOS Manuale utente

Biostar

Biostar P4SDP Manuale utente

Biostar

Biostar G31-M7 Guida utente

Biostar

Biostar Z590I VALKYRIE Manuale utente

Biostar

Biostar GF8100 M2G PLUS - BIOS Manuale utente

Biostar

Biostar TF7050-M2 Guida utente

Biostar

Biostar M7VIT Bravo Guida utente

Biostar

Biostar GF8200 M2 PLUS - BIOS Guida utente

Biostar

Biostar A760G M2 PLUS - BIOS Manuale utente

Biostar

Biostar U8668 Pro Manuale utente

Biostar

Biostar H61MLV Guida utente

Biostar

Biostar G31E-M7 - BIOS Guida utente

Biostar

Biostar NF520B A2G PLUS - BIOS SETUP Manuale utente

Biostar

Biostar P4 TSV Guida utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
