H55A+ BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by abattery so that it retains theSetup informationwhen the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage ofthe booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports thePlug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 ofthe EPA Green PC specification.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel andToshiba.

H55A+ BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings applyfor most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor yourreferenceonly. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

H55A+ BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

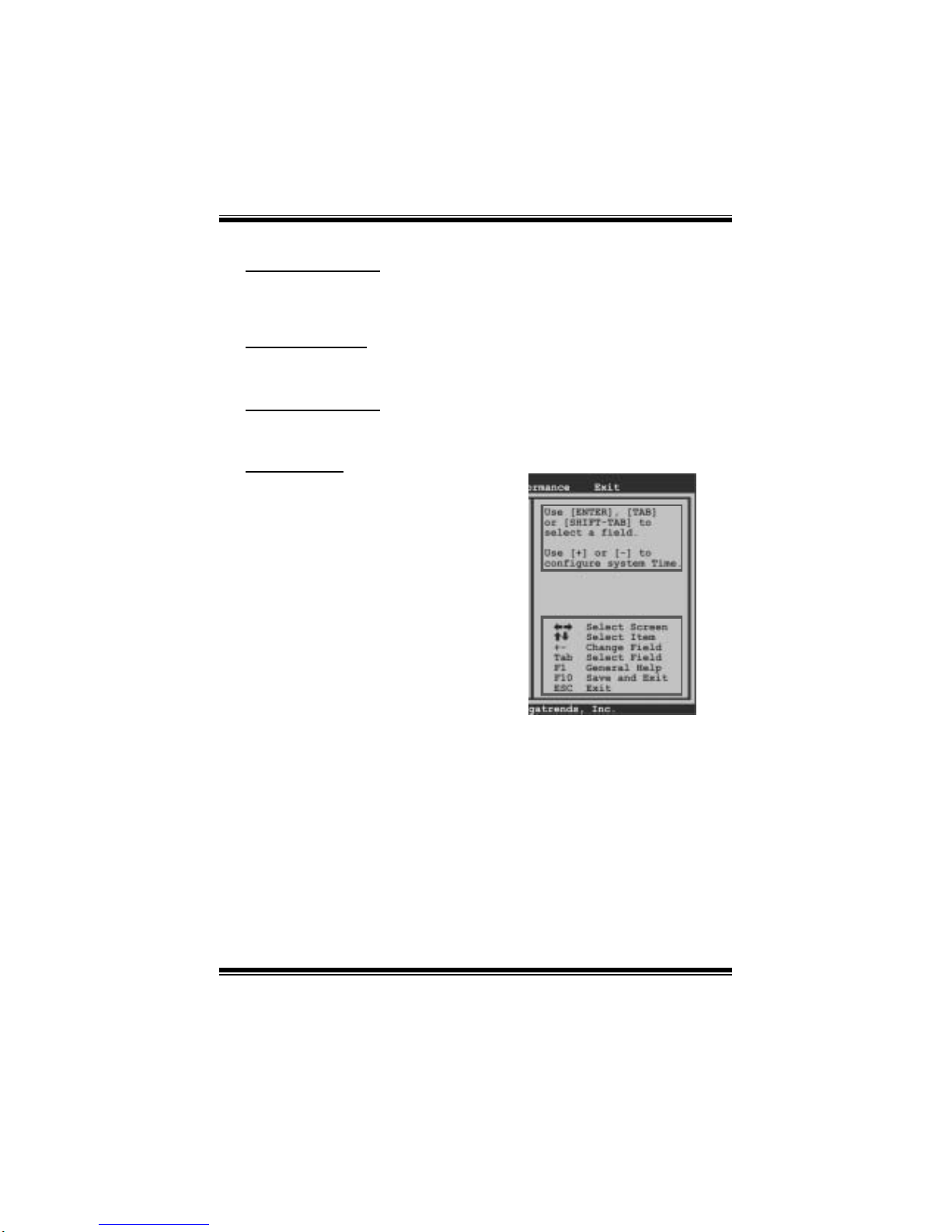

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

System Memory

[ :00:00]

System Date [Fri 01/01/2010]

> IDE/SATA Configuration

Version :01.01.01

Build Date:01/01/10

Size :

System Time 00

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded..

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

H55A+ BIOS Manual

IDE/SATA Configuration

The BIOS will automatically detect the presence of SATA/IDE devices. There is a

sub-menu for each SATA/IDE device. Select a device and press <Enter> to enter

the sub-menu ofdetailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE/SATA Configuration

SATA#1 Configuration [Compatible]

> SATA 1 Device

> SATA 2 Device

> SATA 3 Device

> SATA 4 Device

> SATA 5 Device

Hard Disk Write Protect [Disabled]

IDE/SATA Detect Time Out(Sec)[35]

ATA(PI)80Pin Cable Detection [Host & Device]

SATA#2 Configuration [Enhanced]

> SATA 6 Device

Configure SATA as [IDE]

> AHCI Configuration

Options

IDE

AHCI

Disabled

Configure SATA as

Thisitem allows you to choose theSATA operation mode.

Options: IDE (Default) / AHCI / Disabled

SATA#1 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Compatible(Default)/ Enhanced

SATA#2 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Enhanced (Default) / Disabled

H55A+ BIOS Manual

AHCI Configuration

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Settings

> AHCI Port0

> AHCI Port1

> AHCI Port2

> AHCI Port3

> AHCI Port4

AHCI BIOS Support [Enabled]

> AHCI Port5

Enables for supporting

AHCI BIOS Support

ThisBIOS feature controls the AHCI function of the SATA controller.

Options: Enabled (Default) / Disabled

AHCI Port0/Port1/Port2/Port3/Port4/Port5

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Port0

S.M.A.R.T. [Enabled]

Device :

AHCI Port0 [Auto]

Select the type

of device connected

to the system.

H55A+ BIOS Manual

Device

This areashows the detected connected device.

SATA Port0/1/2/3/4/5

This item allows you to select the connected device type.

Options: Auto (Default) / Not Installed

S.M.A.R.T.

This item allows you to control thedevice S.M.A.R.T function.

Options: Enabled (Default) / Disabled

SATA1/2/3/4/5/6 Device

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA1 Device

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown below to the name of thesub-menu.

Type

Select the typeofthe IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

H55A+ BIOS Manual

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 / 3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / SWDMA0 ~2 / MWDMA0 ~ 2 / UDMA0 ~ 5

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

ATA(PI) 80Pin Cable Detection

Select the mechanism for detecting 80Pin ATA(PI) Cable..

Options: Host & Device (Default) / Host / Device

H55A+ BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and othersystem devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> ACPI Configuration

> Onboard PCI/PCI-E Devices Configuration

> Intel VT-d Configuration

> MPS Configuration

> PCI Express Configuration

> Smbios Configuration

> USB Configuration

> CPU Configuration

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

vxx.xx (C)Copyright 198 5-200x, Amer ican Megatre nds, Inc.

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enab le or

disable the “Enh anced

Halt State”.

Configure advanced CPU settings

Module Version:01. 04

Manufacturer:Intel CPU

Frequency :

BCLK Speed :

Cache L1 :

Cache L2 :

Ratio Status:

Ratio Actual Value:

Cache L3 :

CIE Support [Enabled]

Hardware Prefetche r [Enabled]

Adjacent Cache Lin e Prefetch [Enabled]

Max CPUID Value Li mit [Disabled]

Execute-Disable Bi t Capability [Enabled]

Intel(R) Virtualiz ation Tech [Enabled]

CPU TM function [Enabled]

H55A+ BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat by lowering CPU frequency while the processor is not working.

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches dat a and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

CPUTM Function

The CPU TM Function is to throttle the clock speed ofhigher speed Prescott's to

help keep them cool.

Options: Disabled (Default) / Enabled

Altri manuali per H55A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar TA770E - BIOS Manuale utente

Biostar

Biostar GF8200C M2 Guida utente

Biostar

Biostar A58MDP Guida utente

Biostar

Biostar A55MH Guida utente

Biostar

Biostar BI94GS-IA Guida utente

Biostar

Biostar M7TTB Manuale utente

Biostar

Biostar BI94GS-IAC Guida utente

Biostar

Biostar Hi-Fi A85X Guida utente

Biostar

Biostar A68N-5100 Manuale utente

Biostar

Biostar M6VLQ Grand Manuale utente

Biostar

Biostar TP43E HP - BIOS Guida utente

Biostar

Biostar A58MD Guida utente

Biostar

Biostar X370GT3 Manuale utente

Biostar

Biostar A68N-5745 Manuale utente

Biostar

Biostar M7 VKG Manuale utente

Biostar

Biostar A770 A2G PLUS - BIOS Manuale utente

Biostar

Biostar K8VHA PRO Manuale utente

Biostar

Biostar H77MU3 Guida utente

Biostar

Biostar IDEQ 220K Guida utente

Biostar

Biostar P4TSE Pro Istruzioni per l'uso e l'installazione

Biostar

Biostar M7MKE Istruzioni e ricette

Biostar

Biostar TA785GE - SETUP Guida utente

Biostar

Biostar P4M890-M7 TE Guida utente

Biostar

Biostar N3700NH Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
