Biostar H61MHP Guida utente

H61MHP/H61MGP/H61MLP/H61MGP2 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a particular

installation.

The vendor makes no representations or warranties with respect to the contents here and

specially disclaims any implied warranties of merchantability or fitness for any purpose.

Further the vendor reserves the right to revise this publication and to make changes to

the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the

vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not

be responsible for any mistakes found in this user’s manual. All the brand and product

names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction.......................................... 1

1.1 Before You Start.........................................................................................1

1.2 Package Checklist.....................................................................................1

1.3 Motherboard Features ..............................................................................2

1.4 Rear Panel Connectors ............................................................................3

1.5 Motherboard Layout..................................................................................4

Chapter 2: Hardware Installation ........................... 5

2.1 Installing Central Processing Unit (CPU)...............................................5

2.2 Install a Heatsink .......................................................................................7

2.3 Fan Headers ..............................................................................................8

2.4 Installing System Memory........................................................................9

2.5 Expansion Slots.......................................................................................11

2.6 Jumper Setting.........................................................................................12

2.7 Headers & Connectors ...........................................................................13

Chapter 3: Useful Help ......................................... 16

3.1 Driver Installation Note ...........................................................................16

3.2 Software....................................................................................................17

3.3 Extra Information .....................................................................................24

3.4 AMI BIOS Beep Code.............................................................................25

3.5 Troubleshooting.......................................................................................25

Appendix: SPEC In Other Languages .................... 26

German .................................................................................................................26

French ...................................................................................................................28

Italian .....................................................................................................................30

Spanish..................................................................................................................32

Portuguese ...........................................................................................................34

Polish.....................................................................................................................36

Russian .................................................................................................................38

Arabic.....................................................................................................................40

Japanese...............................................................................................................42

H61MHP/H61MGP/H61MLP/H61MGP2

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with sufficient

lighting.

Always disconnect the computer from power outlet before

operation.

Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

Keep the computer from dangerous area, such as heat

source, humid air and water.

The operating temperatures of the computer should be 0 to

45 degrees Celsius.

To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

;Serial ATA Cable x2

;Rear I/O Panel for ATX Case x1

;Quick Installation Guide x1

;Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was

sold. For more information about the standard package in your region, please contact your dealer

or sales representative.

Motherboard Manual

1.3 Motherboard Features

SPEC

CPU Socket 1155

Intel Core i7 / i5 / i3 / Pentium / Celeron processor

Supports Execute Disable Bit / Enhanced Intel SpeedStep®

/ Intel Architecture-64 / Extended Memory 64 Technology /

Virtualization Technology / Hyper Threading

Chipset Intel H61

Super I/O

IT8728

Provides the most commonly used legacy Super

I/O functionality

Low Pin Count Interface

Environment Control initiatives

Hardware Monitor Controller

Fan Speed Controller

ITE's "Smart Guardian" function

Main Memory

DDR3 DIMM Slots x 2

Max Memory Capacity 16GB

Each DIMM supports 512MB/ 1GB/2GB/4GB/8GB

DDR3

Dual Channel Mode DDR3 memory module

Supports DDR3 1066 / 1333 / 1600 (depending on CPU)

Registered DIMM and ECC DIMM is not supported

SATA 2 Integrated Serial ATA Controller Data transfer rates up to 3.0 Gb/s

SATA Version 2.0 specification compliant

LAN

RTL8111G (H61MHP & H61MGP & H61MGP2)

10 / 100 /1000Mb/s auto negotiation Half / Full duplex capability

RTL8106E (H61MLP)

10 / 100 Mb/s auto negotiation Half / Full duplex capability

Sound Codec ALC662 5.1 channels audio out

High Definition Audio

PCI-E Gen3x16 slot x1 Supports PCI-E Gen2/3 x16 expansion card(depending on

CPU)

PCI-E Gen2 x1 slot x1 Supports PCI-E Gen2 x1 expansion card

Slots

PCI slot x1 Supports PCI expansion card

SATA2 Connector x4 Each connector supports 1 SATA2 device

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

Clear CMOS Header x1 Restore CMOS data to factory default

USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports

Power Connector (24pin) x1 Connects to Power supply

On Board

Connectors

Power Connector (4pin) x1 Connects to Power supply

Rear Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

VGA Port x1

HDMI Port x1

Serial Port x1

Printer Port x1

LAN port x1

USB2.0 Port x4

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to D-SUB monitor

Connect to HDMI monitor (only for H61MHP)

Provide RS-232 Serial connection

Provide 1 connection for printer (except H61MGP2)

Connect to RJ-45 Ethernet cable

Connect to USB2.0 devices

Provide Audio-In/Out and Mic. connection

Board Size 174 (W) x 235 (L) mm uATX

OS Support Windows XP / Vista / 7 / 8 Biostar reserves the right to add or remove support for any

OS with or without notice

H61MHP/H61MGP/H61MLP/H61MGP2

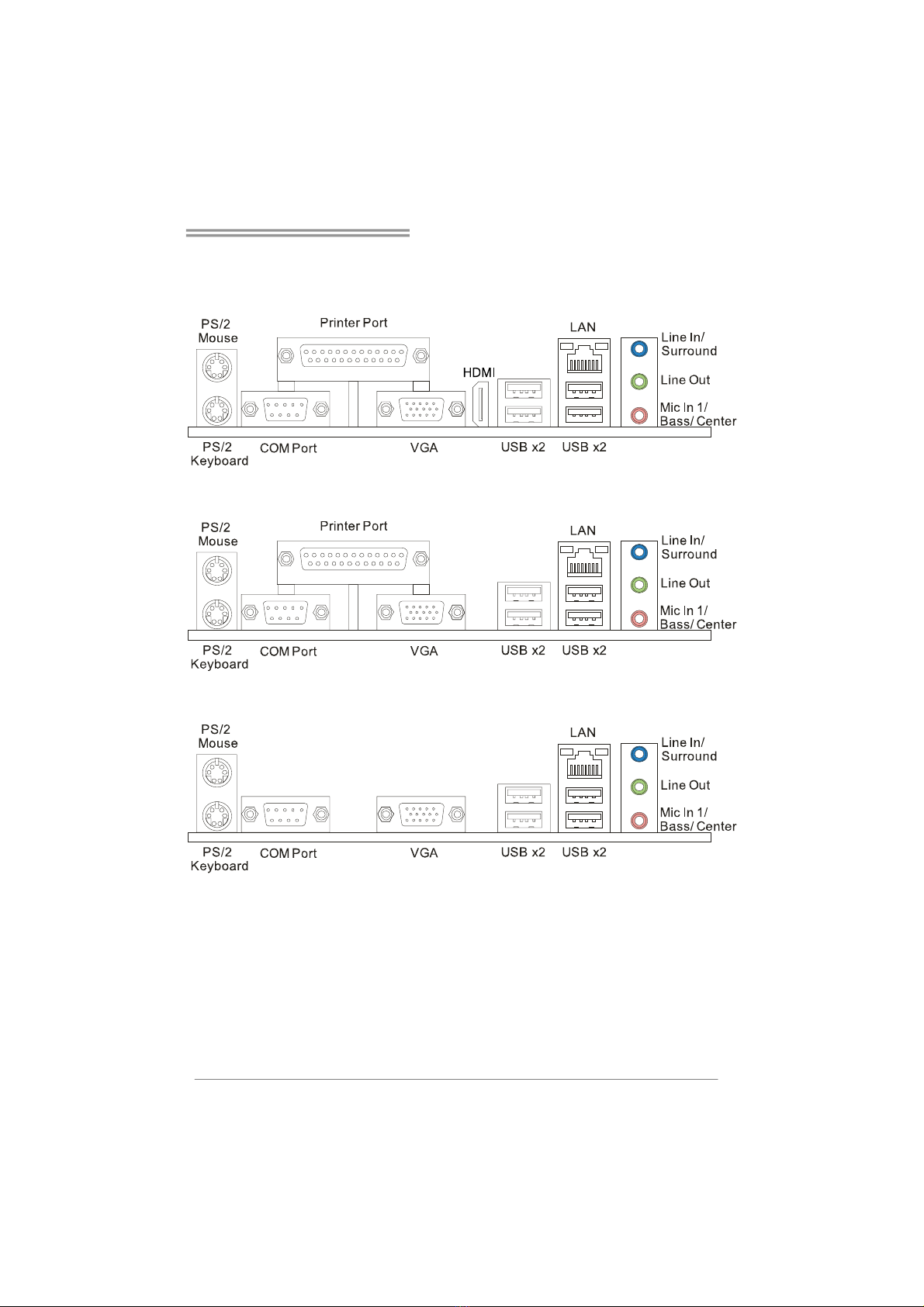

1.4 Rear Panel Connectors

H61MHP

H61MGP & H61MLP

H61MGP2

Note 1: HDMI & VGA Output require an Intel Core family processor with Intel Graphics Technology.

Note 2: Since the audio chip supports High Definition Audio Specification, the function of each

audio jack can be defined by software. The input / output function of each audio jack listed

above represents the default setting. However, when connecting external microphone to

the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 3: Maximum resolution:

HDMI: 1920 x 1200 @60Hz

VGA: 2048 x 1536 @75Hz

Motherboard Manual

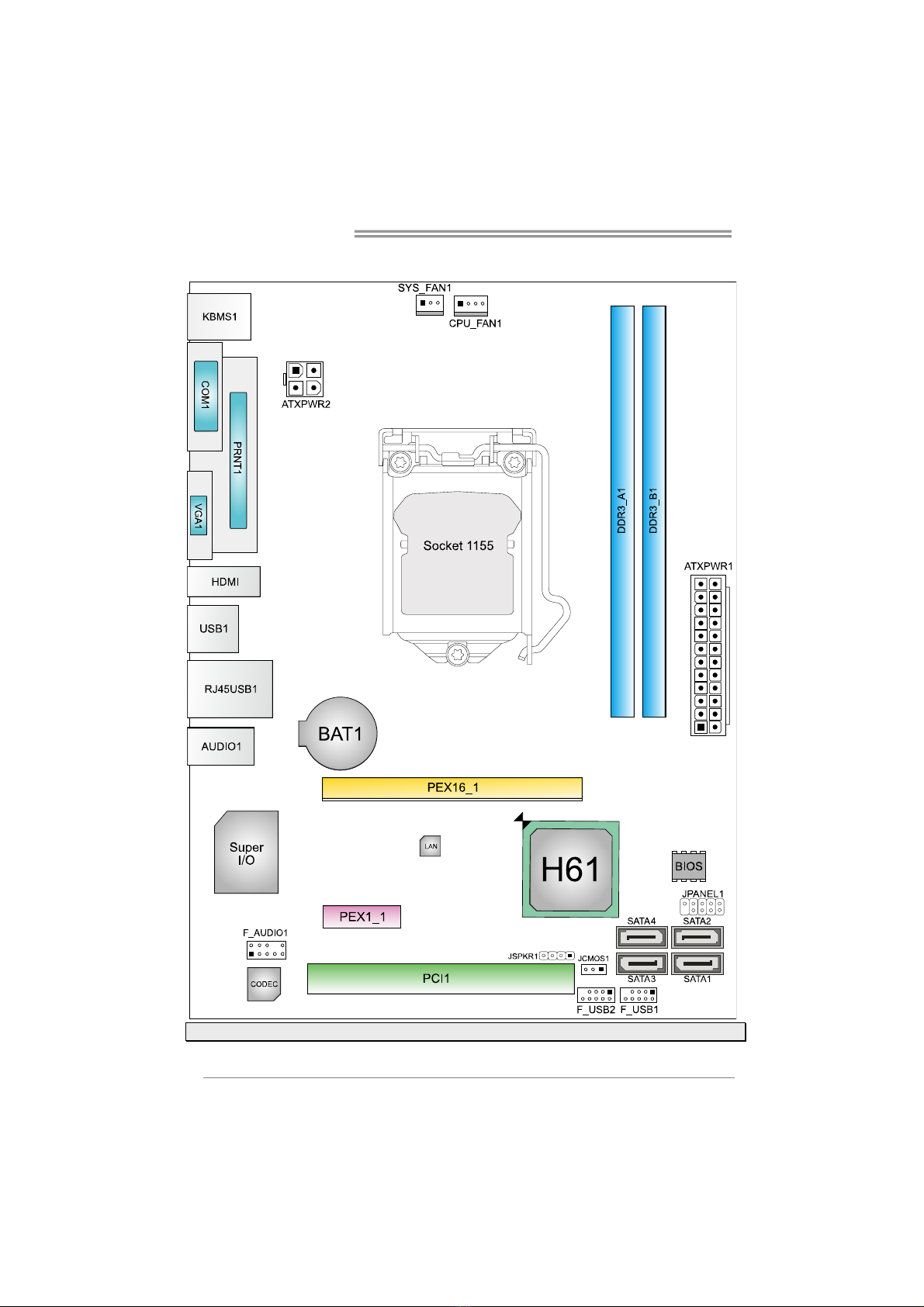

1.5 Motherboard Layout

Note: ■represents the 1st pin.

H61MHP/H61MGP/H61MLP/H61MGP2

CHAPTER 2: HARDWARE INSTALLATION

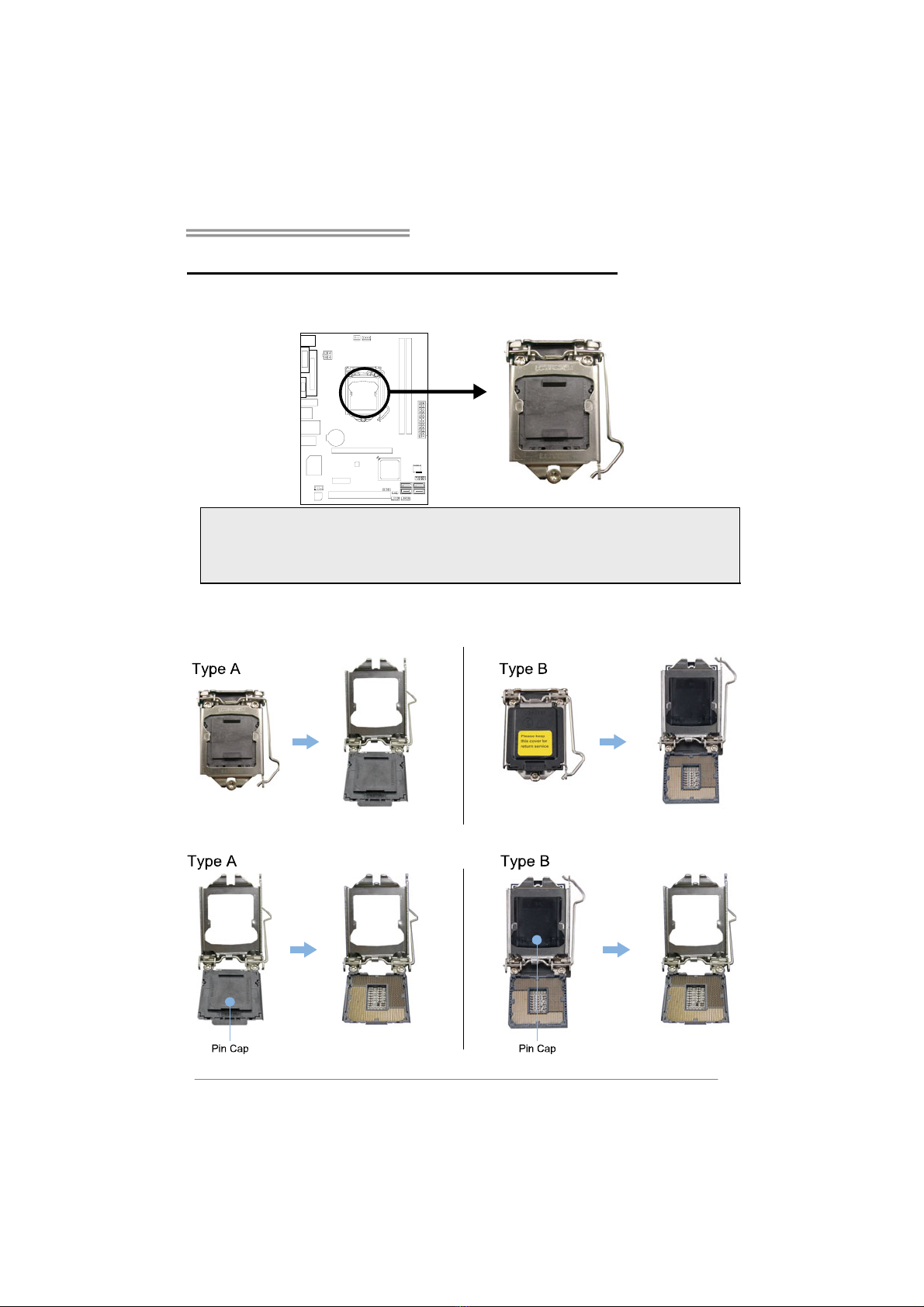

2.1 Installing Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Note1: Remove Pin Cap before installation, and make good preservation for future use. When

the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be

damaged.

Note2: The motherboard might equip with two different types of pin cap. Please refer below

instruction to remove the pin cap.

Step 2: Pull the socket locking lever out from the socket then raise the

lever and load plate to the fully open position.

Step 3: Remove the Pin Cap.

Motherboard Manual

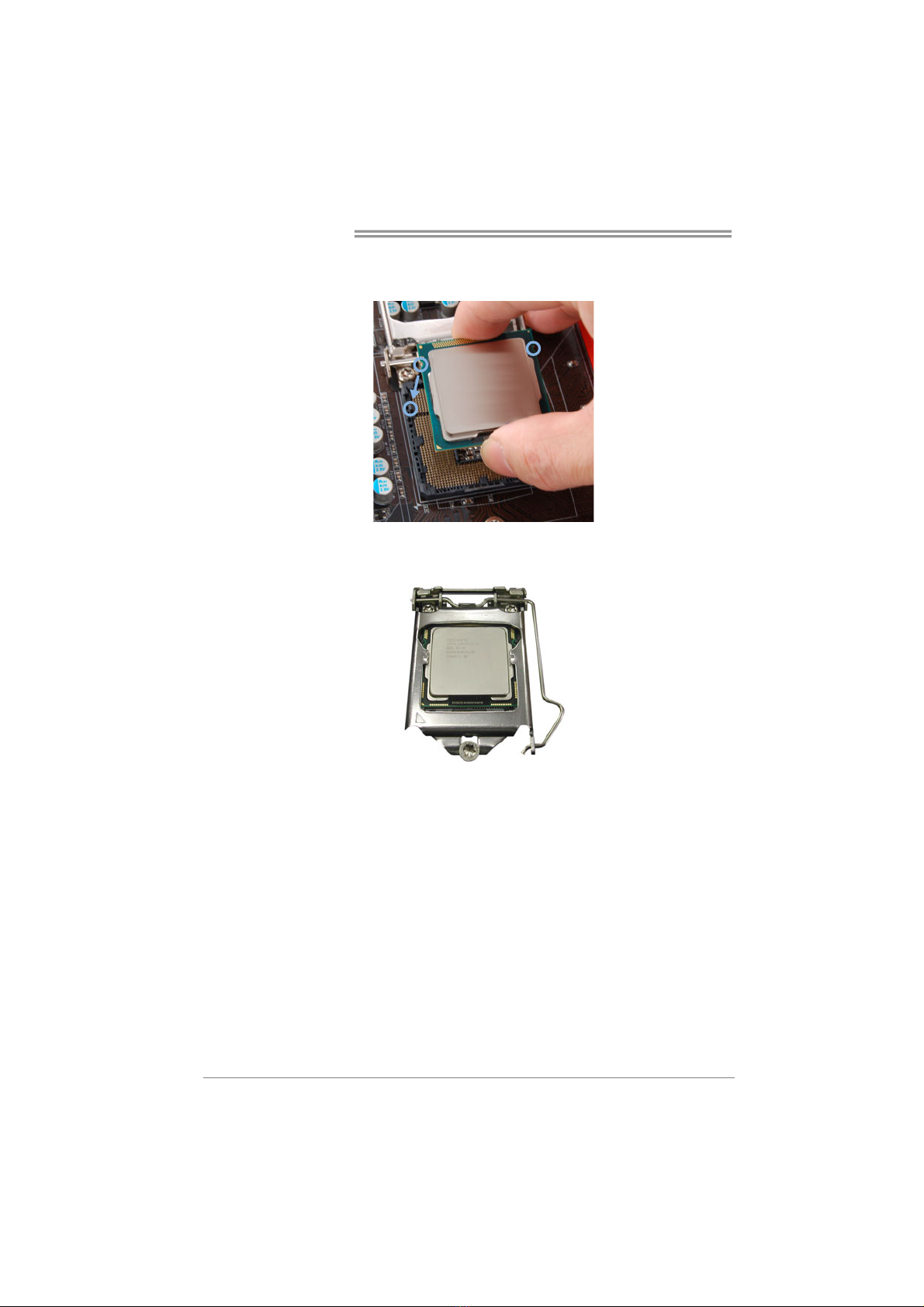

Step 4: Hold processor with your thumb and index fingers, oriented as

shown. Align the notches with the socket. Lower the processor

straight down without tilting or sliding the processor in the socket.

Step 5: Close the load plate. Pressing down on the load plate, close and

engage the socket lever.

H61MHP/H61MGP/H61MLP/H61MGP2

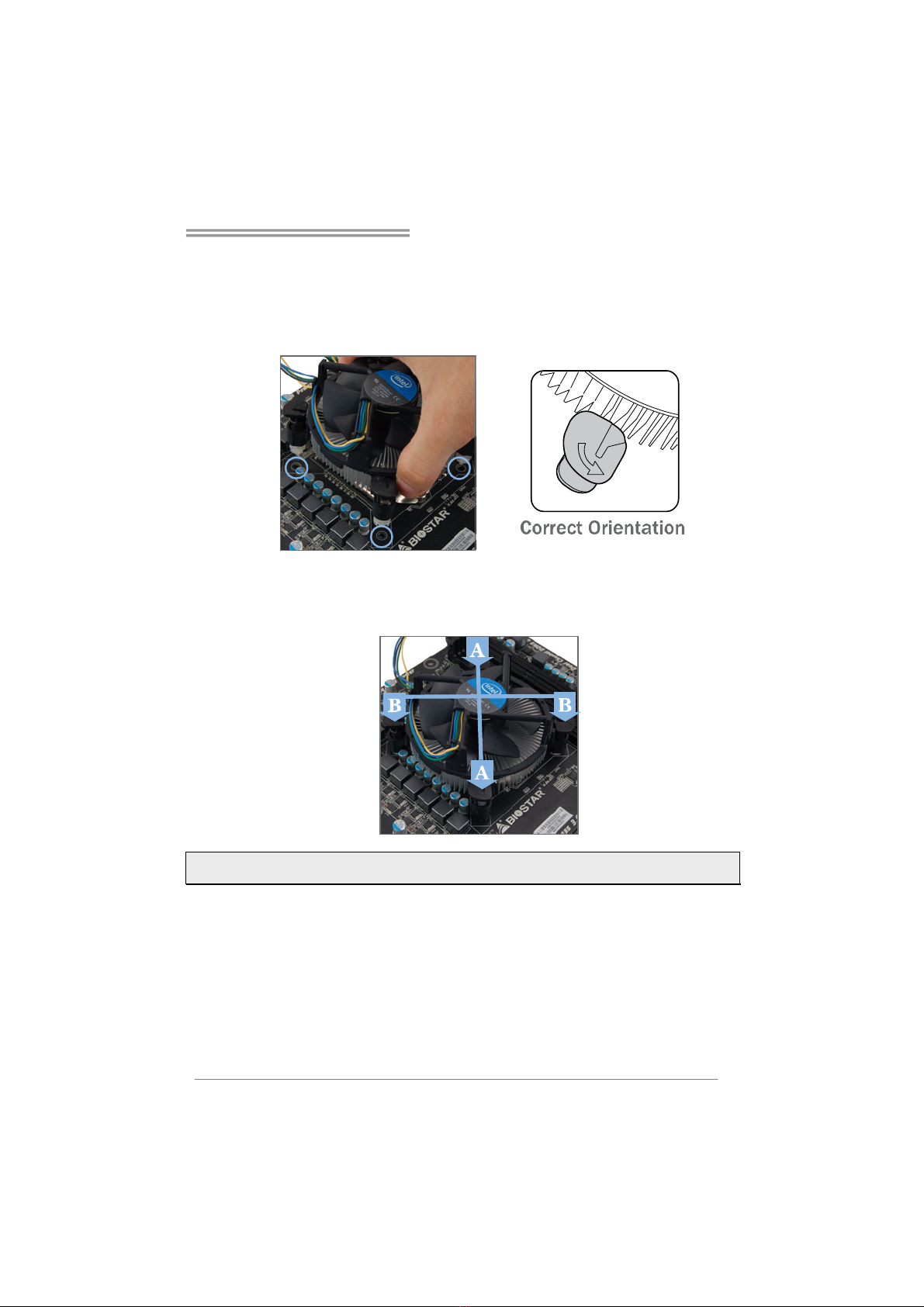

2.2 Install a Heatsink

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure

that the four fasteners match the motherboard holes. Orient the assembly

and make the fan cable is closest to the CPU fan connector.

Ensure the fastener slots are pointing perpendicular to the heatsink.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure

the CPU fan assembly in place. As each fastener locks into position a click

should be heard.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU heatsink.

Motherboard Manual

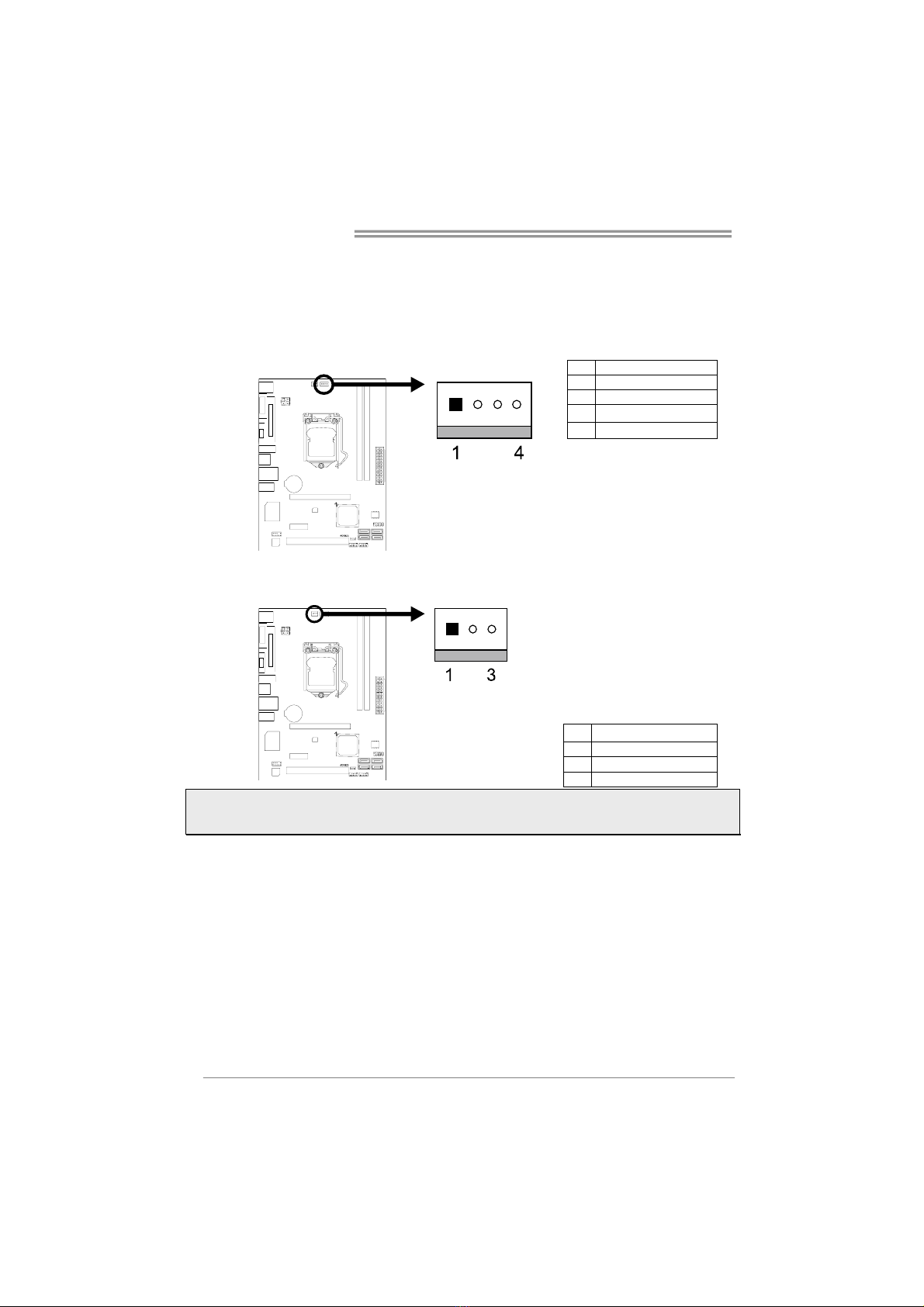

2.3 Fan Headers

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer. Connect the fan

cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3FAN RPM rate sense

4 Smart Fan Control

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: CPU_FAN1, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting with

wires onto connectors, please note that the red wire is the positive and should be connected to

pin#2, and the black wire is Ground and should be connected to pin#1(GND).

Altri manuali per H61MHP

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar TA790GX M2 PLUS - BIOS Guida utente

Biostar

Biostar M5VNB Manuale utente

Biostar

Biostar Hi-Fi K1-I Guida utente

Biostar

Biostar M7VKF Manuale utente

Biostar

Biostar A780L3L Guida utente

Biostar

Biostar M6TSB Manuale utente

Biostar

Biostar P4SDP Manuale utente

Biostar

Biostar U8668-D Manuale utente

Biostar

Biostar 945GC MICRO 775 Guida utente

Biostar

Biostar NF720D A2G PLUS - BIOS Manuale utente

Biostar

Biostar G41-DVI Guida utente

Biostar

Biostar H61MGE Guida utente

Biostar

Biostar M6VLQ Grand Manuale utente

Biostar

Biostar 945GC-230 - BIOS Manuale utente

Biostar

Biostar TZ68A Manuale utente

Biostar

Biostar M6VBA Manuale utente

Biostar

Biostar P4SDP Manuale utente

Biostar

Biostar P4VMA-M Istruzioni per l'uso e l'installazione

Biostar

Biostar P4TGV-R Manuale utente

Biostar

Biostar M7NCG Guida utente

Biostar

Biostar N68S3PLUS - BIOS Manuale utente

Biostar

Biostar X570GT Ver. 6.x Manuale utente

Biostar

Biostar TPOWER X58 - BIOS Manuale utente

Biostar

Biostar P4VMA-M Guida utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
